products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

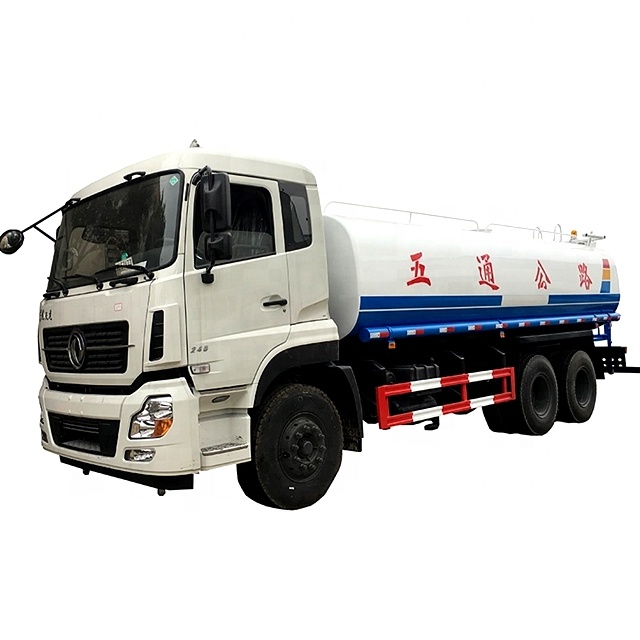

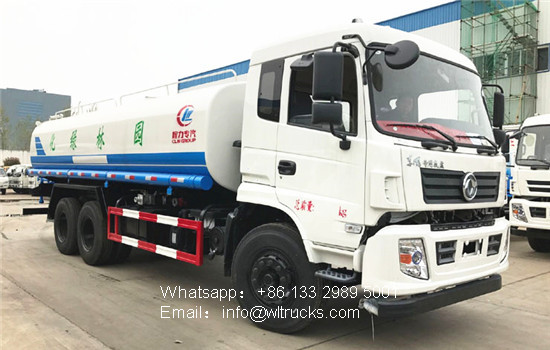

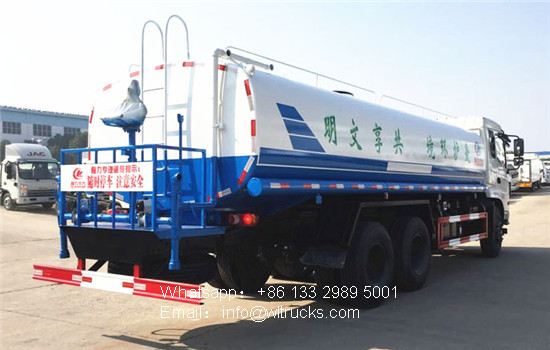

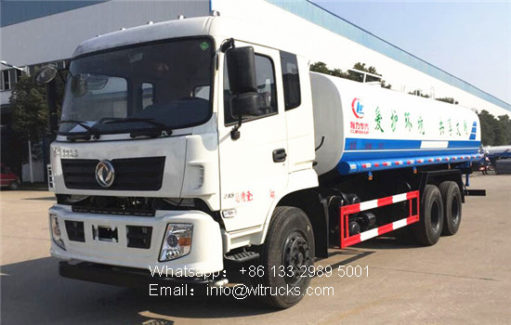

6×4 Dongfeng 20 ton to 25 ton water spray truck Specification:
|

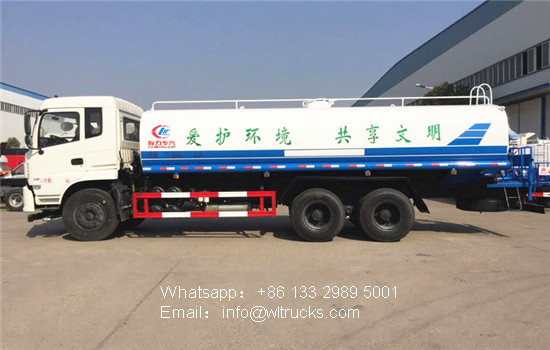

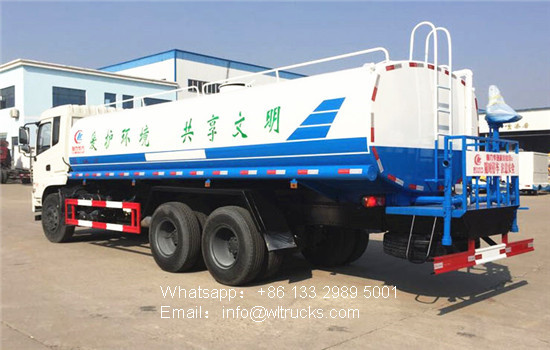

Technical parameters of Dongfeng special 20- ton water tank truck
|
|||
|
Tank volume
|
20 cubic meters ( tons )
|
Sprinkling width
|
15 meters
|
|
Water cannon head
|
30 meters
|
Vertical suction
|
7 meters
|
|
Pump flow
|
20 cubic meters / hour
|
Pump head
|
90 meters
|
|
Total mass
|
25000 ( kg )
|
Load quality
|
14345 ( kg )
|
|
Curb quality
|
10460 ( kg )
|
Dimensions
|
10.0 × 2.48 × 3.2m
|
|
Tank size
|
6.9 × 2 .4 × 1 . 5 m
|
Number of passengers
|
3 (person)
|
|
Dongfeng special 20 tons sprinkler chassis technical parameters
|
|||
|
Chassis name
|
Dongfeng special
|
Chassis model
|
EQ1250
|
|
Number of axes
|
3
|
Number of tires
|
11 (including spare tire)
|
|
Wheelbase (mm)
|
4350+1350
|
Tire specifications
|
11.00R
|
|
Gearbox
|
8 files
|
Front and rear bridge
|
5/10 tons
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission Standards
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine company
|
Displacement (ml)
|
horsepower
|
|
ISB210 50
|
Dongfeng Cummins
|
5900
|
220
|
|
Dongfeng special 20- ton sprinkler tops basic configuration
|
|||
|
The standard configuration
|
Dongfeng 20tons sprinkler tank material is thick 5mm WISCO high quality sheet, sprinkler pump, sprinkler cannon, work platform, power take-off, front punch, back sprinkler, universal nozzle, gravity valve, filter, distribution valve, nozzle, With self-priming self-discharging function.
|
||
|
Optional configuration
|
The Dongfeng 20- ton sprinkler can be equipped with advanced facilities such as anti-corrosion medicinal plates, medicine pumps, anti-corrosion rust in the tank, multi-directional inlet and outlet joints, solenoid valves, pneumatic valves, etc. to meet the needs of different users.
|
||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
