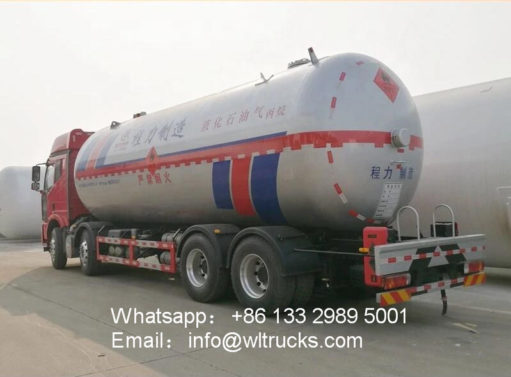

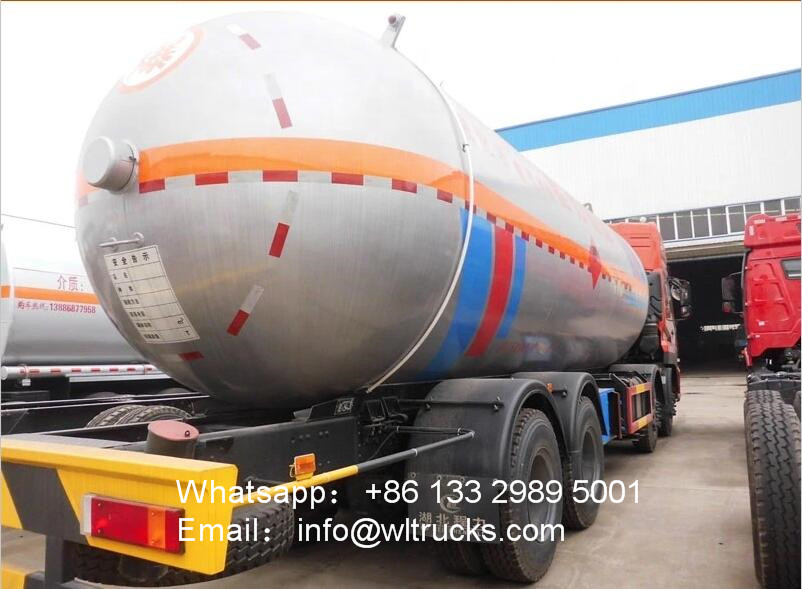

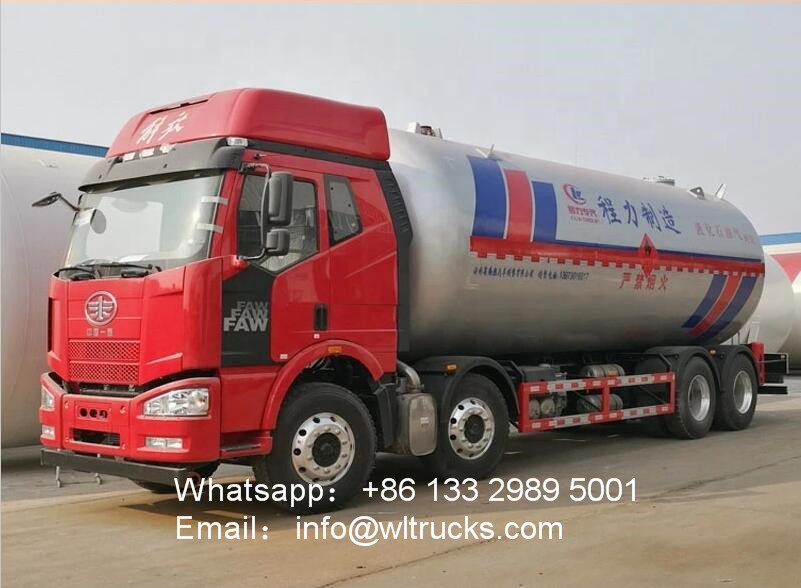

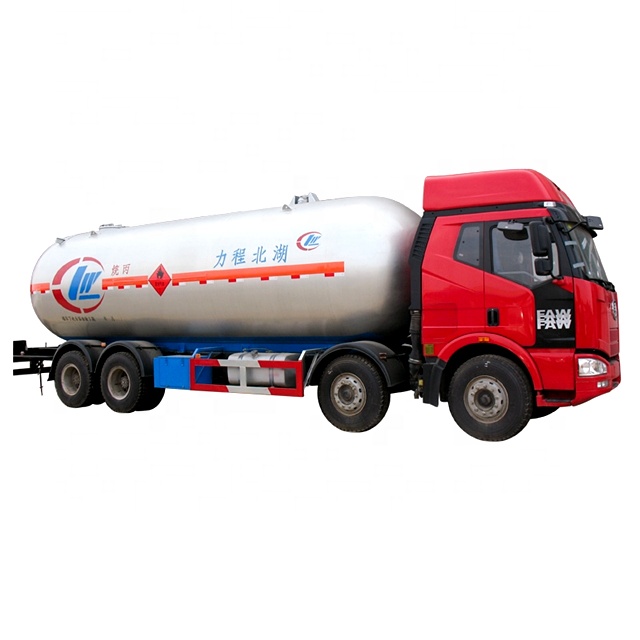

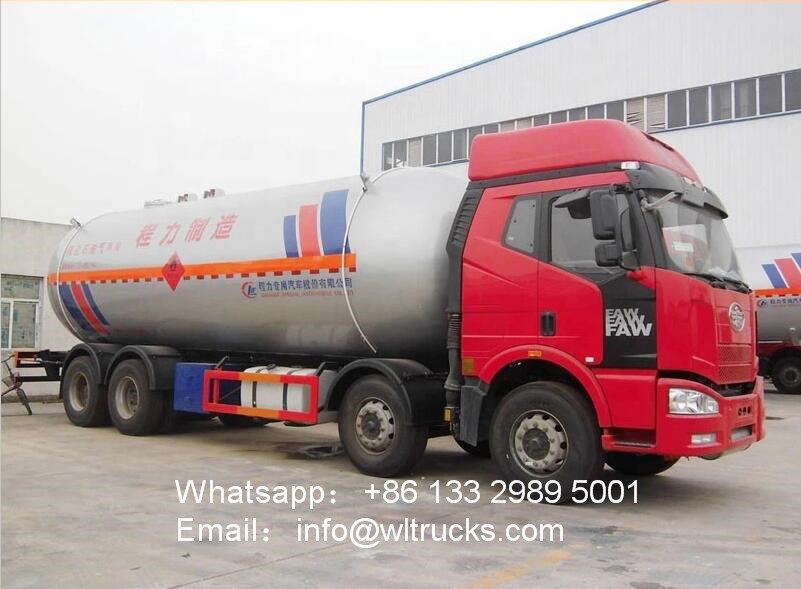

We produce the 8×4 FAW 35000l mobile lpg filling truck which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
China Lpg trucks Product Description:
1) Truck Brand : Howo,Dongfeng, faw, isuzu,foton,JAC,JMC,Shacman.etc
2) Tank Size: 3000liter to 35000liters
3) Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4) Refiling System : 2″ Flowmeter or intelligent filling dispenser machine, 2″ Corken or Chinese brand Pump,15meters Filling Hose Reel
5) Truck Spec: 4×2,4×4,6×4,6×6,6×2,8×4
6) tank material:Q345R Q370R SA516
8×4 FAW 35000l mobile lpg filling truck specification:
| Driving Model | 8*4 Model, Left Hand Driving | |||
| Cab | FAW Standard Cab, With Two Seats, One Sleeper Bed, Air Conditioner. 70°Hydraulically Tillable To The Front. | |||
| Chassis | Curb Weight(Kg) | 14000 | ||
| Gross Vehicle Weight(Kg) | 31000 | |||
| Overhang (Front/Rear) (mm) | 1500/2280 | |||
| Max. Driving Speed(km/h) | 90 | |||
| Brand | FAW | |||
| Tire | Number | 12 Pieces With One Spare Tire | ||
| Specifications | 12R22.5 Tubeless Tires | |||
| Clutch | Reinforced Diaphragm Clutch | |||
| Gear Box | Manual Type, 10 Forwards & 2 Reverses | |||
| Engine | Brand | Dachai | ||
| Model | CA6DK1-32 | |||
| Type | Diesel Type, 4 Stroke Direct Injection, 6 Cylinder In Line With Water Cooling, Turbo Charging And Inter-Cooling | |||
| Horsepower | 320HP | |||
| Emission Standard | Euro II | |||
| Brakes | Service Brake: Dual Circuit Compressed Air Brake Parking Brake: Spring Energy, Compressed Air Operating On Rear Wheels Auxiliary Brake: Engine Exhaust Valve Brake |
|||
| Steering Gear | Power Steering, Hydraulic Steering With Power Assistance | |||
| Fuel Tanker | ||||
| Volume Of Tank | 35M3/35000 Liters | |||
| Tank Material | Q235 High Tension Carbon Steel | |||
| Tank Thickness | 5 mm | |||
| Standard Equipment | Manhole Cover | |||
| Sea Valve (Emergency Cut Off Valve) | ||||
| Ball Valves For Gravity Discharging | ||||
| Equipped With The Ladder On Tank Top Walkway And Backside | ||||
| Lifting Guardrail On The Top Of Tank | ||||
| Tank Color | Customized Tank Color | |||
| Tank Logo | Paint Customer’s Logo or Advertisement on Tank | |||
Lpg trucks Different designs:
Type 1-with volume flow meter,lpg pump and 15 meters filling hose.
Type 2-with lpg dispenser machine,lpg pump and 15 meters filling hose.
Type 3-with lpg filling scales,lpg pump and 15 meters filling hose.
ChengLi lpg gas truck details:
lpg delivery truck type exhibition：
lpg tanker truck Production Process：
FAQ:
Q1: What is your product name?
A:Chengli 2ton to 15 tons lpg tanker truck
Q2: What size can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm, the most popular size is 5000liters, 10,000liters, 15000liters and 20,000liters.
Q3: What’s the production standard?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province,central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
Our customers are located in 127 countries and regions around the world
