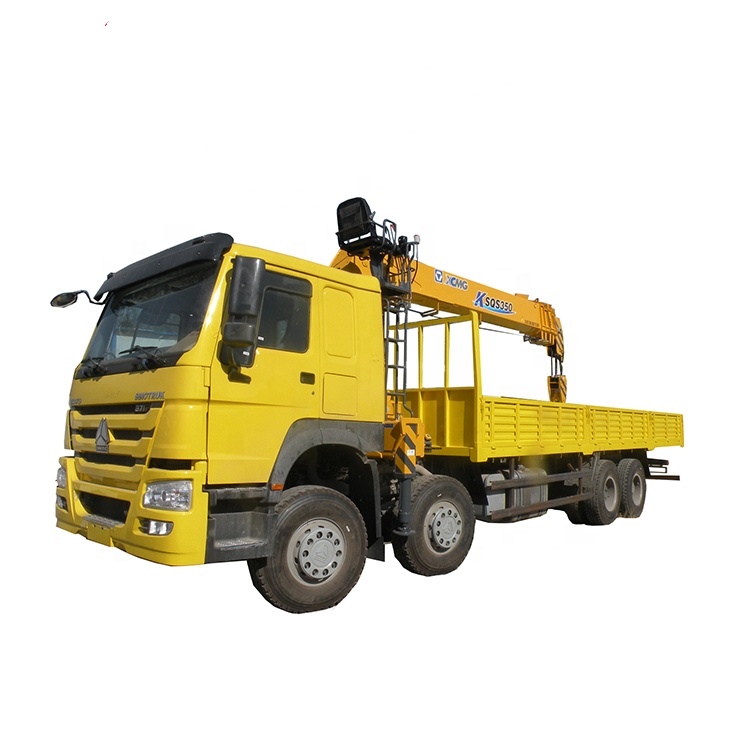

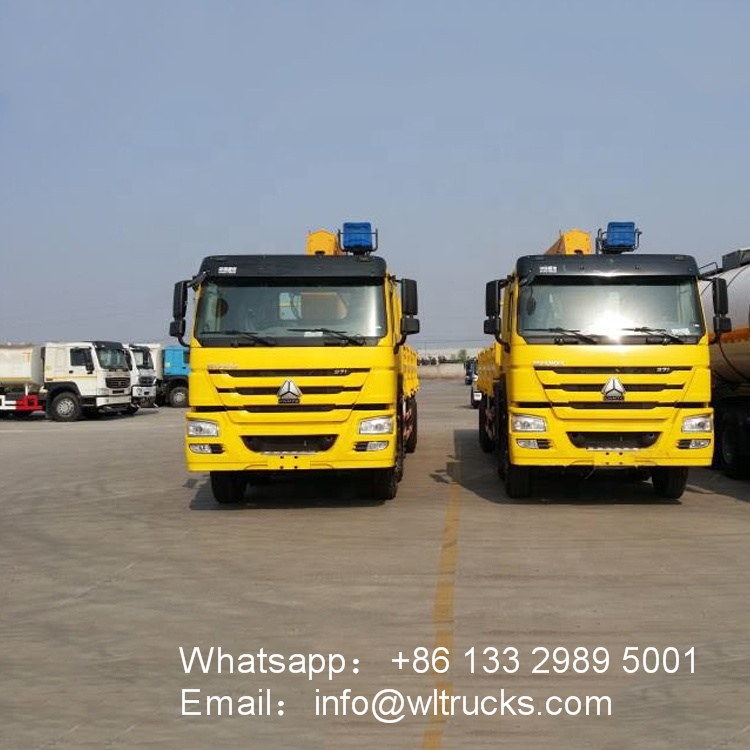

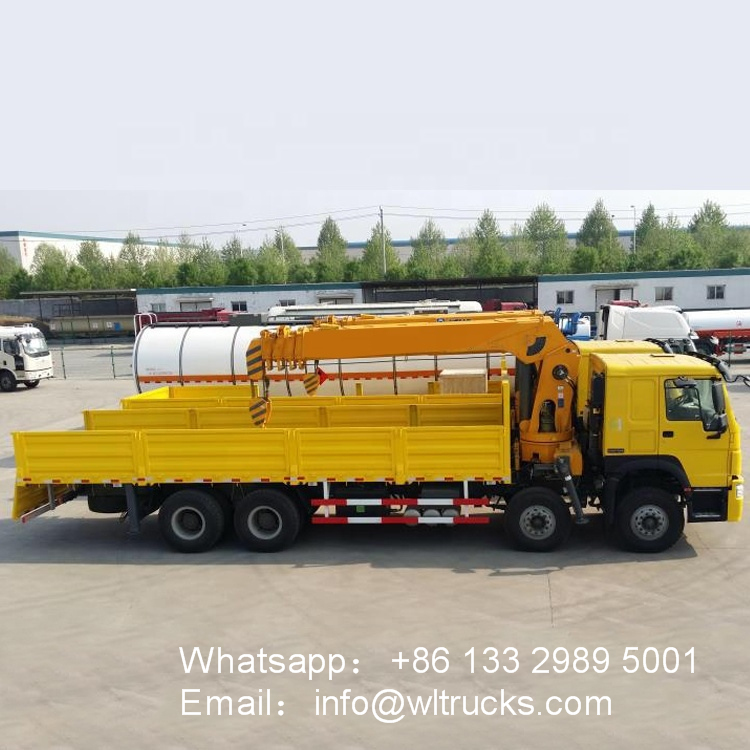

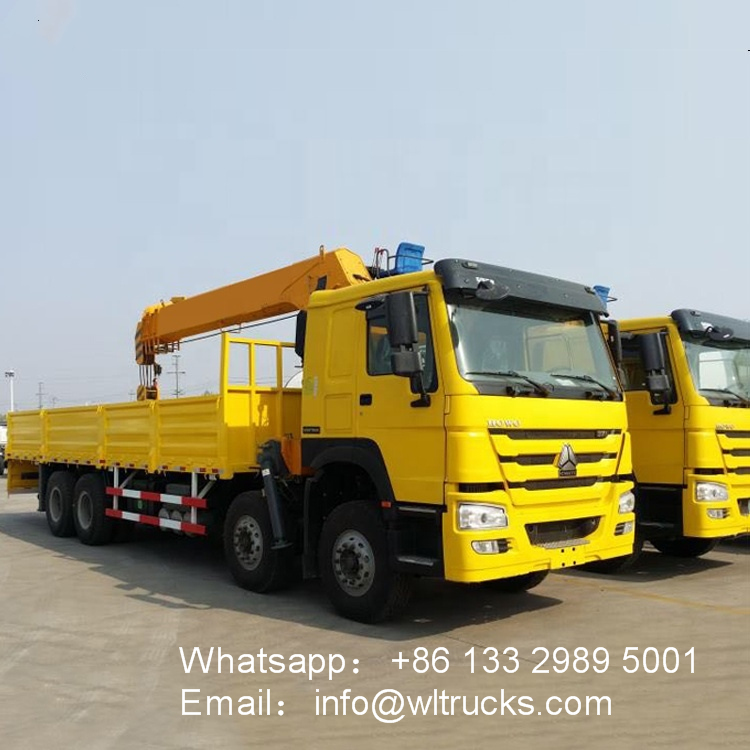

8×4 HOWO 14ton to 16ton cargo crane truck
8×4 HOWO 14ton to 16ton cargo crane truck Adopt 12wheels Howo A7 luxury cab, Sinotruk 370 horsepower engine, ten speed gearbox, 10 tons rear axle, 1200 tires, standard cargo box can be made into 8.5 meters manual telescopic or hydraulic telescopic cargo box, the rear can be equipped with a ladder , Automatic unloading elevator, aerial work and other multifunctional trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
8×4 HOWO 14ton to 16ton cargo crane truck specification:
| SPECIFICATION FOR CRANE | |||
| Max Lifting Capacity | 12000 kg | ||
| Max Lifting Moment | 30 T.M | ||
| Max Oil Flow of Hydraulic System | 63 L/min | ||
| Max Pressure of Hydraulic System | 26 MPa | ||
| Rotation Angle | All Rotation | ||
| Max.Working radius (m) | 12.5 m | ||
| Supporting Leg |
Four Supporting Leg with Hydraulic Control (Including Two Rear Supporting Legs) |
||
| SPECIFICATION FOR CHASSIS | |||
| Dimension(Lx W xH)(unloaded)(mm) | 12484×2496×4125 | ||
| Loading Capacity (Ton) | 31 Ton | ||
| Cargo body size (LxWxH) (mm) | 8700×2300×600 ,Bottom 3 mm, Side 2 mm | ||
| Approaching angle/Departure angle(°) | 16/14 | ||
| Overhang(front/rear) (mm) | 1500/2734 | ||
| Wheel base (mm) | 1800+4600+1350 | ||
| Max speed(km/h) | 102 | ||
| Curb weight(kg) | 18876 | ||
| Engine(Steyr technology, made in China) | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 371HP | ||
| Emission | EUROII | ||
| Fuel tanker capacity(L) | 400L aluminum oil tank | ||
| Transmission | Model | HW19710, 10 speeds forward and 2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Steering system | Model | ZF8118 | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tire | 12.00R20 (Radial Tyre) | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
8×4 HOWO 14ton to 16ton cargo crane truck Working parameter:
