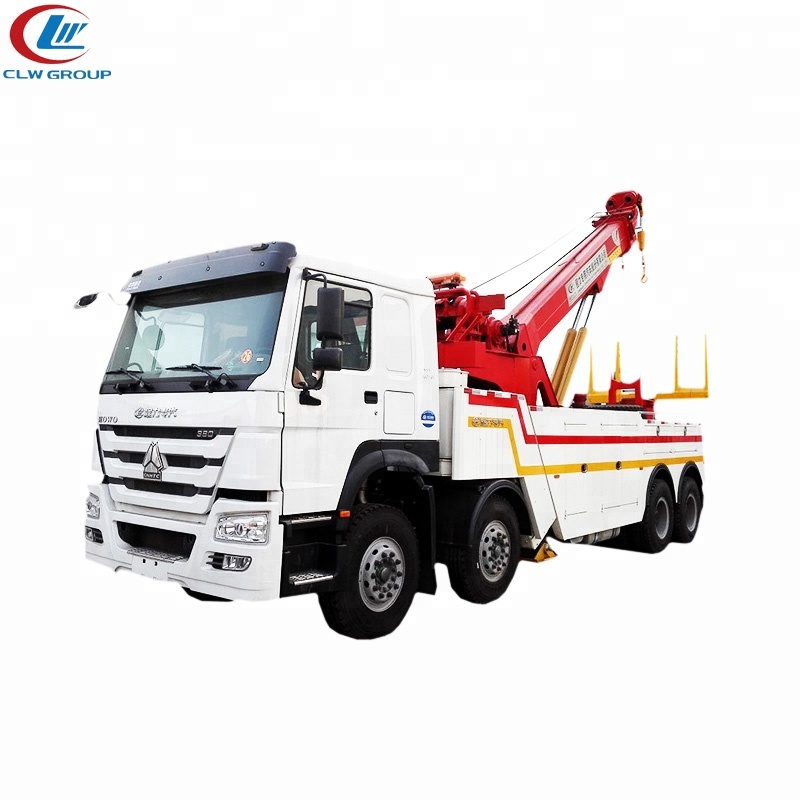

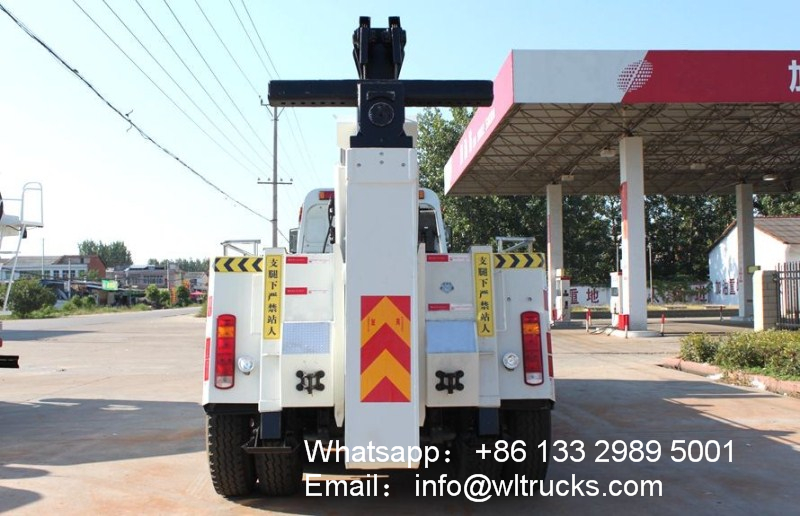

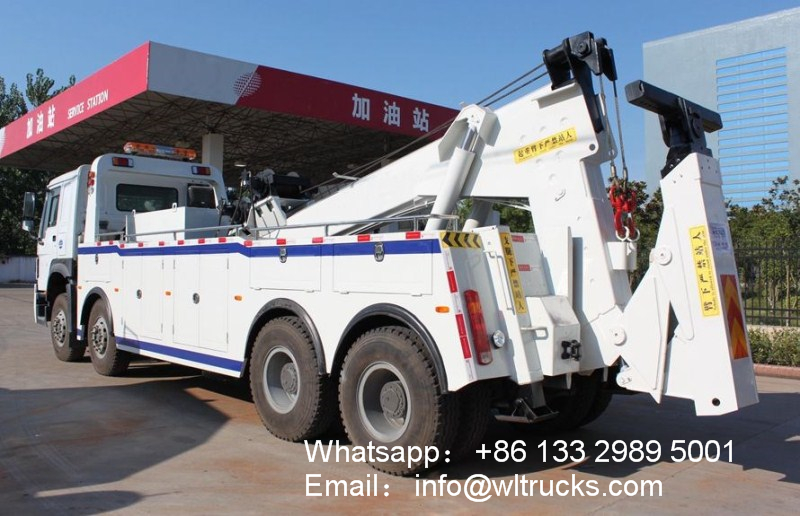

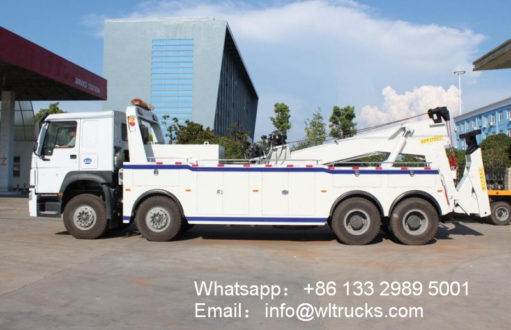

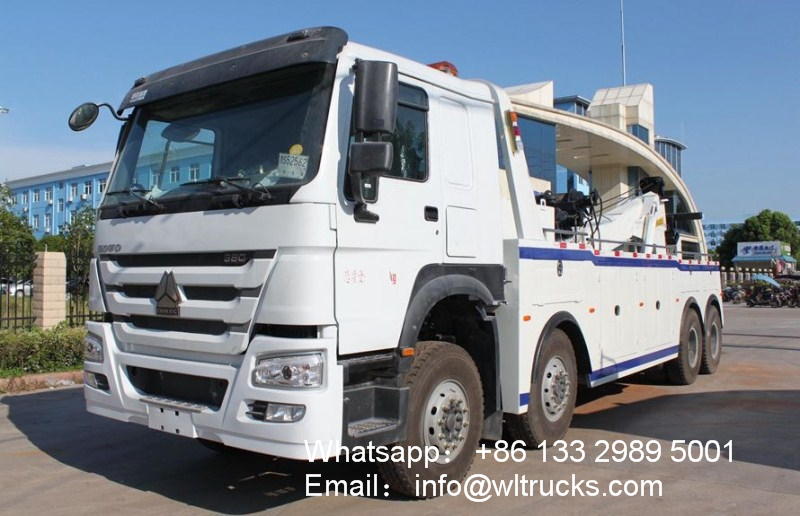

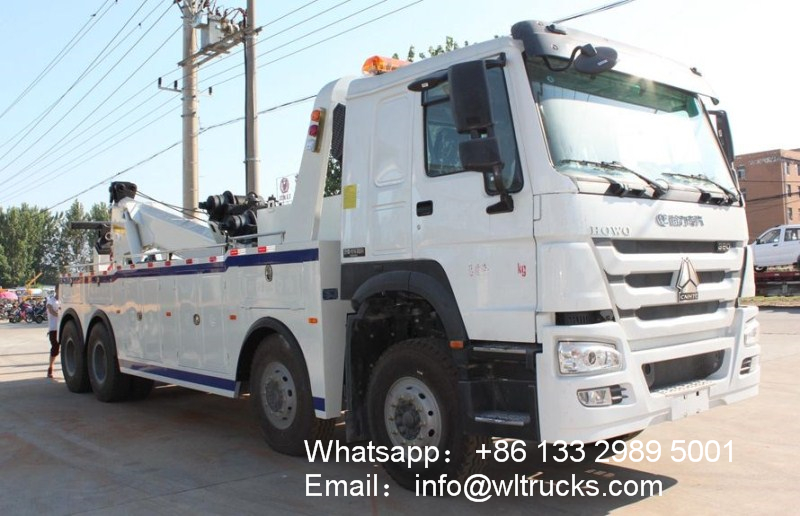

12 wheel HOWO 40ton to 50ton Heavy duty wrecker truck
12 wheel HOWO 40ton to 50ton Heavy duty wrecker truck Chassis：
adopts Sinotruk Howo chassis, half-row cab, original air conditioner in cab, Howo 380 horsepower engine, 10-speed gearbox, wheelbase 1800 + 4600 + 1350mm, 12.00R20 original steel tire, original abs, air brake .
12 wheel HOWO 40ton to 50ton Heavy duty wrecker truck Bodywork：
Shaanxi Automobile Delong front four rear eight heavy-duty wrecker, 20T MAN bipolar conjoined bodywork (can be installed with a reinforced configuration of 25 tons), two-section six-sided boom, three-section support arm, split carriage, imported Hydraulic system, double-sided linkage operation, a set of remote control operation device, the front bumper is equipped with counterweight, the trailer performance is more stable.
Equipped with two 10 tons hydraulic winches, 45 meters of steel wire rope, diameter 18mm, equipped with 4 sets of steel forks, a set of steel plate lugs, a set of U-shaped tire holding device, a set of tools on board, a set of auxiliary lights A set of auxiliary trachea assembly, with a long yellow LED warning lights.
12 wheel HOWO 40ton to 50ton Heavy duty wrecker truck specification:
| Vehicle technical parameters | |||
| product name | Wrecker | Dimensions | 10.96×2.5×3.27 meters |
| Total quality | 31 tons | Curb quality | 24.87 tons |
| Winding specifications | 30 tons | Tops | 30 tons |
| Chassis technical parameters | |||
| Chassis name | Sinotruk Howo | Chassis model | ZZ1317N4667D1H |
| Number of axes | 2 | Number of tires | 13 |
| Wheelbase | 1.8 + 4.6 + 1.35 meters | Tire specifications | 12.00R20 |
| Gearbox | 10 files | Rear axle | 16 tons |
| Fuel type | Diesel | brake | Air brake |
| Emission Standards | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| D10.38-40 | Sinotruk Group | 9726 | 380 horsepower |
| Basic upload configuration | |||
| Standard configuration | 25 tons of conjoined bodywork, with 15 tons x2 hydraulic winch, 45 meters steel wire rope, 4 sets of steel forks, a set of trailers, a set of steel plate lugs, a set of tire protection devices, a set of tools on board, auxiliary lights One set of assembly, one set of auxiliary trachea assembly, and one set of yellow long-row engineering warning lights. | ||
12 wheel HOWO 40ton to 50ton Heavy duty wrecker truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
