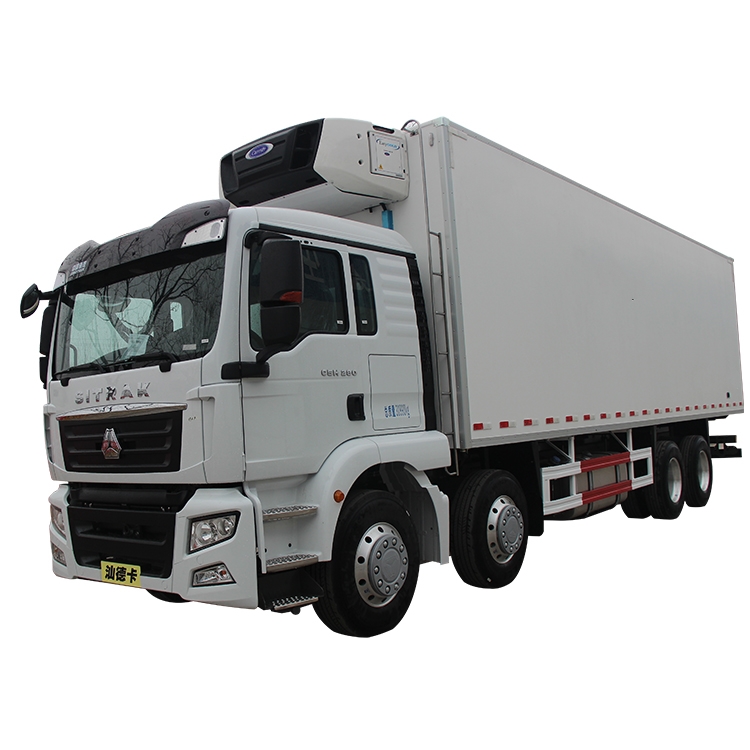

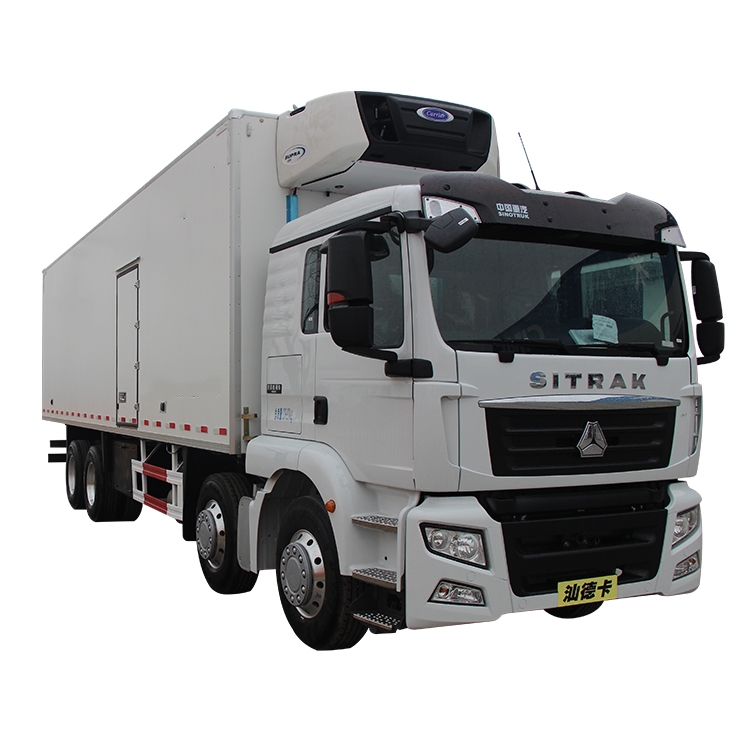

30ft Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck
Adopt 8X4 Howo A7 luxury cab, Sinotruk 370hp engine, 10-speed gearbox, 1100R20 tires, cargo box size: 9450 * 2440 * 2400 (mm) cabinet body is made of fiberglass, 8 cm thick polyurethane insulation outside, stainless Door locks, double rear doors and optional 5 to 18 degree cooling.
Stainless steel ventilation slots, meat hooks, rails, non-slip aluminum pattern plates can be installed inside the refrigerator, and side doors can be added.
Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck specification:
| Main parameters | |||
| Product | HOWO 8×4 refrigerated truck | ||
| Gross weight (kg) | 31000 | Overall dimensions | 12000*2550*4000 |
| Loading weight(kg) | 17890 | Cargo Dimension | 9420*2330*2490 |
| Curb weight(kg) | 12980 | Allowable passengers in cab | 2,3 |
| Approach/Departure Angle(°) | 19 /14 | Front / rear suspension(mm) | 1430/2820 |
| Number of axles | 4 | Wheelbase (mm) | 1800+3800+1350 |
| Axle-load(Kg) | 6500/7000/17500 | Max speed(km/h) | 110 |
| Chassis parameters | |||
| Chassis model | ZZ1317N466GE1 | ||
| Brand | HOWO | ||
| Overall dimensions | 10870*2496*3035 | Tire number | 12 |
| Approach/Departure Angle(°) | 19/19 | Tire specification | 295/80R22.5 |
| Number of Spring leafs | 11/11/10 | Front tread(mm) | 2015/2015 |
| Fuel type | diesel | Rear tread(mm) | 1830/1830 |
| Emission standard | Euro 5 | ||
| Engine model | Displacement(ml) | Power(kw) | |
| MC07.28-50 | 6870 | 206 | |
| others | with air conditioner | ||
| Refrigerated Truck Body Specification | |||
| Refrigerated truck bodies adopt FRP sheet in two sides and Polyurethane foam in the core. The truck bodies equipped with double rear door in back. Without side door. |
|||
Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck New craft:
Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck Optional configuration:

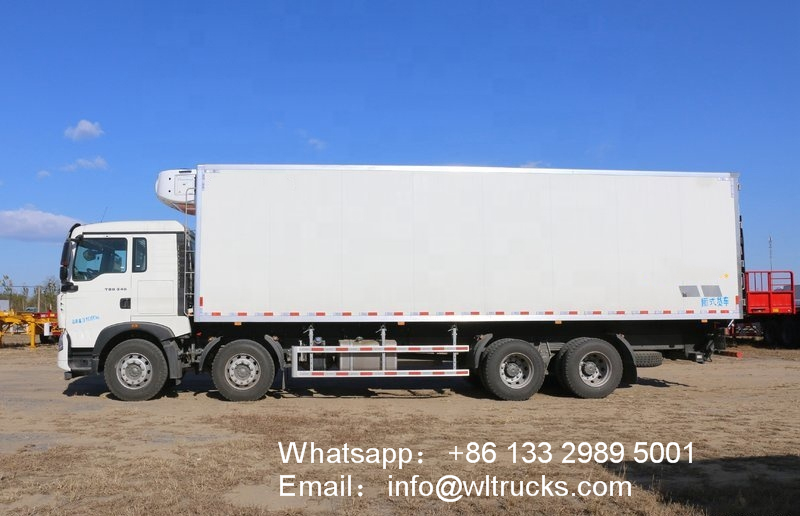

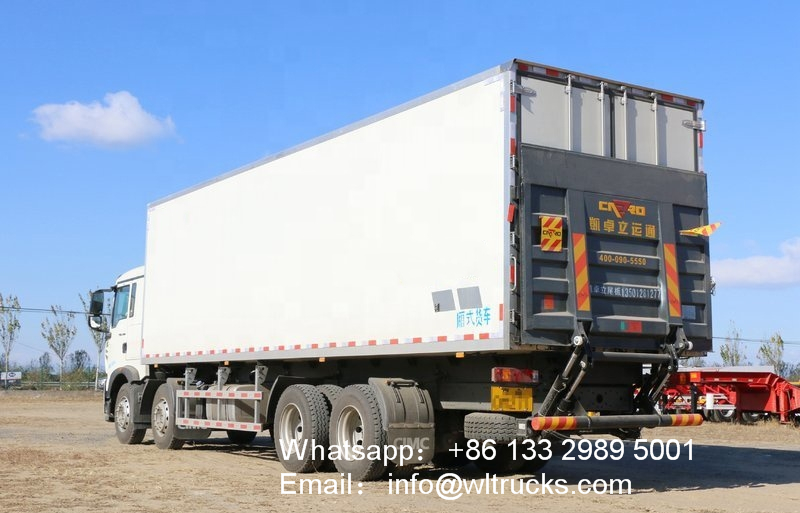

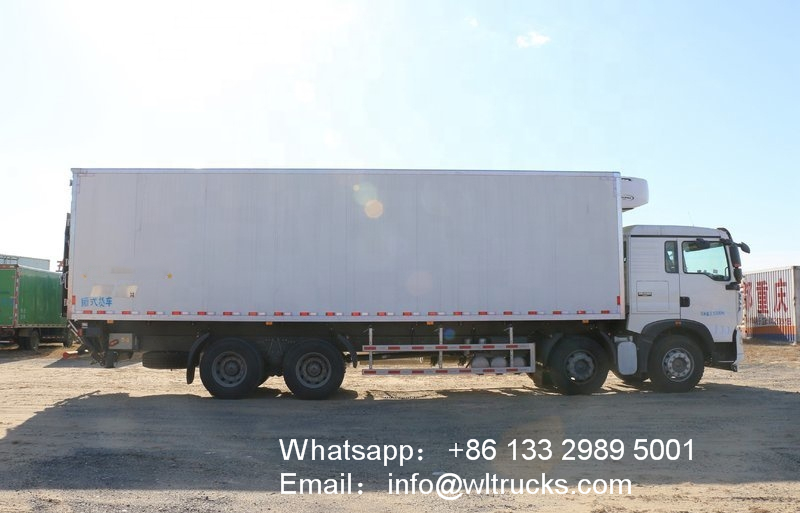

Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck Bodywork details:
Sinotruk HOWO 25 ton to 30 ton refrigerator freezer truck Internal details:

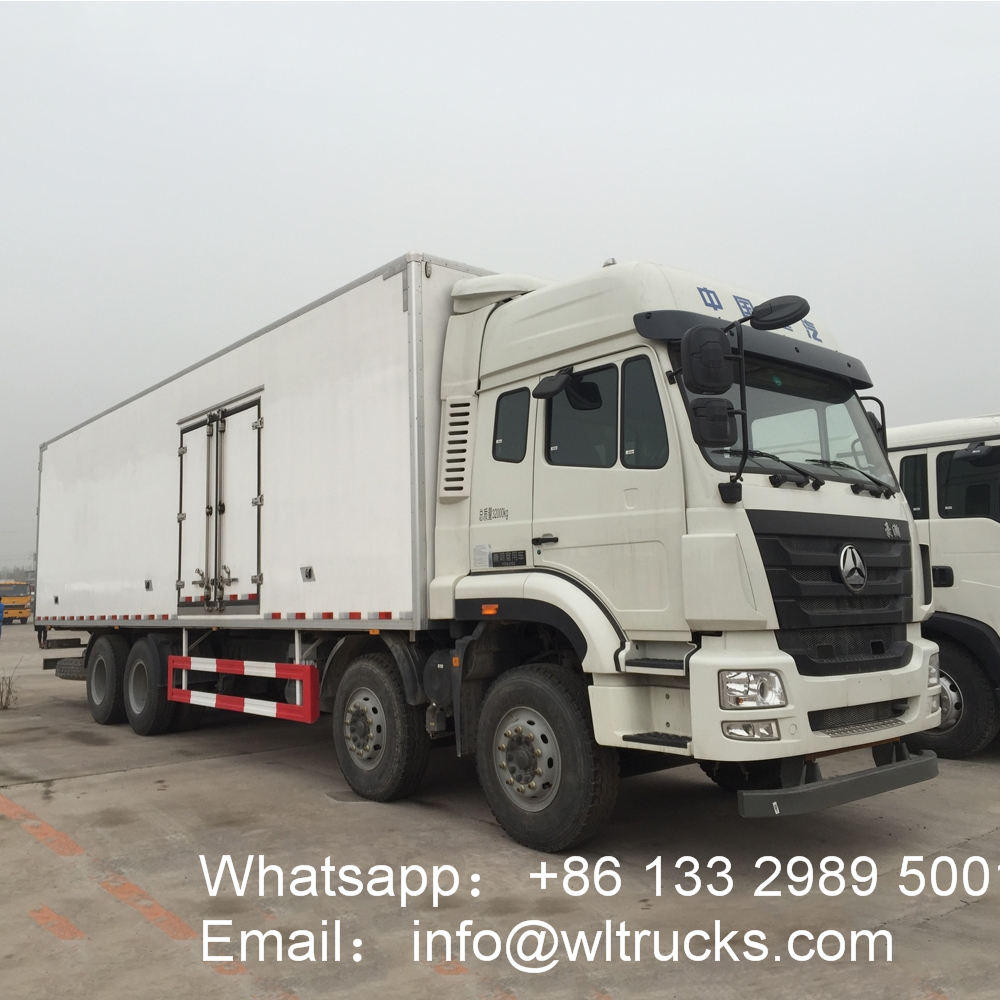

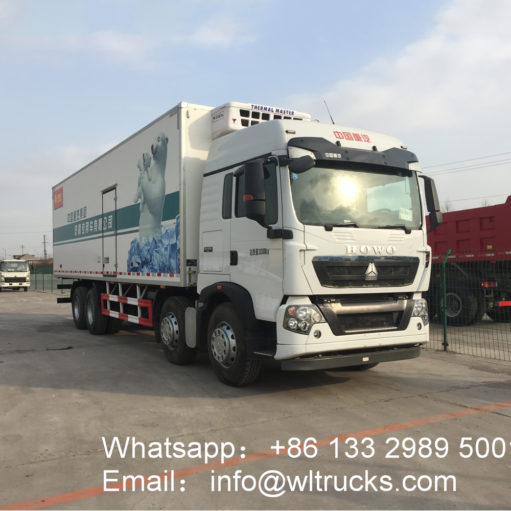

Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
