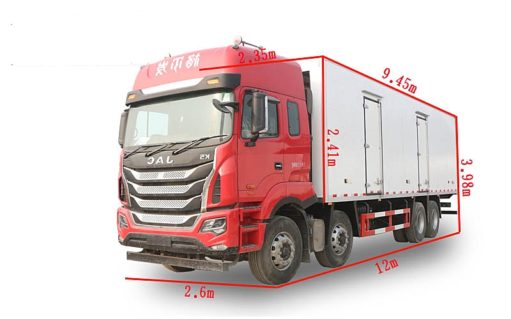

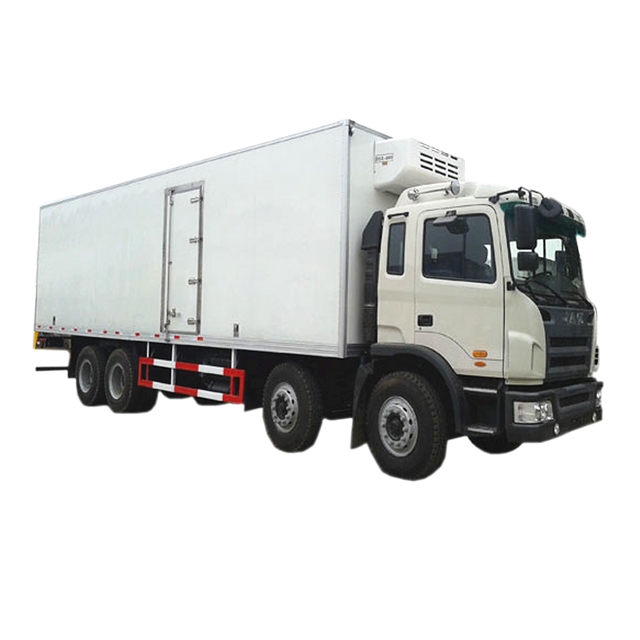

8×4 JAC 25 ton to 30 ton refrigerator box truck
Adopt 8X4 JAC Gerfa luxury cab, Weichai/Xichai 350hp engine, 10-speed gearbox, 1100R20 tires, cargo box size: 9400*2440*2400 (mm) cabinet made of fiberglass exterior, exterior 8 Centimeter thick polyurethane insulation, stainless steel door lock, double rear doors and optional 5 to 18 degree cooling.
Stainless steel ventilation slots, meat hooks, rails, non-slip aluminum pattern plates can be installed inside the refrigerator, and side doors can be added.
8×4 JAC 25 ton to 30 ton refrigerator box truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
8×4 JAC 25 ton to 30 ton refrigerator box truck specification:
|
engine:
|
Xichai CA6DL2-35E5
|
Number of cylinders:
|
6
|
|
Maximum output power:
|
261kW
|
Maximum horsepower:
|
350 hp
|
|
Displacement:
|
8.57L
|
Emission Standards:
|
Eruo 5 |
|
Engine form:
|
In-line, four-stroke, water-cooled, four-valve, supercharged and intercooled
|
Fuel type:
|
Diesel
|
|
Rated speed:
|
2100rpm
|
|
Chassis brand:
|
JAC Gerfa
|
Chassis series:
|
Gelfa K5
|
|
Chassis model:
|
HFC5311XXYP1K4H45V
|
Rear axle speed ratio:
|
4.444
|
|
Number of springs:
|
3/3/12
|
Number of tires:
|
12
|
|
Tire specifications:
|
11.00R20 16PR, 12R22.5 16PR
|
Rear track:
|
1860/1860mm
|
|
Front track:
|
2040/2040mm
|
|
Wheelbase:
|
1900+4500+1350mm
|
Drive form:
|
8X4
|
|
Body size:
|
12×2.55×3.98 meters
|
Front suspension/rear suspension:
|
1.495/2.755 meters
|
|
Rated load:
|
16.37 tons
|
Vehicle weight:
|
14.5 tons
|
|
Maximum speed:
|
95km/h
|
|
Vehicle type:
|
Refrigerated truck
|
Top brand:
|
Chengli
|
|
Vehicle origin:
|
Hefei, Anhui
|
Cargo box size:
|
9.45×2.35×2.41 meters
|
|
Cargo box length:
|
9.45 meters
|
Cargo box width:
|
2.35 meters
|
|
Cargo box height:
|
2.41 meters
|
8×4 JAC 25 ton to 30 ton refrigerator box truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
8×4 JAC 25 ton to 30 ton refrigerator box truck New craft:
8×4 JAC 25 ton to 30 ton refrigerator box truck Optional configuration:

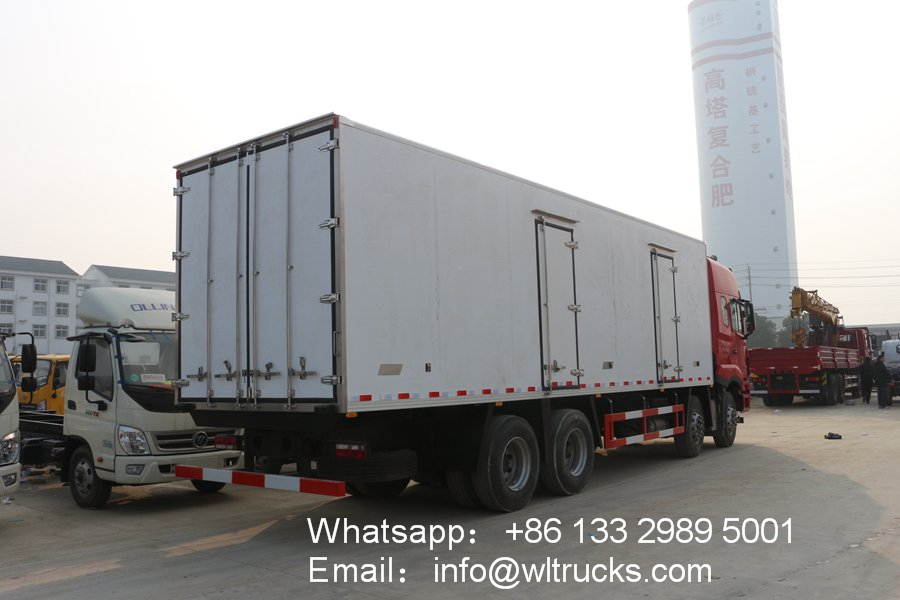

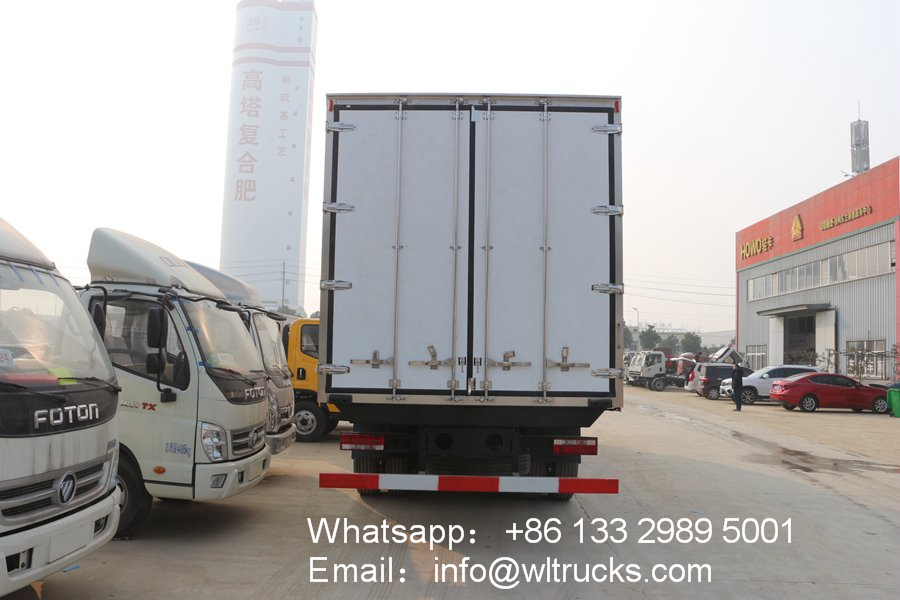

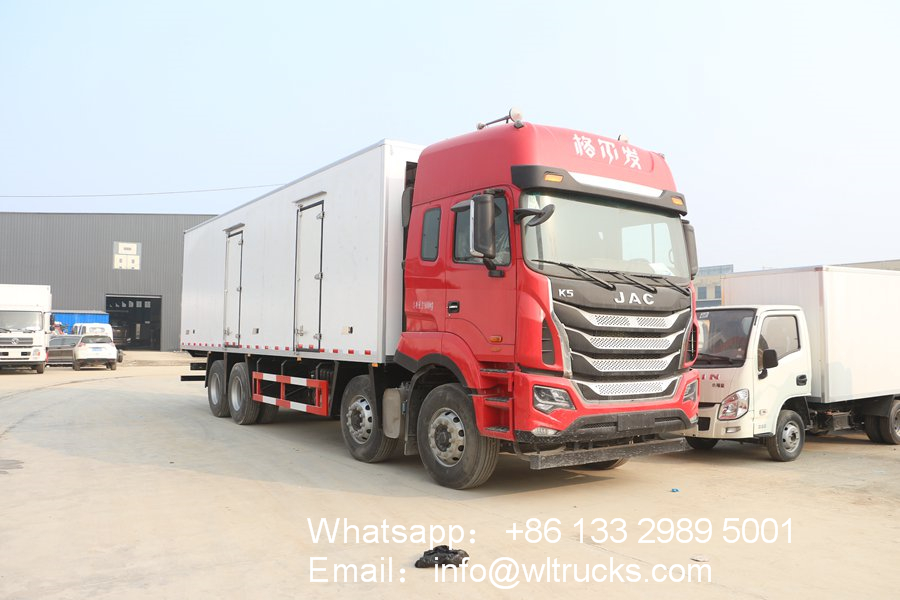

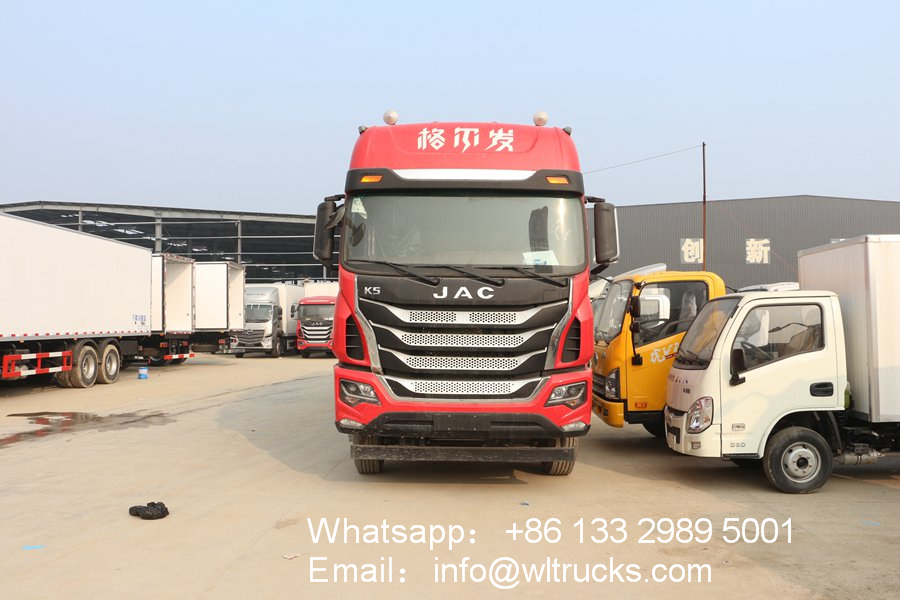

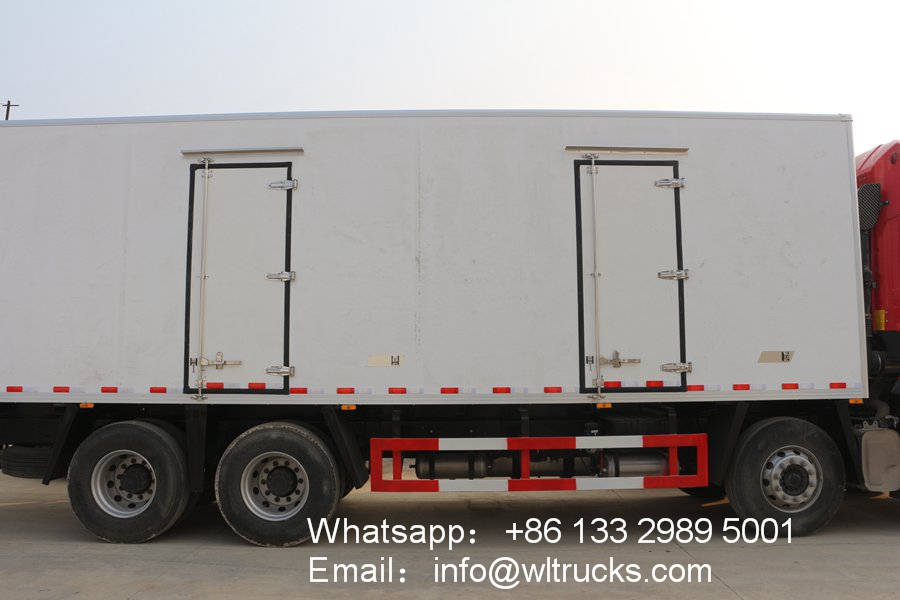

8×4 JAC 25 ton to 30 ton refrigerator box truck Bodywork details:
8×4 JAC 25 ton to 30 ton refrigerator box truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
