Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck Product Description:
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck adopts heavy truck 336 horsepower engine, low fuel consumption and strong power; the cab is full-floating hydraulic shock absorber, airbag seat, comfortable driving; the gearbox is heavy truck with ten gears, less failure and excellent performance; The rear axle is double 10T reinforced type, with fast speed and strong bearing capacity;
The pull arm is independently designed by our company, with its own intellectual property rights OVO brand 30 tons telescopic sleeve arm, well-known brand hydraulic double cylinder (bore 180), Italy Hyde Wulian electric control multi-way valve, Italy casappa high pressure column Plug pump, standard equipped with roller rear legs, wireless remote control + manual operation, reserved hydraulic quick connector interface for dustbin (imported), equipped with 25-35 cubic multifunctional bulk dustbin (hydraulic wingspan cover, hydraulic locking seal back door) / Hydraulic locking and docking rear door) or 18-22 cubic conjoined compression garbage bin (mobile garbage station).
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck Specifications:
|
Specifications for HOWO Hook Lift Garbage Truck
|
|||
|
Cabin
|
Driving Model: 6×4 Left Hand Drive or Right Hand Drive
|
||
|
HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
|
|||
|
Condition: brand new
|
|||
|
Engine
|
Model: SINOTRUK WD615.87
|
||
|
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.
Emission Standard: Euro II
|
|||
|
Displacement: 9.726L
|
|||
|
Transmission
|
HW15710 manual gearbox, 10F & 2R
|
||
|
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
|
|||
|
Steering
|
ZF power steering, model ZF8118, hydraulic steering with power assitance
|
||
|
Front Axle
|
HF9, 1×9000 KGS
Steering with doubleT-cross section beam |
||
|
Rear Axle |
HC16, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8 |
||
|
Brake
|
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
||
|
Electrics |
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
||
|
Tires
|
315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires |
||
|
Fuel Tank
|
400 Liters
|
||
|
Overall Dimension
|
9500*2550*3400 mm
|
||
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck New craft:
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck Optional configuration:

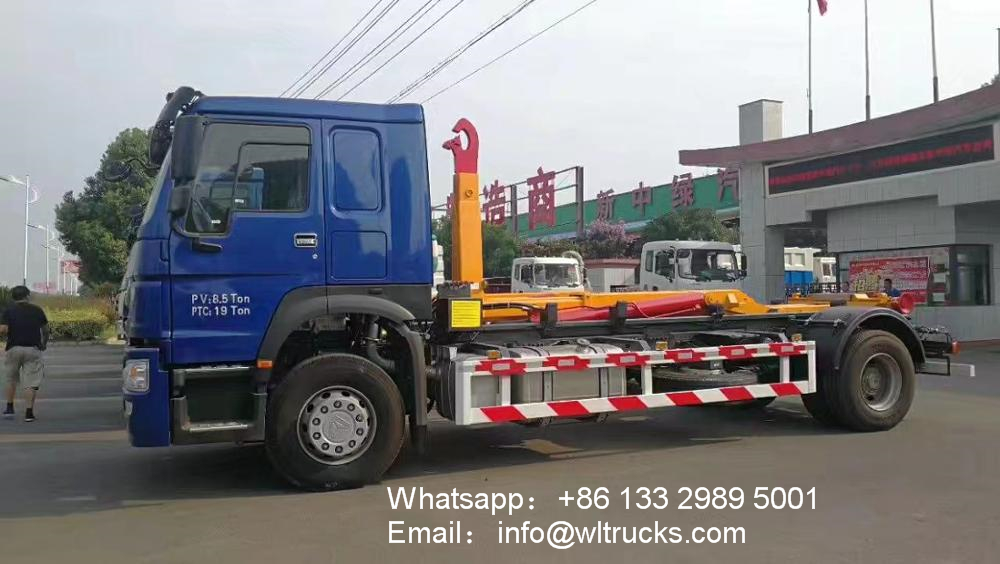

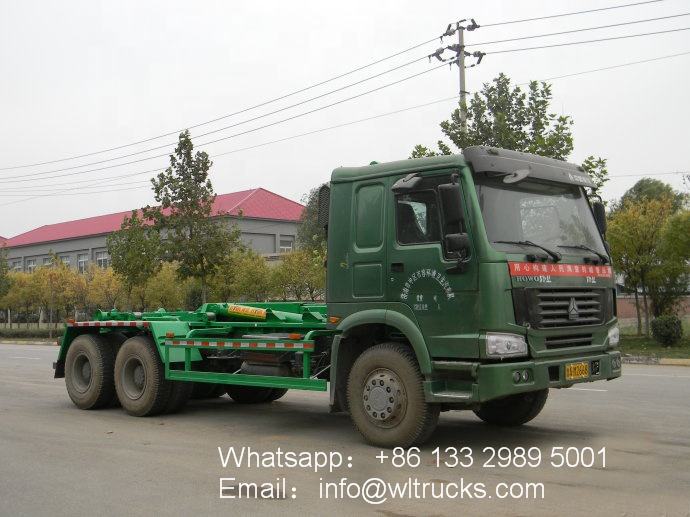

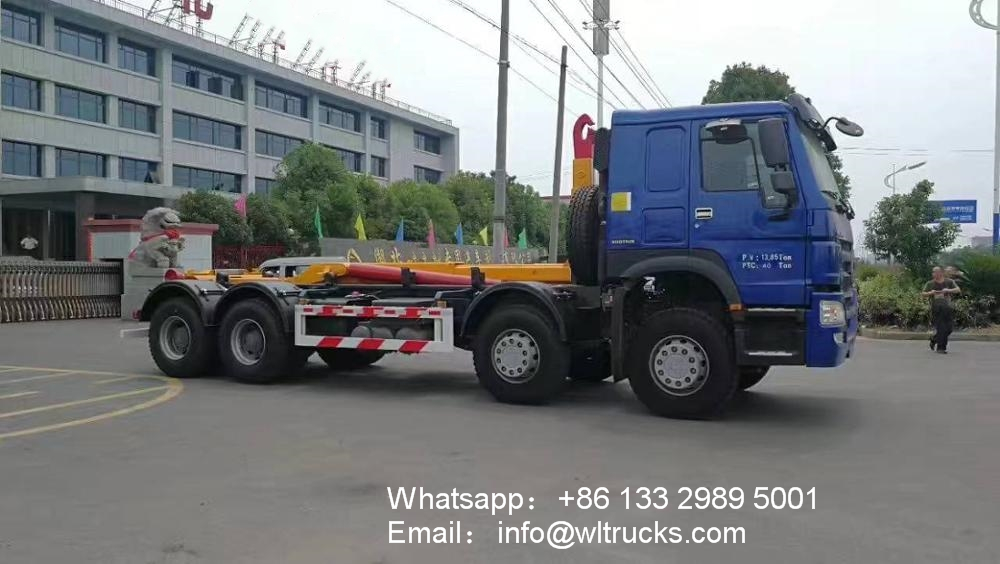

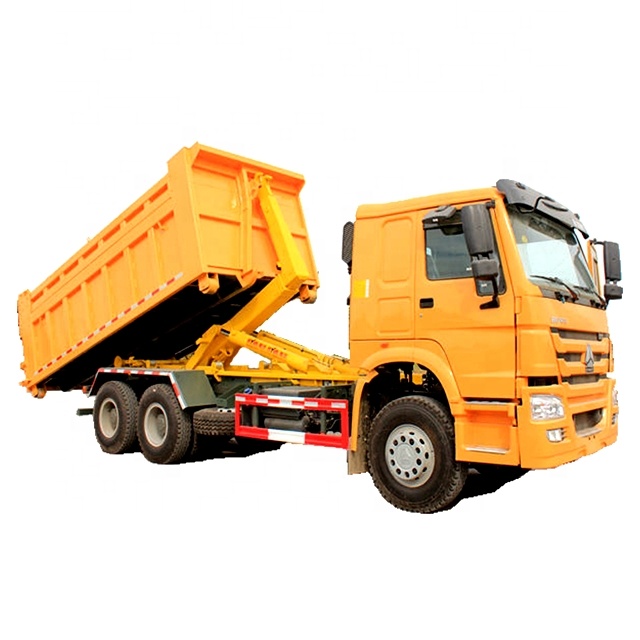

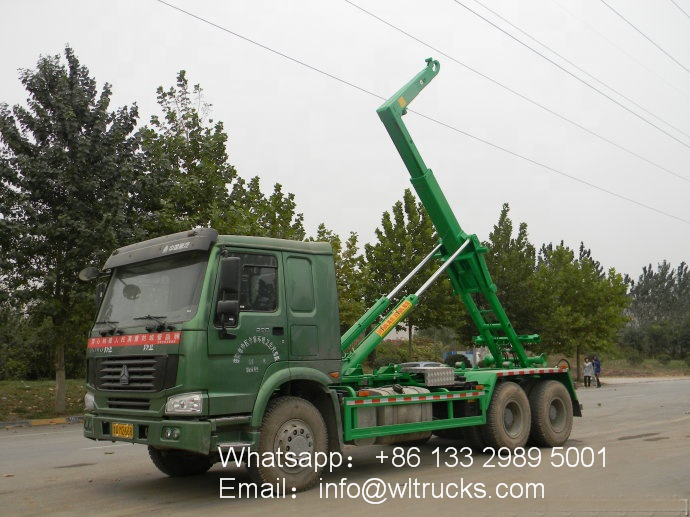

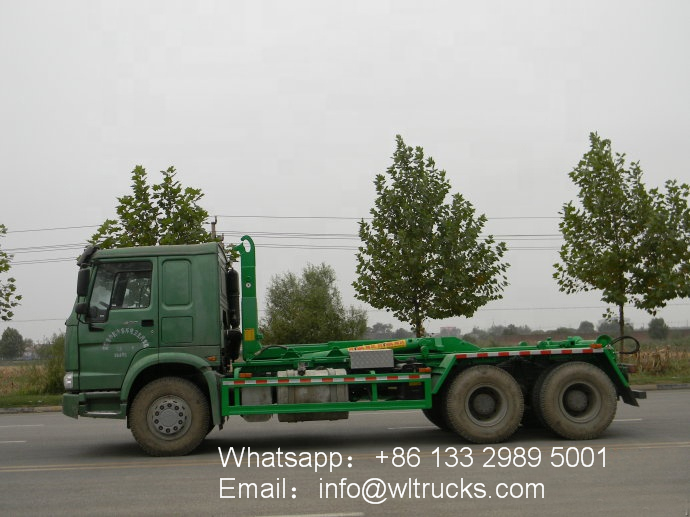

Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck detailed images:
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck Structure diagram：
Sinotruk HOWO 18m3 to 20m3 hook arm garbage truck Detail drawing:
Customizable garbage truck models
