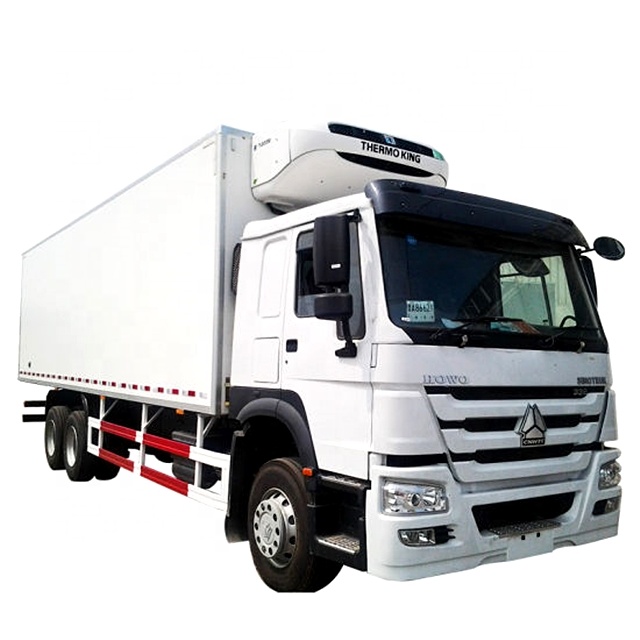

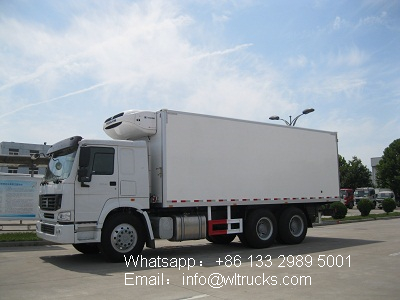

6×4 Sinotruk howo 18ton to 20ton refrigerated container truck
Adopt 6×4 Sinotruk HOWO A7 row and half cab, Sinotruk 336 horsepower engine, 10-speed gearbox, 1000R20 tires, cargo box size: 7600, 8400 * 2440 * 2400mm. The cabinet is made of glass fiber reinforced plastic inside and outside, 8cm thick polyurethane insulation, stainless steel door lock, equipped with double rear doors, and optional 5 to 18 degree cooling unit.
Stainless steel ventilation slots, meat hooks, rails, non-slip aluminum pattern plates can be installed inside the refrigerator, and side doors can be added.
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck specification:
|
Truck Brand
|
SINOTRUK—HOWO
|
||||
|
Driving type
|
Left hand driving
|
||||
|
Truck Model
|
ZZ1257N4667
|
||||
|
Dimension(Lx W x H)(unloaded)(mm)
|
10350x2496x3900
|
||||
|
Cargo body dimension (L x W x H)mm
|
8400、7600x2300x2400 standard size
|
||||
|
Cargo body shape
|
According to customers requirements
|
||||
|
Approaching angle/Departure angle(°)
|
16/12
|
||||
|
Overhang(front/rear) (mm)
|
1500/2900
|
||||
|
Wheel base (mm)
|
4625+1350
|
||||
|
Max speed(km/h)
|
95
|
||||
|
Curb weight(kg)
|
12420
|
||||
|
Loading Weight(kg)
|
25000
|
||||
|
Engine
(Steyr technology, made in China)
|
Model
|
WD615.69 water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
|
|||
|
Fuel type
|
Diesel
|
||||
|
HorsePower, max(kw/rpm)
|
336HP
|
||||
|
Emission
|
EURO II
|
||||
|
Fuel tanker capacity (L)
|
300
|
||||
|
Transmission
|
Model
|
HW10,10 forwards and 2 reverse
|
|||
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|||
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
||||
|
Auxiliary brake
|
Engine exhaust brake
|
||||
|
Steering system
|
Model
|
8198
|
|||
|
Front axle
|
HF7
|
||||
|
Rear axle
|
ST16
|
||||
|
Color
|
Optional
|
||||
|
Tyre
|
295/80R22.5 Tubeless tire
|
||||
|
Tyre quantity
|
10pcs + 1 spare
|
||||
|
Electrical system
|
Battery
|
2X12V/165Ah
|
|||
|
Alternator
|
28V-1500w
|
||||
|
Starter
|
7.5Kw/24V
|
||||
|
Cab
|
HW76 cab, one sleeper with air conditioner
|
||||
|
Refrigerator unit
|
Thickness: Bottom: 105mm
Side and rear door: 85mm
Protector Material: Q235
|
||||
|
Brand: Carrier(American) Type: Independent
|
|||||
|
Temperature: -18 degree—0 degree
|
|||||
|
One pair door on the back side
|
|||||
|
More seals on the cryogenic insulation chamber effectively increase air-tightness
|
|||||
|
The seamless body is smooth, easy to clean, and both impact and corrosion resistant.
|
|||||
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck New craft:
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck Optional configuration:
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck Bodywork details:
6×4 Sinotruk howo 18ton to 20ton refrigerated container truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
