4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Specification:
4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Chassis configuration: made by Sinotruk Howo chassis, 4X2 drive, Sinotruk Howo cab, Sinotruk 180 hp engine or Sinotruk 210hp engine, 10-speed gearbox with power take-off, 10-ton rear axle, 9.00 R20 steel tire, 200L fuel tank, with air conditioner, ABS.
4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Bodywork configuration:
The tank volume is 10-12m3, the tank body is made of carbon steel plate, the tank body is 6mm thick, and the color of the tank body is painted in white and blue under the announcement. Install high-quality 12-ton vacuum sewage suction pump, tank color can be customized, with sight window, sewage pipe, sewage suction pipe 6 meters, with oil-water separator, anti-overflow valve, with hand washing device, hydraulic pressure is installed on both sides The cylinder has a lifting function, the rear cover is circular and can be opened hydraulically, and the self-flow valve installed on the rear cover can directly flow.
4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Product parameters
| The Parameters of 10CBM Sewage Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck |
| Dimension(LxWxH) | 7500X2470X3050(mm) |
| Total Mass | 29800 Kg |
| Rated Payload | 16000 Kg |
| Kerb Weight | 13800 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 33/22 |
| The Parameters of Chassis | |
| Model | ZZ1110GLJ |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 4500/4700/5100 mm |
| Gearbox | Seven/Eight speed lever with six/seven speed forward and one reverse, manual |
| Front/Rear Track | 1900/1800(mm) |
| Tyre | 10.00-20 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1250/2300(mm) |
| Leaf Spring Number | 8/11+8 |
| The Paremeters of Engine | |
| Manufacturer/Model | Sinotruck/WD260.15 |
| Rated Power | 226hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 8900ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/6/intercooling |
| Max. torque | 1500N.m |
| Velocity | 2200rpm |
| The Parameters of Equipment | |
| Tank Capacity | 10 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Time for full sucktion | <5min |
| Common Accessories | Vacuum pump,ball valve,oil cylinder for rear cap,oil cylinder for dumping,pressure meter,window for showing liquid level,lock system for rear cap,four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional). |
4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Working parameter New craft
4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Optional configuration

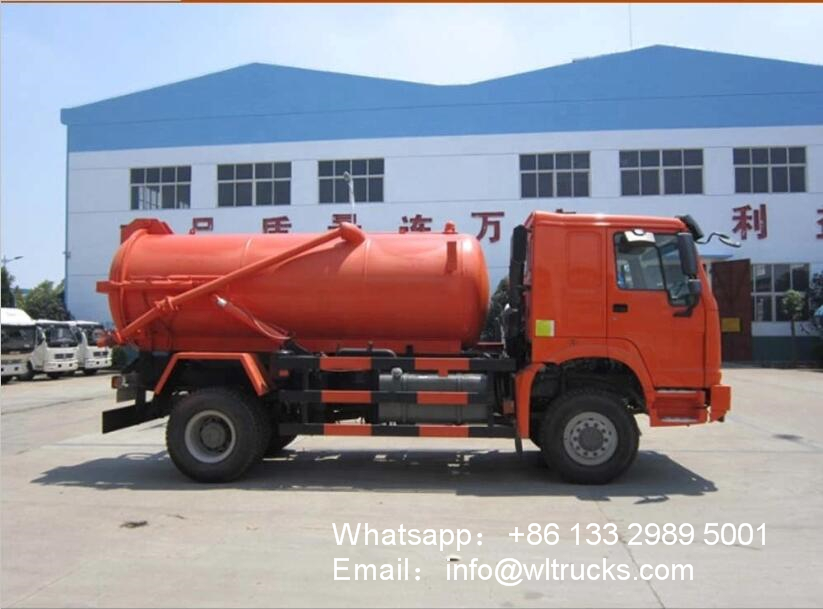

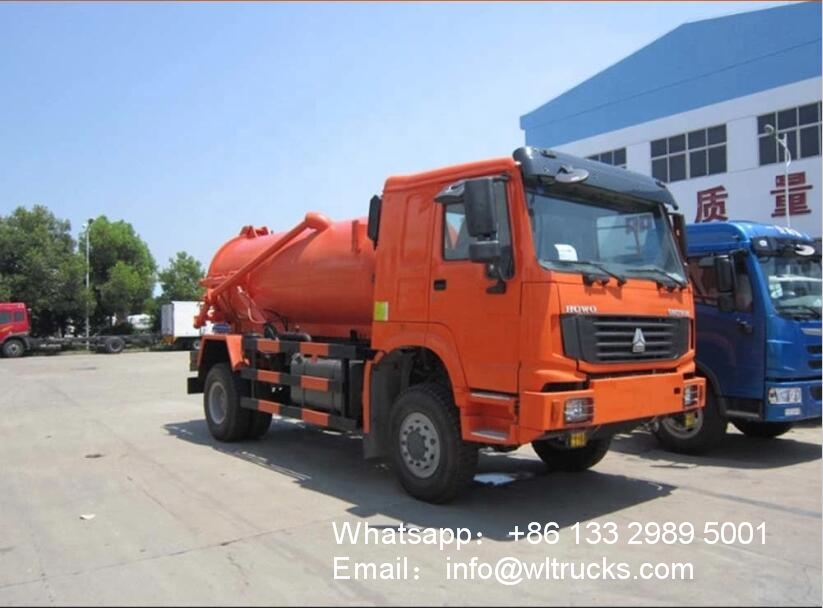

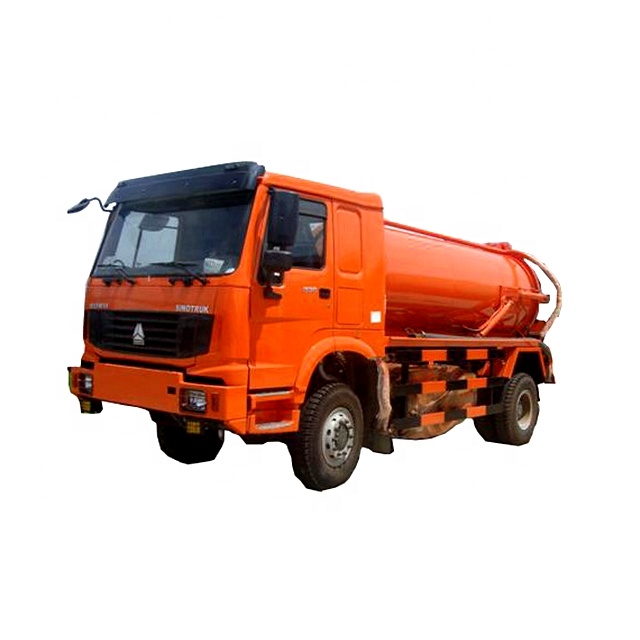

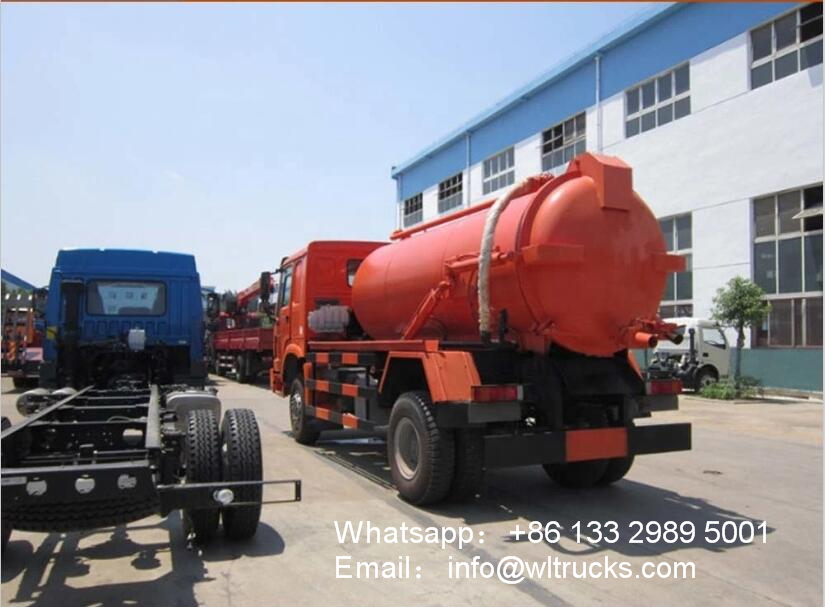

4×4 HOWO 10000liter to 12000liters vacuum sewage suction truck Detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
