Foton 10000liter to 12000liters vacuum sewage suction truck Specification:
Foton 10000liter to 12000liters vacuum sewage suction truck Chassis configuration: Foton Ruiwo chassis, 2.2-meter luxury cab, Yuchai 170 horsepower engine (Kangji 170 optional), 4500 wheelbase, Fast 8-speed gearbox, 900R20 steel tire, ABS, airbag seat, original Factory adjustable air-conditioning electric doors and windows.
Foton 10000liter to 12000liters vacuum sewage suction truck Top-loading configuration: tank volume 10 cubic meters, standard 10 tons vacuum suction pump, tank hydraulic lift self-unloading, tank tail cover fully opened, full 8 minutes suction, 5 minutes drain, 1 self-flow valve, equipped 1 suction pipe.
Optional configuration: optional SK-12 water ring vacuum pump.
Foton 10000liter to 12000liters vacuum sewage suction truck Product parameters
|
product name
|
Foton 10 to 12cubic meter sewage suction truck
|
Chassis model
|
CLW5198GSSD3
|
|
Actual volume ( cubic )
|
12
|
Total mass (kg)
|
15800
|
|
Engine horsepower
|
170
|
Rated load mass (Kg)
|
1133
|
|
Engine name
|
Cummins
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
8220×2400×2950
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
900-20
|
|
Wheelbase (MM)
|
4500
|
Maximum speed (km/h)
|
90
|
|
Front track
|
1503,1485,1519,1595 |
Rear track
|
1494, 1516, 1540
|
|
Performance profile
|
sewage suction truck adopts the domestic technology-leading special suction pump, which has large suction force and long suction stroke. It is especially suitable for the suction, loading and unloading of sludge in the sewer, especially for sucking sewage mud, silt, gravel, Large objects such as bricks, and small water content. Pumping full (soil) tank time: ≤ 5min, suction: ≥ 10m. Self-priming and self-discharging, long life, fast working speed and convenient transportation. There are two ways of suction trucks: pressurized discharge and self-flow discharge. The suction truck can self-prime and drain, the back cover can open and self-unload the impurities in the tank, and the suction efficiency is high, self-priming, self-discharging and direct irrigation. Features, fast and easy to operate. Suitable for use in large, medium and small towns sanitation and municipal departments. | ||
|
Dedicated configuration
|
sewage Suction truck body can be: carbon steel, stainless steel. The special part of the suction truck consists of a power take-off, a drive shaft, a special vacuum suction pump, a high-pressure forming manure tank, a water-gas separator, an oil and gas separation, a multi-way reversing valve, a boom, a suction gun, and a pipe network system. It is equipped with a vacuum pressure gauge, a stained window (tube), and a hand washing device .
|
||
Foton 10000liter to 12000liters vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Foton 10000liter to 12000liters vacuum sewage suction truck Working parameter New craft
Foton 10000liter to 12000liters vacuum sewage suction truck Optional configuration

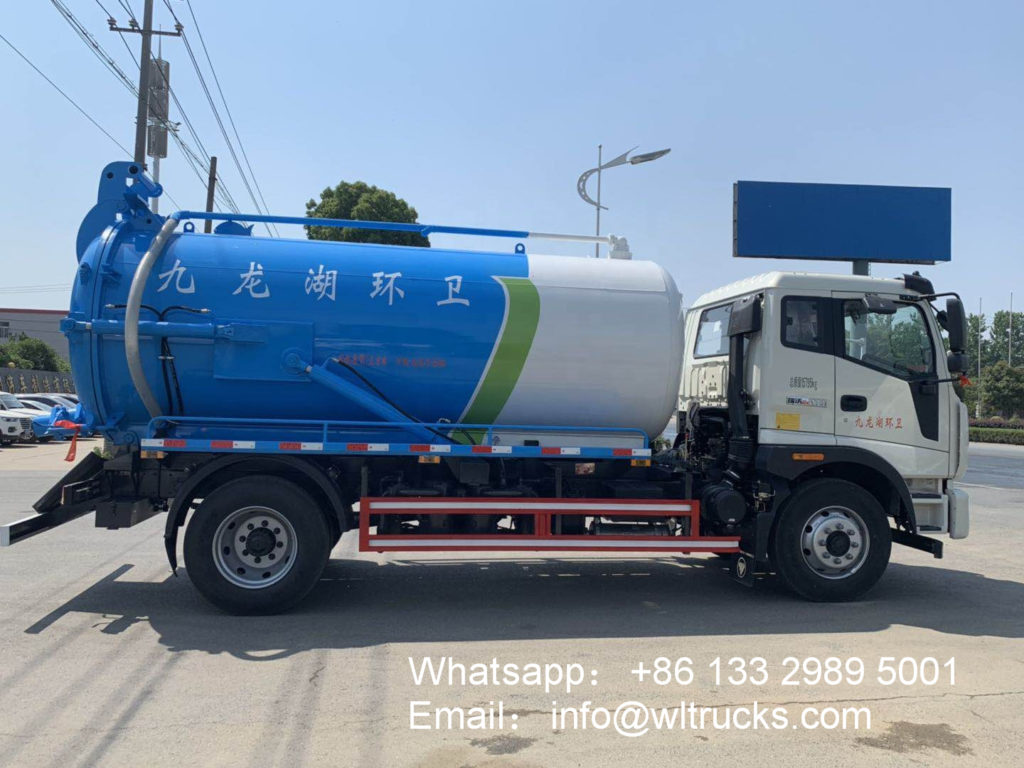

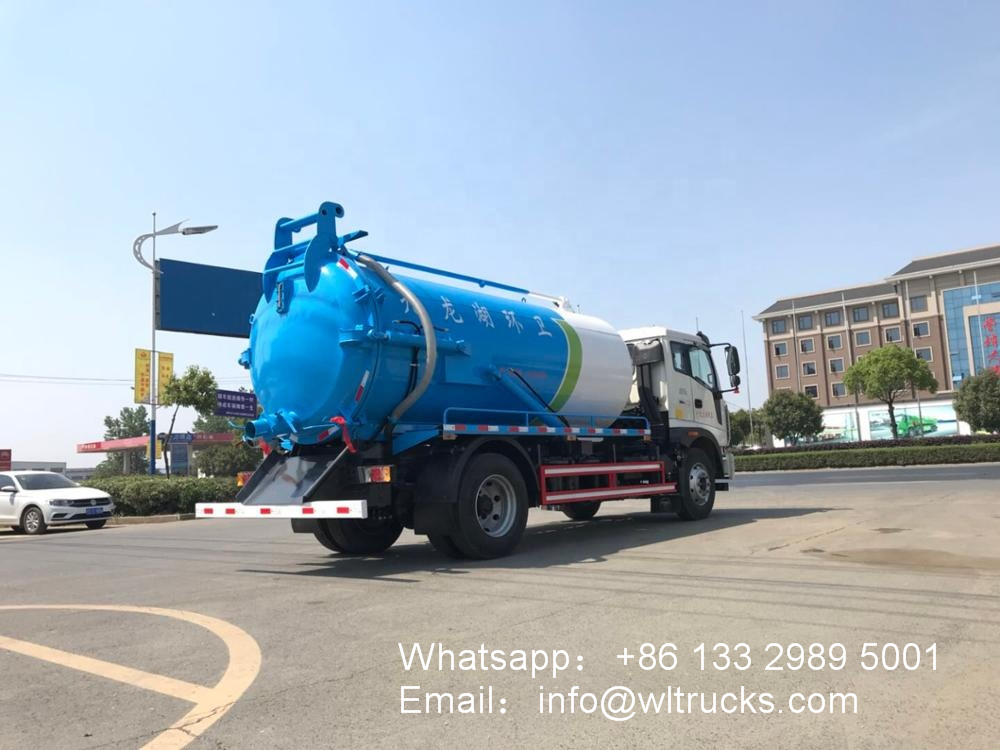

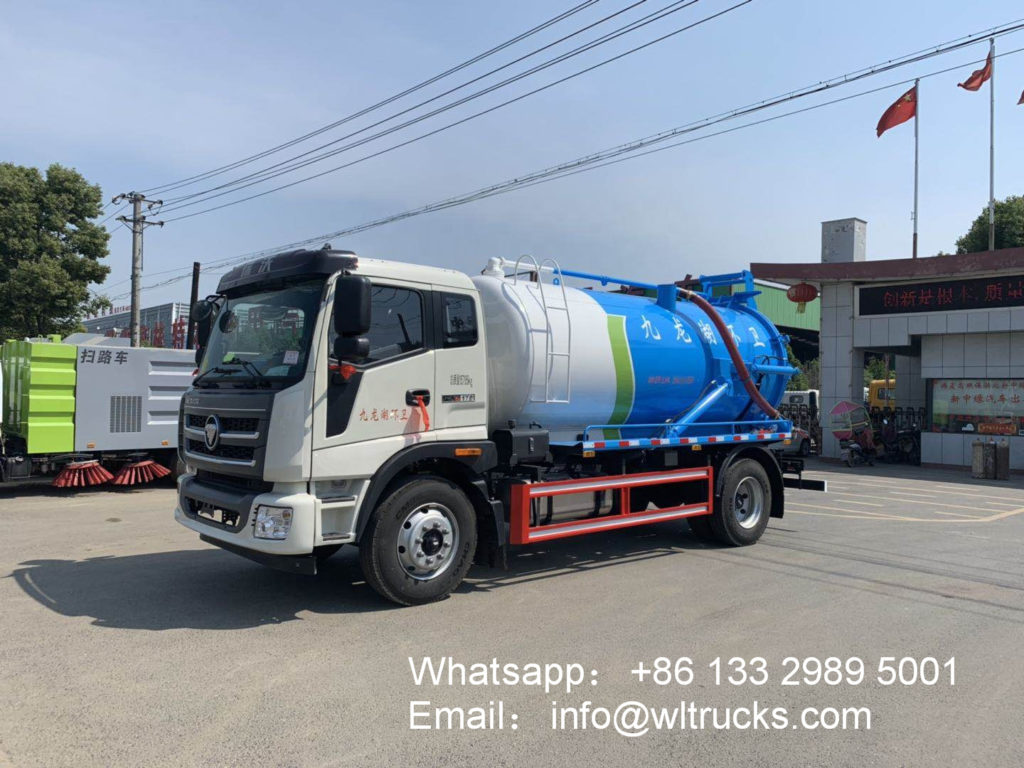

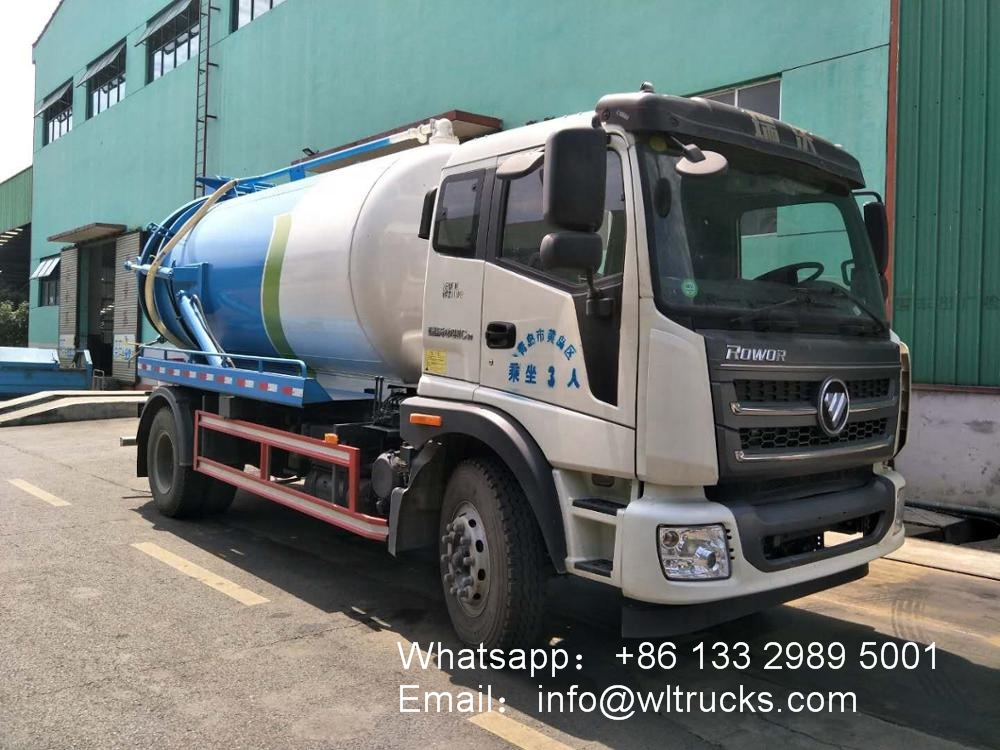

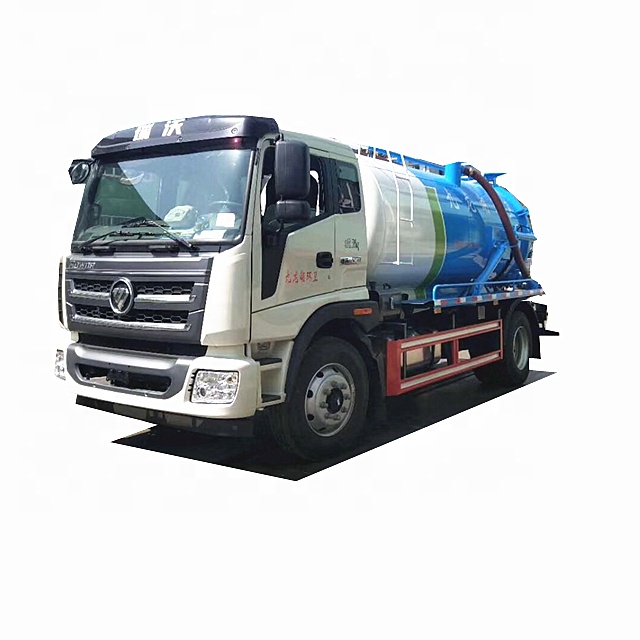

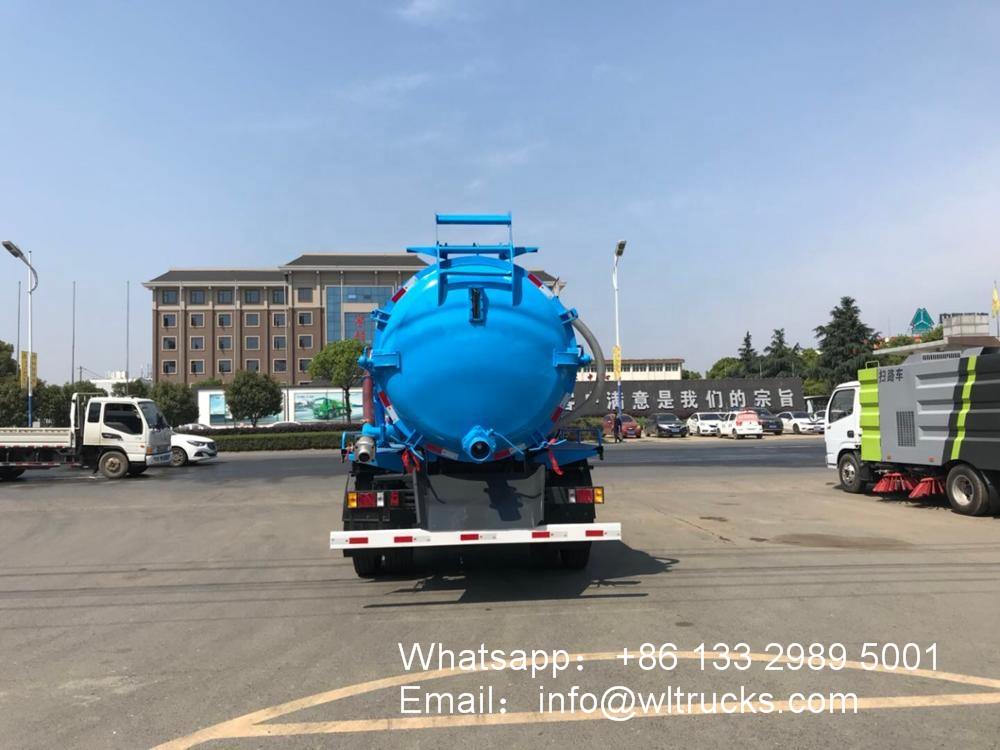

Foton 10000liter to 12000liters vacuum sewage suction truck Detailed image
