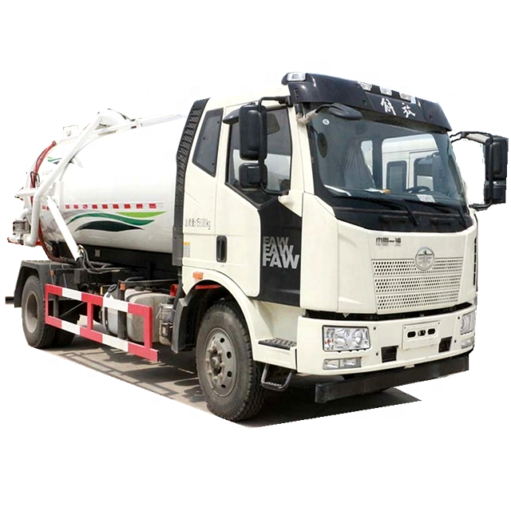

FAW 10m3 to 12m3 vacuum sewage suction truck Specification:
FAW 10m3 to 12m3 vacuum sewage suction truck Chassis configuration: Jiefang original chassis, new J6L white cab, Jiefang 180 horsepower engine, Jiefang 6-speed gearbox, 900 steel tires, with ABS anti-lock system, air brake.
FAW 10m3 to 12m3 vacuum sewage suction truck Top-loading configuration: tank volume 10-12 cubic meters, equipped with SK-12 water circulation vacuum pump, optional 8-ton oil pump, full suction less than 7 minutes, air filling and discharge less than 4 hours, tail hydraulic fully open, double hydraulic cylinder Unloading, equipped with 1 self-flow port, 1 suction pipe.
FAW 10m3 to 12m3 vacuum sewage suction truck Product parameters
| Cab | FAW single row cab, with power steering. Electronic flameout,without a/c | ||
| Driving Type | 4*2 | ||
| Max Speed (km/h) | 99 | ||
| Overall dimension(mm) | 8260×2480×3200 | ||
| GVW( kg) | 15600 | ||
| Wheelbase(mm) | 7550 | ||
| Tire | 9.00R20 (6+1) | ||
| Engine | Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||
| Exhaust(ml) | 4764ml | ||
| Horse power | 190hp | ||
| Volume of tank | 10000L | ||
| Color | Painted in the corporation’s colours with logo on both front doors as specified by the client | ||
| Material of tanker | 6mm Carbon stell | ||
| Special function | Suction height | ≥8 (m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
FAW 10m3 to 12m3 vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
FAW 10m3 to 12m3 vacuum sewage suction truck Working parameter New craft
FAW 10m3 to 12m3 vacuum sewage suction truck Optional configuration

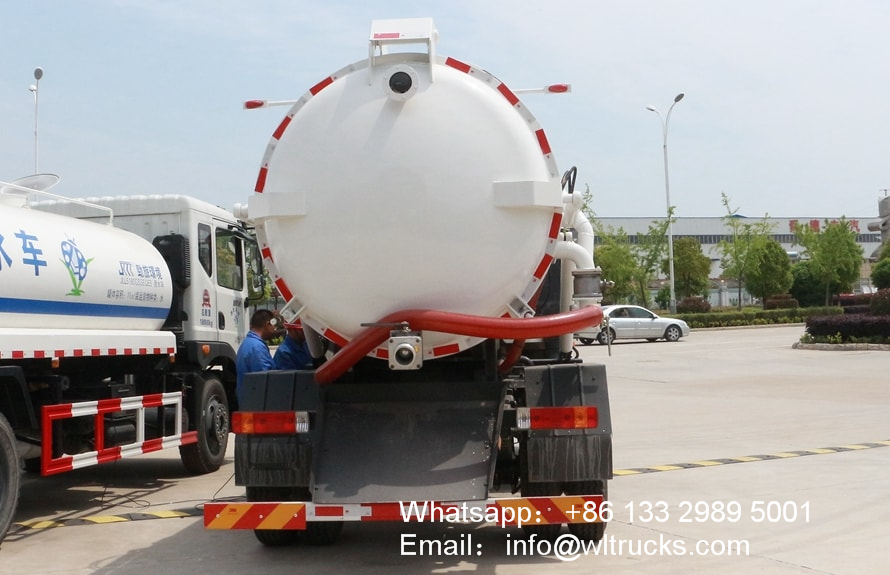

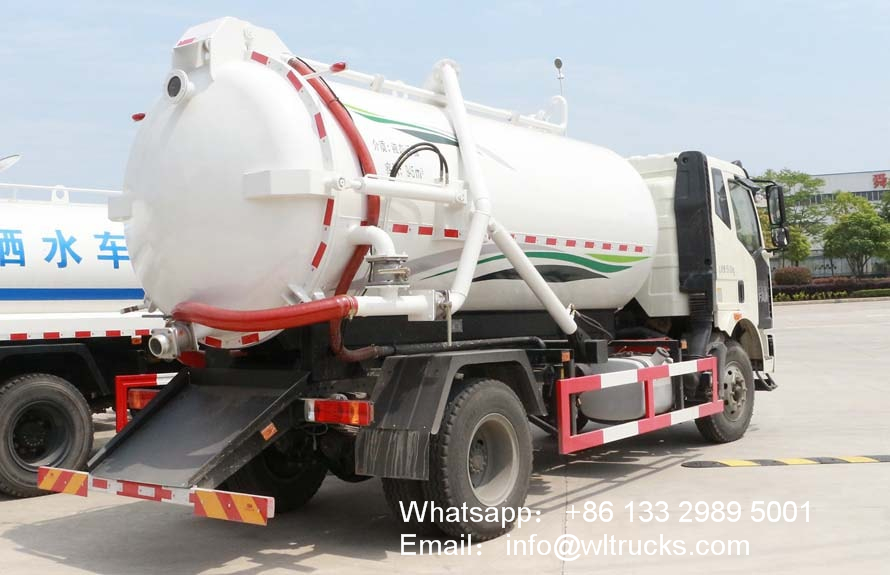

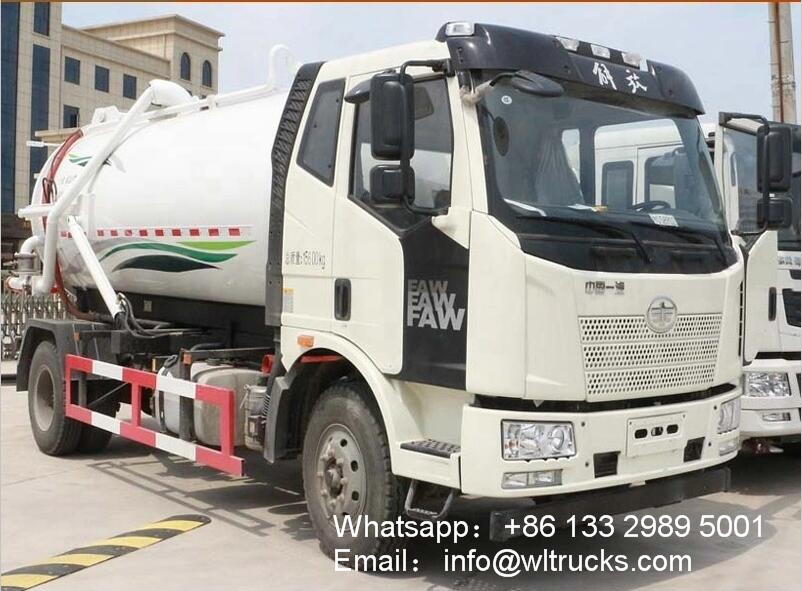

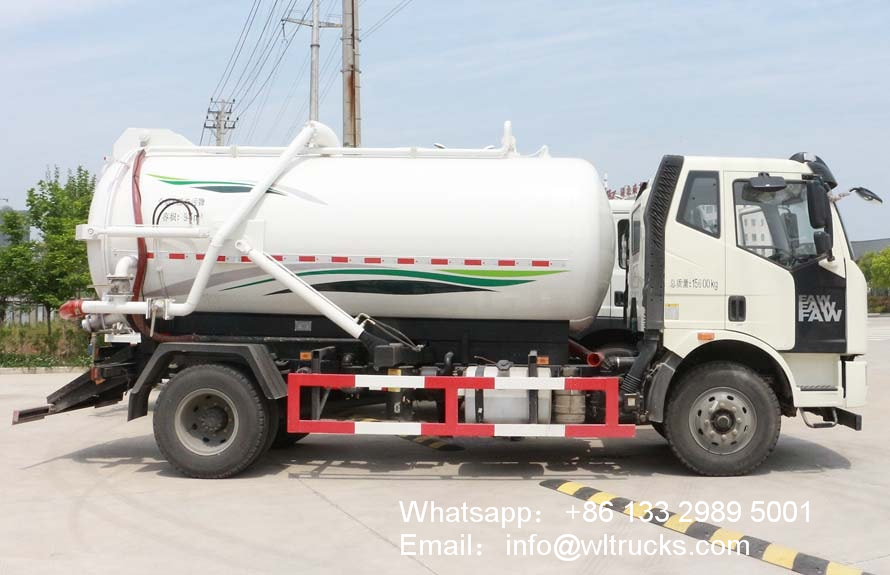

FAW 10m3 to 12m3 vacuum sewage suction truck Detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
