Dongfeng 10000L to 12000L vacuum sewage suction truck Specification:
Dongfeng 10000L to 12000L vacuum sewage suction truck Chassis configuration: the old Dongfeng 145 wide-body layout cab, Yuchai 130 horsepower, Kangji 170, 190 horsepower engine, 8-speed gearbox, 900 tire belt spare tire, air brake, direction assist, ABS.
Dongfeng 10000L to 12000L vacuum sewage suction truck Bodywork configuration: effective volume 10-12 cubic meters, equipped with two Yifeng vacuum pumps in series, full suction less than 7 minutes, pumping and exhaust less than 4 minutes, tank lifting and unloading, tail cover fully hydraulically opened, with a free flow valve 1 suction pipe.
Optional configuration: optional Weilong vacuum pump, optional water ring vacuum pump.
Dongfeng 10000L to 12000L vacuum sewage suction truck Product parameters
| Cabin | Driving type 4×2, single row | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7200×2300×2850 |
| Wheel base (mm) | 3950 4500 | |
| Wheel track (front/rear) (mm) | 1960/1860 | |
| Approach/Departure angle(°) | 28/32 | |
| Weight in KGS | Tare Weight | 5340 |
| payload | 6025 | |
| Front axles loading capacity | 2700 | |
| Rear axles loading capacity | 5000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | Yuchai cummins |
| Horse Power(HP) | 130 170 190hp | |
| Emission standard | Euro 3 | |
| Gearbox | 6 forwards & 1 reverse | |
| Steering | Left/right hand drive | |
| Tire | 900-20 1000-20 | |
| Sewage Tank | ||
| Tank volume | 10000-12000Liters | |
| Tank material | 6mm carbon steel | |
| Vacuum Pump | Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 8M | |
| Main Performance | Suction time ≤ 5min, effective suction range ≥ 8 |
|
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |
Dongfeng 10000L to 12000L vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Dongfeng 10000L to 12000L vacuum sewage suction truck Working parameter New craft
Dongfeng 10000L to 12000L vacuum sewage suction truckk Optional configuration

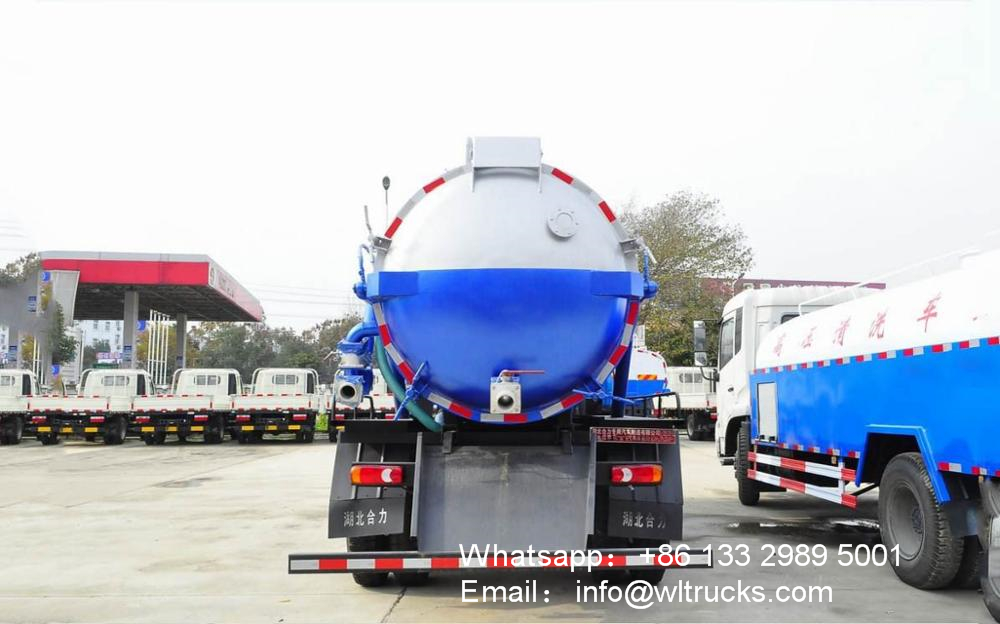

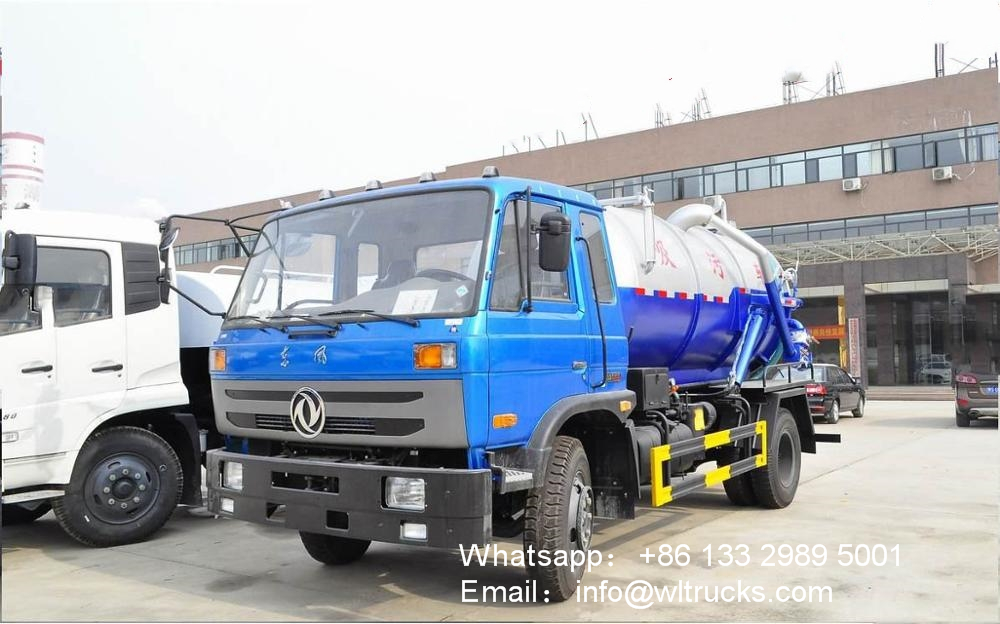

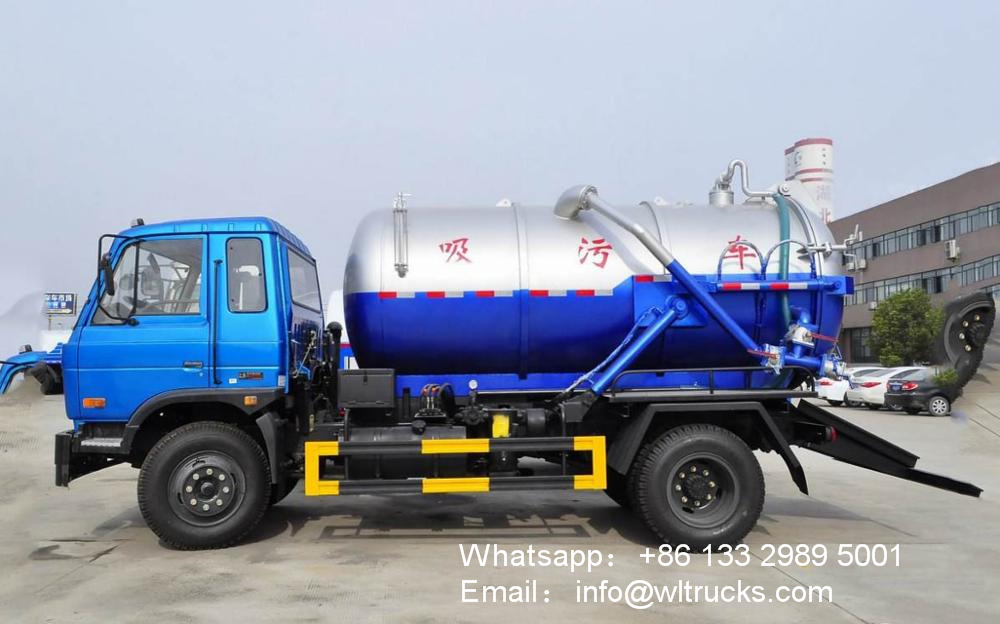

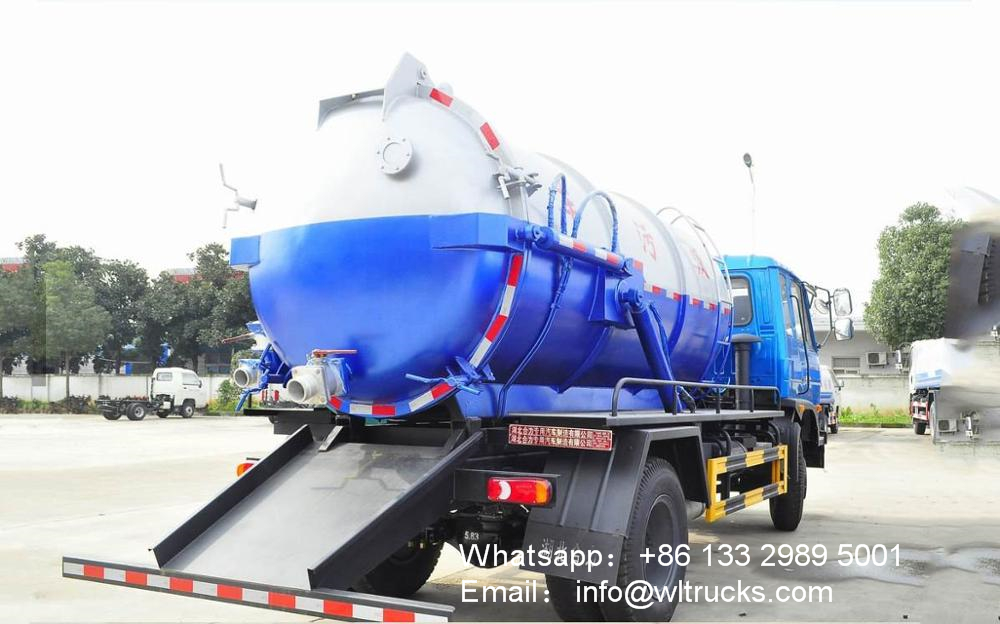

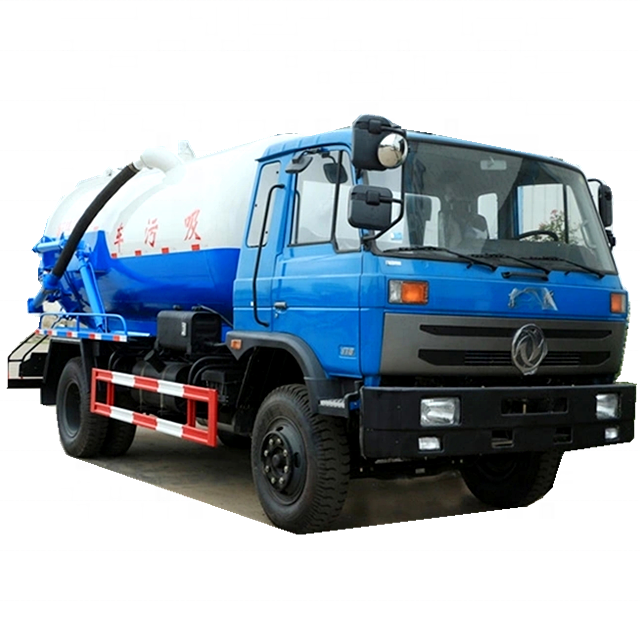

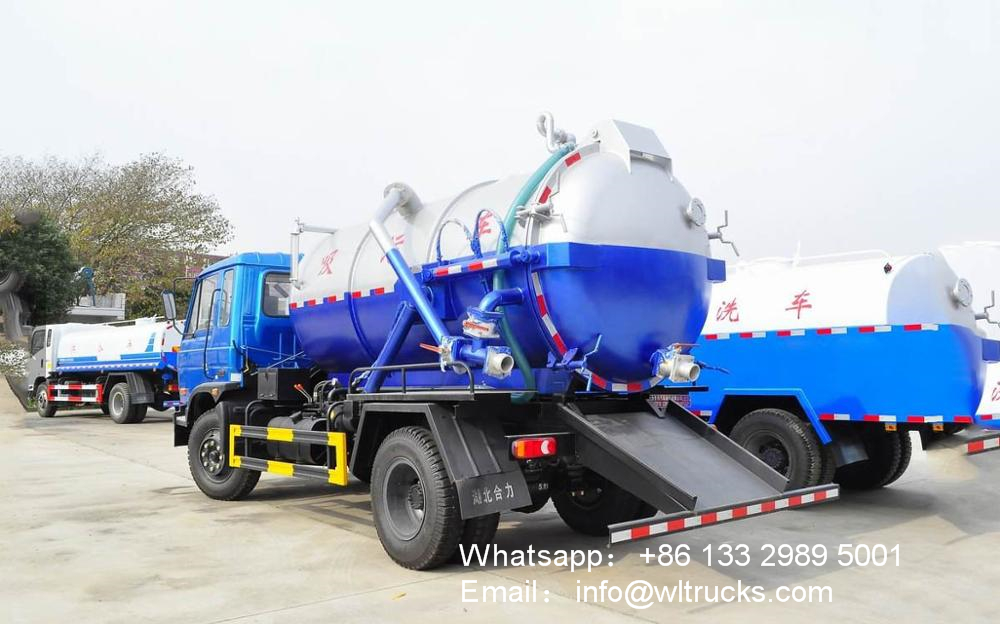

Dongfeng 10000L to 12000L vacuum sewage suction truck Detailed image
