Foton 5000 liter sewage truck Specification:
Foton 5000 liter sewage truck Chassis configuration: Foton Kangrui chassis, 1.86m wide cab, full diesel 90 horsepower engine, 5-speed gearbox, oil brake can be equipped with steam brake.
Foton 5000 liter sewage truck Top-loading configuration: tank volume 5 cubic meters, equipped with Yifeng vacuum pump, tank hydraulic lifting and self-unloading, tail cover fully hydraulically opened, suction 5 minutes, suction 3 minutes, 1 self-flow valve at the end, 1 suction pipe root.
Optional configuration: optional water ring vacuum pump, optional solid-liquid separation cylinder + hydraulic auger.
| 【Vehicle technical parameters】 | |||||
| product name | Sewage suction truck | batch | 299 | ||
| Total mass (Kg) | 8280 | Rated load mass (Kg) | 3500 | ||
| Curb weight (Kg) | 4585 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 3 | Rated passenger (person) | |||
| Dimensions (mm) | 6000x 2090 x 2600 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 21/13 | Front / rear suspension (mm) | 1095/1605, 1120/1680 | ||
| Axle load (Kg) | 2840/5440 | Maximum speed (Km / h) | 95 | ||
| Remarks | The effective volume of the tank is 4.59 cubic meters, the transportation medium: liquid dirt, density: 800 kg / per cubic meter. The total length / straight section length / straight through one-to-one correspondence: 6060/3200/1400; 6600/3400/1450; side protection The material is Q235, the connection method is the connection bracket is fixed and welded on the subframe beam. The rear protection material is Q235, the connection method: the structural connection piece is fixed and welded on the rear end of the main car, and the rear protection device cross-sectional size (width × height) 100 × 50 (mm), rear protection height from the ground: 490mm. Optional ABS, manufacturer: WABCO Automotive Control System (China) Co., Ltd., model: 44600XXXX0. A cab without a shroud is optional with the chassis. Optional secondary pedal with protective cab under | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | Brand name | ||||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3300 | ||||
| Tire specifications | 6.50-16LT 14PR | ||||
| Front track (mm) | 1730,1685,1665,1710 | Rear track (mm) | 1590,1615,1630 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| QC-4102 | QuanChai | 3360 | 65 | ||
Foton 5000 liter sewage truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
Foton 5000 liter sewage truck Working parameter New craft
Foton 5000 liter sewage truck Optional configuration

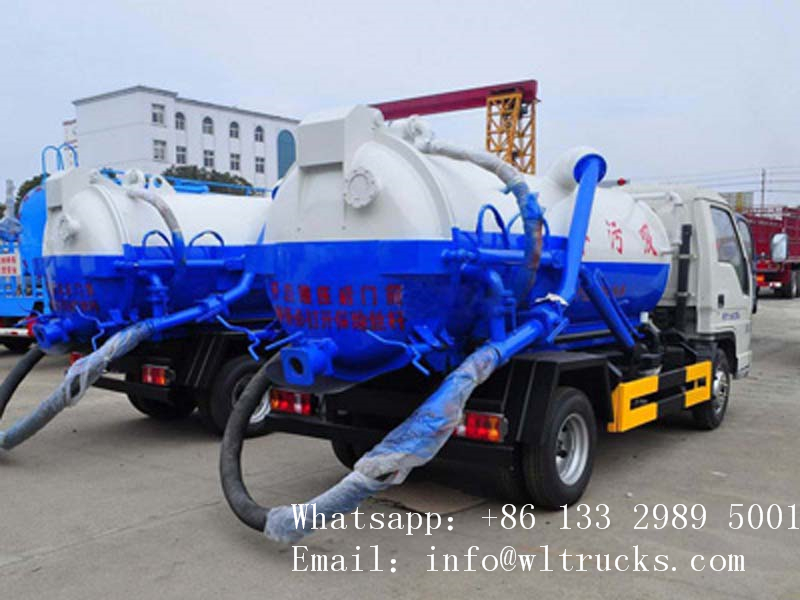

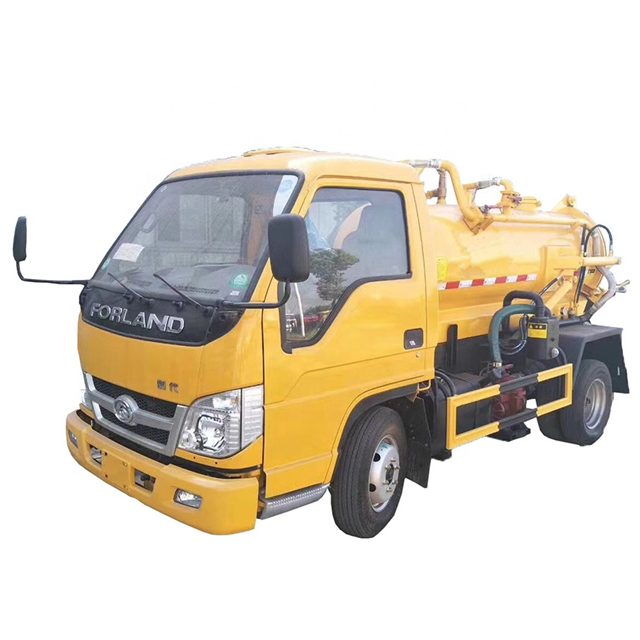

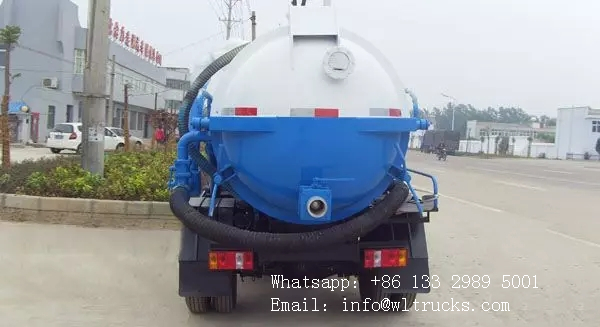

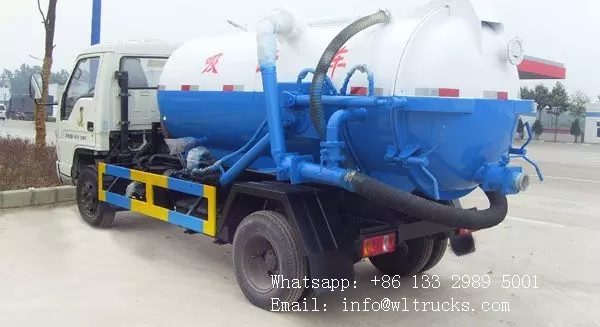

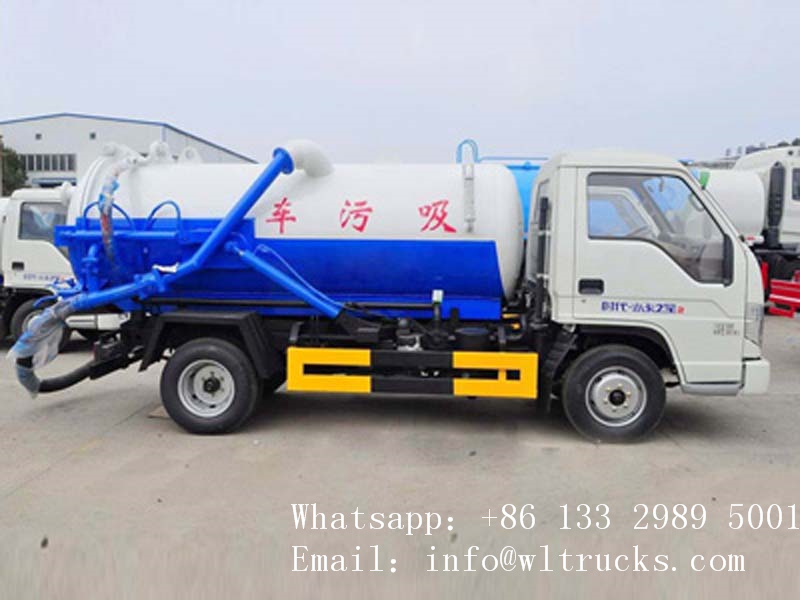

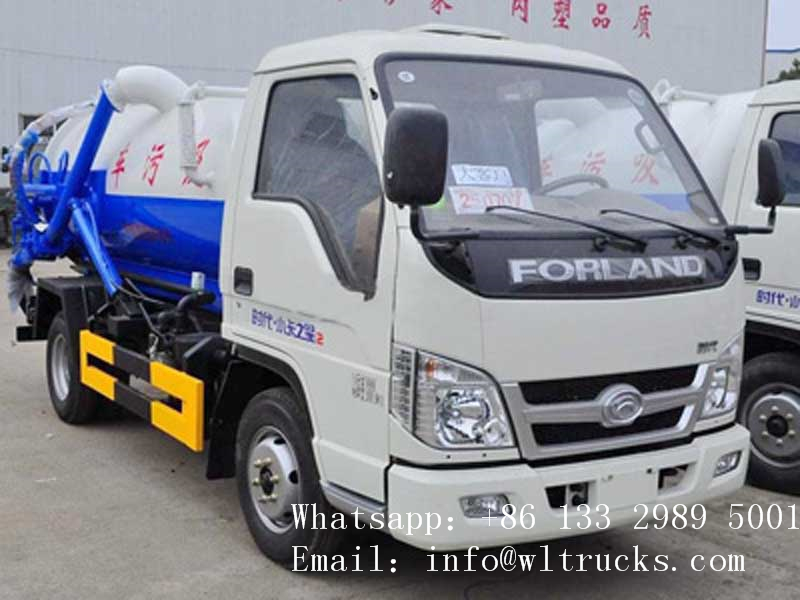

Foton 5000 liter sewage truck Detailed image
