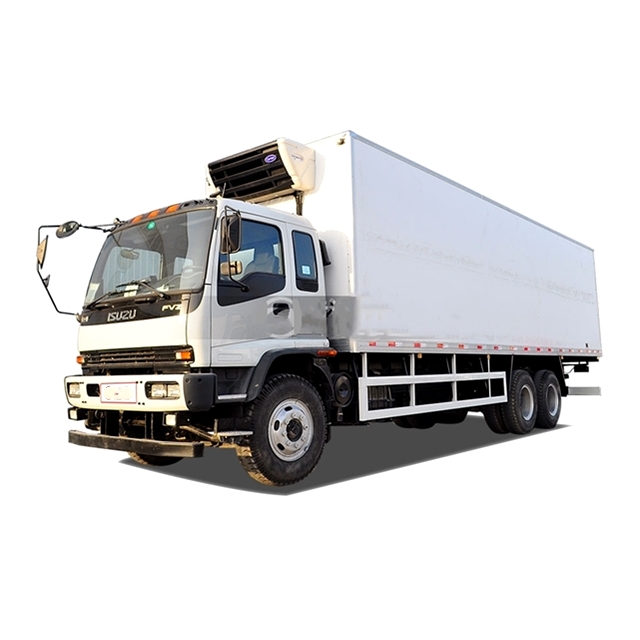

ISUZU FVZ 18ton to 20ton food refrigerated truck
Adopt Japan 6×4 ISUZU FVZ luxury cab, ISUZU 300 horsepower engine, 9-speed gearbox, 1100R20 tires, overall dimensions: 11785×2470, 2530×3880 (mm), cargo compartment size: 9300×2270×2270, 2235 (mm ). The cabinet is made of fiberglass reinforced plastic, inside and outside, 8 cm thick polyurethane insulation, stainless steel door lock, double rear doors and optional 5 to 18 degree cooling unit.
Stainless steel ventilation slots, meat hooks, rails, non-slip aluminum pattern plates can be installed inside the refrigerator, and side doors can be added.
ISUZU FVZ 18ton to 20ton food refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
ISUZU FVZ 18ton to 20ton food refrigerated truck specification:
| Basic configuration parameters | |||
| Vehicle name | Refrigerated truck | Box classification | Van |
| Dimensions (mm) | 11785x2530x3880 | Cargo compartment size (mm) | 9300x2270x2235 |
| Body material | Inner FRP outer color steel plate | Thickness of car body (mm) | 5-8 |
| Car mezzanine | 8CM polyurethane foam | Corner material | Stainless steel wrap angle |
| Refrigeration unit brand | Kelly/Songhan/Hanxue/Huatai/Carrier/Hanya | Temperature range (℃): | -5-18 |
| Total mass (kg) | 25000 | Rated mass (kg) | 13605 |
| Curb weight (kg) | 11200 | Maximum speed (km/h) | 90 |
| Fuel type | Diesel | Emission Standards | Country four |
| Wheelbase (mm) | 5700+1300 | Tire specifications | 11.00-20 18PR |
| Chassis brand/model | ISUZU/QL1250DTFZY | Engine brand/model | Qingling Isuzu/6HK1-TCSG40 |
| Power/Horsepower (kW/ps) | 206/280 | Displacement (mL) | 7790 |
| Upload configuration parameters | |||
| Optional configuration | It can be equipped with aluminum alloy guide rails, stainless steel meat hooks, rear door double/side opening doors, ventilation slots, cabin temperature monitor, temperature controller and temperature printer, etc., to meet the needs of different users. | ||
ISUZU FVZ 18ton to 20ton food refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
ISUZU FVZ 18ton to 20ton food refrigerated truck New craft:
ISUZU FVZ 18ton to 20ton food refrigerated truck Optional configuration:

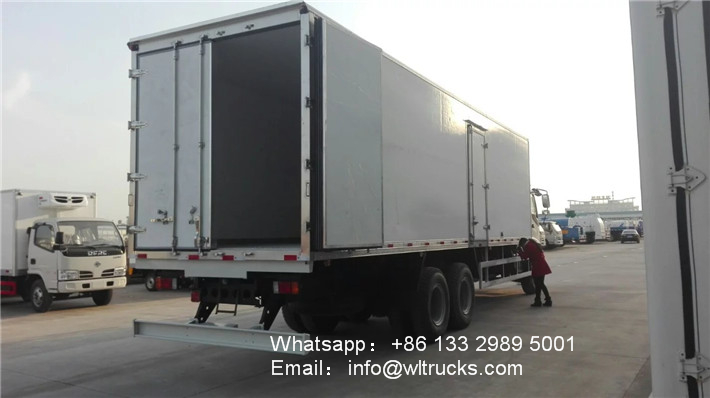

ISUZU FVZ 18ton to 20ton food refrigerated truck Bodywork details:
ISUZU FVZ 18ton to 20ton food refrigerated truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
