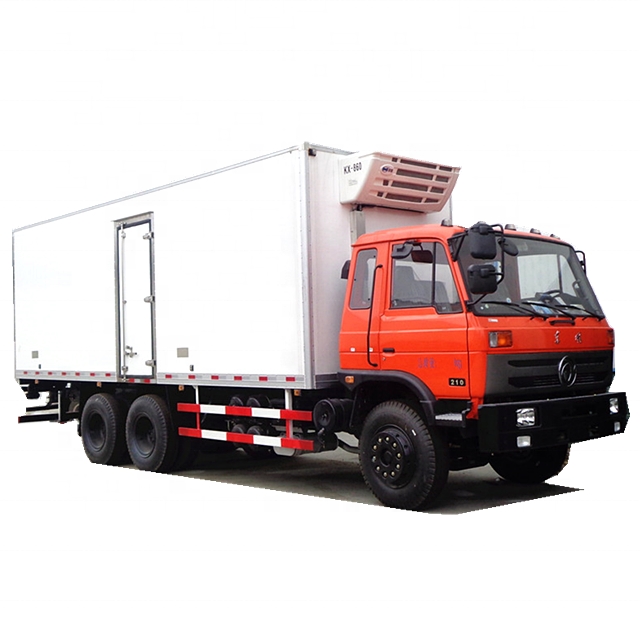

Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks
Adopt 6×4 old Dongfeng 153 row and a half cab, Cummins 210 horsepower engine, 8 speed gearbox, 1000-20 tires, cargo box size: 8400 * 2440 * 2400mm. The cabinet is made of glass fiber reinforced plastic inside and outside, 8cm thick polyurethane insulation layer, stainless steel door lock, equipped with rear double doors, and optional refrigeration unit at minus 5 degrees or minus 18 degrees.
Stainless steel ventilation slots, meat hooks, rails, non-slip aluminum pattern plates can be installed inside the refrigerator, and side doors can be added.
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks specification:
|
Item
|
Unit
|
Parameter
|
|
|
Vehicle model
|
Dongfeng 6×4 refrigerated delivery box truck
|
||
|
Chassis model
|
EQ1258KB3GJ
|
||
|
Overall dimensions
|
mm
|
10000* 2550* 4100
|
|
|
Body internal dimensions
|
7200*2400*2400
|
||
|
Actual load
|
kg
|
18000-20000
|
|
|
Mass in working order
|
Appro×12800
|
||
|
Wheel base
|
mm
|
4350+1300
|
|
|
F/R track base
|
1980/1860/1860
|
||
|
Approach/departure angle
|
°
|
20/11
|
|
|
Exhaust/kw
|
ml/kw
|
5900/155
|
|
|
Max speed
|
km/h
|
90
|
|
|
Fuel type
|
Diesel
|
Engine
|
B210-33
|
|
Number of axles
|
3
|
Pieces of spring
|
9/10
|
|
Number of tires
|
10+1
|
Tire specification
|
10.00-20
|
|
Configuration
|
Refrigerator is Hanxue brand, made in China, working temperature is minus 18 celsius degree.
The material of the van surface is FRP, 8 cm thick PU inside.
|
||
|
Introduction
|
The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts.
|
||
|
Production cycle
|
20-25 days
|
||
|
Warranty
|
12 month,from the date of supply
|
||
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks New craft:
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks Optional configuration:
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks Bodywork details:
Dongfeng 6×4 16ton to 20ton Heavy Duty refrigerated trucks Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
