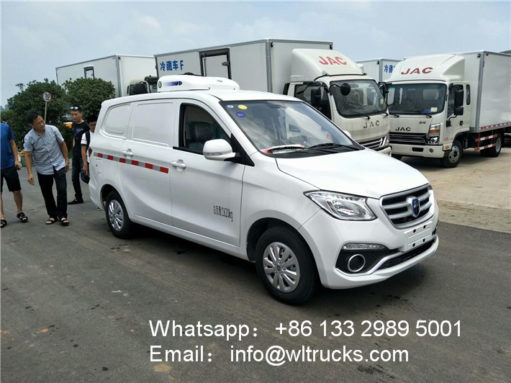

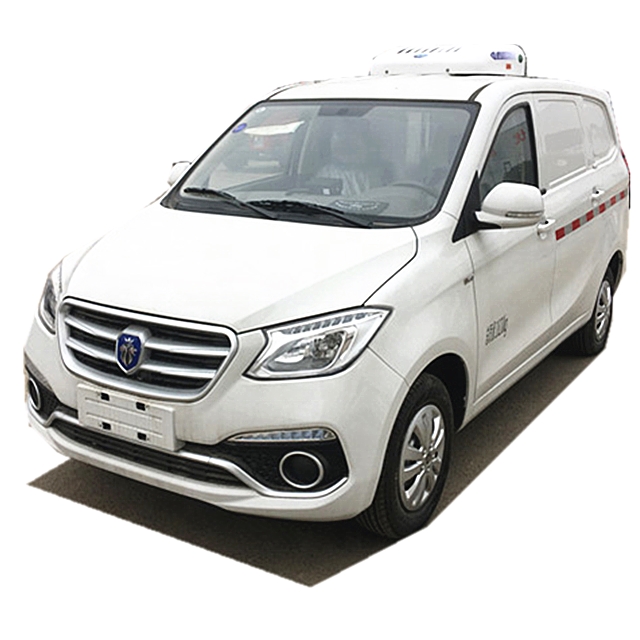

Foton IX5 2m3 mini reefer box truck
Foton Gator IX5 new bread refrigerated truck, vehicle model: BJ5027XLC-E1, vehicle size: 4505×1725×1980 (mm), Foton SUV luxury body, Harbin Dongan 115 hp National V gasoline engine, 1.5 displacement, engine model For DAM15DL, a 5-speed gearbox,
Oil brake, front disc and rear drum, air conditioning in the cab, electronic power assist, electric doors and windows, central control lock, remote control key, 185 vacuum tires, car body volume 1.8m³ (1600×1200/980×1000), inner glass fiber reinforced plastic The high-density insulation board is adopted for the board and the cabin insulation board. The top non-independent unit is installed. The minimum temperature can reach -5 degrees.
Foton IX5 2m3 mini reefer truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Foton IX5 2m3 mini reefer box truck specification:
| Foton gamma ix5 bread type refrigerated truck [main technical parameters] | |||
| product name | Foton IX5 bread type refrigerated truck | Product number | BJ5027XLC-E1 |
| Rated mass (Kg) | 315,120 | Dimensions (mm) | 4505×1725×1980 |
| Curb weight (Kg) | 1375 | Cargo clearance mm) | 1380×1330×980 |
| Total mass (Kg) | 1820 | Cargo container volume (m3) | 2 |
| Number of passengers in the cab (person) | 2,2+3 | Emission Standards | Country five |
| Approach angle / departure angle (°) | 22/20 | Front overhang / rear overhang (mm) | 730/1015 |
| Number of axes | 2 | Wheelbase (mm) | 2760 |
| Axial load (Kg) | 750/1070 | Maximum speed (Km/h) | 165 |
| Chassis technical parameters | |||
| Trade name | Futian brand | Chassis model | BJ6457MD62A-E2 |
| Tire model | 185/70R14 | Number of tires | 4 |
| Engine company | Harbin Dongan Automobile Power Co., Ltd. | Engine horsepower | Dongan 115 horsepower five gasoline engine |
Foton IX5 2m3 mini reefer box truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Foton IX5 2m3 mini reefer box truck New craft:
Foton IX5 2m3 mini reefer box truck Optional configuration:

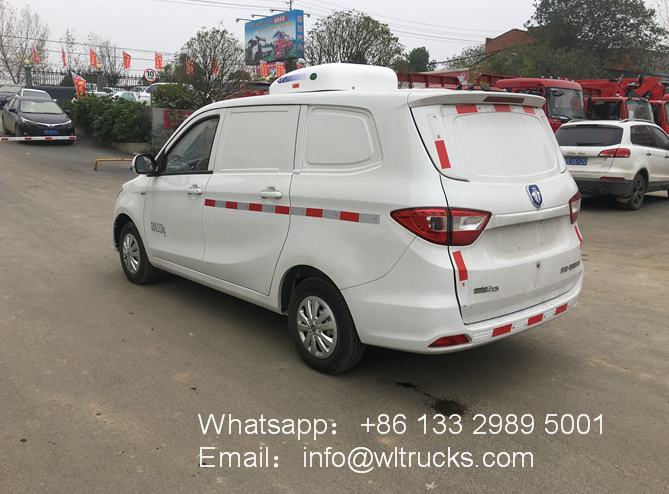

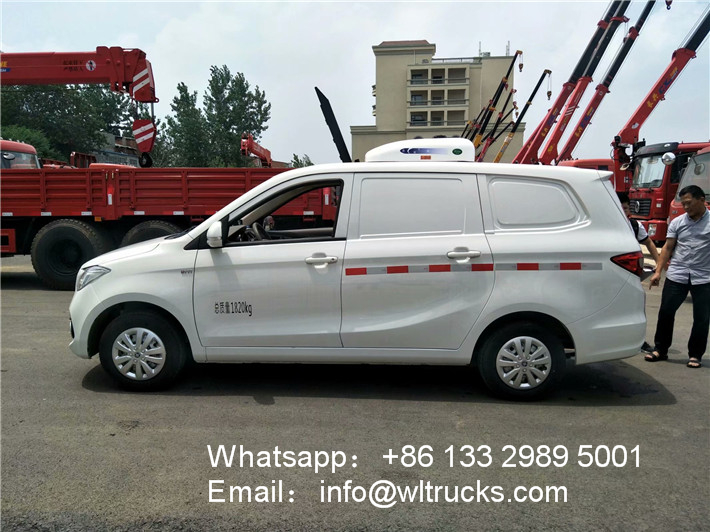

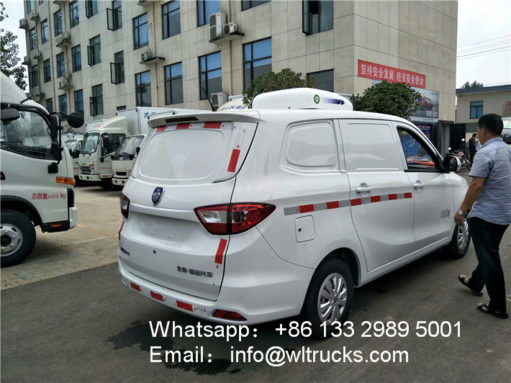

Foton IX5 2m3 mini reefer box truck Bodywork details:

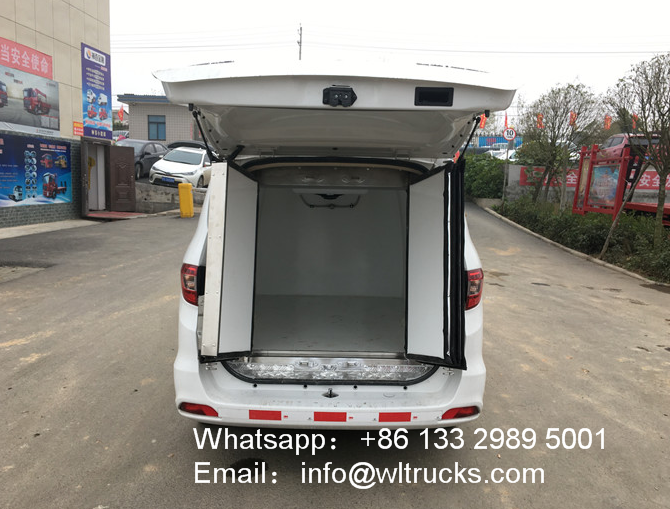

Foton IX5 2m3 mini reefer box truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
