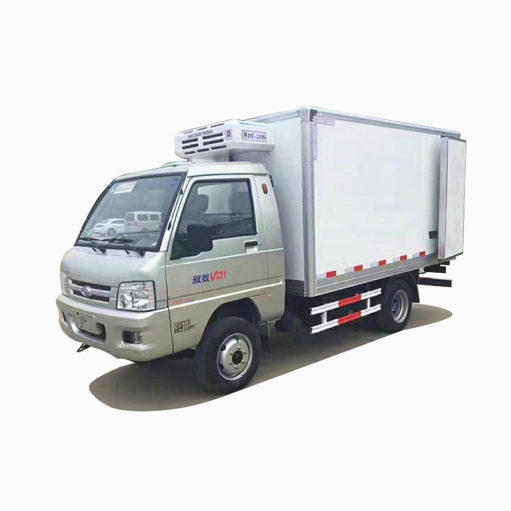

Foton mini refrigerated truck
Chassis: Original Foton chassis, standard equipped with Liuzhou Wuling Liu 61-horsepower gasoline engine, optional Futian Power 86-horsepower engine, Yuling body, 1500mm wide cab, 5th gear, 165R14 vacuum tire, power steering.
Top: Refrigerator Cargo Box Size: 2600x1460x1470mm, inside and outside glass fiber reinforced plastic box, 8CM thick polyurethane insulation layer, stainless steel door lock, with double rear door, and Han Xue -5 degree unit.
Optional equipment: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Our company mini refrigerated truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Foton mini refrigerated truck specification:
|
[Complete vehicle technical parameters] |
|||
|
Product trademark
|
FOTON
|
Announcement batch
|
289
|
|
product name
|
Refrigerated truck
|
Product number
|
BJ5030XLC-D5
|
|
Total mass (Kg)
|
3235
|
Car body volume (m3)
|
6.6
|
|
Rated load mass (Kg)
|
1495
|
Dimensions (mm)
|
4450×1620×2400
|
|
Curb weight (Kg)
|
1610
|
Cargo size (mm)
|
2600×1460×1470
|
|
Number of passengers in the cab (person)
|
2
|
Saddle maximum load mass (Kg)
|
|
|
Approach angle / departure angle (°)
|
24/28
|
Front overhang / rear overhang (mm)
|
895/1389
|
|
Axial load (Kg)
|
1230/2005
|
Maximum speed (Km/h)
|
110
|
|
Remarks
|
The top of the cargo compartment can not be opened. Optional one-side door compartment, optional new style bumper
|
||
|
[Chassis technical parameters]
|
|||
|
Chassis model
|
BJ1030V5JL3-D5
|
Chassis name
|
Truck chassis
|
|
Trade name
|
Futian brand
|
manufacturer
|
Beiqi Foton Motor Co., Ltd.
|
|
Number of axes
|
2
|
Number of tires
|
6
|
|
Wheelbase (mm)
|
2566
|
||
|
Tire specifications
|
175R14LT 8PR
|
||
|
Number of leaf springs
|
3/5
|
Front track (mm)
|
1260
|
|
Fuel type
|
gasoline
|
Rear track (mm)
|
1195
|
|
Emission basis
|
GB18352.5-2013 country V
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
Power (Kw)
|
|
TNN4G15A
|
Ruizhan (Tongling) Technology Co., Ltd.
|
1099
|
45
|
Foton mini refrigerated truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Foton mini refrigerated truck New craft:
Foton mini refrigerated truck Optional configuration:
Foton mini refrigerated truck Bodywork details:

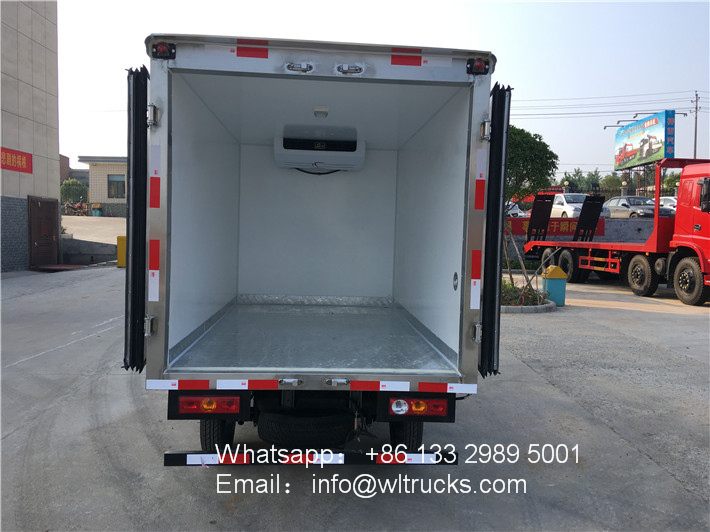

Foton mini refrigerated truck Internal details:

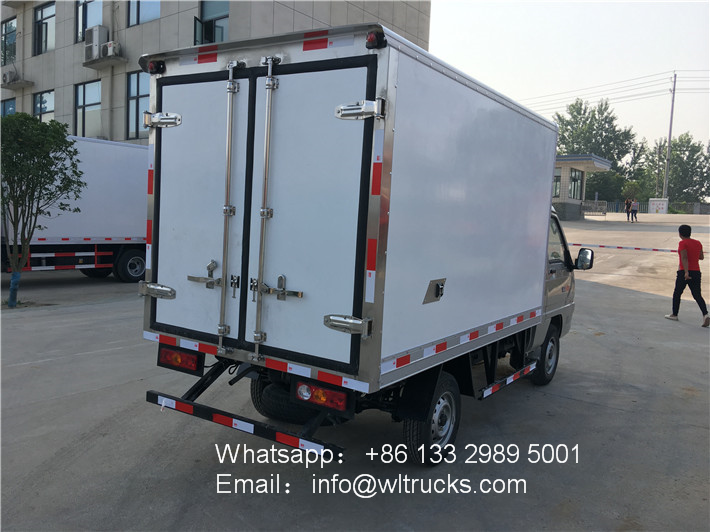

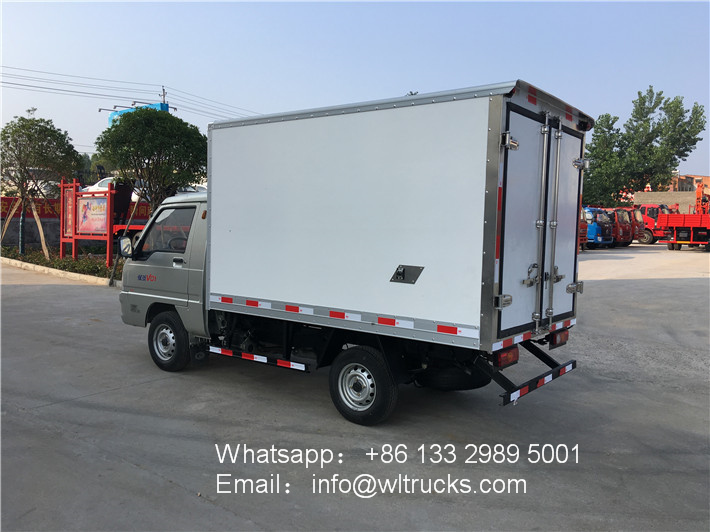

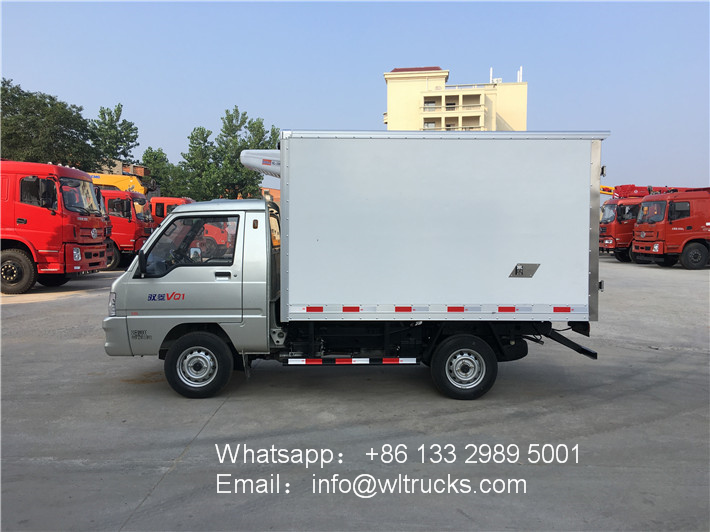

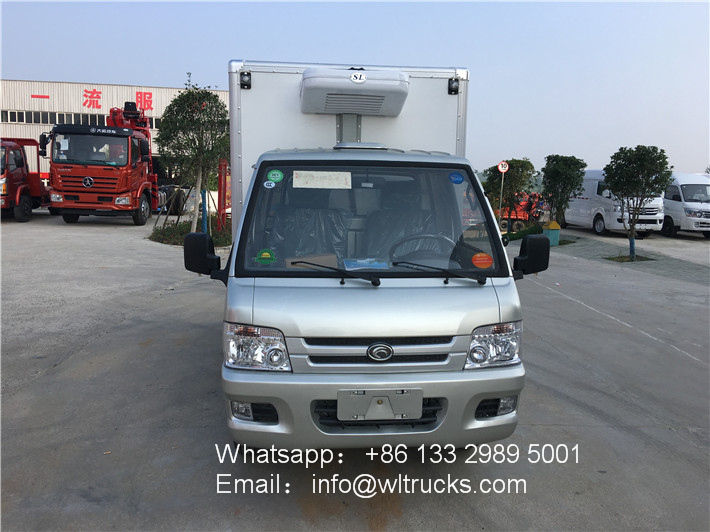

Foton mini refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
