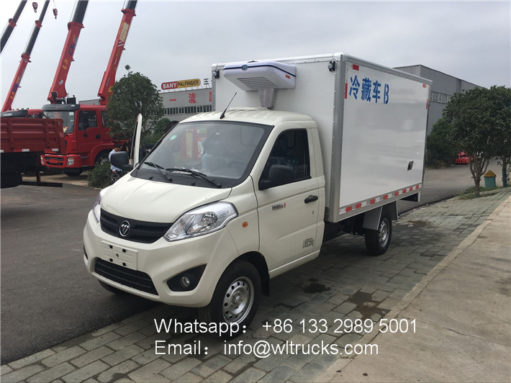

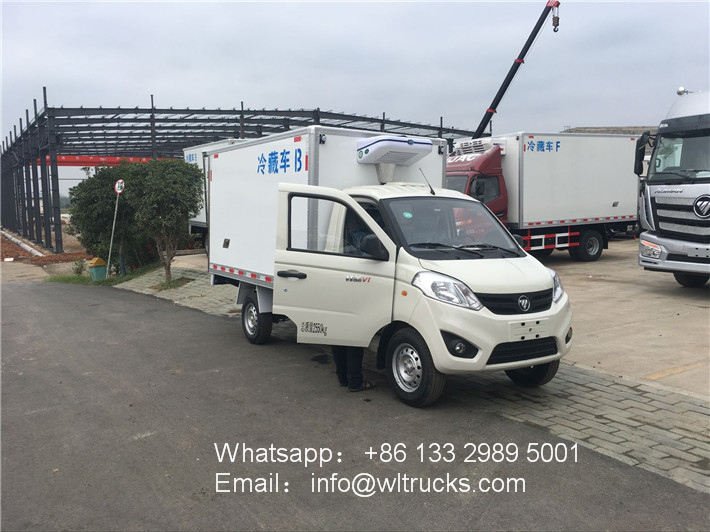

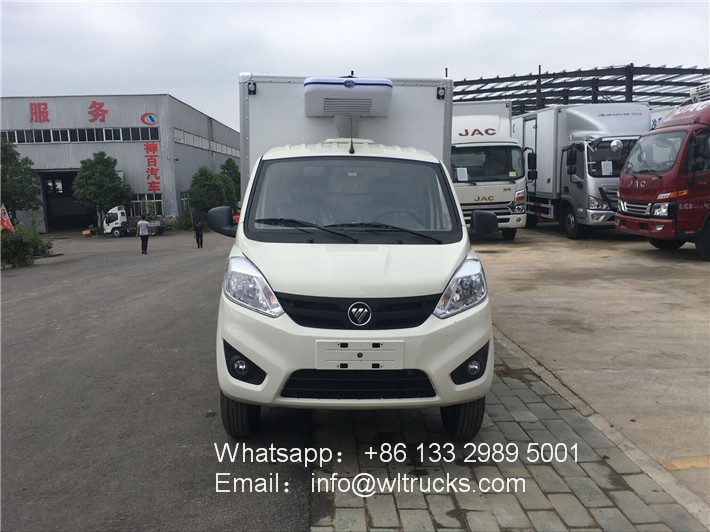

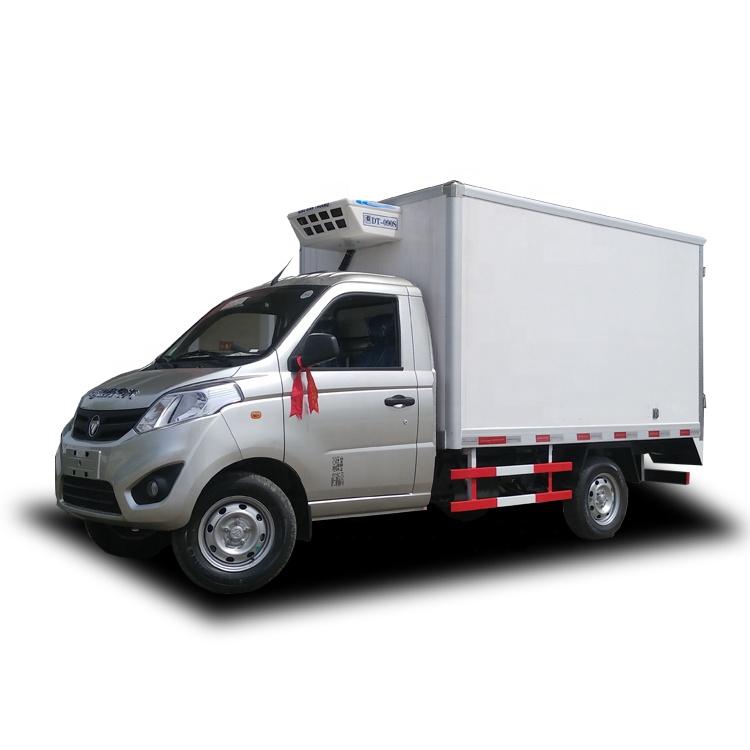

Forland small refrigerator truck
Adopt 1600mm Futian Times Xiangling V body, Dongan KAM15KR engine, 88 horsepower, 5 gear box, DAT18R-5 gear box, 3070 wheelbase, 175R14LT tire, 102 rear axle, ABS, electric power steering, central locking, electric glass , Front stabilizer bar, leather seats.
The box body is made of inner and outer glass steel plates, 8cm thick heat insulation board in the middle, and the bottom plate is non-slip pattern aluminum plate, stainless steel door lock, double back door, and the rest are standard. Dimensions: 4960 × 1720 × 2515 (mm), cargo compartment size: 2795 × 1545 × 1535 (mm), standard -5 degree refrigeration unit.
Forland small refrigerator truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Forland small refrigerator truck specification:
| General Technical Parameters | ||||
| Overall Dimension | 5200×2500×3000(mm) | Gross Vehicle Weight | 6495(Kg) | |
| Curb Weight | 2900(Kg) | Loading Weight | 3000(Kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | Forland | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Engine | Model | 4 Cylinders | ||
| Power | 88KW/120HP | |||
| Emission standard | EURO V | |||
| Displacement | 2.999L | |||
| Fuel type | Diesel | |||
| Gearbox | 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2.5T/4.8T | |||
| Wheel base | 3800(mm) | |||
| Overhang( Front/Rear) | 1130/1505(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 105(km/h) | |||
| Superstructure | ||||
| Van | Box size | 3600×2300×2100(mm) | ||
| Material | Fiberglass | |||
| Insulating Layer | 8cm Polyurethane Foam | |||
| Truck refrigeration unit | Brand | THERMOKING | ||
| Model | KV300 | |||
| Applicable temperature (ºC) | -18~0 | |||
| Remarks | Part Optional: Ventilation slot Hook External power supply Side door |
|||
Forland small refrigerator truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Forland small refrigerator truck New craft:
Forland small refrigerator truck Optional configuration:

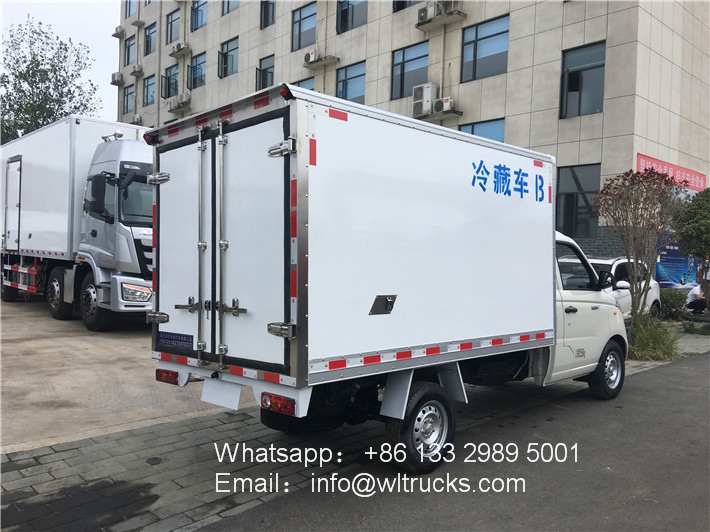

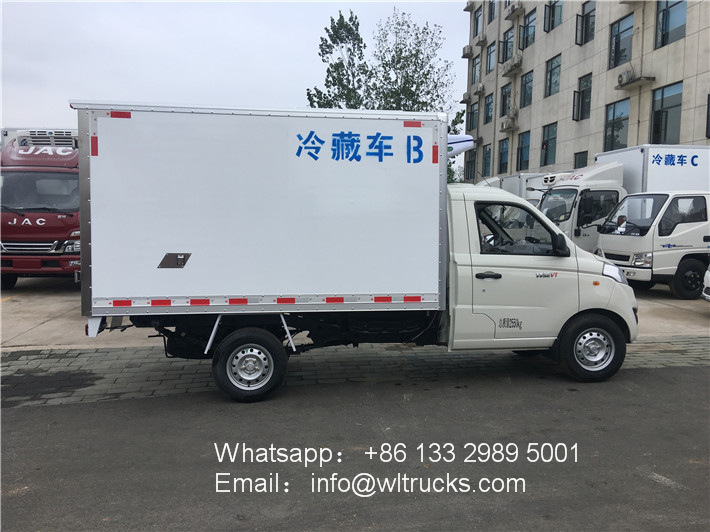

Forland small refrigerator truck Bodywork details:

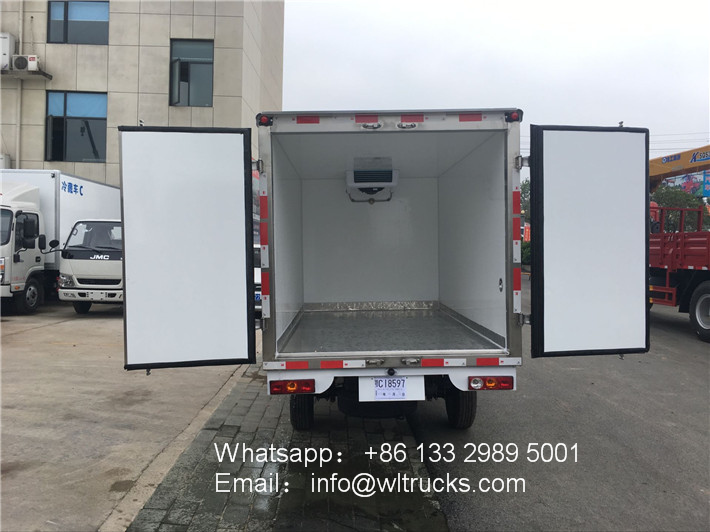

Forland small refrigerator truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
