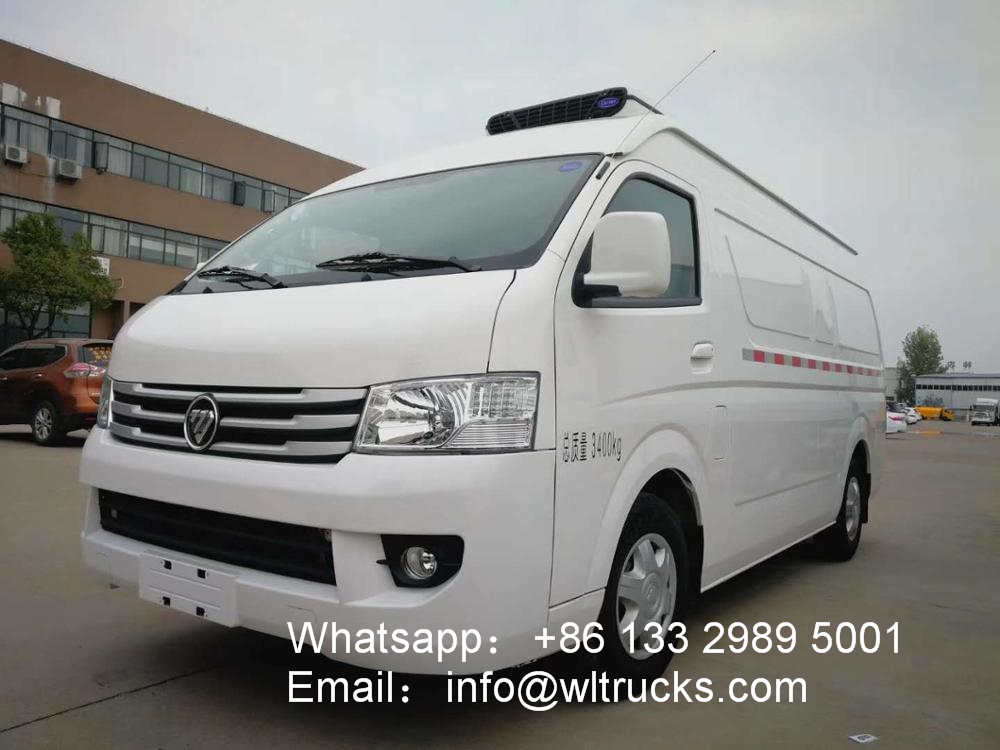

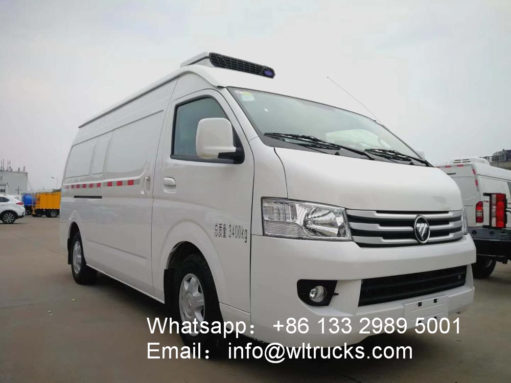

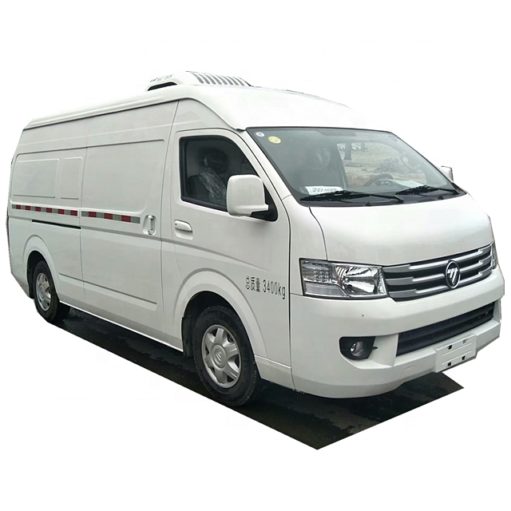

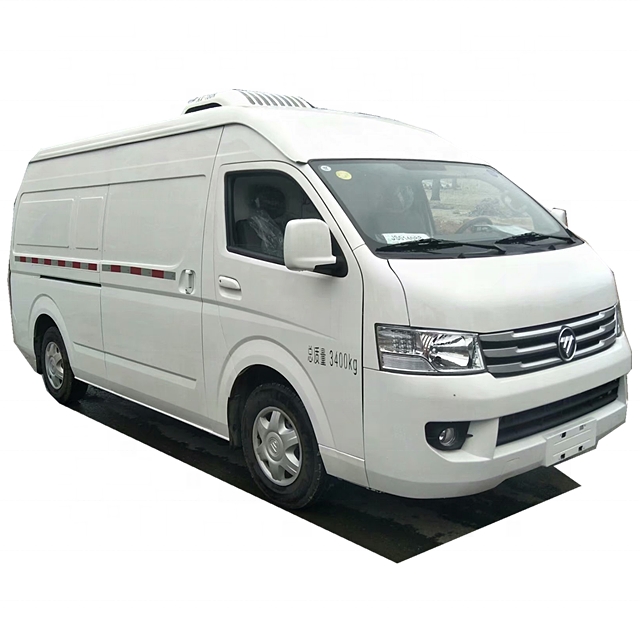

Foton G9 1000kg cooling van box truck
Adopt Japanese Mitsubishi 136 horsepower engine, 3110 wheelbase, occupancy: 2 people, blind window: front heater and front air conditioner (ABS+1500, electric window+central control lock+1600 can be selected) 1920×2530, the size of the cabin (2860×1560×1410mm) (2860×1630/1200×1410mm)，Optional -5 degree to -18 degree refrigeration unit.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Foton G9 1000kg cooling van box truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Foton G9 1000kg cooling van box truck specification:
|
Foton landscape G9 bread refrigerated truck (gasoline version) vehicle technical parameters
|
|||
|
Vehicle name
|
Futian scenery G9 bread refrigerated truck (gasoline version)
|
Vehicle model
|
BJ5039XLC-V1
|
|
Dimensions (mm)
|
5380*1920*2530
|
Cargo size (mm)
|
3600*1600*1460
|
|
Cargo volume (cubic)
|
7.8
|
Car body material
|
Rigid polyurethane insulation
|
|
Total mass (kg)
|
3400
|
Rated load mass (kg)
|
1030
|
|
Curing quality (kg)
|
2240
|
Cold machine brand
|
Optional (imported/domestic)
|
|
Refrigeration temperature
|
-5/-18/-25 degrees
|
Production cycle
|
10 working days
|
|
Futian landscape G9 bread refrigerated truck (gasoline version) chassis technical parameters
|
|||
|
Chassis model
|
BJ6549B1PXA-E4
|
engine
|
Mitsubishi 136 horsepower / 2.4L displacement
|
|
Gearbox
|
5 files
|
Number of axes
|
2
|
|
Fuel type
|
gasoline
|
Emission Standards
|
Country five
|
|
Number of tires
|
4
|
Tire specifications
|
195R15C vacuum tire
|
|
Number of passengers in the cab
|
2
|
Card type
|
Blue card
|
Foton G9 1000kg cooling van box truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Foton G9 1000kg cooling van box truck New craft:
Foton G9 1000kg cooling van box truck Optional configuration:

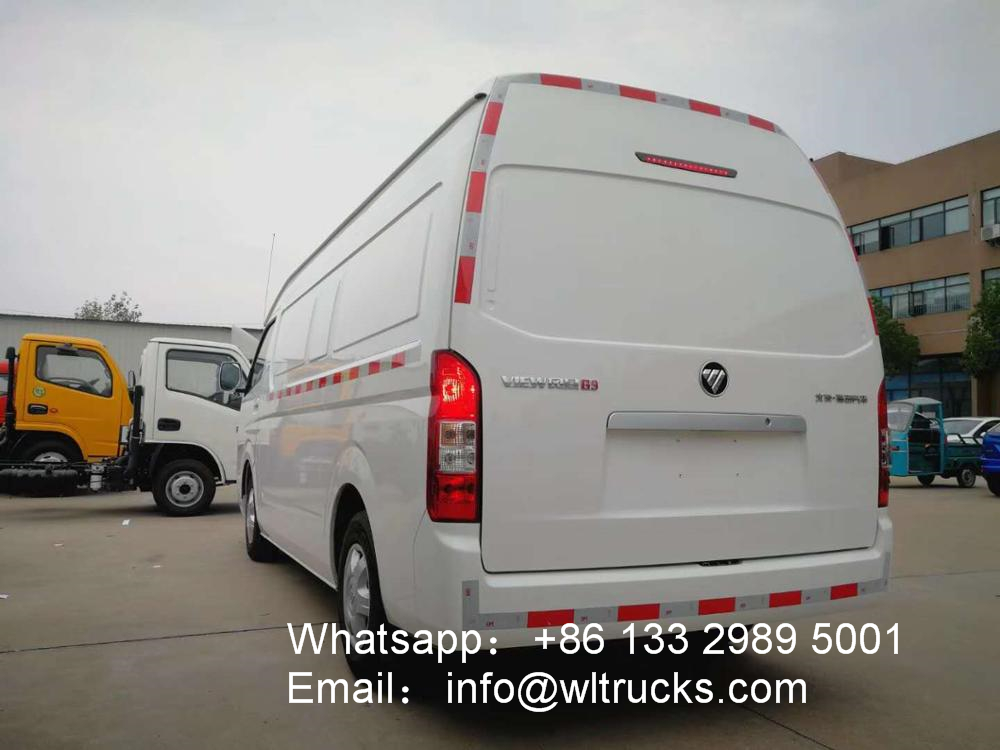

Foton G9 1000kg cooling van box truck Bodywork details:

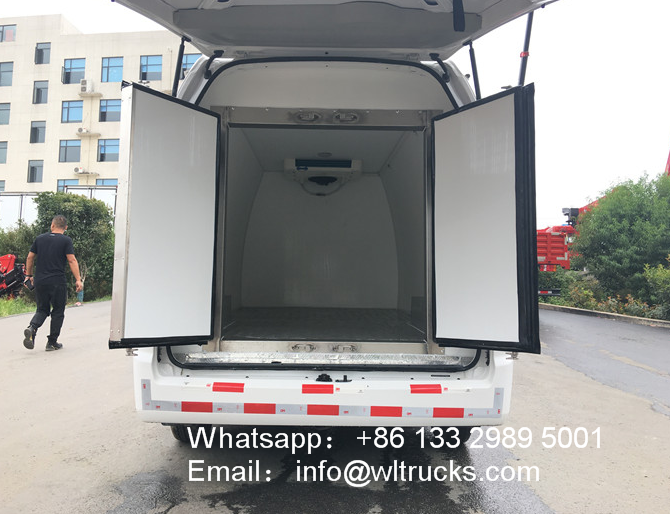

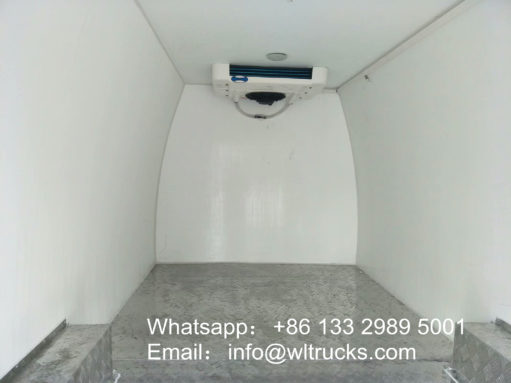

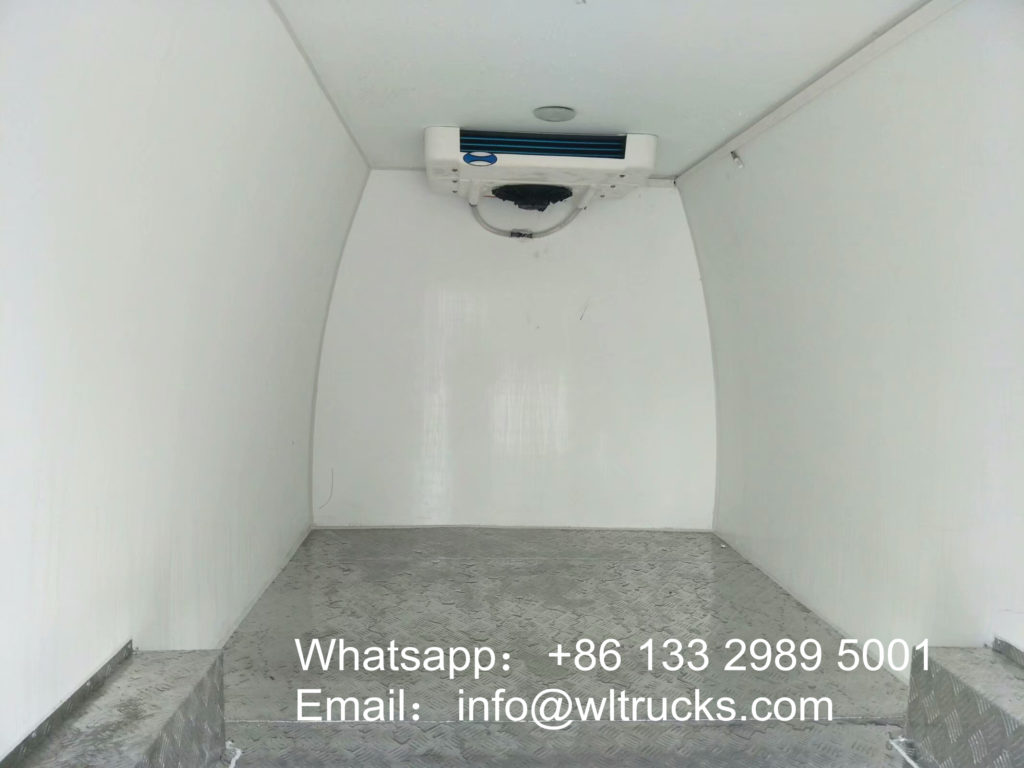

Foton G9 1000kg cooling van box truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
