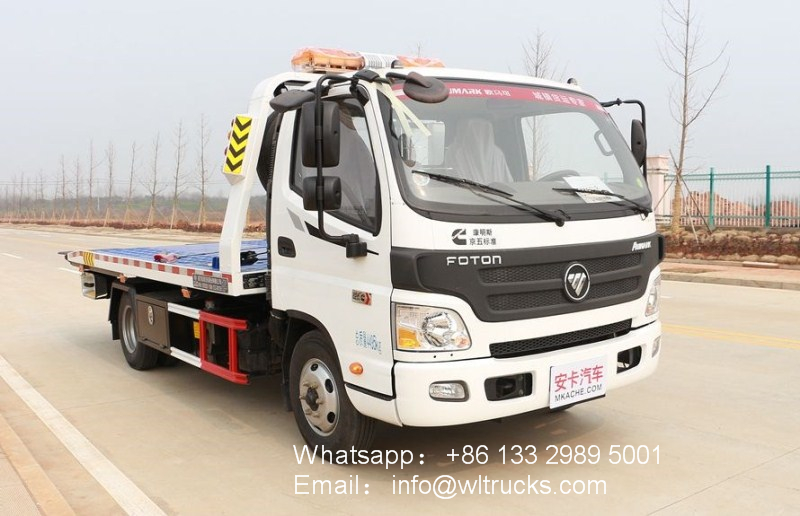

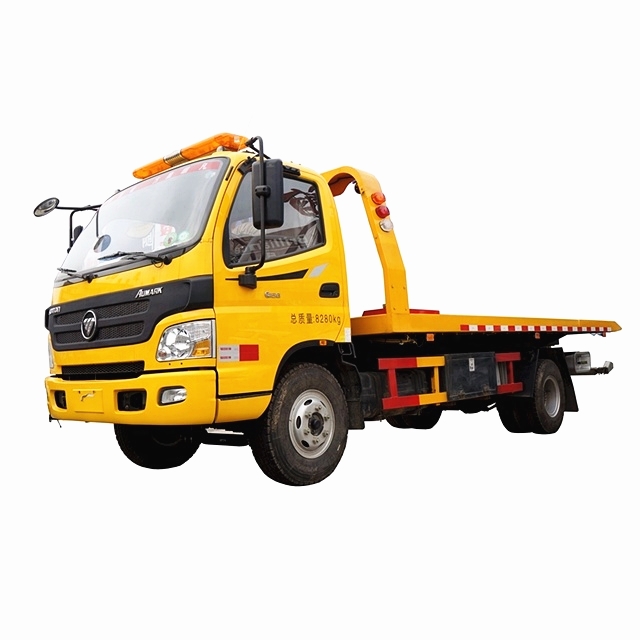

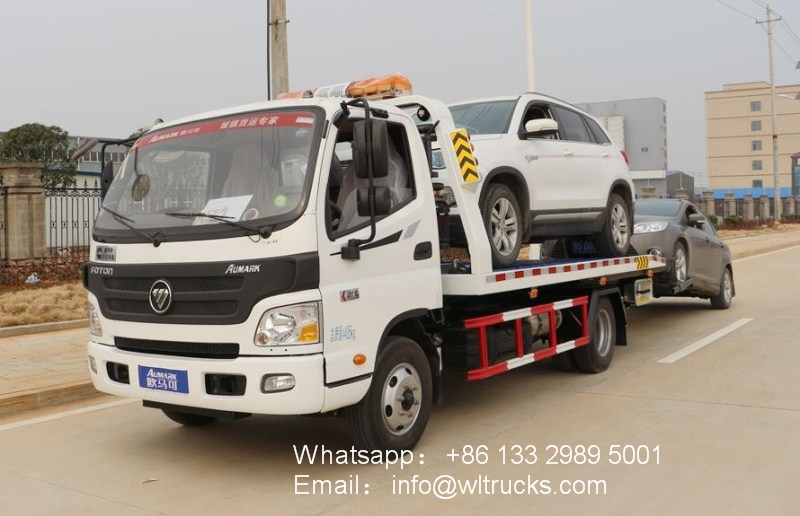

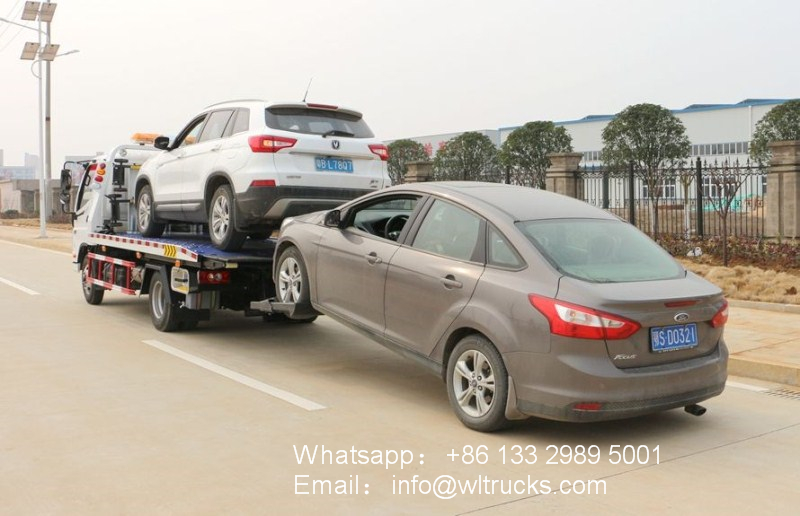

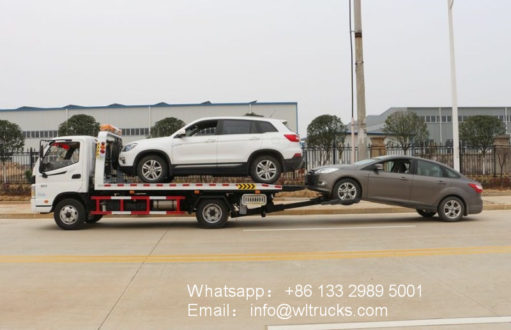

FOTON Aumark 3 ton wrecker tow truck for sale
FOTON Aumark 3 ton wrecker tow truck Chassis configuration:
Adopt Foton Omar chassis, new single-row wide body cab, Cummins 130 horsepower / 141 horsepower engine, 5-speed gearbox, wheelbase 3360mm, 4.5-ton integral rear axle, 7.00R16 steel tire, original urea tank, original Factory ABS, with power steering, air conditioning, cruise control, central locking, electric doors and windows, clutch booster, steam brake.
FOTON Aumark 3 ton wrecker tow truck Bodywork configuration:

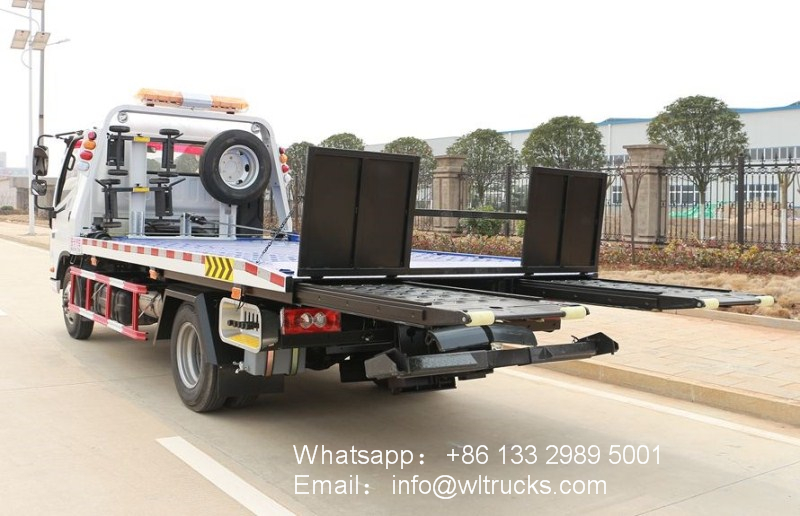

The truck has a length of 4.2 meters and a width of 2.32 meters. The plate can use 4 thick checkered plates or one-time forming stamping plates. The tail plate adopts a flip plate and a new pull type tail plate. The length of the tail plate is 1.2 meters.
3 tons of tops, equipped with 4 tons of hydraulic winches, 25 meters of steel wire rope, double-sided linkage operation, paired with auxiliary wheel trolley, pair of 7-character forks, pair of square sleeves, one set of tools, four sets of straps, chain Hook, two work lights, with long yellow LED warning lights.
FOTON Aumark 3 ton wrecker tow truck wrecker specification:
| General Technical Specification | |||||
| Overall Dimension | 5995x2300x2350(mm) | ||||
| Gross Vehicle Weight | 4495 (Kg) | ||||
| Curb Weight | 4100(Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | Foton | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 96KW/130HP | ||||
| Emission standard | EURO2 or 3 | ||||
| Displacement | 2780(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Pneumatic(Air break/exhaust brake) | ||||
| Wheel Base | 3360(mm) | ||||
| Front/Rear Axle Loading | 2500/4500(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 7.00R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
| Platform Organ | Dimension | 4200*2320(mm) | |||
| Rear manual flip board length | 1200(mm) | ||||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 3000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
FOTON Aumark 3 ton wrecker tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
