Foton 3000liters hook arm garbage truck Product Description:
Foton 3000liters hook arm garbage truck Chassis configuration: original Beiqi Foton chassis, wheelbase 2.6 meters, Futian era 1.6 meters wide cab, full diesel 68 horsepower diesel engine, 5 gear 5T20 gearbox, 600 original tires, 3 tons rear axle, with direction assistance, front axle Disc brakes, with load-sensing proportional valve, 120 beams, with warm air.
Foton 3000liters hook arm garbage truck Bodywork configuration: high-strength alloy steel integrated main hook arm, reinforced auxiliary beam, cast steel tail roller, manual + electronic control dual control device, hydraulically complete the upper box + lower box + locking + self-unloading, etc. The car is equipped with multi-case circulation transfer.
Hook-arm trash bin: One hook-arm trash bin is equipped with the car, made of Q235 high-quality carbon steel plate produced by Wuhan Iron and Steel, the side plate is 2 mm and the bottom plate is 3 mm, the interior is treated with anti-corrosion and anti-rust treatment, and the delivery windows are opened on the left and right sides of the box top, with pneumatic support Rod, water baffle inside the box, cast steel roller at the bottom of the box, tail door manually opened with quick lock.
Foton 3000liters hook arm garbage truck Specifications:
Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.
According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 4800×1900×2540 | |
| Wheel base (mm) | 3300 | ||
| F/R Axle-Load | 2000/400 kg | ||
| Curb weight | 2150 kg | ||
| Loading weight | 2215 kg | ||
| GVW | 4495 kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Diesel ENGINE | |
| Type | 4 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 95 | ||
| Emission standard | Euro III | ||
| Gearbox | 5 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 7.00-16 Nylon tyre,6pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Upper Body | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 4 CBM | ||
| Remarks | 1. Color is optional | ||
| 2.Customized LOGO painting as per customer request | |||
Foton 3000liters hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
Foton 3000liters hook arm garbage truck New craft:
Foton 3000liters hook arm garbage truck Optional configuration:

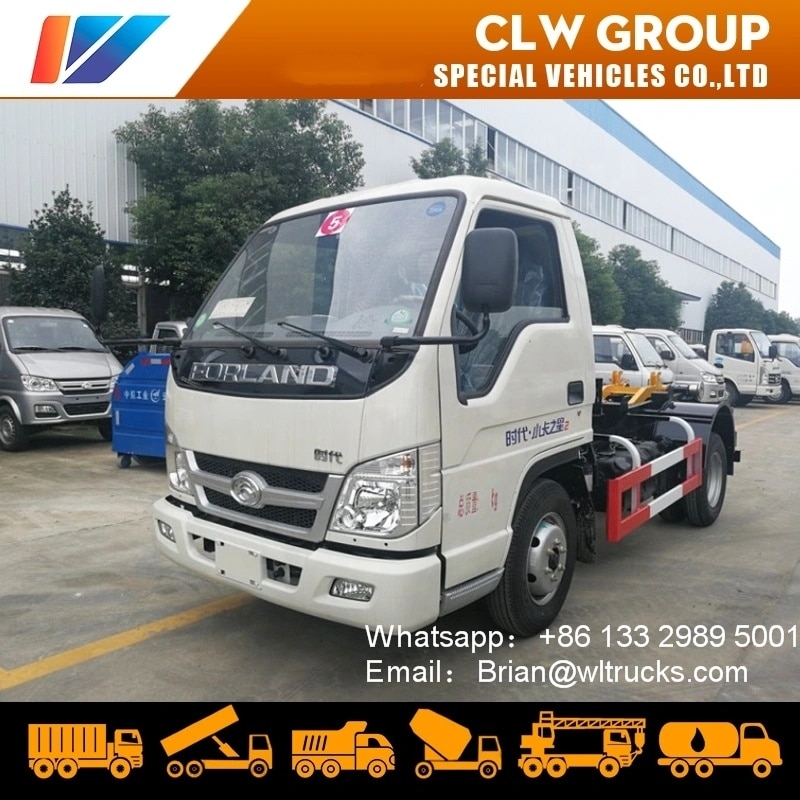

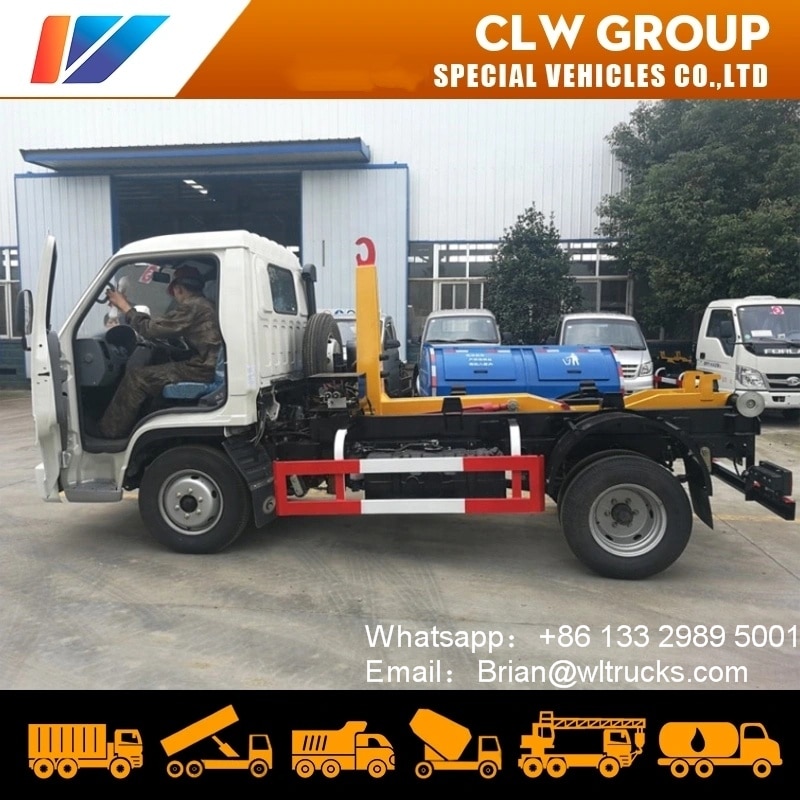

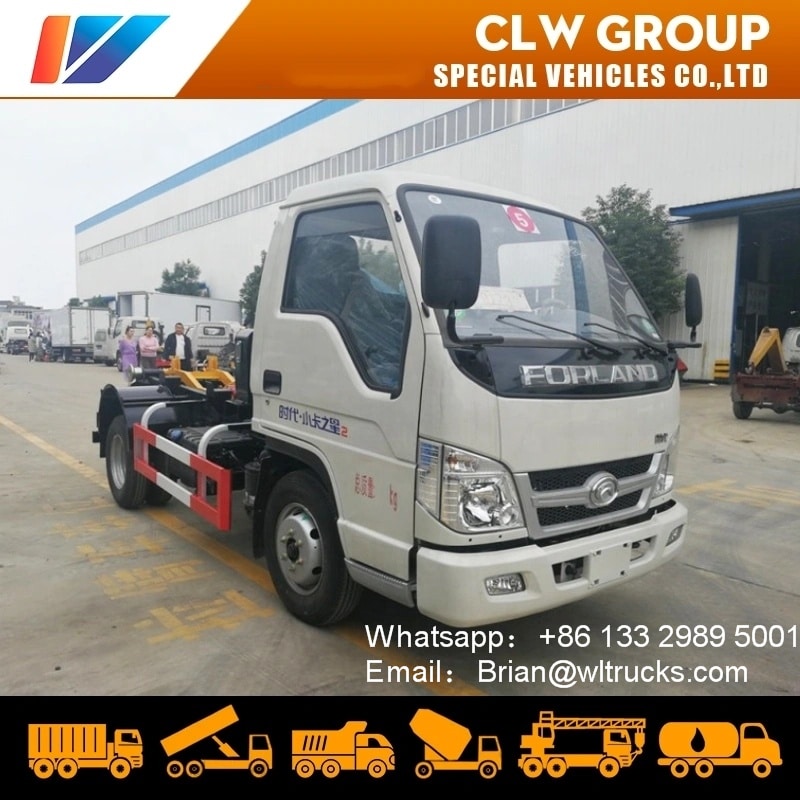

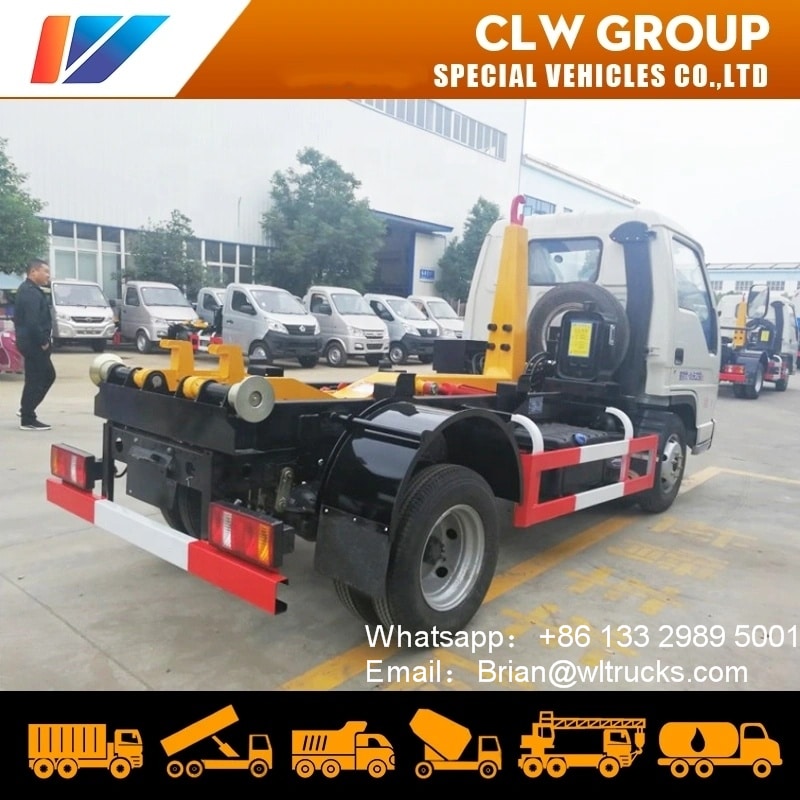

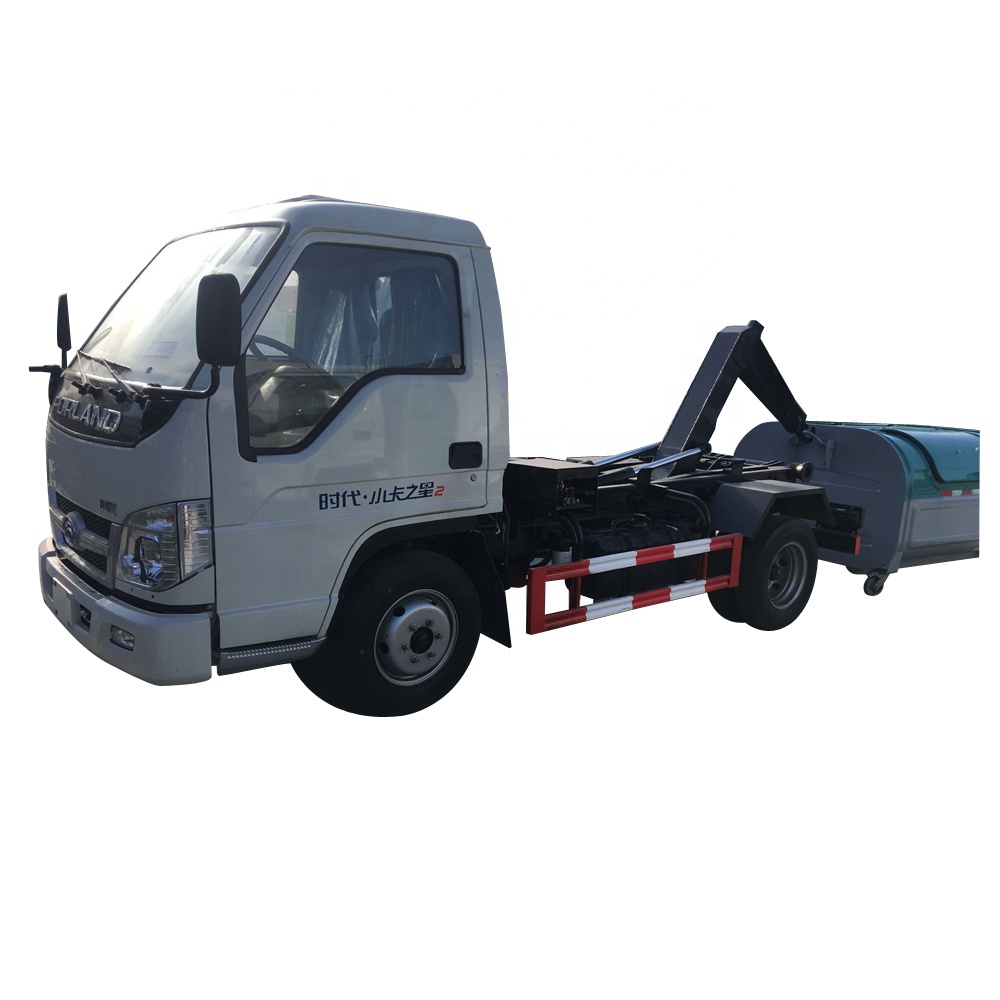

Foton 3000liters hook arm garbage truck detailed images:
Foton 3000liters hook arm garbage truck Structure diagram：
Foton 3000liters hook arm garbage truck Detail drawing:
Customizable garbage truck models
