Foton small gasoline Medical waste truck
Vehicle size: 5000×1720×2460 (mm) car body size: 2780×1560×1550 (mm) wheelbase: 3070 (mm) engine model: LJ469Q-1AE9 87 horsepower custom requirements: the car body uses outer glass steel inner stainless steel, 5cm thermal insulation board in the middle, built-in automatic spraying device, ultraviolet sterilization lamp, double rear doors, anti-collision plates on both sides of the car body, waste liquid collection tank, aluminum alloy profile edging, door frame and lock are stainless steel, the rest of the standard Match.
Foton small gasoline Medical waste truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Foton small gasoline Medical waste truck specification:
| Product Name | FONTON 4×2 refrigeration van truck | Product Brand | CLW |
| Curb weight(kg) | Approx 2810 | Overall Dimension(L*W*H)(mm) | 5995×2150×2900 |
| Load volume(m3) | 13 | Compartment Dimension(mm) | 4165×2050×1900 |
| Wheelbase(mm) | 3360 | Axle number | 2 |
| Front/ rear suspension(mm) | 1095/1540 | Approach/ departure angle (° ) | 21/17 |
| Cab capacity | 3 | Max Speed (km/h) | 95 |
| Chassis Technical Parameter | |||
| Chassis Model: | BJ1049V9JEA-KS1 | Chassis Manufacturer: | BEIQI FONTON Automobile Co., Ltd |
| Gear box | 5 shift | Transmission type: | Manual |
| Brake System | Air brake | Leaf Spring number: | 3+1/6+7 |
| Steering type | LHD or RHD | Traction Type: | 4×2 |
| Tire size | 7.00-16, 7.00R16 | Number of Tire | 6 with a spare |
| Engine specification | |||
| Engine Model: | CY4102-C3F | Engine Brand | DONGFENG ChaoYang |
| Emission stand | Euro 2 | Displacement(ml) | 3856 |
| Fuel type: | Diesel | Power(kw) | 70(95)hp |
| Warranty | 12 months, from the date of supply | ||
| other Equipment or performances | 1. Don’t open at the top, open side door | ||
| 2. Equipped with SONGHAN refrigeration unit(optional other brand) | |||
| 3. Minimum temperature can be dropped to -15 °C. | |||
|
4. Material: FRP inside and outside, 8cm thickness polyurethane foam middle.The cabinet is made of stainless steel and glass fiber reinforced plastic, UV germicidal lamp, refrigeration unit, spray disinfection, double back door, fixed horizontal ring, and no leakage of the box seal. |
|||
Foton small gasoline Medical waste truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Foton small gasoline Medical waste truck New craft:
Foton small gasoline Medical waste truck Optional configuration:

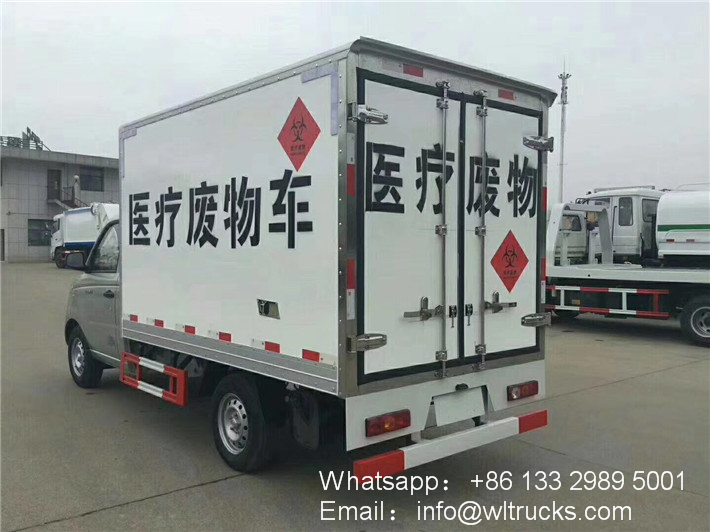

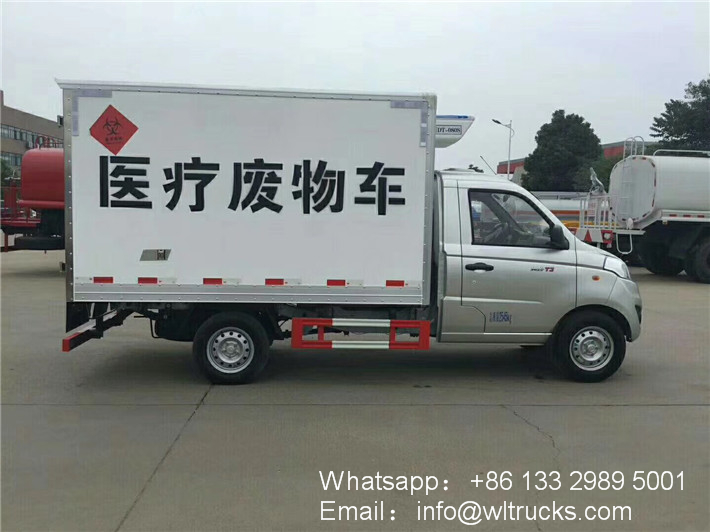

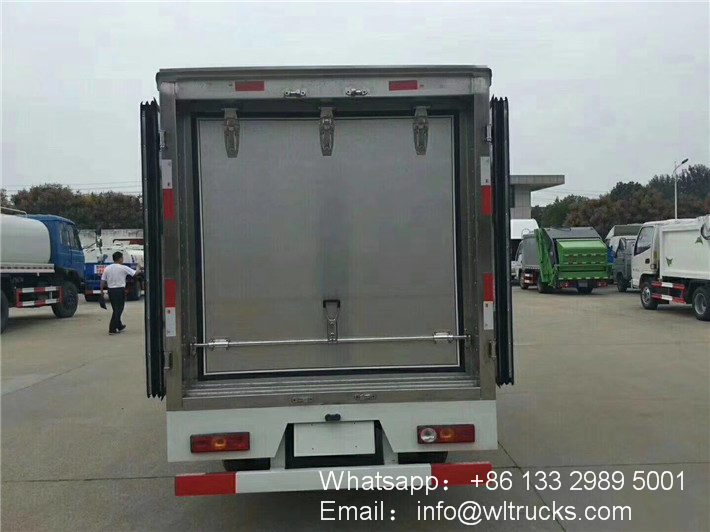

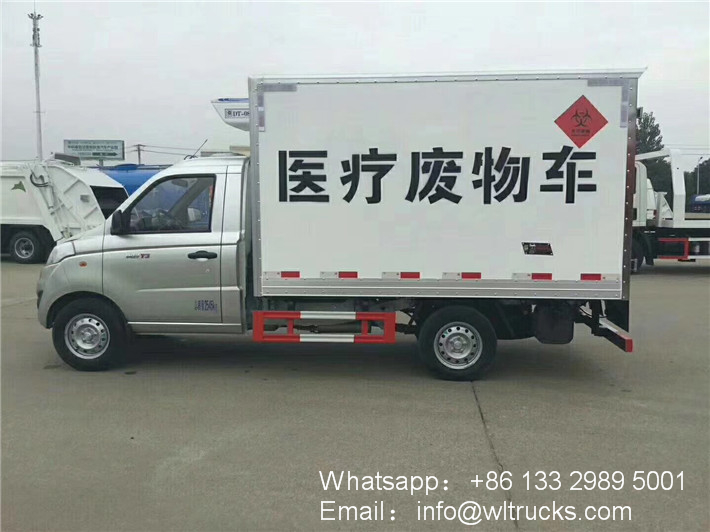

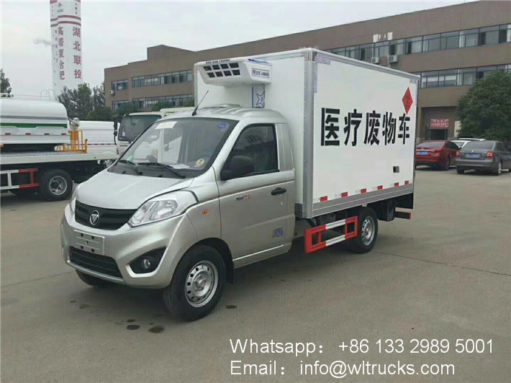

Foton small gasoline Medical waste truck Bodywork details:

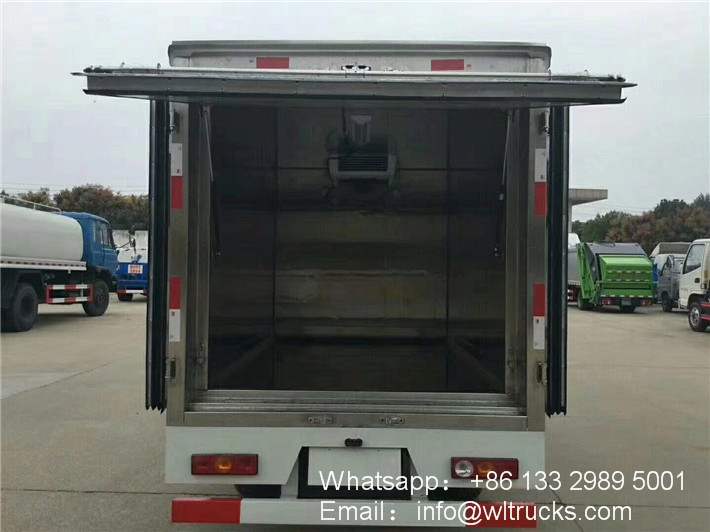

Foton small gasoline Medical waste truck Internal details:

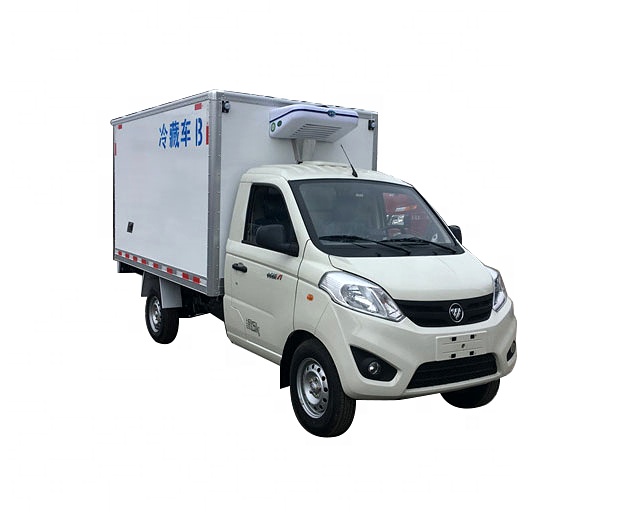

Forland TOANO 2 ton minibus refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
