Changan mini gasoline Medical waste truck
Chassis configuration: new Changan country five chassis, Changan gasoline 98 horsepower JL473Q engine, 5-speed gearbox, wheelbase 2.9 meters, front axle disc brake, tire 175/70R14LT vacuum tire The brand-new cab has strong lines, beautiful appearance, thick beams and one-time stamping.
Top-loading configuration: the size of the box is 2680×1500×1550mm, with double rear doors. The box is made of inner stainless steel, outer glass fiber reinforced plastic, 8CM thick polyurethane insulation layer, stainless steel door lock, and double rear doors. Install spray disinfection, waste liquid collection box, ultraviolet disinfection. .
Optional configuration:optional wireless remote control electric hoist, car body self-unloading function, double-layer rear door insulation function.
Optional configuration:optional wireless remote control electric hoist, car body self-unloading function, double-layer rear door insulation function.
Changan mini gasoline Medical waste truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Changan mini gasoline Medical waste truck specification:
| 【Vehicle technical parameters】 | |||
| product name | Changan Medical Waste Transfer Vehicle | Product number | CLW5020XYYS5 |
| Total mass (Kg) | 2150 | Number of people allowed in the cab (person) | 2 |
| Rated load mass (Kg) | 300 | Dimensions (mm) | 4760×1660×2500 |
| Curb weight (Kg) | 1720 | Cargo compartment size (mm) | 2680×1500×1550 |
| Approach angle/departure angle (°) | 34/17 | Front/rear suspension (mm) | 560/1300 |
| Axle load (Kg) | 860/1290 | Maximum speed (Km/h) | 120 |
| Remarks | The cab is optional with the chassis; the top of the car body is closed and cannot be opened; | ||
| 【Chassis technical parameters】 | |||
| Chassis model | SC1027DAC5 | Chassis name | Truck chassis |
| Brand name | Changan | manufacturer | Hebei Changan Automobile Co., Ltd. |
| Number of axes | 2 | Number of tires | 4 |
| Wheelbase (mm) | 2900 | ||
| Tire specifications | 175/70R14LT 8PR | ||
| Number of leaf springs | -/6-/6 | Front track (mm) | 1360 |
| Fuel type | gasoline | Rear track (mm) | 1360 |
| Emission standard | GB18352.5-2013 National V | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) |
| JL473Q | Chongqing Changan Automobile Co., Ltd. | 1243 | 72 |
Changan mini gasoline Medical waste truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Changan mini gasoline Medical waste truck New craft:
Changan mini gasoline Medical waste truck Optional configuration:

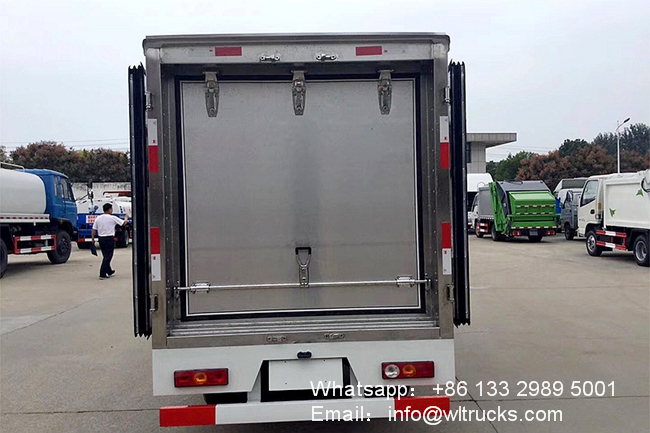

Changan mini gasoline Medical waste truck Bodywork details:

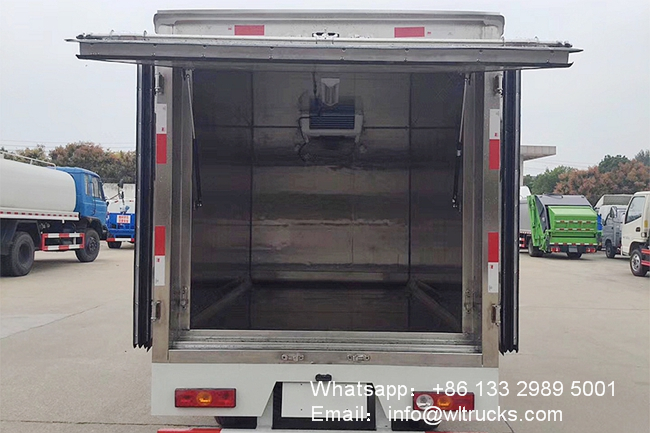

Changan mini gasoline Medical waste truck Internal details:
Forland TOANO 2 ton minibus refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
