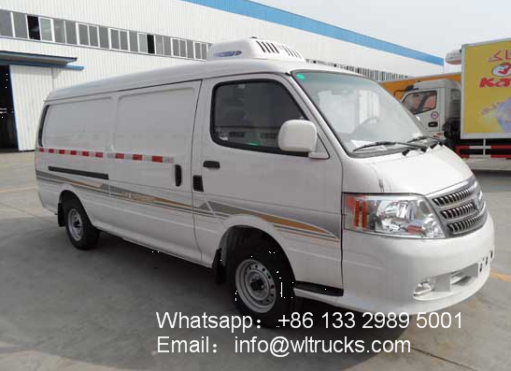

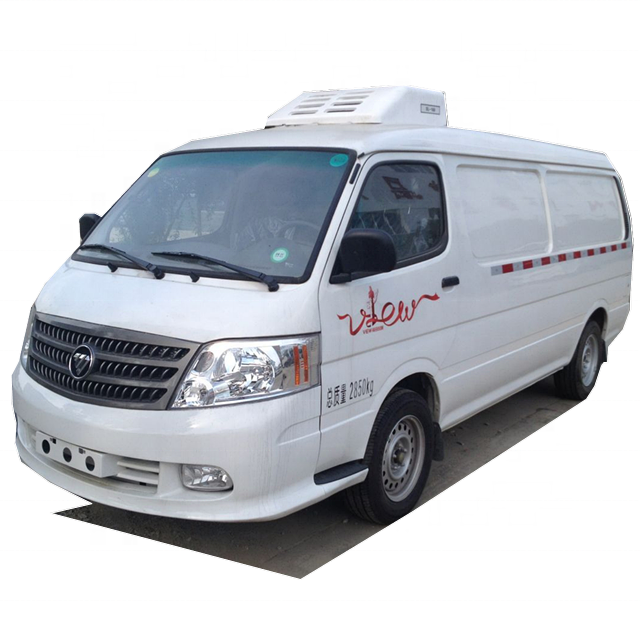

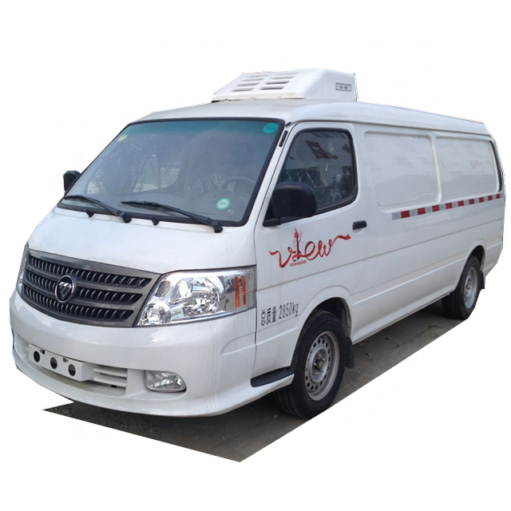

Foton fengjing 5m3 small frozen food truck
Foton Scenic Bread Refrigerated Truck, wheelbase 2890mm, 5-speed gearbox, 195 tires, driving wheel, leather steering wheel, engine: 4Q20M1 Foton environmental protection power, power 95KW, 130 horsepower, total mass: 2800kg, curb weight: 1860kg, rated load quality : 810kg, vehicle size: 5320×1690×2400, 2225 (mm), the space inside the box is about: 5 cubic meters.
Foton fengjing 5m3 small frozen food truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Foton fengjing 5m3 small frozen food truck specification:
|
[Complete vehicle technical parameters]
|
|||
|
Product trademark
|
Futian brand
|
Announcement batch
|
288
|
|
product name
|
Refrigerated truck
|
Product number
|
BJ5036XLC-V1
|
|
Total mass (Kg)
|
2800
|
Car body volume (m3)
|
4.8
|
|
Rated load mass (Kg)
|
810
|
Dimensions (mm)
|
5320×1690×2400,2225
|
|
Curb weight (Kg)
|
1860
|
Cargo size (mm)
|
2700×1300×1350
|
|
Number of passengers in the cab (person)
|
2
|
Saddle maximum load mass (Kg)
|
|
| Approach angle / departure angle (°) |
19/20
|
Front overhang / rear overhang (mm)
|
1320/1110
|
|
Axial load (Kg)
|
1260/1540
|
Maximum speed (Km/h)
|
130
|
|
Remarks
|
Optional high ceiling, optional front trim and lighting. Maximum net power of the engine: 90Kw. The partition is installed behind the seat, the front of the partition is a glass window, and the partition is followed by a blind window. ABS controller model: 1648636000015, ABS controller manufacturer: Beijing Xinfeng Tianhao Technology Co., Ltd.
|
||
|
[Other parameters of the vehicle]
|
|||
|
Chassis model
|
BJ5036XXY-V4
|
Chassis name
|
|
| Number of axes |
2
|
Number of tires
|
4
|
|
Wheelbase (mm)
|
2890
|
||
|
Tire specifications
|
185R14C, 195/70R15, 195/70R15LT
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
Power (Kw)
|
|
4Q20M1
|
Beiqi Foton Motor Co., Ltd.
|
2010
|
95
|
Foton fengjing 5m3 small frozen food truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Foton fengjing 5m3 small frozen food truck New craft:
Foton fengjing 5m3 small frozen food truck Optional configuration:

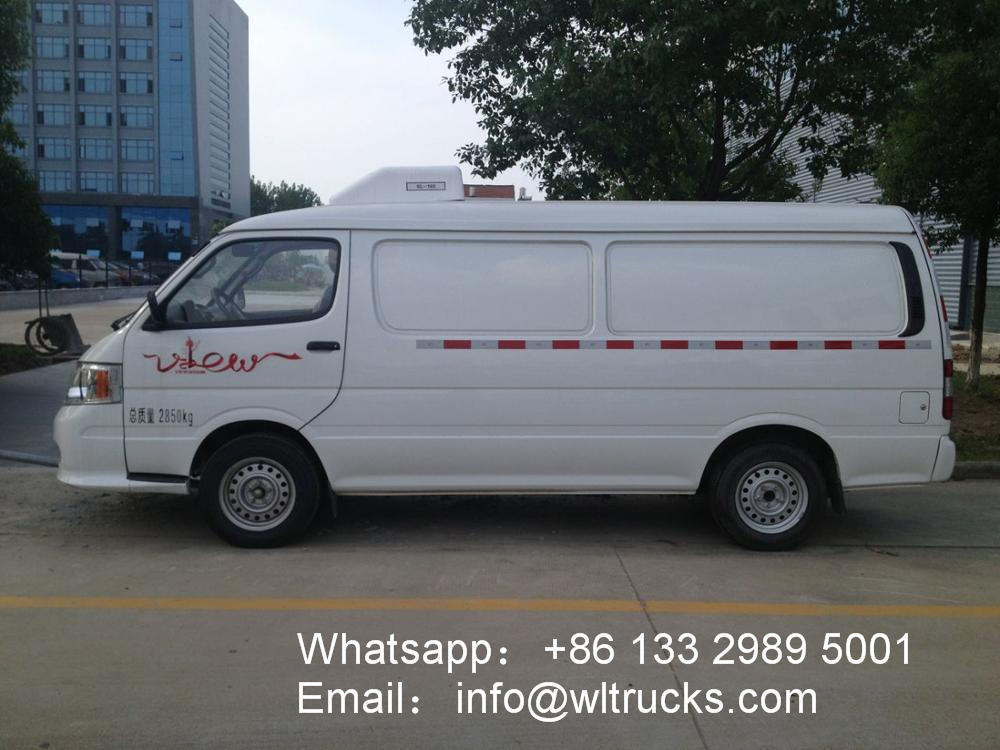

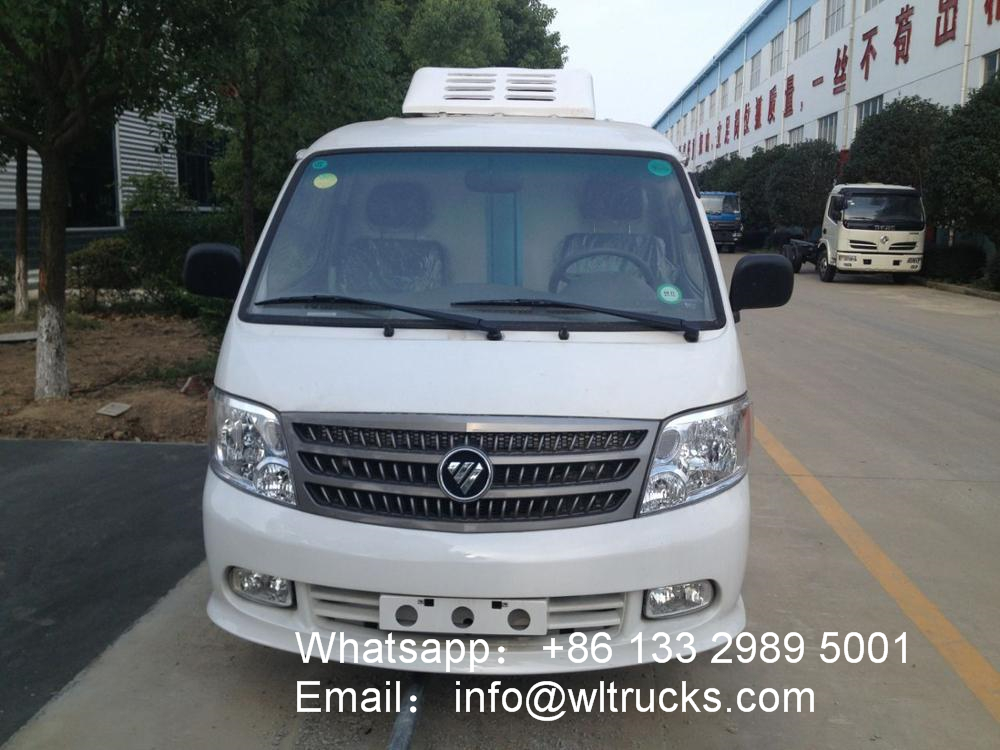

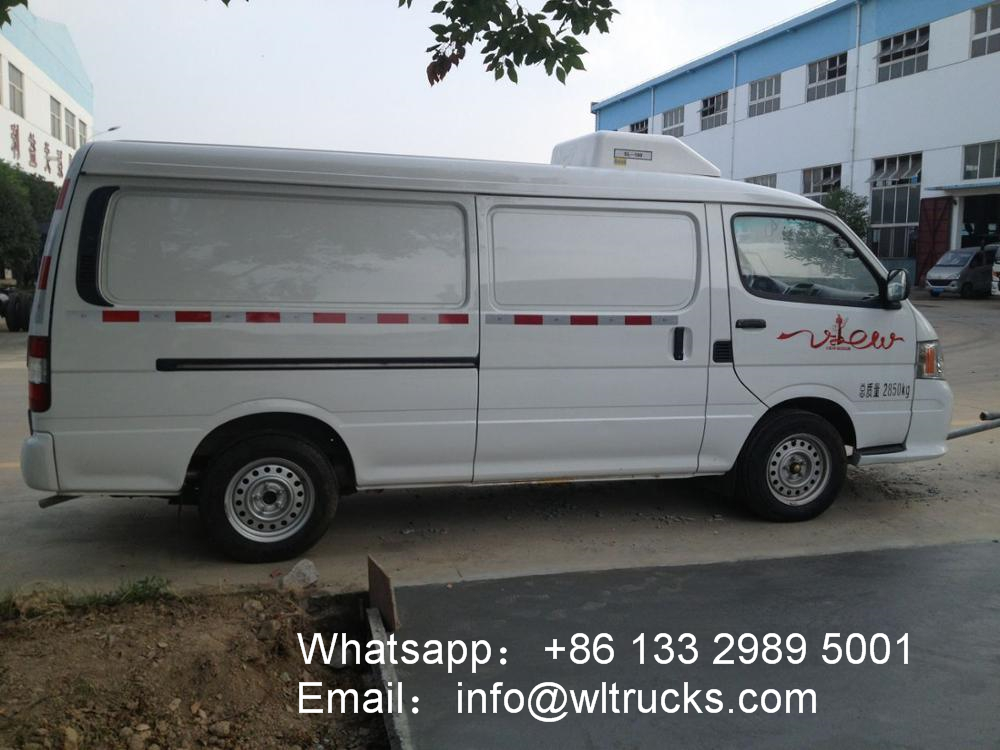

Foton fengjing 5m3 small frozen food truck Bodywork details:

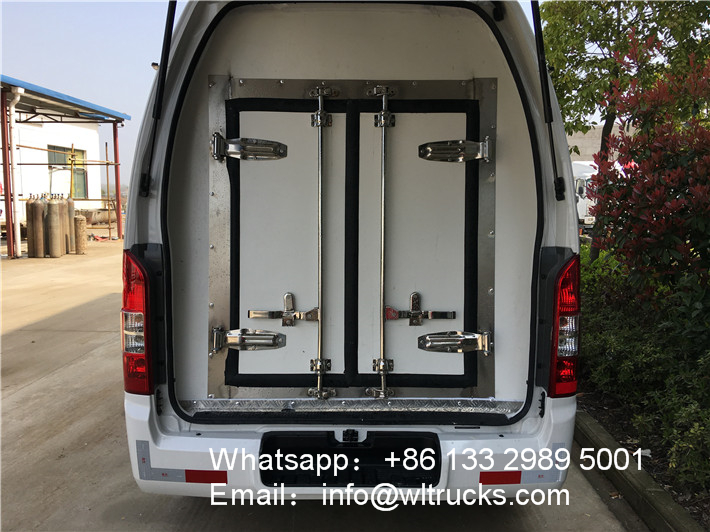

Foton fengjing 5m3 small frozen food truck car Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
