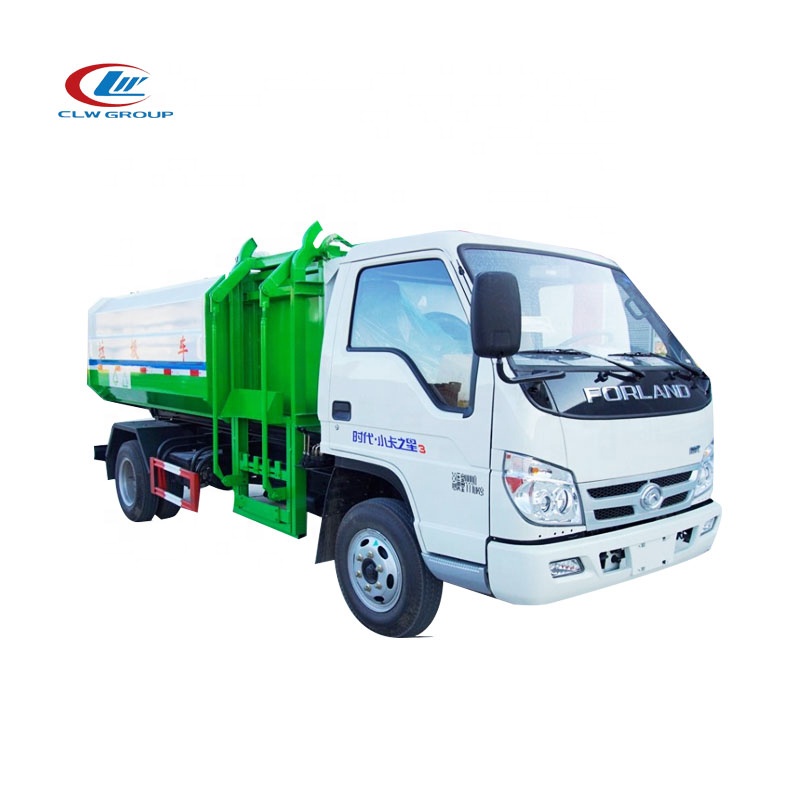

Foton 5cbm hanging bucket garbage truck Product Description:
Foton 5cbm hanging bucket garbage truck Chassis configuration: 3 times body of the small star of the era, 1900mm wide single-row forward-turning cab, 3300mm wheelbase, National Sanquan diesel engine, 95 horsepower, 5-speed gearbox, 6.50 tires.
Foton 5cbm hanging bucket garbage truck Top-loading configuration: The bucket-type garbage truck uses a chain and hydraulic cylinder linkage device to realize the lifting and turning of the garbage hopper, automatically collect the garbage in multiple garbage hoppers into the car, and dump it to the destination at one time. Self loading and unloading function, hydraulic operation.
The bucket-type garbage truck is a vehicle that can be equipped with dozens of garbage bins. It can realize the joint operation of one vehicle and multiple garbage bins. The circular transportation fully improves the transportation capacity of the vehicle. It is especially suitable for short-distance transportation. Composed of compartment, hydraulic system and operating system.
The lifting oil cylinder (2 pcs) garbage box can be lifted and laid down, the next working cycle time ≤50S. For example, the sanitation department cleans and transports urban garbage. It is applicable to the garbage cans of the national general standards: iron drums, plastic drums, and a large supply of garbage hanging bins.
Foton 5cbm hanging bucket garbage truck Specifications:
| Overall Dimension | 5900*1900*2290 mm | Gross Vehicle Weight | 5495 kg | ||
| Curb Weight | 3150 kg | Loading Weight | 2215 kg | ||
| Wheel Base | 3300 mm | Front / Rear Axle | 1800 kg / 3500 kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | Quanchai 90HP | ||||
| Engine horsepower | 90HP, EURO 2or3 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 650-16 | ||||
| Garbage Bin | Capacity | 5CBM | |||
| Material | Side 3mm, Bottom 4mm; Carbon Steel | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Side Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 – 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Foton 5cbm hanging bucket garbage truck Working parameter:
| Optional volume | 3-15 cubic | Bucket time | Less than 10 seconds |
| Bucket type | Plastic bucket or iron bucket | Unloading time | Less than 15 seconds |
| Hanging bucket size | 120 liters, 240 liters | Operating position | Car right |
Foton 5cbm hanging bucket garbage truck Operation display:

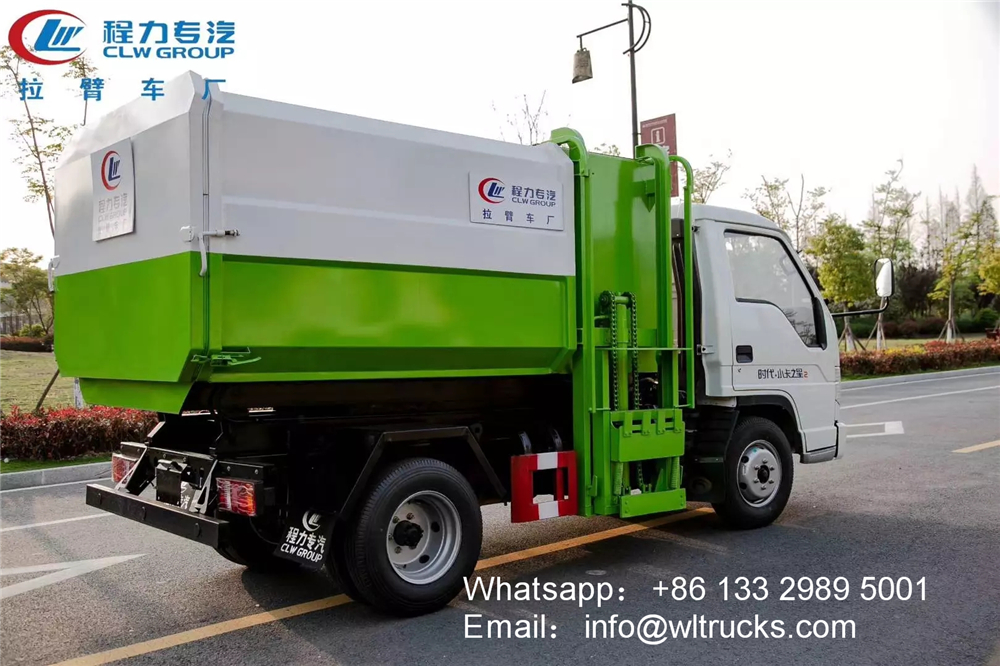

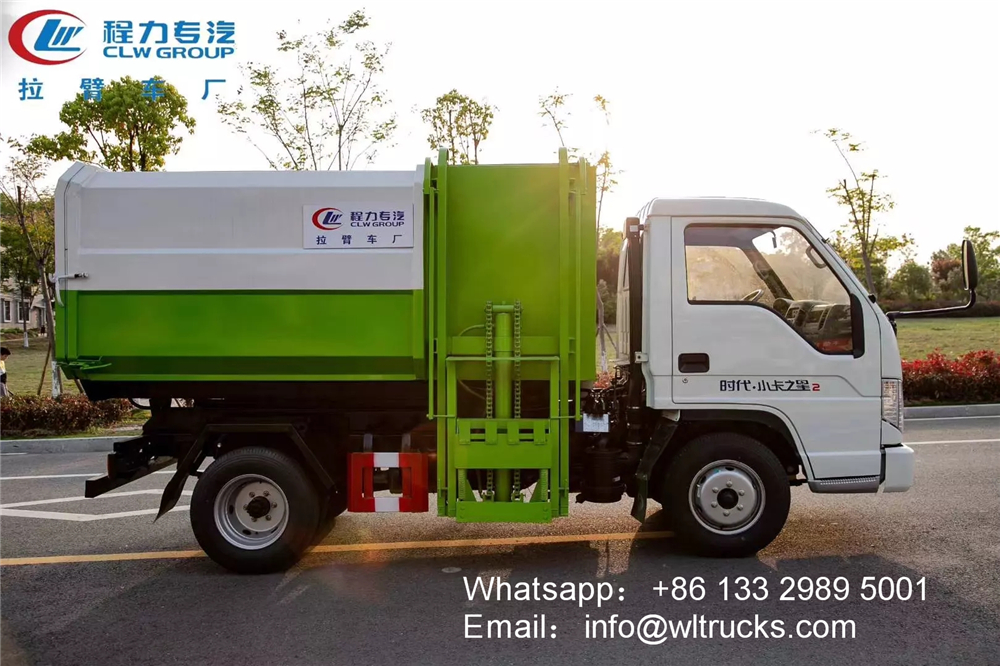

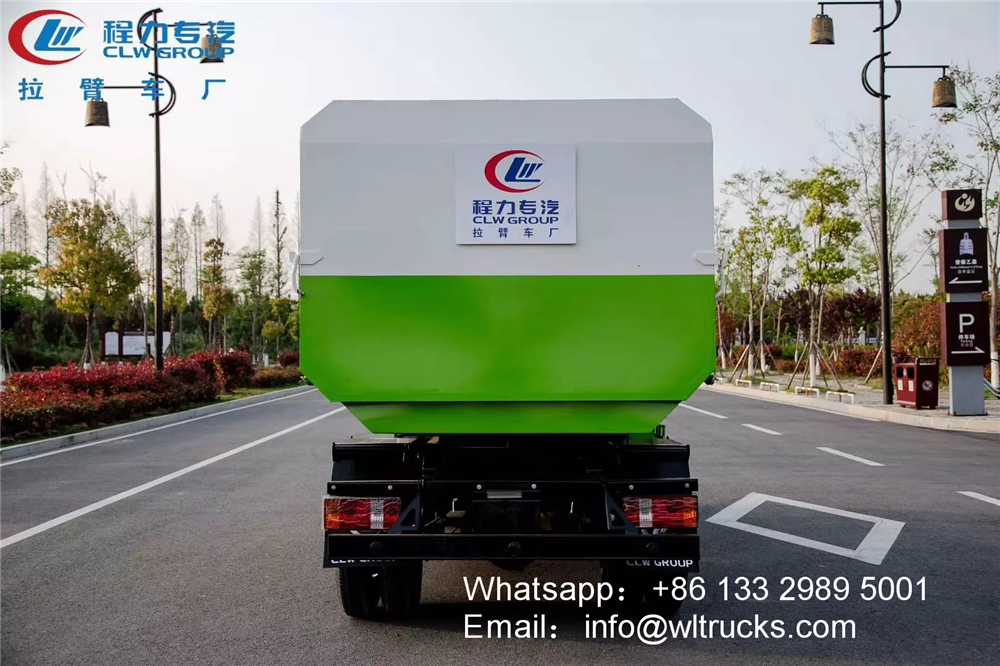

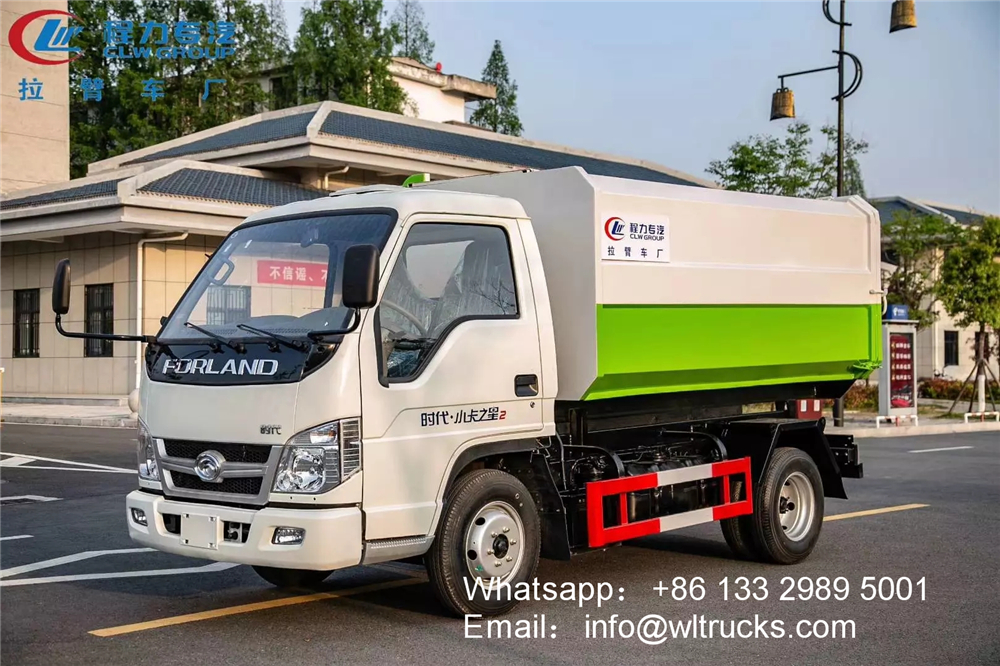

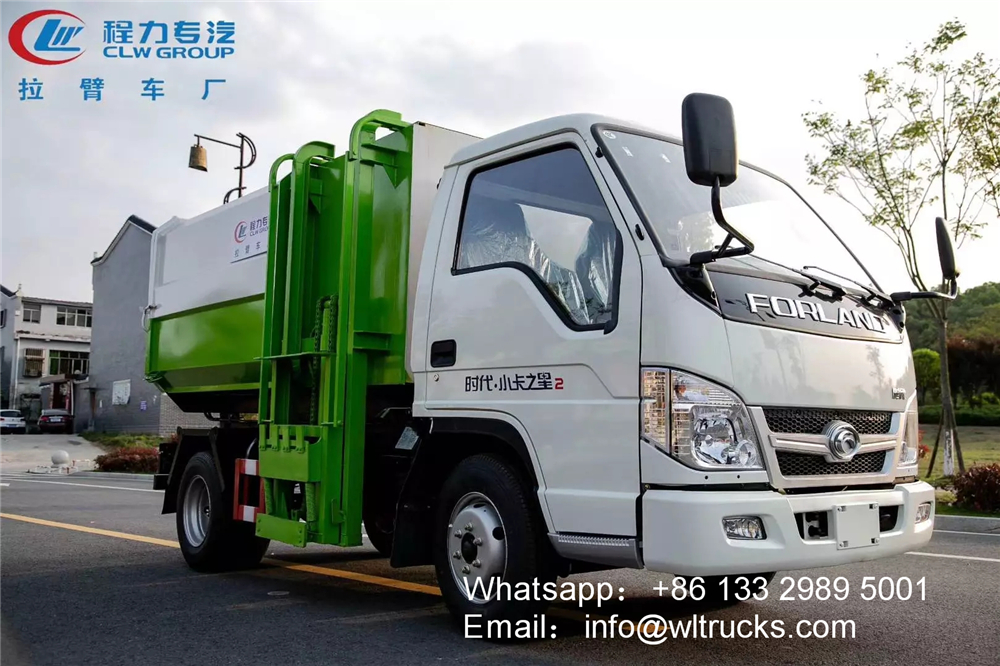

Foton 5cbm hanging bucket garbage truck detailed images:
Foton 5cbm hanging bucket garbage truck Structure diagram：
Foton 5cbm hanging bucket garbage truck Detail drawing:
