Foton 3000 liter Self-loading garbage truck Product Description:
Foton 3000 liter Self-loading garbage truck Chassis configuration: Times Xiaoka Star 2 body, 1600mm wide single-row forward cab, 2600mm wheelbase, National Sanquan Diesel diesel engine, 68 horsepower, 5-speed gearbox, 6.00 tires, rotating.
Foton 3000 liter Self-loading garbage truck Top-loading configuration: The bucket-type garbage truck uses a chain and hydraulic cylinder linkage device to realize the lifting and turning of the garbage hopper, automatically collect the garbage in multiple garbage hoppers into the car, and dump it to the destination at one time. Self loading and unloading function, hydraulic operation.
The bucket-type garbage truck is a vehicle that can be equipped with dozens of garbage bins. It can realize the joint operation of one vehicle and multiple garbage bins. The circular transportation fully improves the transportation capacity of the vehicle. It is especially suitable for short-distance transportation. Composed of compartment, hydraulic system and operating system.
The lifting oil cylinder (2 pcs) garbage box can be lifted and laid down, the next working cycle time ≤50S. For example, the sanitation department cleans and transports urban garbage. It is applicable to the garbage cans of the national general standards: iron drums, plastic drums, and a large supply of garbage hanging bins.
Foton 3000 liter Self-loading garbage truck Specifications:
| Basic configuration parameters of Changan 3000 liter hanging bucket garbage truck | |||
| Vehicle Type | Changan 3 square bucket garbage truck | Dustbin volume | 3 cubic |
| Dimensions | 4.66X1.75X2.25m | Drive form | 4×2 |
| Hoist matching | 120L / 240L / 360L trash can | Self-unloading method | Center Double Lift |
| Total quality | 2150kg | Rated mass | 230kg |
| Curb quality | 1790kg | Maximum speed | 120km / h |
| Fuel type | gasoline | Emission Standards | Country Ⅴ |
| Wheelbase | 2900mm | Tire specifications | 175R14LT |
| Chassis brand / model | Changan SC1027DAC5 | Engine brand / model | Changan JL473Q |
| Engine horsepower | Changan Power 98 Horsepower | Displacement | 1243mL |
| Configuration parameters of Chang’an 3 square bucket bucket garbage truck | |||
| The components of the Changan 3- square-barreled garbage truck are composed of a sealed garbage box, a lifting structure, a hydraulic system, and an operating system; the Changan 3-square-barreled garbage truck is equipped with a mid-lift oil cylinder ( 2 ) as standard, and the rear door can be opened There is a lock at the bottom of the car body, and the hoist can hang down the trash can. The next working cycle time is ≤50S . The loading and unloading work can be completed by operating the handle of the multi-way directional valve. | |||
Foton 3000 liter Self-loading garbage truck Working parameter:
| Optional volume | 3-15 cubic | Bucket time | Less than 10 seconds |
| Bucket type | Plastic bucket or iron bucket | Unloading time | Less than 15 seconds |
| Hanging bucket size | 120 liters, 240 liters | Operating position | Car right |
Foton 3000 liter Self-loading garbage truck Operation display:

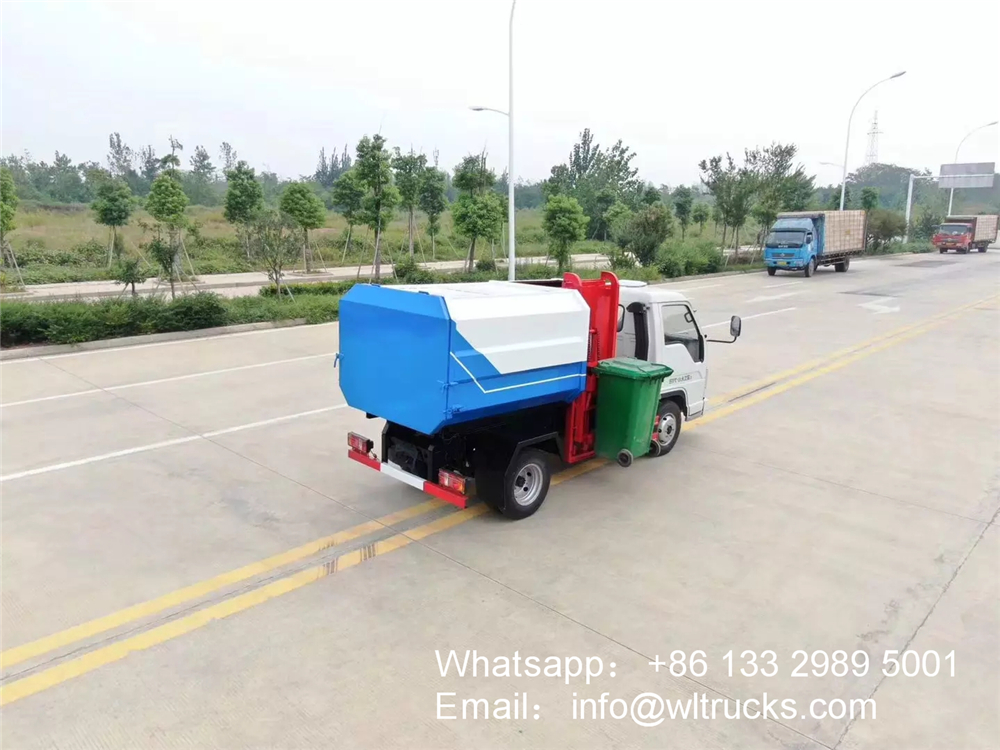

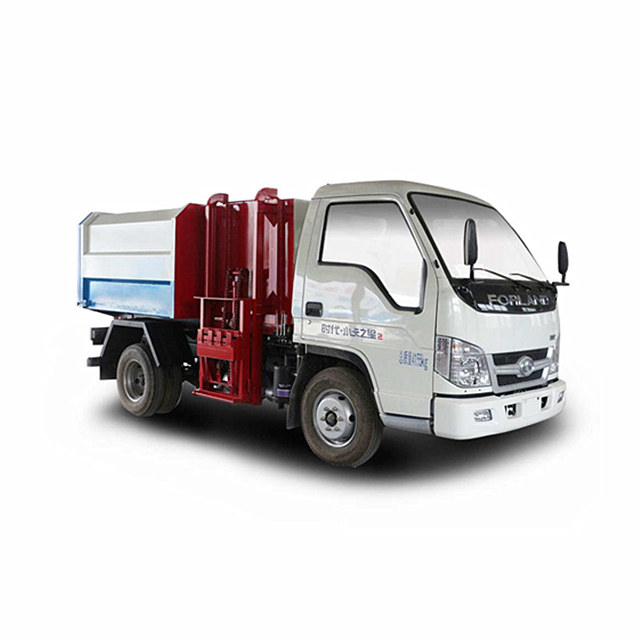

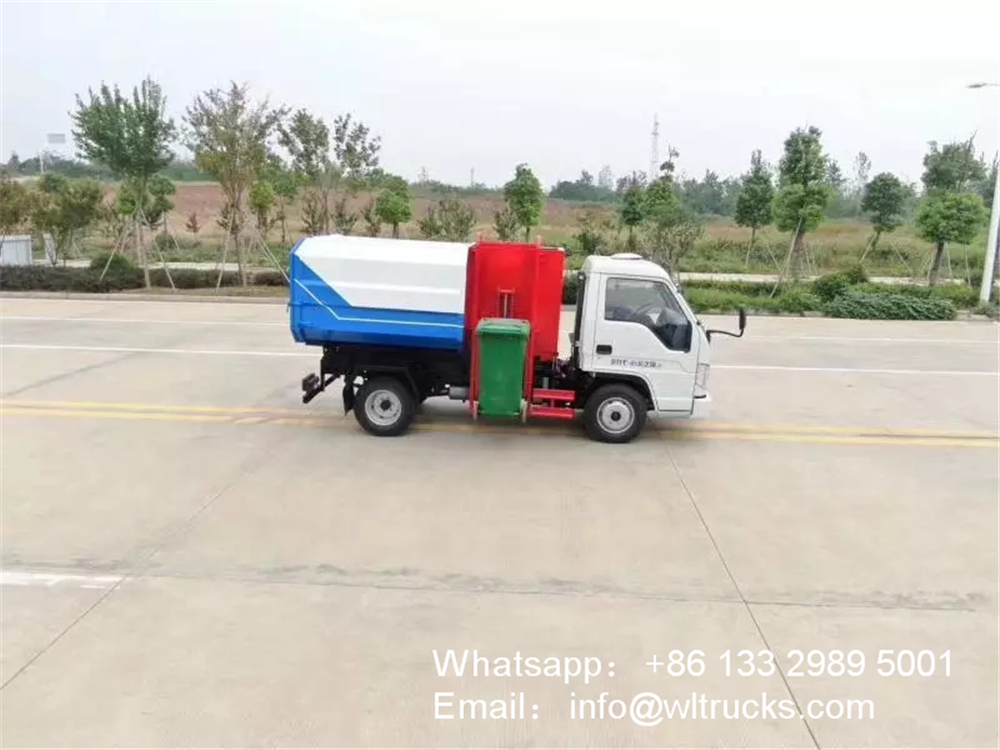

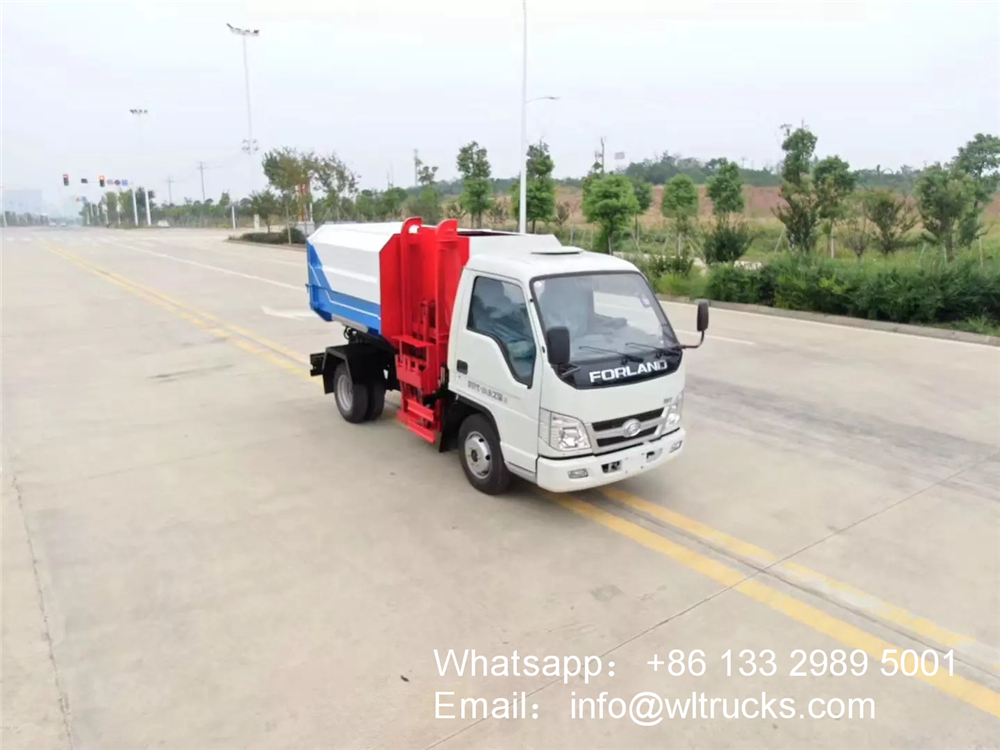

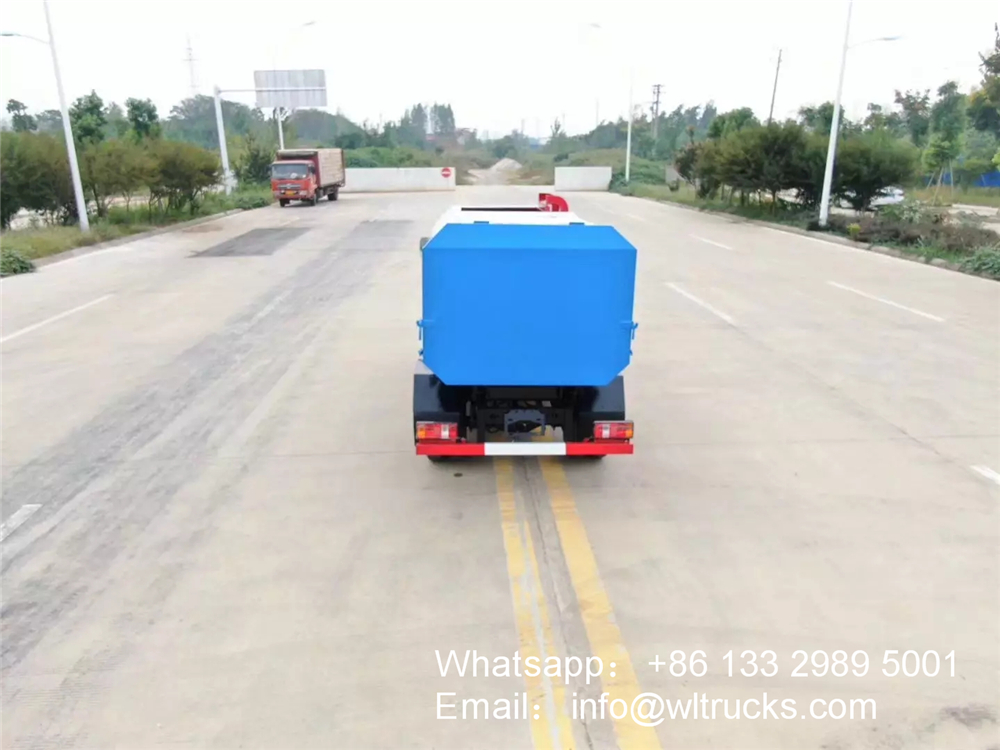

Foton 3000 liter Self-loading garbage truck detailed images:
Foton 3000 liter Self-loading garbage truck Structure diagram：
Foton 3000 liter Self-loading garbage truck Detail drawing:
