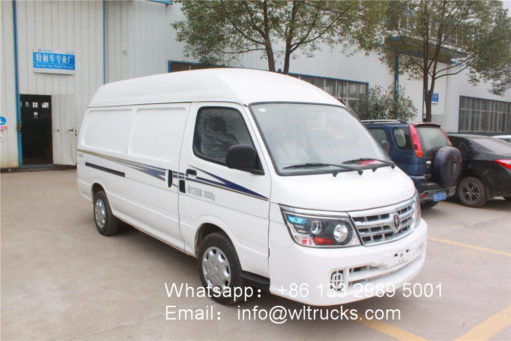

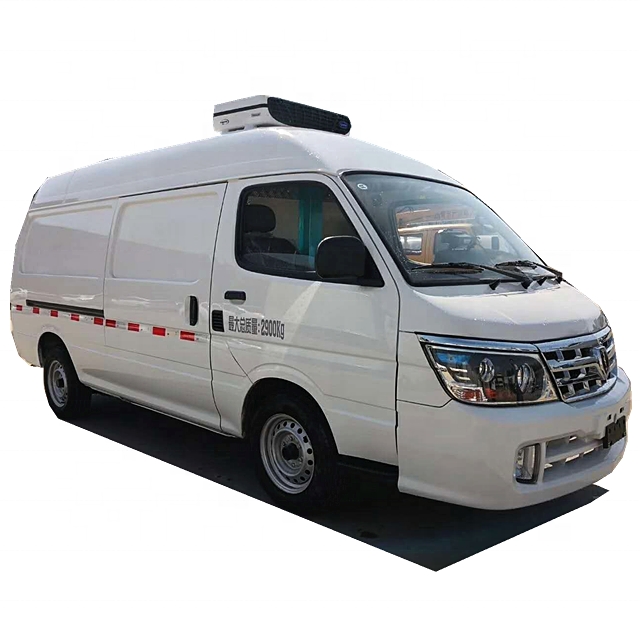

Brilliance Jinbei small 5m3 mobile freezer truck
Chassis configuration: Jinbei refrigerated truck, cab with air conditioning, select Mianyang Xinchen Power Machinery Co., Ltd. V20 engine, power 81KW, 110 horsepower, displacement: 2.0L, with power steering, cab air conditioning, 2920 wheelbase, 195/70R15 Tires.
Bodywork configuration: vehicle size: 5350×1690×2425mm, body size: 2900x1380x1450mm, volume: 5.8 square meters, blue card. The box body adopts inside and outside glass fiber reinforced plastic, 8CM thick polyurethane insulation layer, stainless steel door lock, with double rear door, and Hanxue-5 degree unit.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Brilliance Jinbei small 5m3 mobile freezer truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Brilliance Jinbei small 5m3 mobile freezer truck specification:
|
Main technical information of Jinbei brand SY5033XLCL-D5SBH refrigerated truck
|
|||
|
product name:
|
SY5033XLCL-D5SBH type refrigerated truck
|
Dimensions (mm):
|
5400,5350 × 1690 × 2225,2425 (mm)
|
|
Product number:
|
SY5033XLCL-D5SBH
|
batch:
|
271
|
|
Chassis model:
|
Cargo size (mm): |
× × (mm)
|
|
|
Total mass: (kg)
|
2900 (kg)
|
Approach/departure angle (°)
|
14/12 (°)
|
|
Rated quality: (kg)
|
970 (kg)
|
Front overhang / rear overhang (mm):
|
1320/1160, 1320/1110 (mm)
|
|
Curb weight: (kg)
|
1800 (kg)
|
Maximum speed (km/h):
|
130 (km/h)
|
|
Axle load:
|
1400/1500
|
||
|
Chassis parameters
|
|||
|
Chassis model:
|
Number of axes: |
2
|
|
|
Wheelbase (mm):
|
2920(mm)
|
Front track (mm):
|
1460 (mm)
|
|
Front passengers:
|
2
|
Rear track (mm):
|
1440 (mm)
|
|
Number of tires:
|
4
|
Number of springs:
|
-/3
|
|
Tire specifications:
|
195/70R15
|
||
|
other:
|
|||
| Engine parameters | |||||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
Power (kw)
|
||
|
V20
|
Mianyang Xinchen Power Machinery Co., Ltd.
|
2020
|
81
|
||
|
Emission Standards:
|
Country five
|
Fuel type:
|
gasoline
|
||
|
Other information
|
|
Special function description:
|
|
The model warehouse is effectively isolated from the driving area. Optional sprayed ‘refrigerators’ on both sides of the body, and optional color bars on the outer surface of the body as needed. Optional front radiator grille, front fog light, optional rear bumper, rear license plate mounting bracket, optional condenser (with photo). LSYKKABB in VIN is an optional single airbag configuration. The maximum net power of the engine is 74kw. With OBD. The model is equipped with a refrigerated transport refrigeration unit. The optional ABS system manufacturer is Bosch Automotive Components (Suzhou) Co., Ltd., and the ABS system model is ABS8.
|
Brilliance Jinbei small 5m3 mobile freezer truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Brilliance Jinbei small 5m3 mobile freezer truck New craft:
Brilliance Jinbei small 5m3 mobile freezer truck Optional configuration:

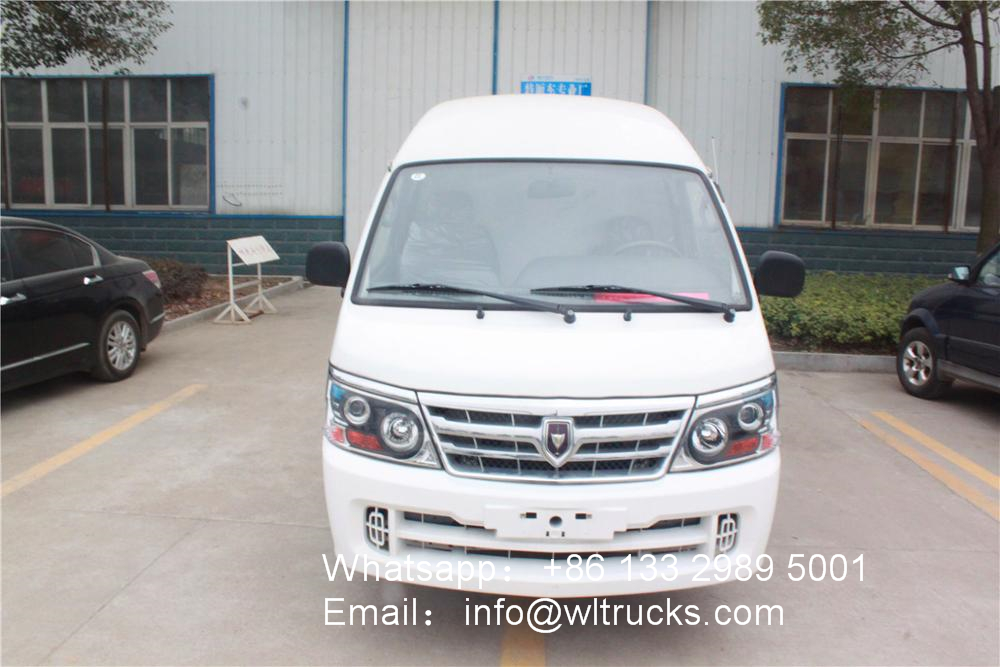

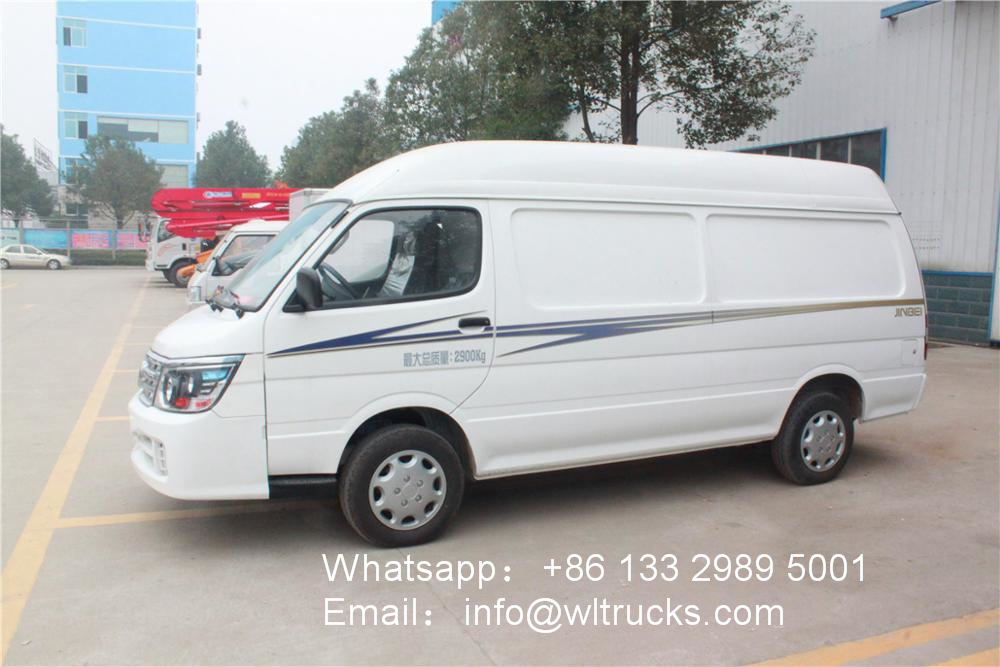

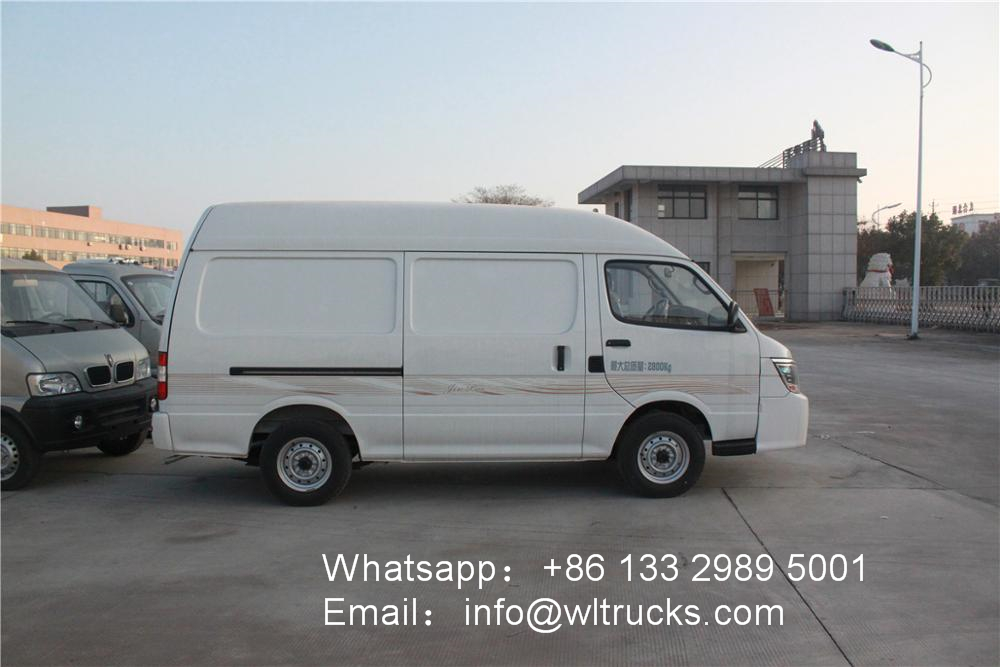

Brilliance Jinbei small 5m3 mobile freezer truck Bodywork details:

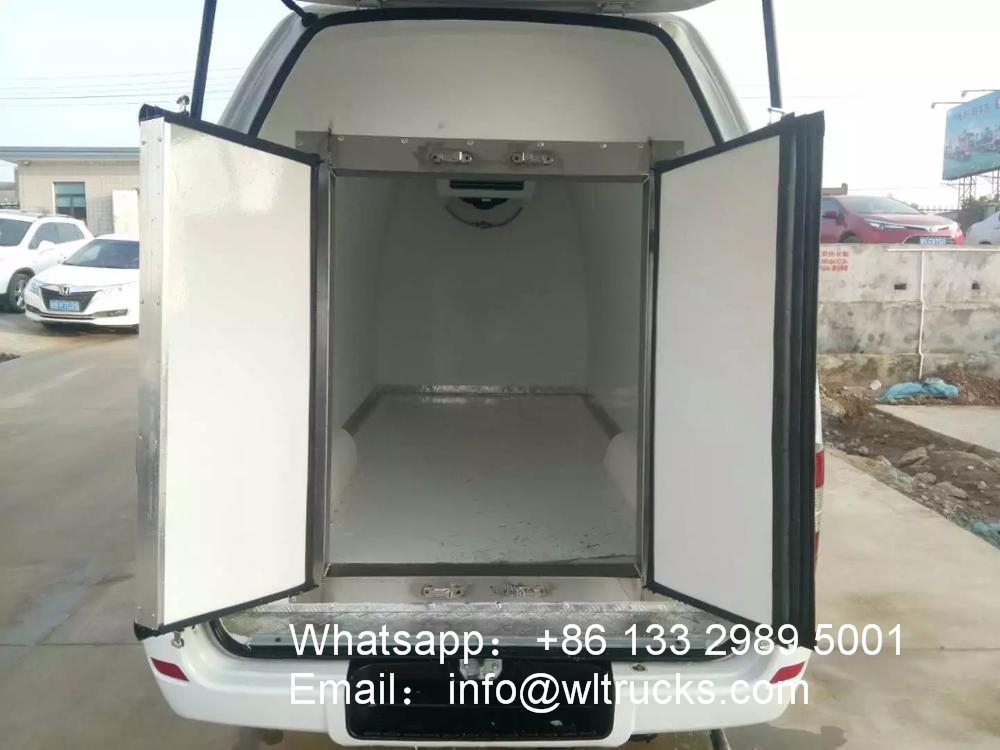

Brilliance Jinbei small 5m3 mobile freezer truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
