Forland jiatu 2.5m3 mini fridge truck
Chassis Configuration: Original Foton chassis, select Foton 86 horsepower gasoline engine, displacement 1.2L, National Five emission standard, 5 speed gearbox, 175/70R14LT tire, wheelbase 2700mm.
Bodywork configuration: Refrigerated car Dimensions: 4200×1680×2035mm, body size: 1785x1210x1100mm, volume about 2.4 square meters, box body inside and outside glass fiber reinforced plastic, 8CM thick polyurethane insulation layer, stainless steel door lock, with Han Xue -5 degrees unit.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Forland jiatu 2.5m3 mini fridge truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Forland jiatu 2.5m3 mini fridge truck specification:
|
Vehicle model:
|
BJ5023XLC-A2
|
|
Fuel type:
|
gasoline
|
|
Emission Standards:
|
Country five
|
|
Vehicle size (length × width × height):
|
4200×1680×2035 (mm)
|
|
Container size (length × width × height):
|
2000×1100×1100 (mm)
|
|
Box volume:
|
2.4 cubic meters
|
|
Tonnage of the household:
|
485 (Kg)
|
|
Refrigeration temperature:
|
-5 to -18 ° C adjustable
|
|
Refrigeration unit description:
|
Domestic or imported brand refrigeration units, a variety of options.
|
|
Car description:
|
It adopts 8cm thick high-density polyurethane insulation layer, high-strength glass steel plate and non-slip pattern floor.
|
|
Engine parameters
|
|
|
engine model:
|
Beiqi Foton 4W12M1
|
|
Maximum horsepower:
|
85
|
|
Maximum power:
|
63(kw)
|
|
Displacement:
|
1206 (ml)
|
|
Chassis parameters
|
|
|
Chassis model:
|
BJ6425MD32A-A2
|
|
Wheelbase:
|
2700 (mm)
|
|
Number of tires:
|
4
|
|
Tire specifications:
|
175/70R14LT
|
|
Front track:
|
1360 (mm)
|
|
Rear track:
|
1360 (mm)
|
|
other instructions:
|
It can be installed with side opening door, ventilation hood around the car, floor air guiding groove, temperature and humidity recorder.
|
Forland jiatu 2.5m3 mini fridge truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Forland jiatu 2.5m3 mini fridge truck New craft:
Forland jiatu 2.5m3 mini fridge truck Optional configuration:
Forland jiatu 2.5m3 mini fridge truck Bodywork details:

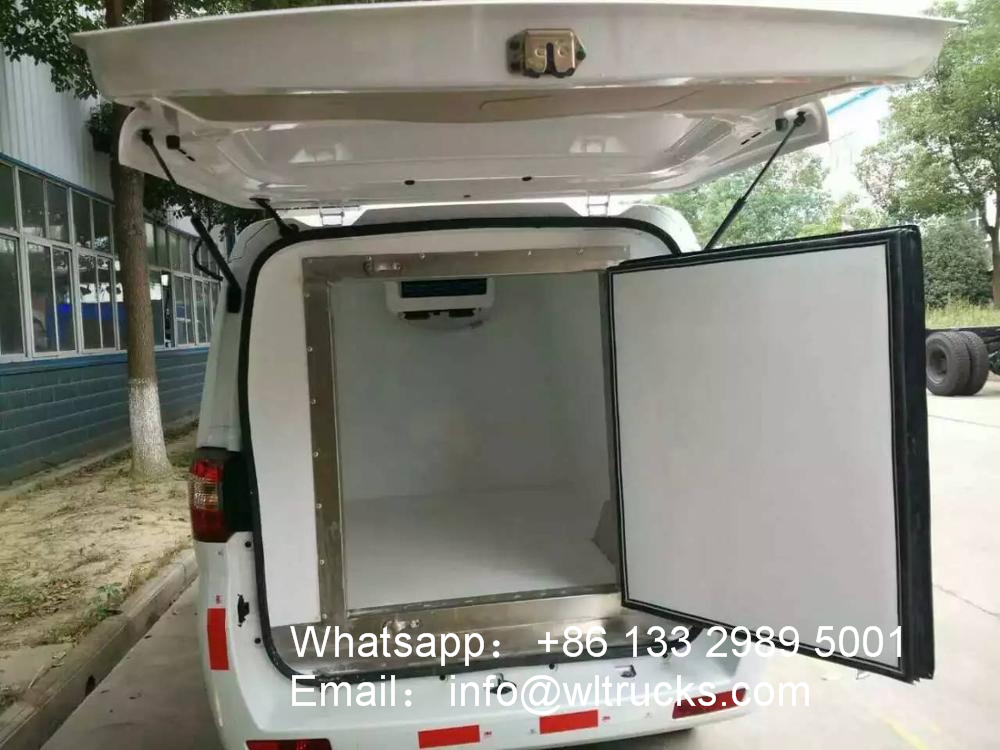

Forland jiatu 2.5m3 mini fridge truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
