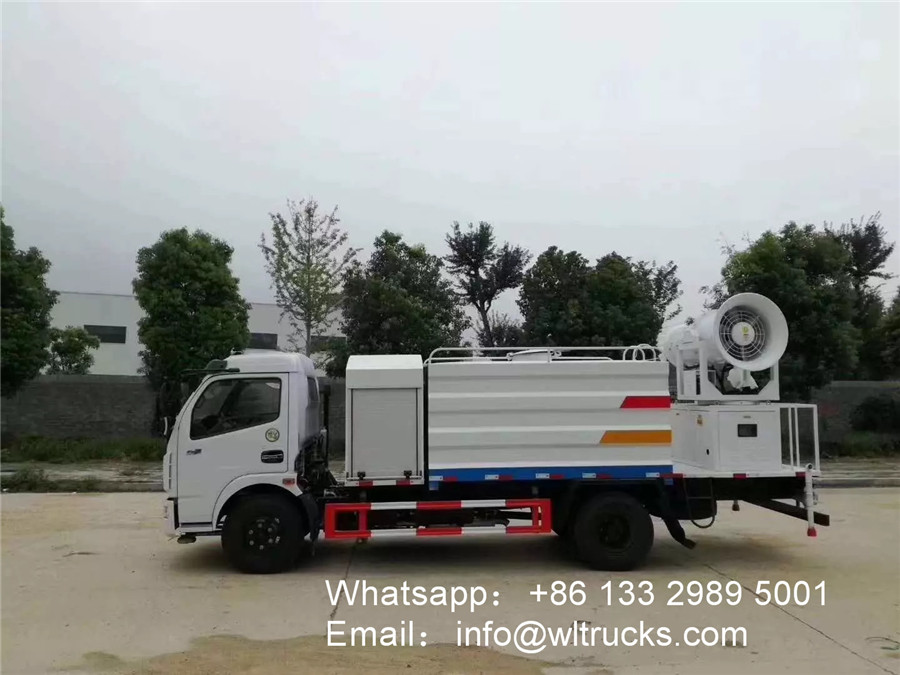

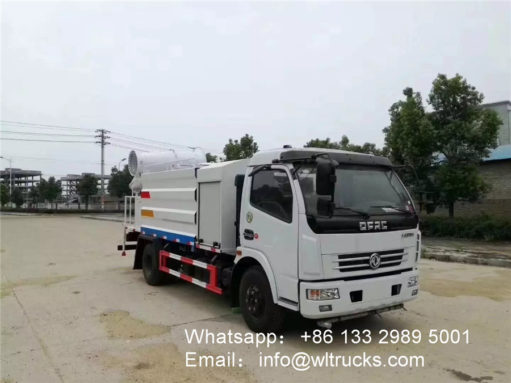

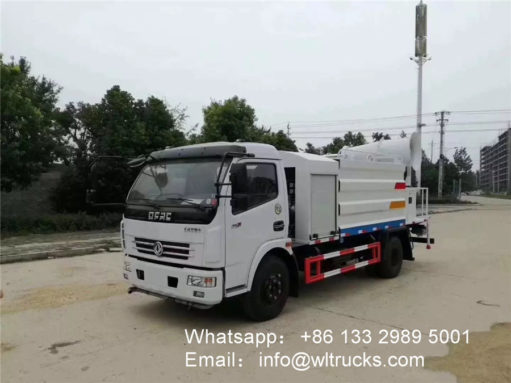

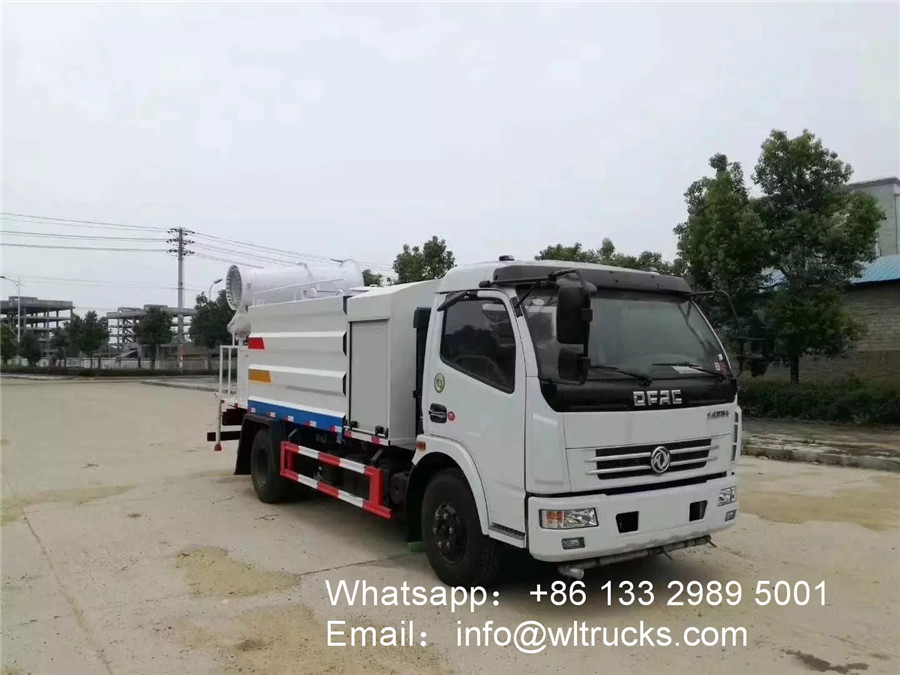

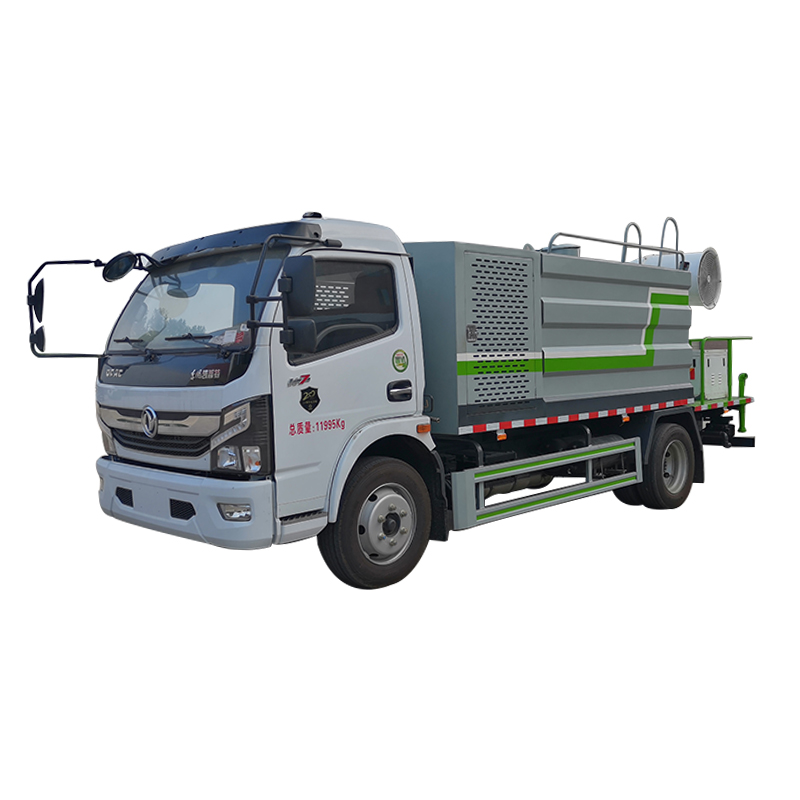

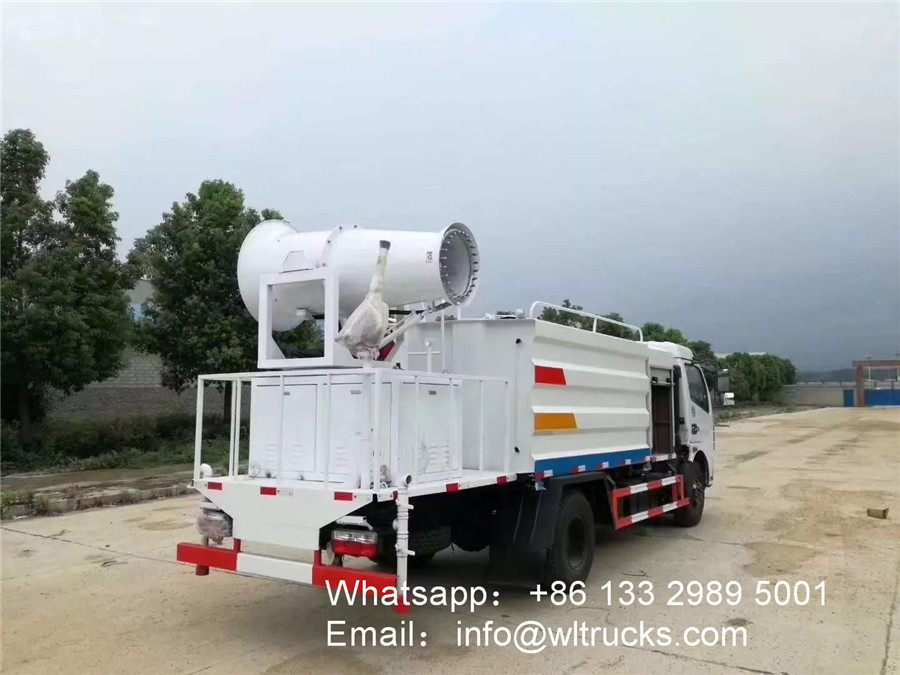

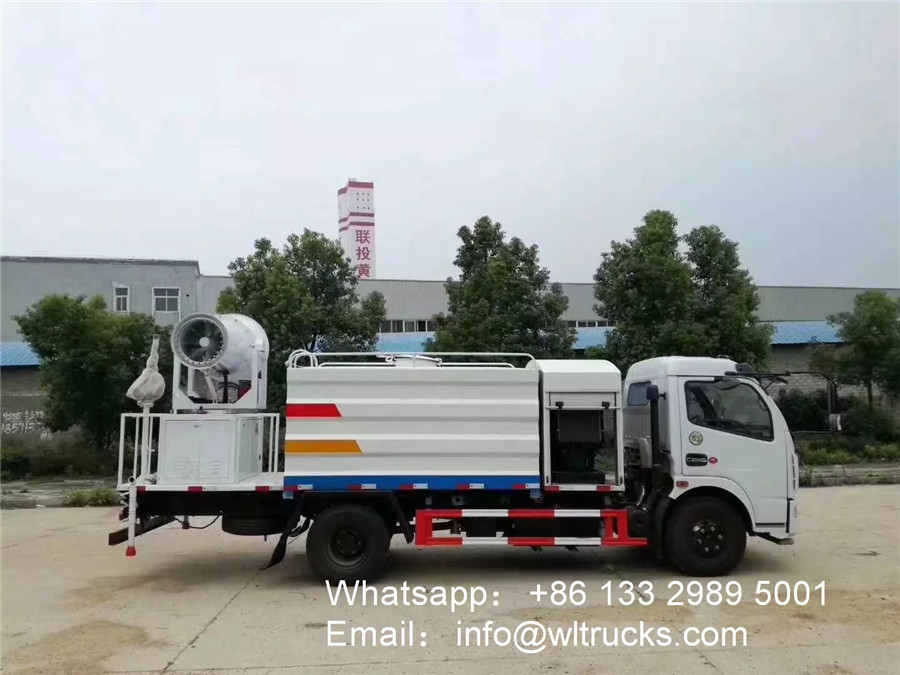

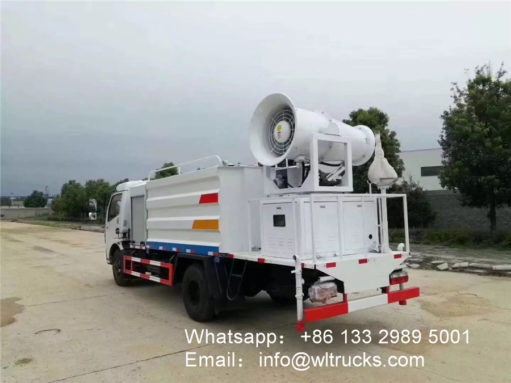

Dongfeng 8000 liter 60m disinfection vehicle Adopt Dongfeng’s original Dalyka chassis, with a wheelbase of 3.8 meters, Euro 3 Chaochai 120-horsepower engine, 750-16 tires, and Dongfeng six-speed gearbox.
Top-loading configuration: the volume of the new square tank is 5 cubic meters, the interior of the tank is anti-corrosion and anti-rust, equipped with a high-power sprinkler pump, a high-power auxiliary engine, and a fog gun unit at the rear (according to customer requirements). Function, perfectly achieve the effect of dual use of one car.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
Dongfeng 8000 liter 60m disinfection vehicle Specification:
| product name | Dongfeng D7 8000 liter 60m disinfection vehicle | Dimensions (mm) | 7200,6500×2160×3000 |
| Total mass (kg) | 8275 | Approach/departure angle (°) | 20/14,19/15,20/13,19/12 |
| Rated mass (kg) | 3740 | Front overhang/rear overhang (mm) | 1130/2270, 1150/2250, 1130/2062, 1150/2042 |
| Curb weight (kg) | 4340 | Maximum speed (km/h) | 103 |
| Emission Standards | Eruo 3 5 | ||
| Chassis parameters | |||
| Chassis model | EQ1080SJ8BDC | Fuel type | Diesel |
| Number of axes | 2 | Front track (mm) | 1740 |
| Wheelbase (mm) | 3800,3308,4100 | Rear track (mm) | 1610,1586,1800 |
| Number of passengers in the cab | 3 | Number of springs | |
| Number of tires | 6 | Axle load | |
| Tire specifications | 7.50-16, 7.50R16, 245/70R19.5 12PR | ||
| engine | 120hp | ||
Disinfection truck structure composition:

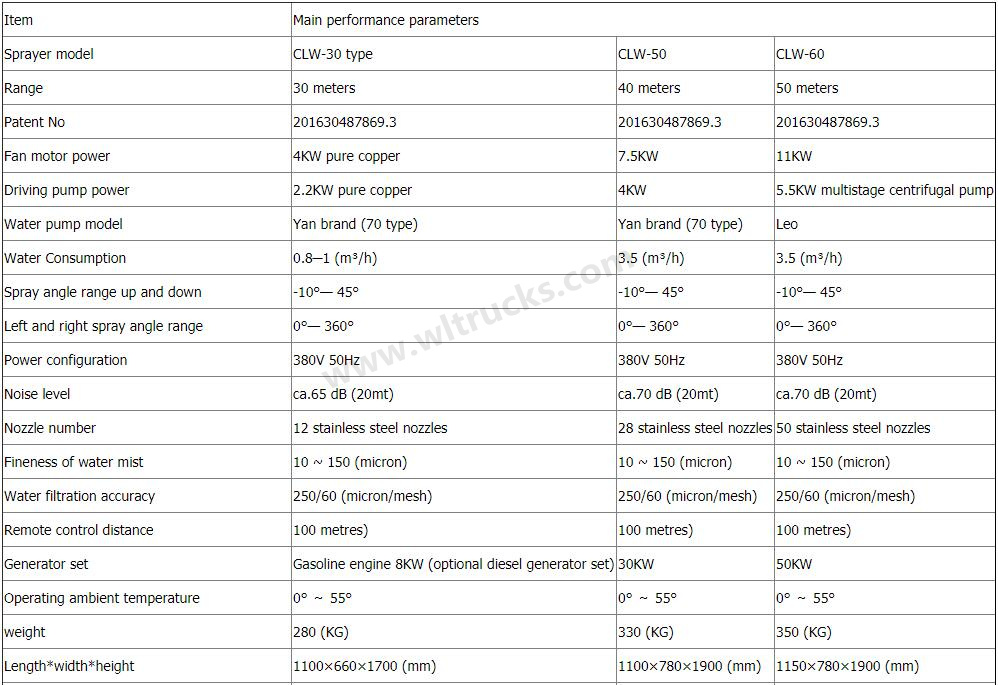

30m to 60 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
