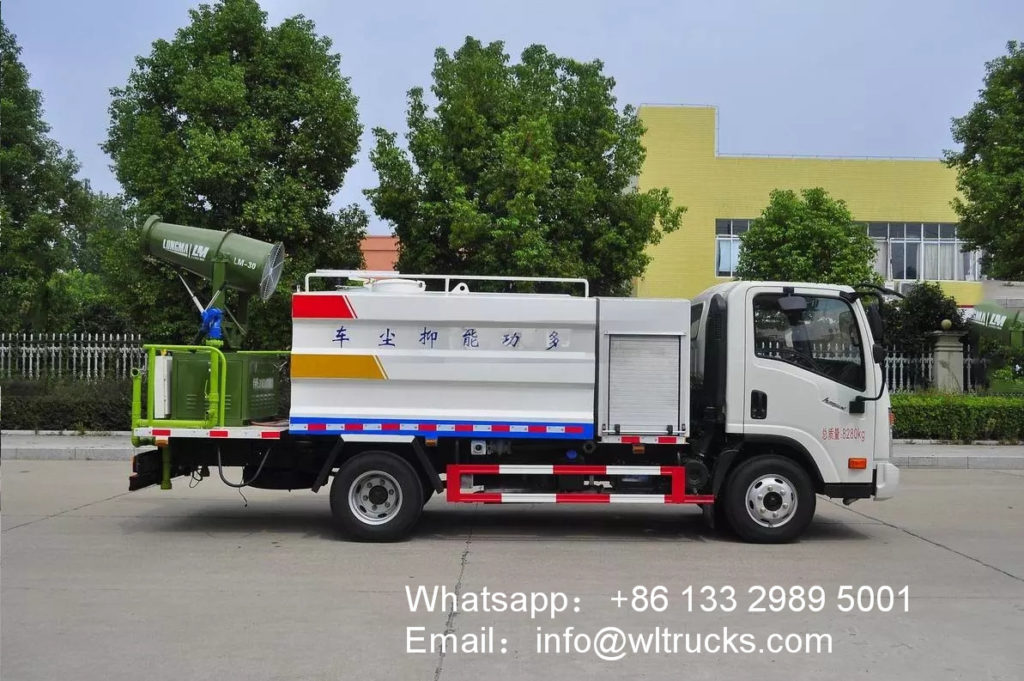

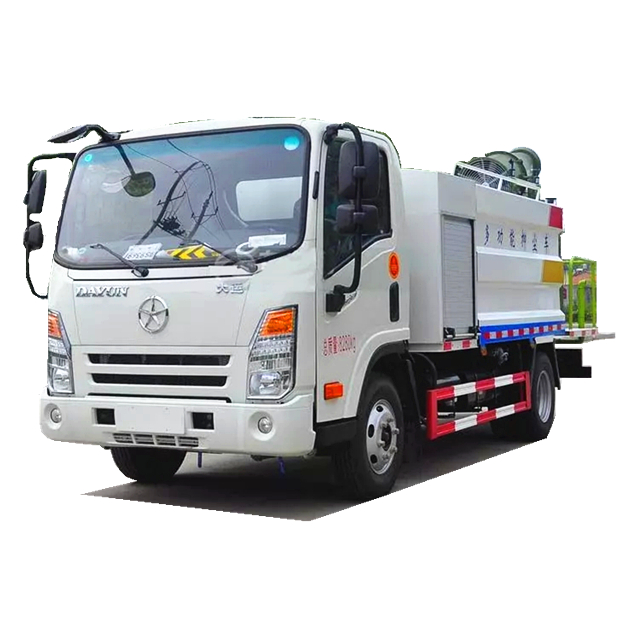

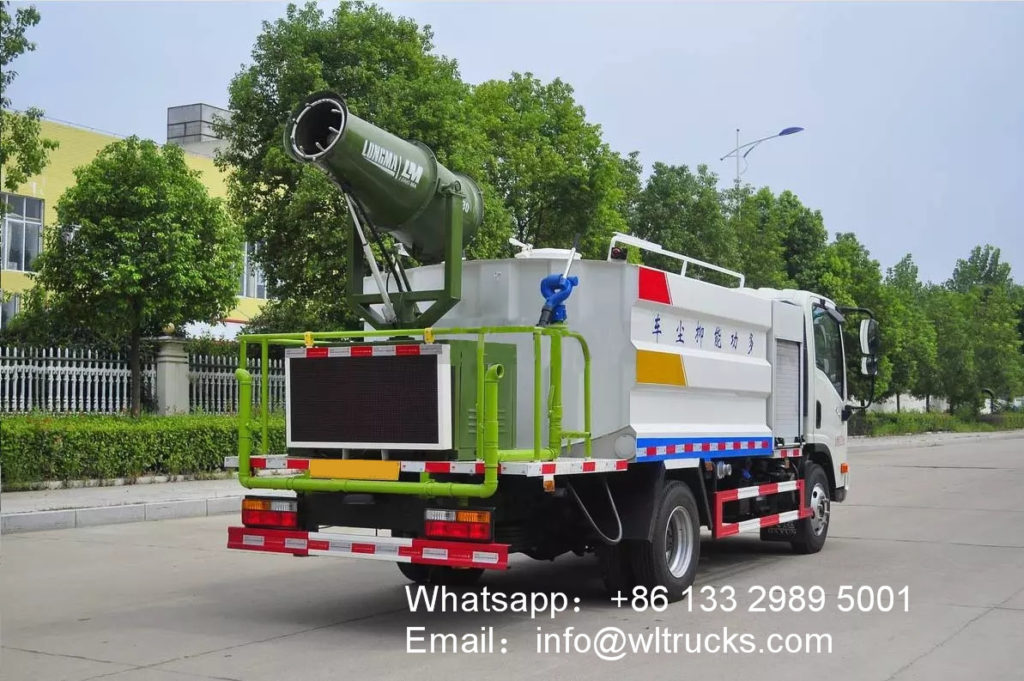

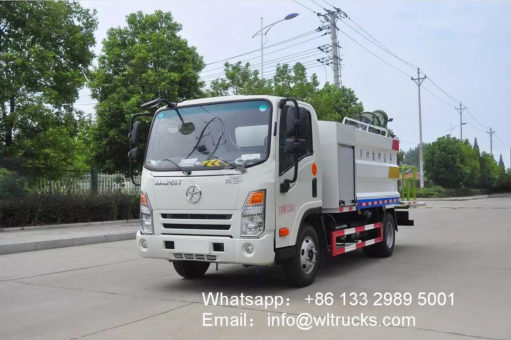

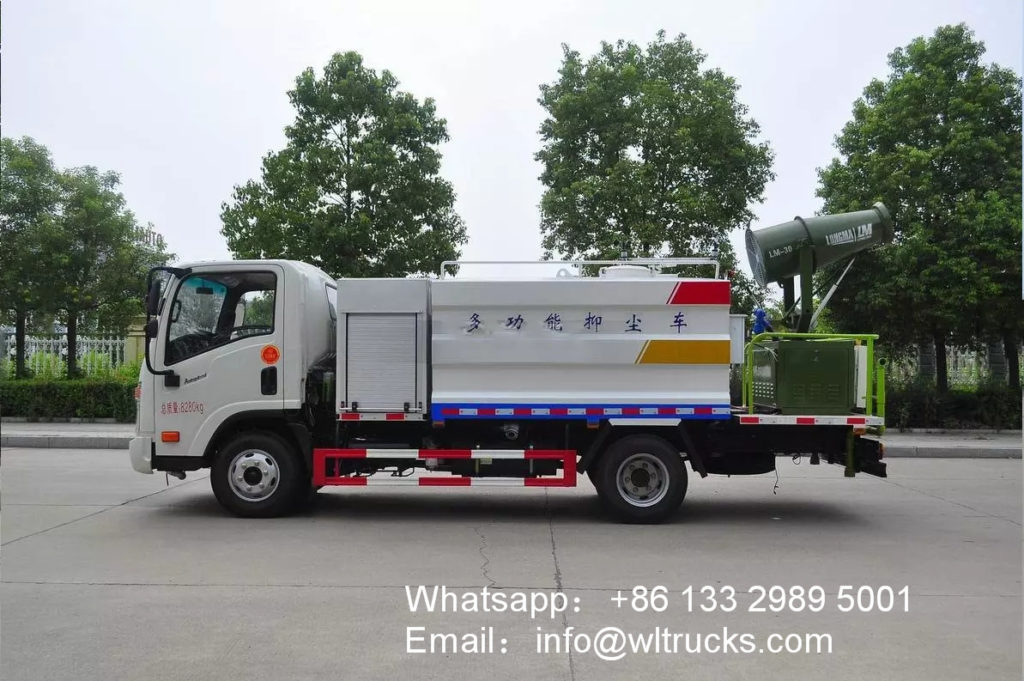

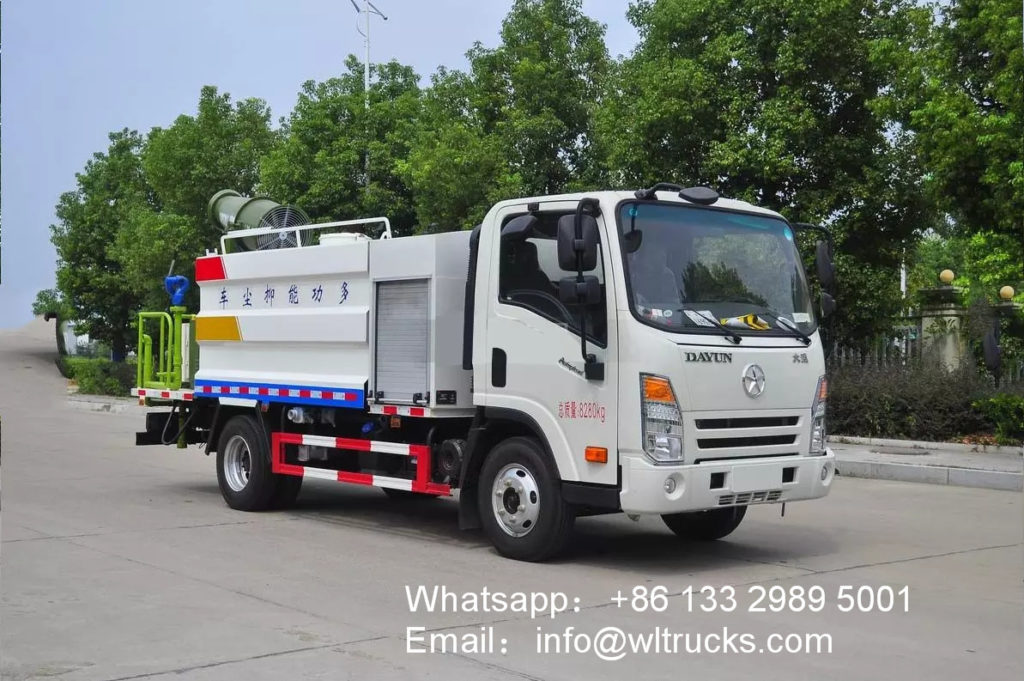

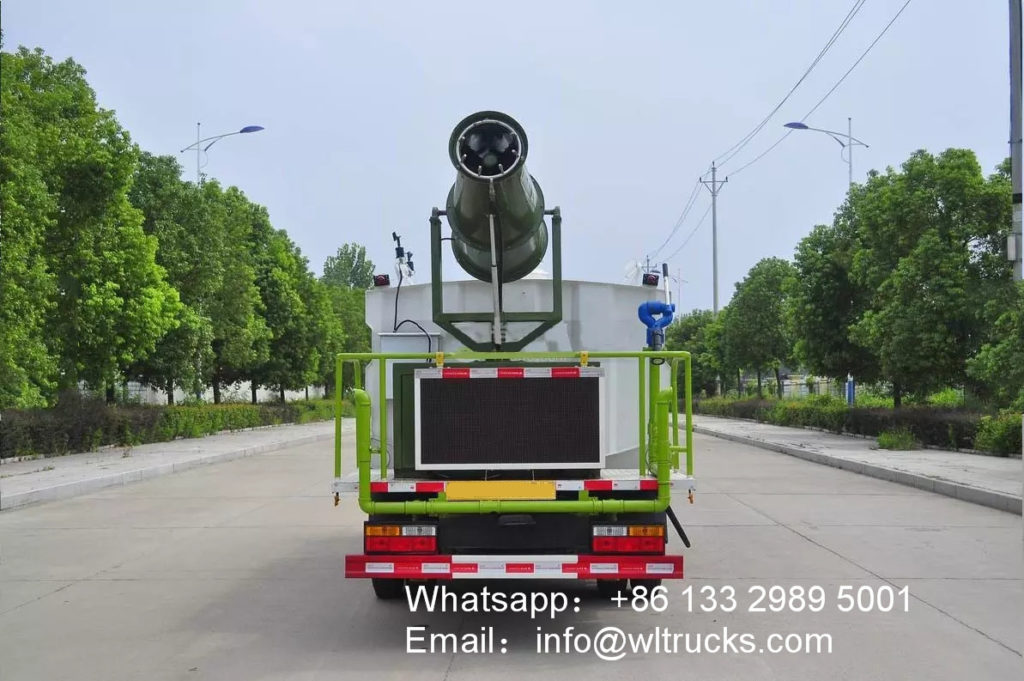

Dayun 5 ton 30 meters to 40 meters Disinfection spray truck Adopt Dayun chassis, 1.835-meter single-row luxury cab, 3.3-meter wheelbase, full diesel 115 horsepower engine, 700 steel tires with spare tires, Wanliyang five-speed gearbox, 6-ton rear axle, air brake, electric doors and windows, central control Lock, remote control key, new standard configuration, direction assistance, original ABS.
Top-loading configuration: the volume of the new square tank is 5 cubic meters, the interior of the tank is anti-corrosion and anti-rust, equipped with a high-power sprinkler pump, a high-power auxiliary engine, and a fog gun unit at the rear (according to customer requirements). Function, perfectly achieve the effect of dual use of one car.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
Dayun 5 ton 30 meters to 40 meters Disinfection spray truck Specification:
| Main technical data of Dayun 5m3 multi-function dust suppression vehicle products | |||
| product name | Dayun 5-square multi-function dust suppression vehicle | Dimensions (mm) | 6500, 6750, 7100×2010×2760 |
| Vehicle model | CLW5080TDY5 | Cargo compartment size (mm) | ×× |
| Front passenger | 3,2 | Rated passenger (person) | |
| Total mass (kg) | 8280 | Approach/departure angle (°) | 20/12 |
| Rated mass (kg) | 3925,3990 | Front overhang/rear overhang (mm) | 1150/2050 |
| Curb weight (kg) | 4160 | Maximum speed (km/h) | 90 |
| Emission Standards | GB17691-2005 National V, GB3847-2005 | ||
| Vehicle description | The main purpose of this vehicle is dust suppression and haze reduction. The special device is dust suppression gun, model and manufacturer: LM-30, Hubei Chengli Automobile Equipment Co., Ltd. Medium: water, density: 1000 kg/m3, effective volume of tank: 4.09 In cubic meters, the external dimensions (length × width × height) of the tank are (mm): 2500 × 2010 × 1150; the corresponding relationship between the length and wheelbase of the vehicle is (mm): 6500/3300, 6750/3550, 7100/3900. Optional cab with chassis, protective material: Q235A carbon steel, connection method: both left and right sides are welded, the lower rear protection is welded, the lower rear protection cross-sectional size (mm): 50×100, the rear protection is off the ground Height (mm): 410. ABS manufacturer: WABCO Automotive Control System (China) Co., Ltd., model: ABS-E 4S/4M; Zhejiang Wanan Technology Co., Ltd., model: VIE ABS-II. | ||
| Chassis parameters of Dayun 5-square multi-function dust suppression vehicle | |||
| Chassis model | CGC1080HDE33E | Fuel type | Diesel |
| Number of axes | 2 | Front track (mm) | 1590,1665,1740,1770,1804,1840,1833,1644,1776,1819 |
| Wheelbase (mm) | 2800, 3300, 3550, 3900 | Rear track (mm) | 1540,1640,1650,1700,1750,1811,1835,1790,1860,1888,1900,1615,1800 |
| Number of tires | 6 | Tire specifications | 7.50-16, 7.50R16, 8.25-16, 8.25R16 |
| Dayun 5m3 multi-function dust suppression vehicle engine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| YNF40E1 JE4D28Q5F YN38CRE1 YN33CRE1 |
Kunming Yunnei Power Co., Ltd. Jiangxi Isuzu Engine Co., Ltd. Kunming Yunnei Power Co., Ltd. Kunming Yunnei Power Co., Ltd. |
3920 2776 3760 3298 |
125 97 95 85 |
Disinfection truck structure composition:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
