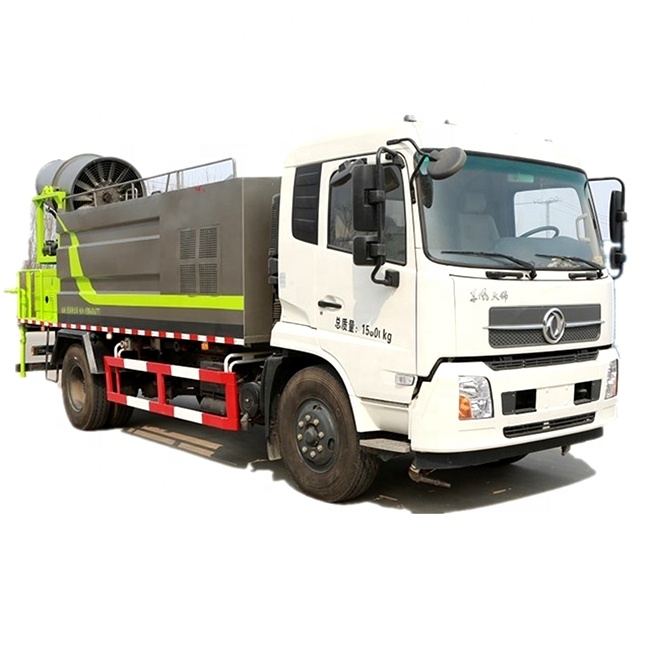

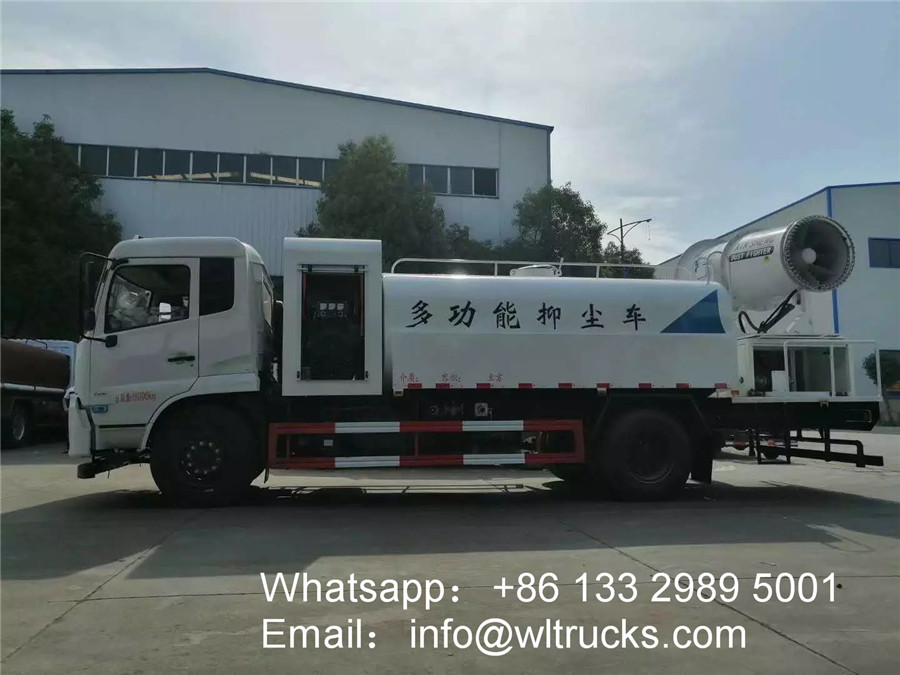

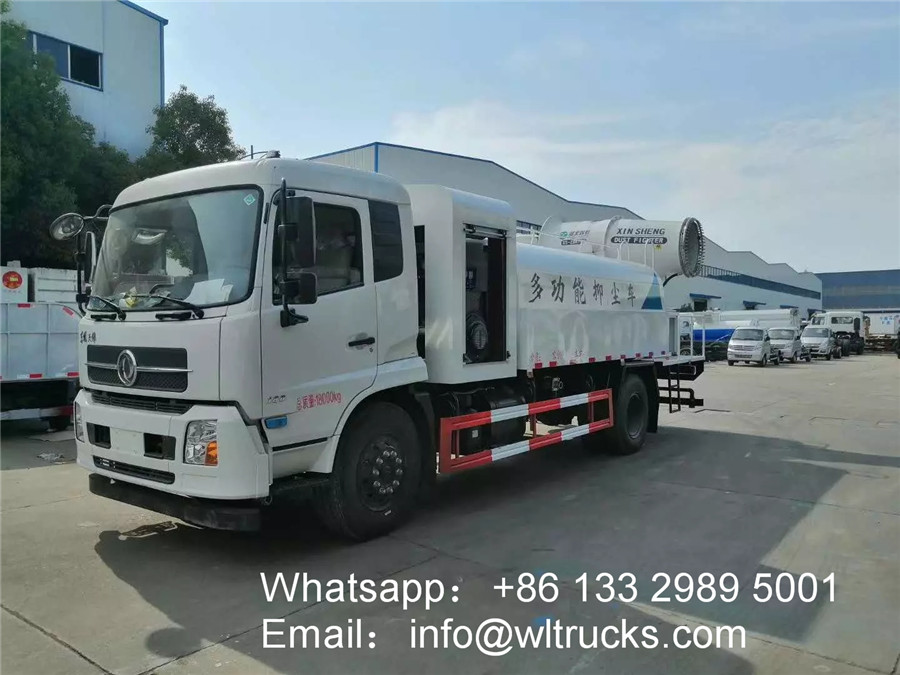

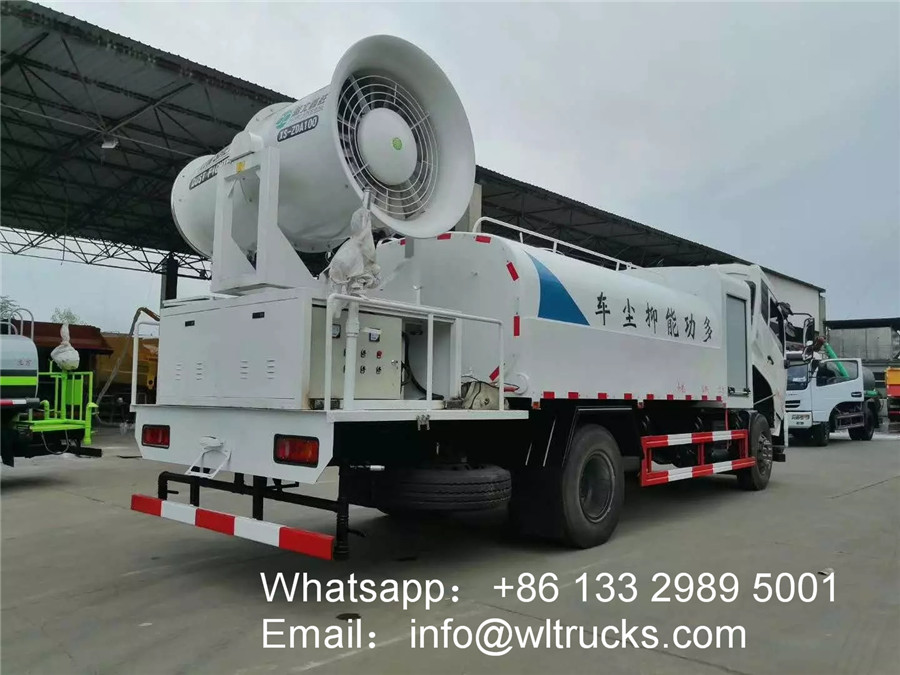

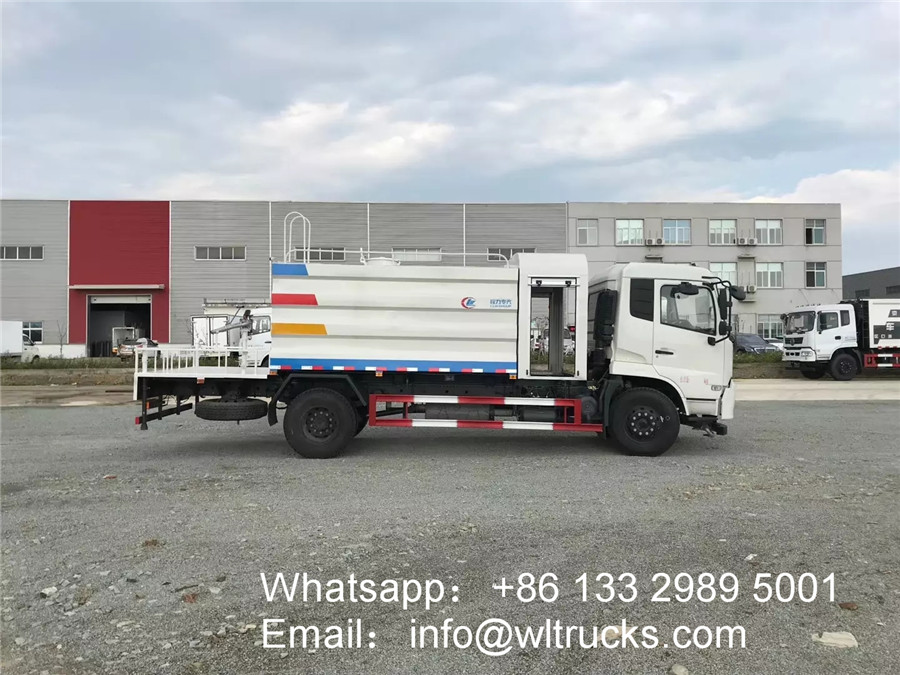

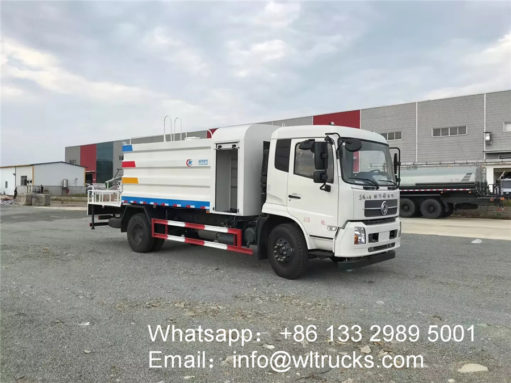

Dongfeng tianjin 12000liter 80m to 120m mobile disinfection vehicles Adopt Dongfeng Tianjin chassis, wide body luxury cab, wheelbase 3950mm-4500mm, Cummins 190 or 210 horsepower engine, 900-20 tires, eight-speed gearbox, direction assist.
Top-loading configuration: the effective volume of the tank is 12 tons, anti-corrosion and anti-rust inside the tank, equipped with a high-power sprinkler pump, equipped with a high-power auxiliary engine, and the rear-mounted fog gun unit can be freely selected from 60 meters to 120 meters.
Equipped with diesel generator set, equipped with remote control for remote wireless operation, 360-degree remote control rotation and up and down swing, all-round large-area spray to reduce dust and haze, spray volume 50-150 liters per minute, significant water saving effect, purify the air.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
Dongfeng tianjin 12000liter 80m to 120m mobile disinfection vehicles Specification:
| Production name | dongfeng4X2 water truck |
| Type | 4×2,Left/Right hand drive |
| Weights | |
| Payload weight (kg) | 10000 |
| Curb weight (kg) | 6757 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8180×2500×3180 |
| Box/tank capacity | – |
| Engine | |
| Engine model | B170 33 |
| No of cyliner | straight-4 cylinder |
| Displacement(ml) | 5900 |
| Rated power Rev((Kw/rpm) | 125kw |
| Emission standard | EURO 2(China national 2) |
| Drive Line | |
| Transmission | fast,6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Air brake |
| Cab | Tianjin |
| Cabin | A5L half high roof cabin |
| Configuration standard | Air conditioner,electric window,ABS,central locking |
| Tire specification | |
| Tire | 9.00R20 standard tire,8 tires+1 spare tire |
| Water specification | |
| Water tanker material | Of high quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
Disinfection truck structure composition:
80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
