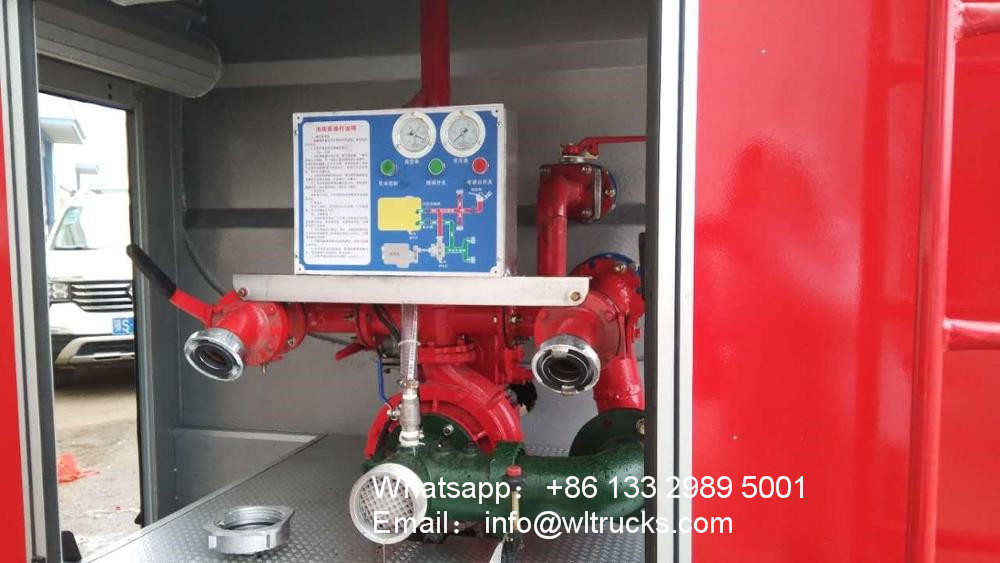

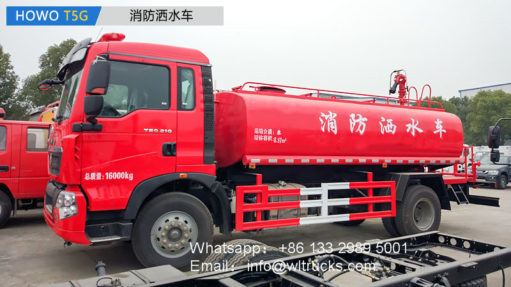

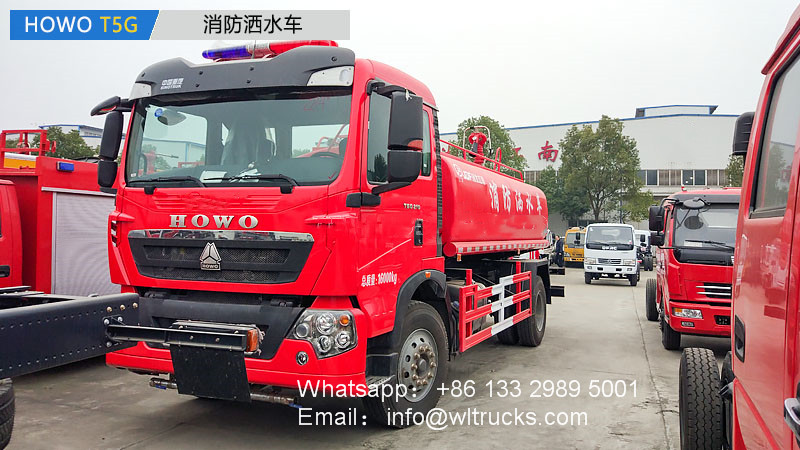

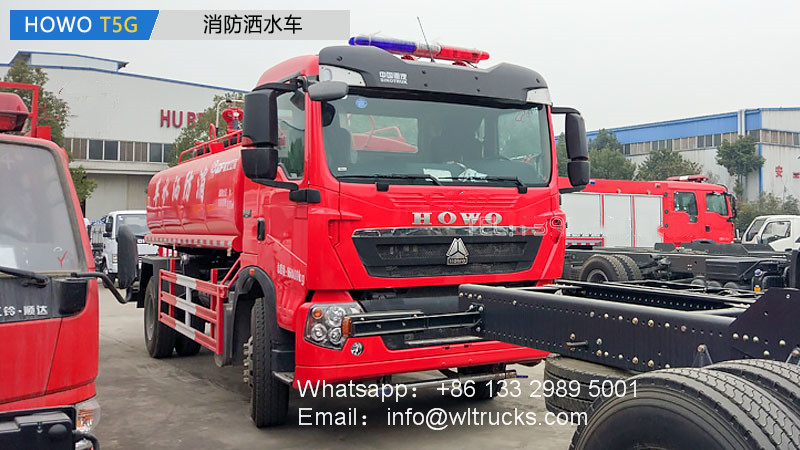

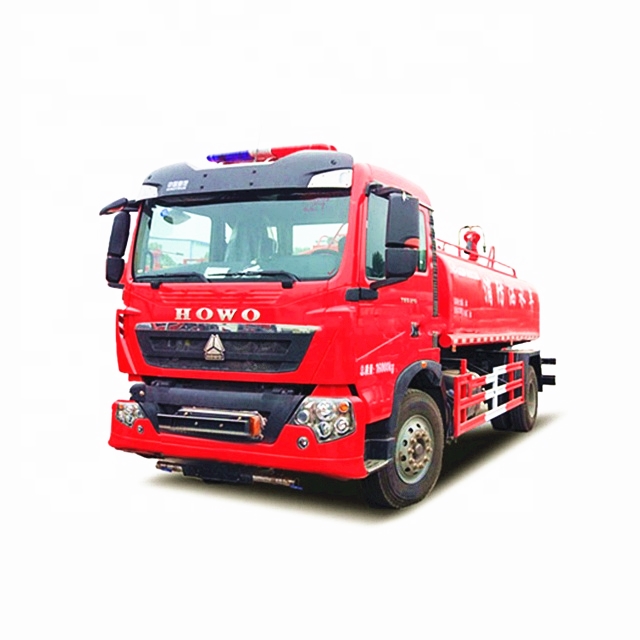

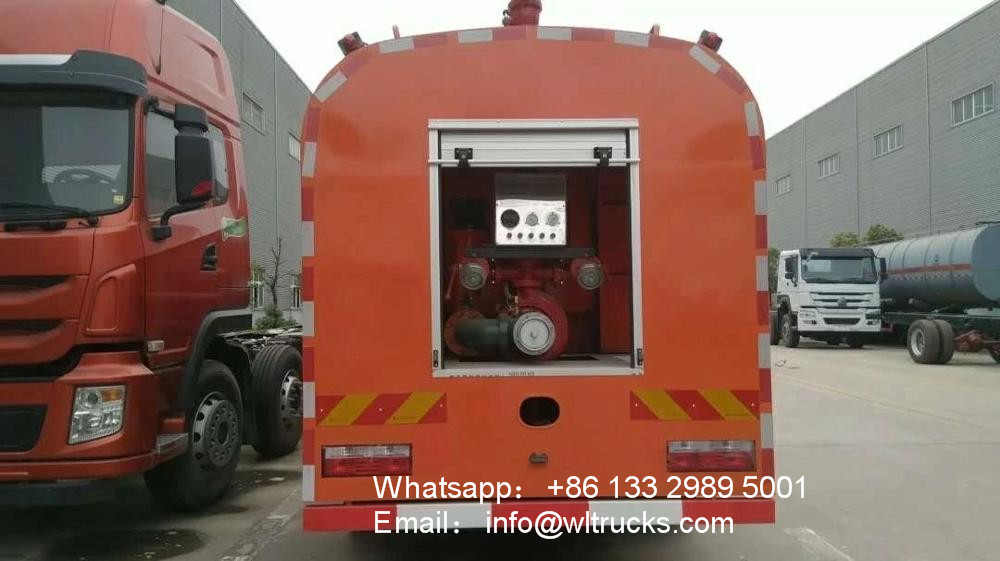

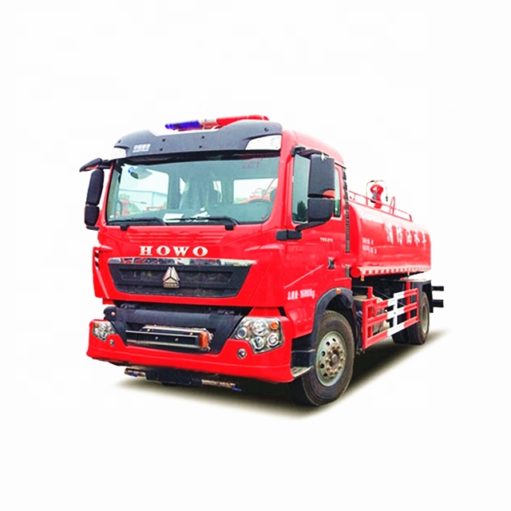

Sinotruk Howo 12000 liter airport fire water truck is modified by China National Heavy Duty Truck ZZ1167K501GE1 chassis. The tank has a liquid capacity of 10-12 tons. The hidden tank at the rear of the tank is equipped with a CB10/30 fire pump. The top of the tank is equipped with a PS30 fire water cannon. The fire cannon has a range of more than 50 meters, and behind the tank is a working platform equipped with a green spray cannon.
In addition to the full set of forward and backward sprinkler functions of the sprinkler, the truck also has a fire extinguishing function, which can be used for water supply and water supply in water-scarce areas and can extinguish general fires. It is a full-time fire brigade, the city’s main fire fighting, Forest fire fighting and fire fighting vehicles standing by enterprises and institutions.Optional: front-flushing and post-sprinkling function, optional working platform behind the tank, fire pump can be placed in the tank without equipment box.
Product Specifications:
|
Vehicle model
|
4×2 HOWO 12000l fire water truck
|
Outside dimensions
|
8580×2485×3200mm
|
|
Liquid carrying capacity
|
10 cubic meters ~ 12 cubic meters
|
Maximum total mass
|
16000kg
|
|
Maximum speed
|
101km/h
|
Fire pump rated flow
|
30L/s 1.0MPa
|
|
Fire cannon rated flow
|
30L/s 1.0MPa
|
Fire gun range
|
≥50m
|
|
Specific power
|
85/5.815=14.6
|
Approach / departure angle
|
19°/12°
|
Second, the main parameters of the chassis
|
Chassis model
|
ZZ1167K501GE1
|
Manufacturer
|
China National Heavy Machinery Group Jinan Truck Co., Ltd.
|
|
Engine rated power
|
151kw/210 horsepower
|
Engine capacity
|
4580ml
|
|
Engine emission standard
|
Eruo 3
|
Drive form
|
4×2
|
|
Wheelbase
|
4700mm
|
Cab structure
|
Flat, double door, original single row
|
|
Minimum turning radius
|
≤14m
|
Number of passengers
|
2 people
|
|
Gearbox
|
Manual
|
Driver position
|
Left
|
|
Device
|
Fire control instrument panel and police light control box are installed at the original vehicle dashboard.
1, the alarm;
2. Power take-off control switch and indicator light;
Additional power switch;
|
||
Sinotruk Howo 12000 liter airport fire water truck detail structure diagram:
Fire equipment table:
1. Equipment layout
| 1 | According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby. |
| 2 | Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch. |
| 3 | Signs are eye-catching, multi-person operation, non-interference. |
2. Equipment and equipment (standard)
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
