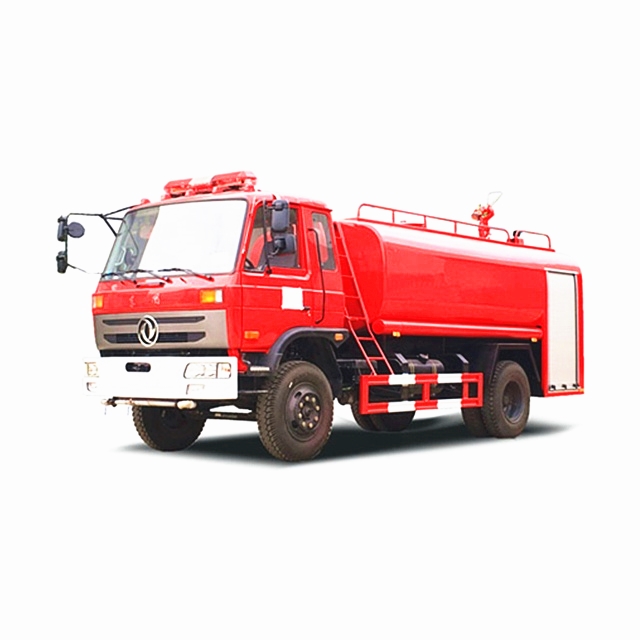

Dongfeng 8000 liter to 12000 liters fire water truck is modified by Dongfeng company’s 145/153 type chassis. The cab is a semi-row structure, the number of occupants is 2 to 3, and the tank volume is 10-12 cubic meters. A fire cannon is installed on the top of the tank, which can be used for fire extinguishing, and can also be used for water spraying in the green belt. The range of the fire cannon is ≥50m. The pump room is placed at the rear of the vehicle and equipped with an equipment box.
Optional: front-flushing and post-sprinkling function, optional working platform behind the tank, fire pump can be placed in the tank without equipment box.
Product Specifications:
|
Chassis model
|
EQ1126/EQ1141/EQ1161
|
Engine model
|
Optional Cummins 170, 190, Jade 180 HP engine
|
|
Tire specifications
|
9.00-20; 10.00-20
|
Wheelbase
|
3950, 4500mm
|
|
Emission Standards
|
Country III, China 4, China 5
|
Dimensions
|
7460, 8010, 8200X2460X3290mm
|
|
Environmental protection announcement
|
No
|
Tank volume
|
8 tons to 12 tons
|
|
Power takeoff
|
Sandwich power take-off
|
Equipment compartment
|
Three-door structure
|
|
Fire pump
|
CB10/30
|
Fire cannon
|
PS30
|
|
Self-priming height
|
≤ 7m
|
Range
|
≥ 50m
|

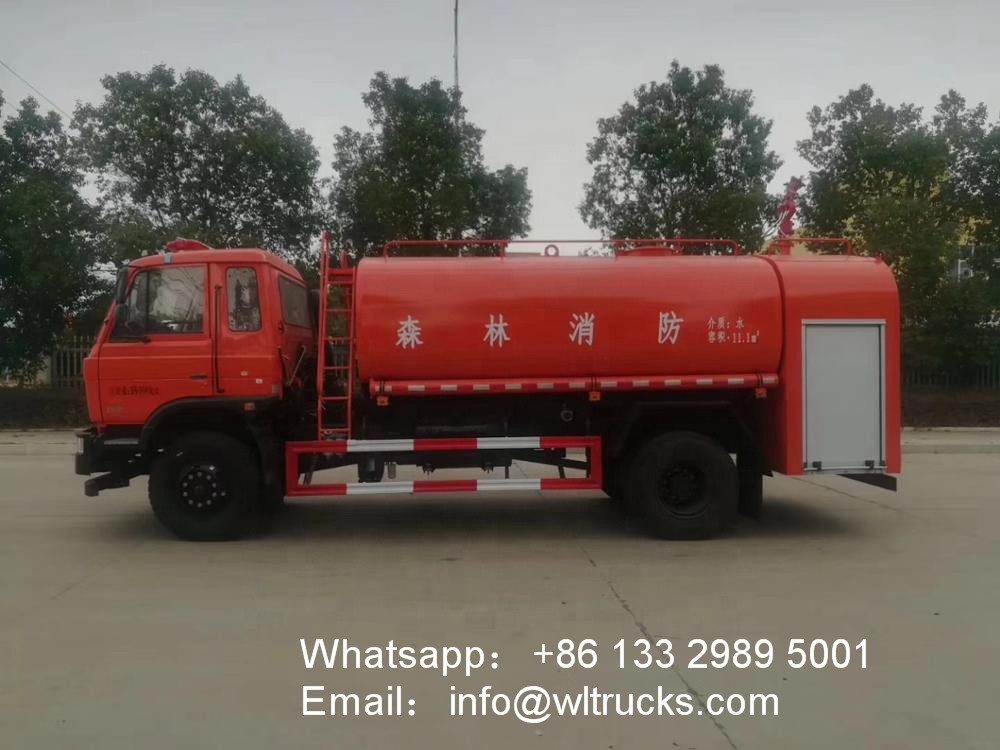

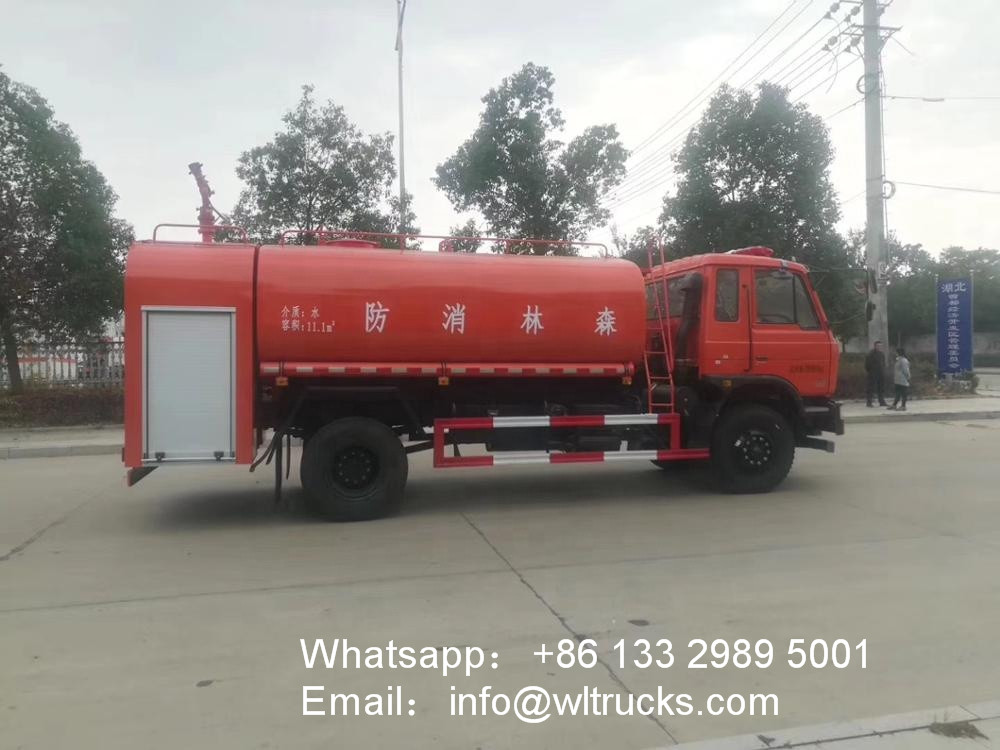

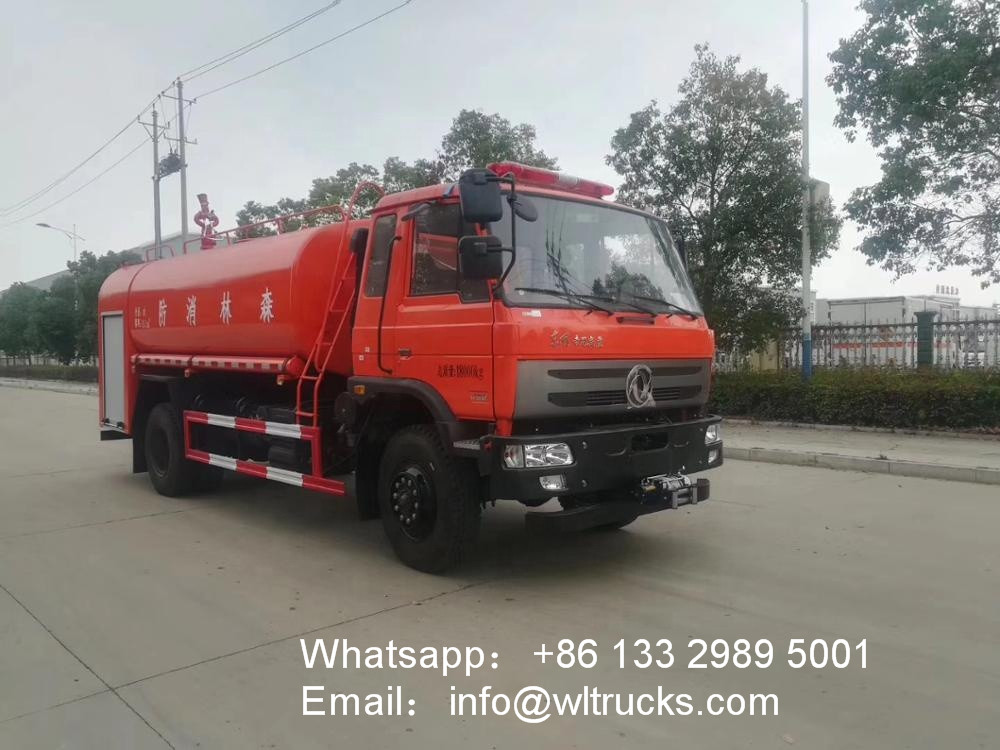

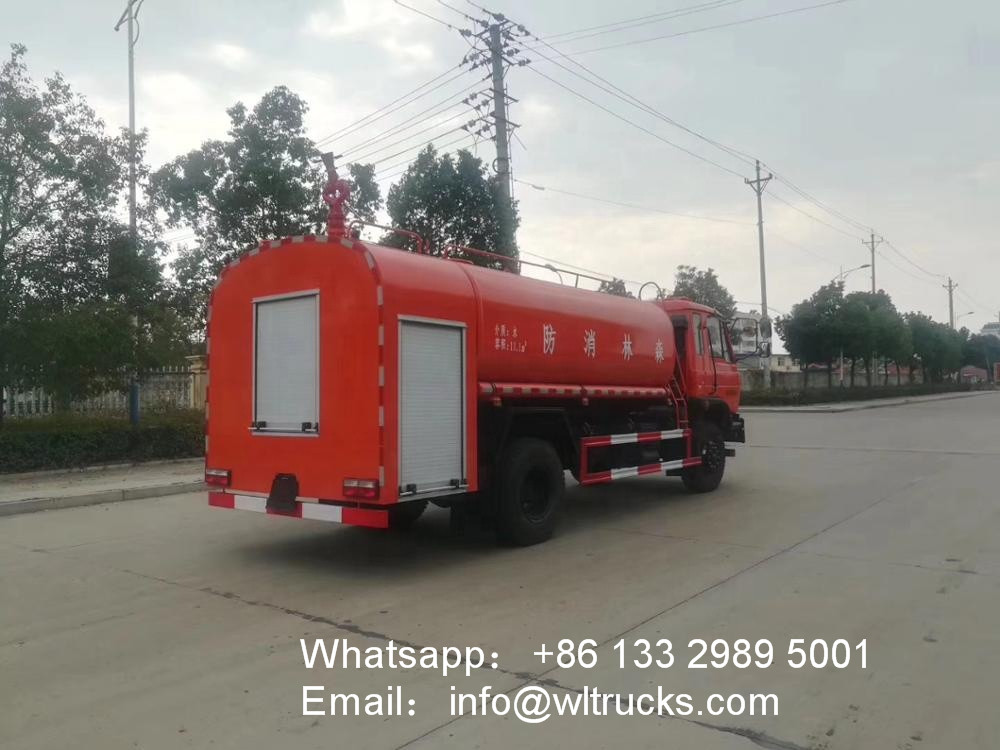

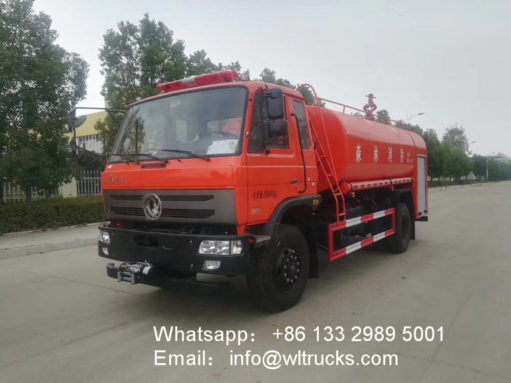

Dongfeng 8000 liter to 12000 liters fire water truck detail structure diagram:
Fire equipment table:
1. Equipment layout
| 1 | According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby. |
| 2 | Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch. |
| 3 | Signs are eye-catching, multi-person operation, non-interference. |
2. Equipment and equipment (standard)
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
