Dongfeng 6000 liter Fire water tank truck adopts Dongfeng EQ1111GLJ chassis modification, European three Chaochai 120 horsepower engine, single row can be turned forward cab, the cab occupancy is 3 people, the tank volume is 6.8 cubic meters. A fire cannon is installed on the top of the tank, which can be used for fire extinguishing, and can also be used for water spraying in the green belt. The range of the fire cannon is ≥50m. The pump room is placed at the rear of the vehicle and equipped with an equipment box. equipment.
Optional: Front flushing and post-sprinkling function, optional rear-end working platform, you can choose to place the fire pump in the tank body, Dongfeng Duolika fire sprinkler without equipment box.
Product Specifications:
|
Chassis model
|
EQ1100JDX3
|
Engine model
|
All diesel 120 horsepower engine (CY4102)
|
|
Tire specifications
|
750-16
|
Wheelbase
|
3800mm
|
|
Emission Standards
|
ERUO 3
|
Dimensions
|
6850×2150×3200mm
|
|
Environmental protection announcement
|
Have
|
Tank volume
|
7 cubic
|
|
Power takeoff
|
Sandwich power take-off
|
Tank size
|
3500×2000×1240mm
|
|
Fire pump
|
CB10/30
|
Fire cannon
|
PS30
|
|
Self-priming height
|
≤ 7m
|
Range
|
≥ 50m
|

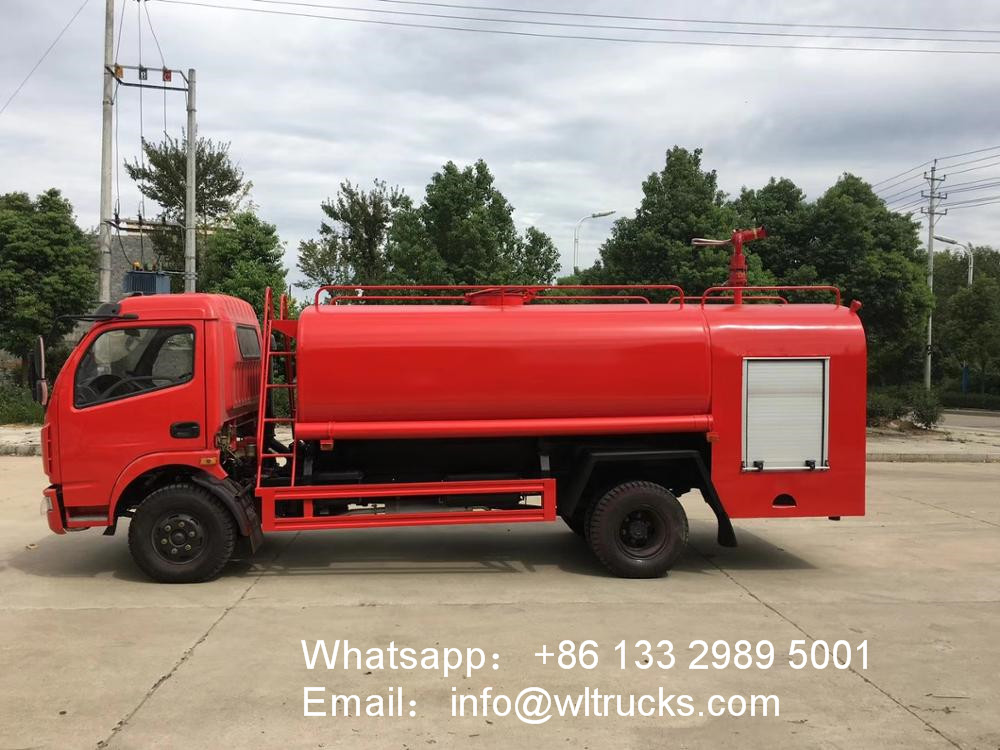

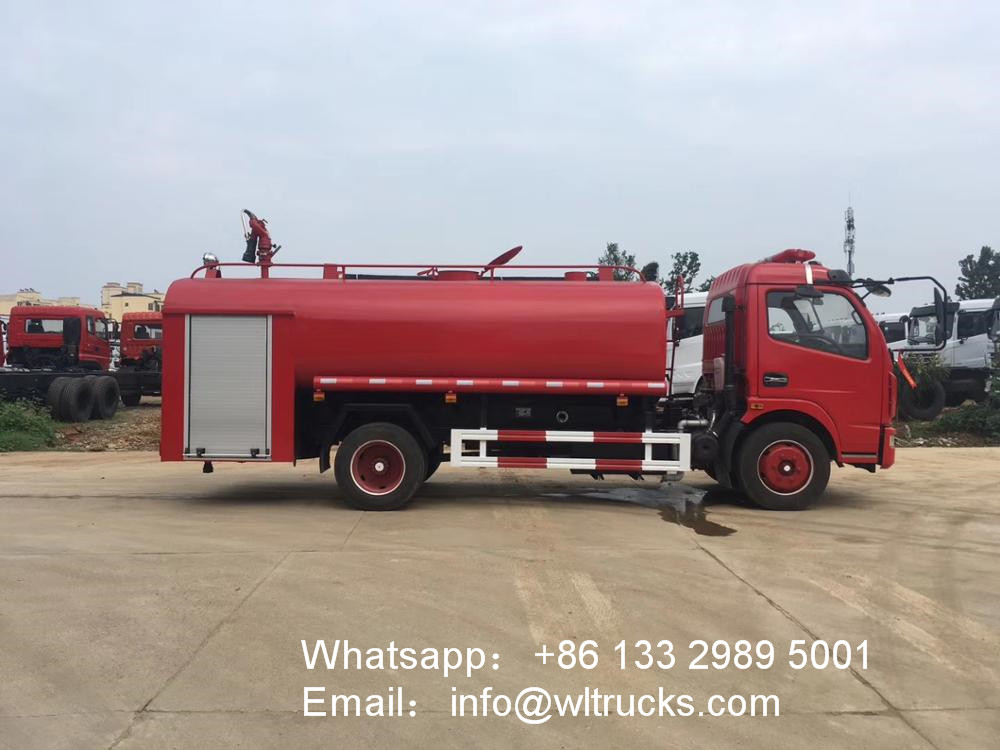

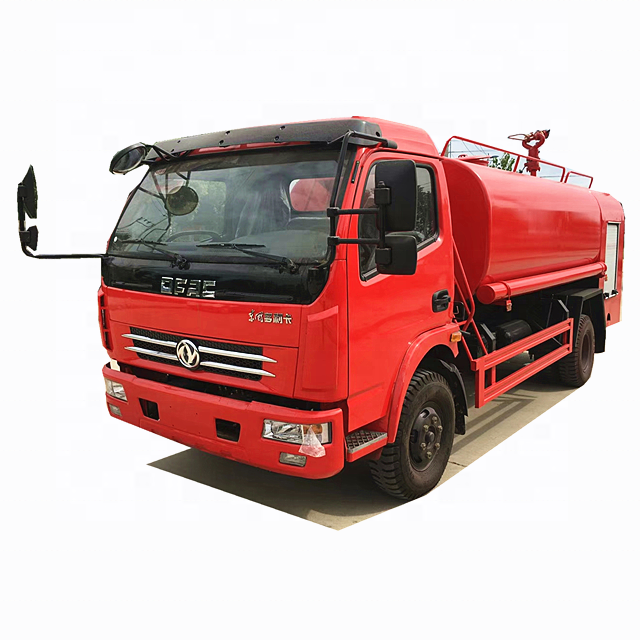

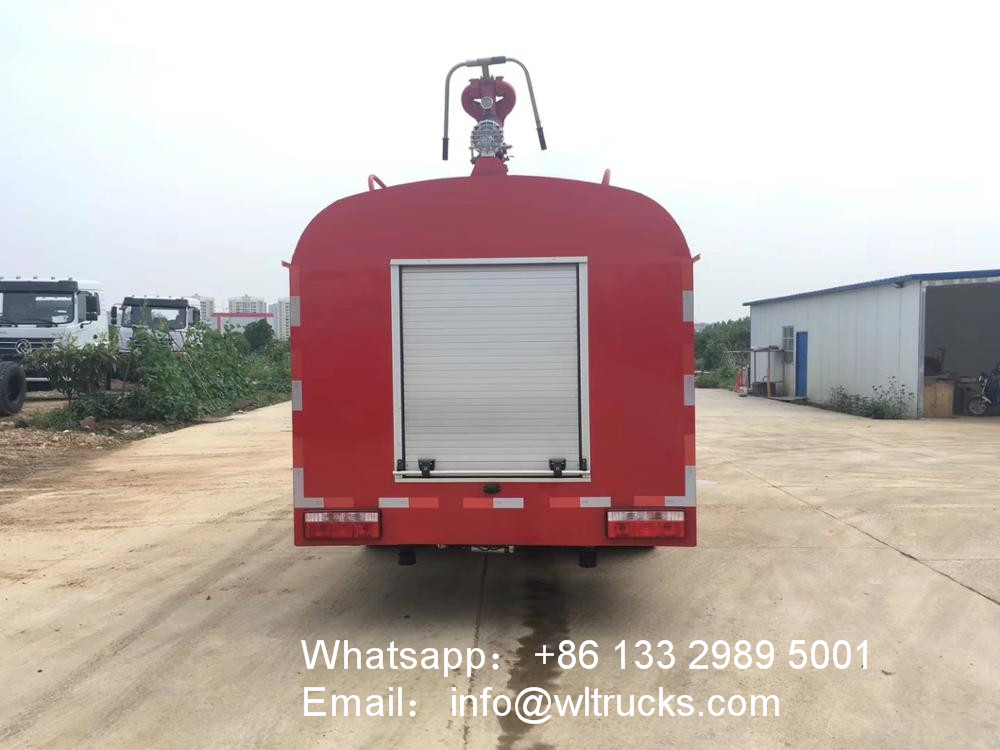

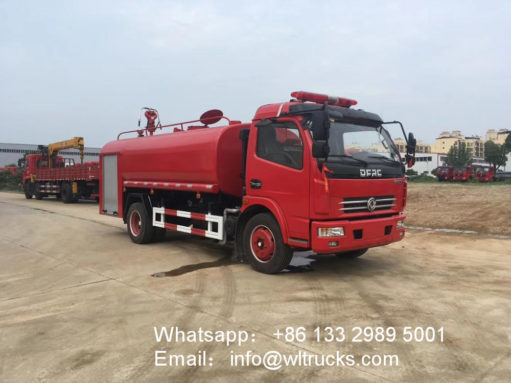

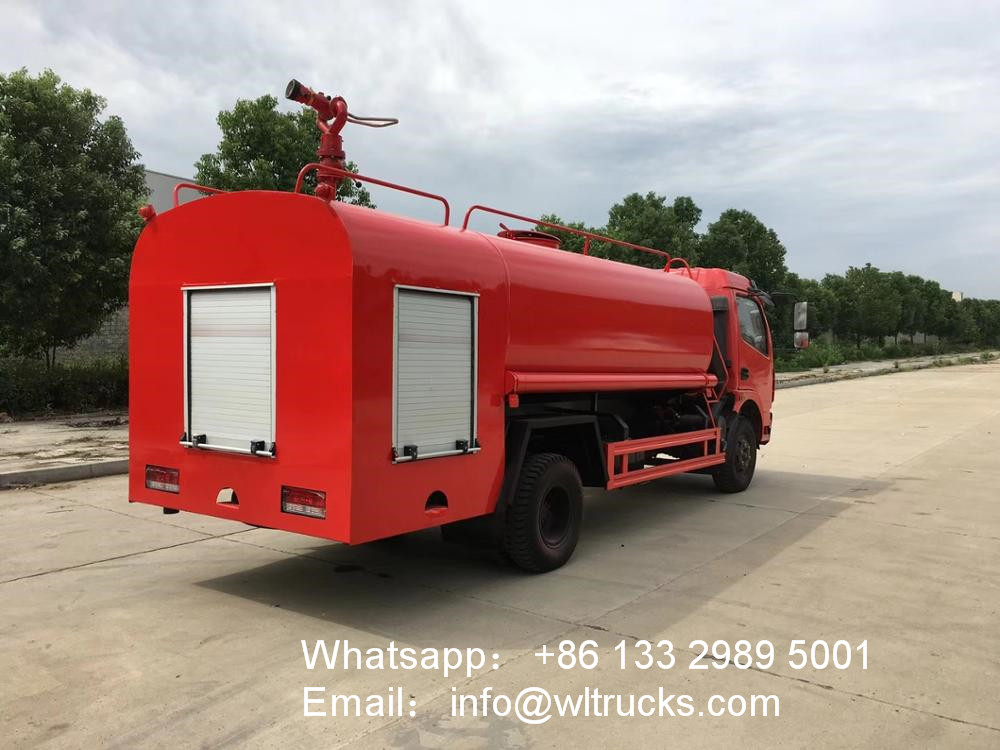

Dongfeng 6000 liter Fire water tank truck detail structure diagram:
Fire equipment table:
1. Equipment layout
| 1 | According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby. |
| 2 | Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch. |
| 3 | Signs are eye-catching, multi-person operation, non-interference. |
2. Equipment and equipment (standard)
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
