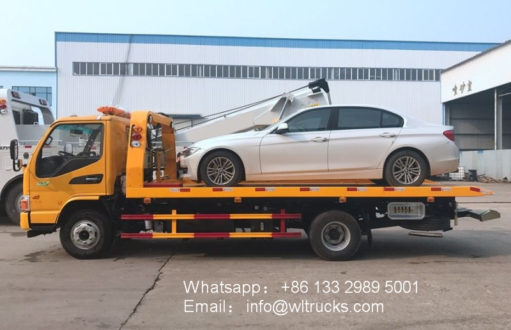

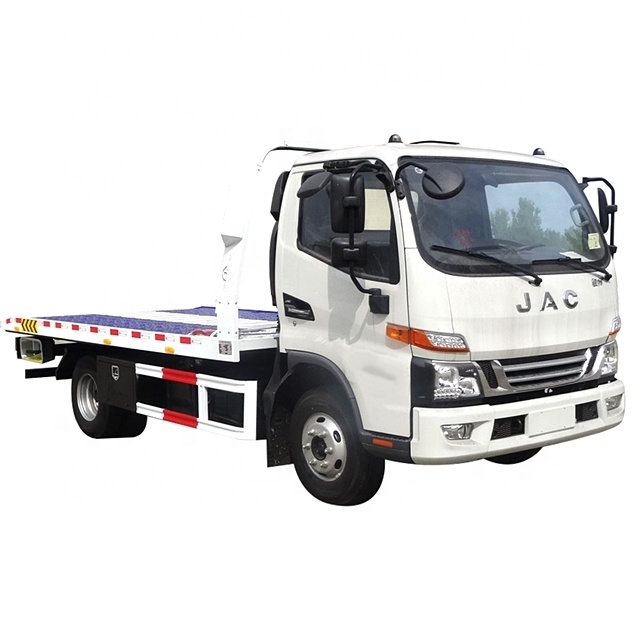

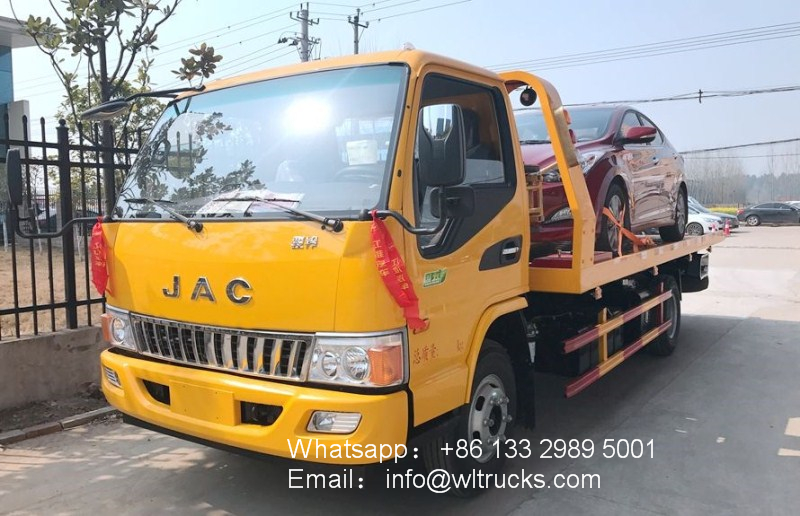

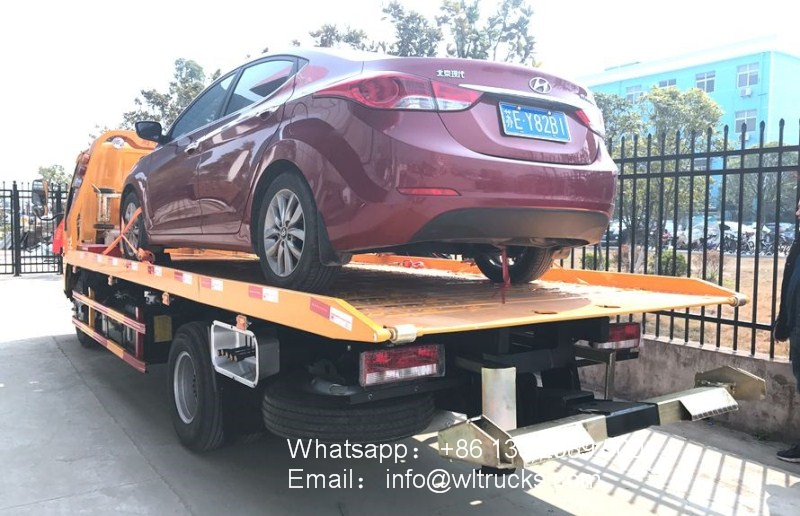

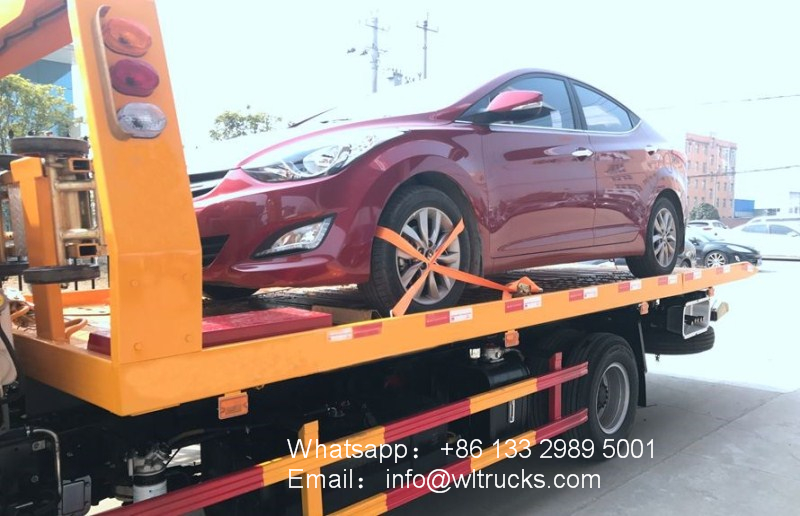

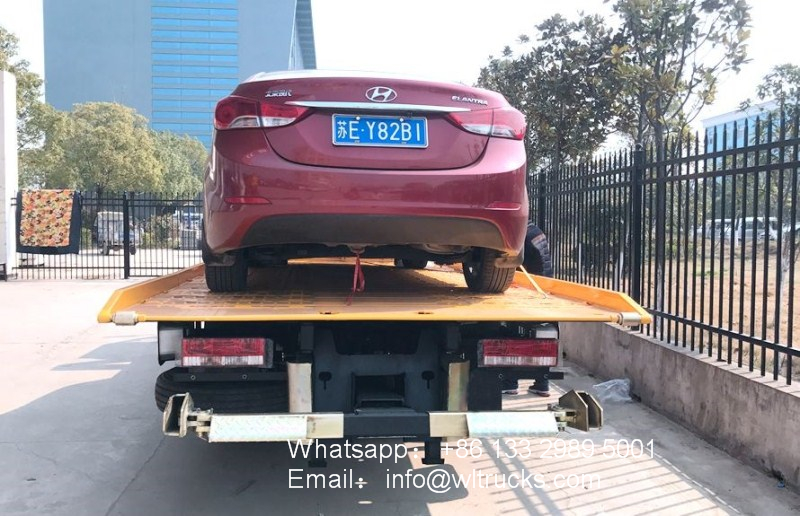

JAC 5 ton flatbed tow truck
JAC 5 ton flatbed tow truck Chassis configuration：
Adopt JAC series chassis, new wide-body single-row cab, Weichai 130 horsepower engine, 6-speed gearbox, 7.50R16 steel tires, original air brake, original direction assistance, with urea tank, 24V camel brand maintenance-free battery 6000T stamping once forming dovetail beam, original ABS.
JAC 5 ton flatbed tow truck Bodywork configuration：
The truck has a length of 5.6 meters and a width of 2.33 meters. The flat can use a new type of disposable stamping plate or 4 thick old pattern plates. The load capacity of the flat plate is 5 tons. 4 tons of tops, 4 tons of hydraulic winches, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of 7-character forks, one set of onboard tools, 4 straps, two work lights, with yellow long Row of LED electronic warning lights.
JAC 5 ton flatbed tow truck specification:
| Vehicle technical parameters | |||
| product name | Wrecker | Dimensions | 7.379×2.35×2.37 meters |
| Total quality | 8.28 tons | Curb quality | 5.26 tons |
| Tablet size | 5.6×2.33 meters | Flat thickness | 4 thick |
| Winding specifications | 4 tons | Tops | 4 tons |
| Chassis technical parameters | |||
| Chassis name | JAC | Chassis model | HFC1081P91K1C5ZV |
| Number of axes | 2 | Number of tires | 7 (including spare tire) |
| Wheelbase | 3.815 | Tire specifications | 7.50R16 |
| Gearbox | 6 files | Rear axle | 5 tons |
| Fuel type | Diesel | brake | Air brake |
| Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| WP3Q130E50 | Weichai Power | 2970 | 130 |
| Basic upload configuration | |||
| Standard configuration | 4 tons of tops, 4 tons of winches, 25 meters of wire rope, a pair of auxiliary wheel trolleys, a pair of 7-character forks, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronic engineering warning lights A set of tools on board. | ||
| Optional configuration | Imported parts, tow forks, tow fork seats, hand-washing boxes, LED long row of flashing warning lights, and full floor can be installed. | ||
JAC 5 ton flatbed tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
