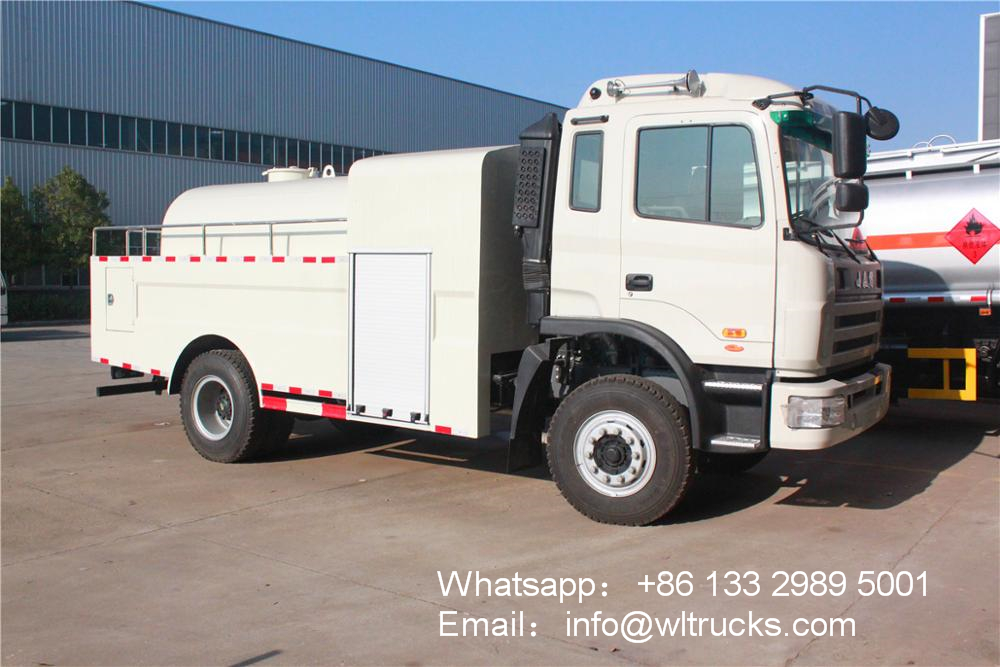

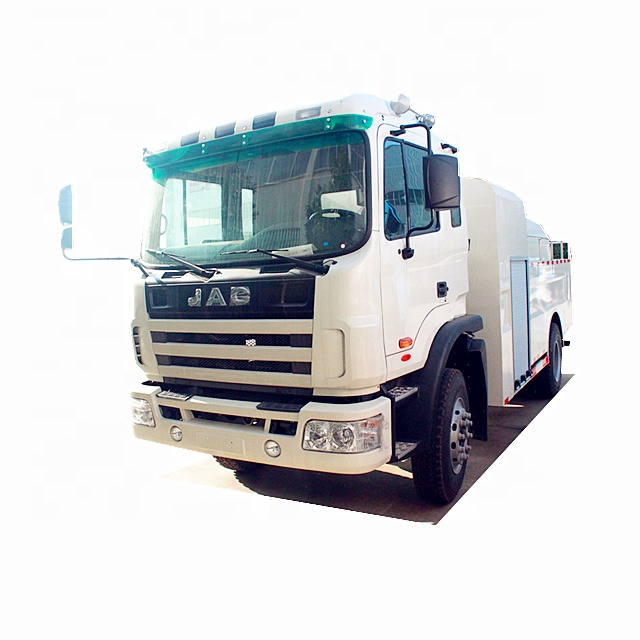

JAC 10cbm to 12cbm High pressure cleaning truck Specification:
JAC 10cbm to 12cbm High pressure cleaning truck Chassis configuration: JAC chassis, wheelbase 4500 wheelbase, JAC Geerfa white cab, Yuchai 190 horsepower engine, 5 speed gearbox, 900R16 steel tire, air brake, direction assist, electric preheating, ABS.

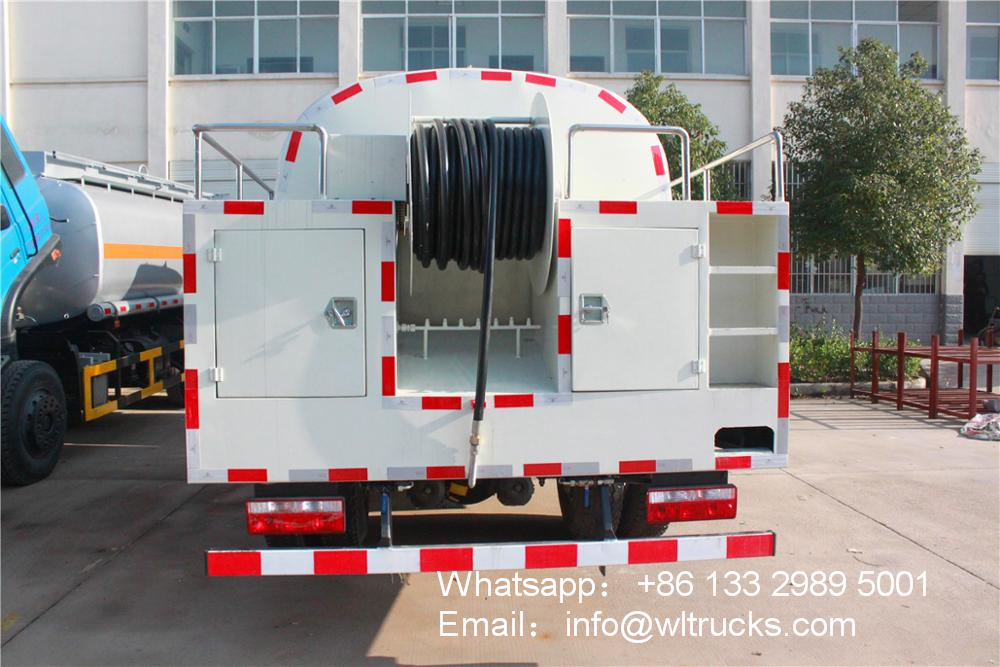

JAC 10cbm to 12cbm High pressure cleaning truck Top-loading configuration: the actual volume of the water tank is 10-12m3 cubic, and the national standard 4mm thick Q235 steel plate is automatically welded. The water filter device is installed, the liquid level gauge is equipped with the German Pinfu 170/24 high-pressure pump, and the hydraulic automatic reel +60 meters 19mm three-layer steel wire high-pressure pipe, equipped with 10 high-pressure nozzles with different functions.
Optional configuration: optional domestic Shuangyao high-pressure pump, optional left and right rotating hydraulic reel, optional vacuum pump suction function.
JAC 10cbm to 12cbm High pressure cleaning truck Product parameters
| 【Vehicle technical parameters】 | |||||
| product name | 8M3 Cleaning Truck | batch | 309 | ||
| Total mass (Kg) | 8275 | Rated load mass (Kg) | 3980 | ||
| Curb weight (Kg) | 4100 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 3 | Rated passenger (person) | |||
| Dimensions (mm) | 7000 x 2200 x 2390, 2450 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 20/10 | Front / rear suspension (mm) | 1130/2070, 1150/2050 | ||
| Axle load (Kg) | 3300/4975 | Maximum speed (Km / h) | 103 | ||
| Remarks | The effective volume of the tank: 4.17 cubic meters; the external dimensions of the tank (long x long axis x short axis) (mm): 4200 x 1800 x 1300 (actual length 2800, of which the front 1400 is used to install high pressure pumps) : Q235A carbon steel, connection method: the left and right sides are welded, and the rear protection is a skirt board structure, height above ground (mm): 330. Machinery Co., Ltd. The wheelbase used only (mm): 3800. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | EQ1080SJ8BDC | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3800,3308,4100 | ||||
| Tire specifications | 7.50R16, 7.50R16, 245 / 70R19.5 12PR | ||||
| Front track (mm) | 1740 | Rear track (mm) | 1610,1586 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| CY4SK251 | Dongfeng Chaoyang Chaochai Power Co., Ltd. | 3856 | 115 | ||
JAC 10cbm to 12cbm High pressure cleaning truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |

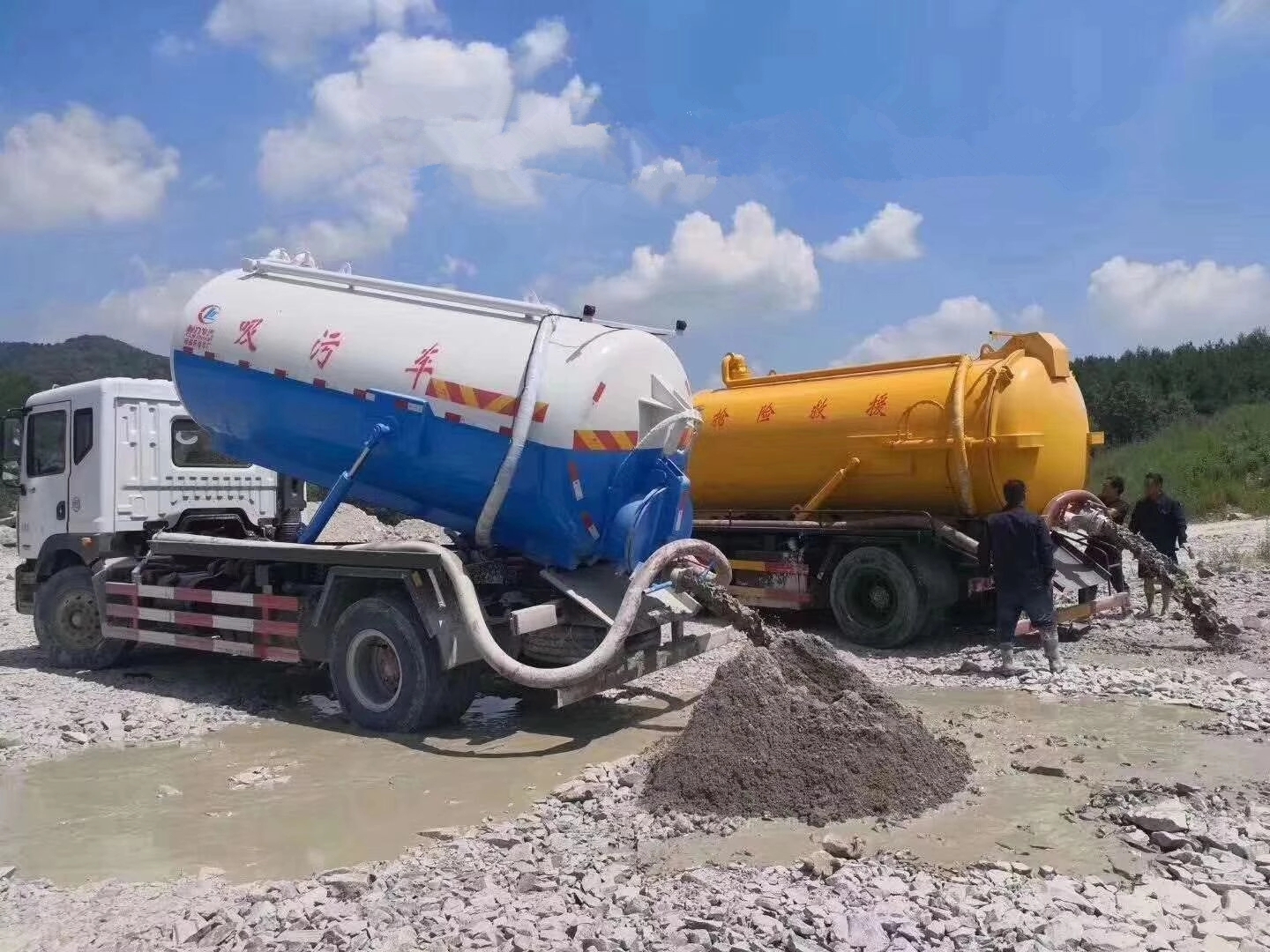

| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||

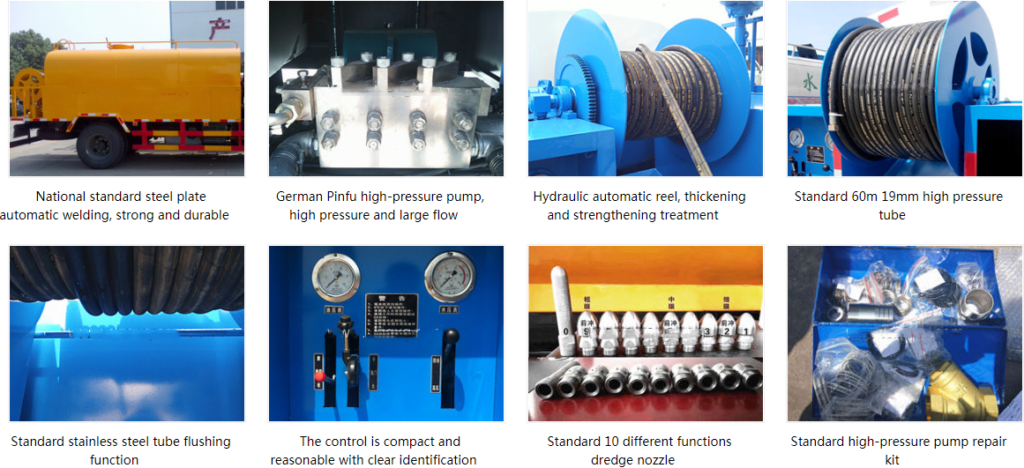

JAC 10cbm to 12cbm High pressure cleaning truck Working parameter New craft

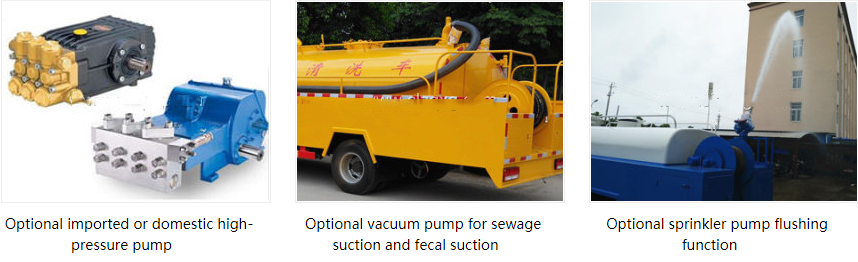

JAC 10cbm to 12cbm High pressure cleaning truck Optional configuration

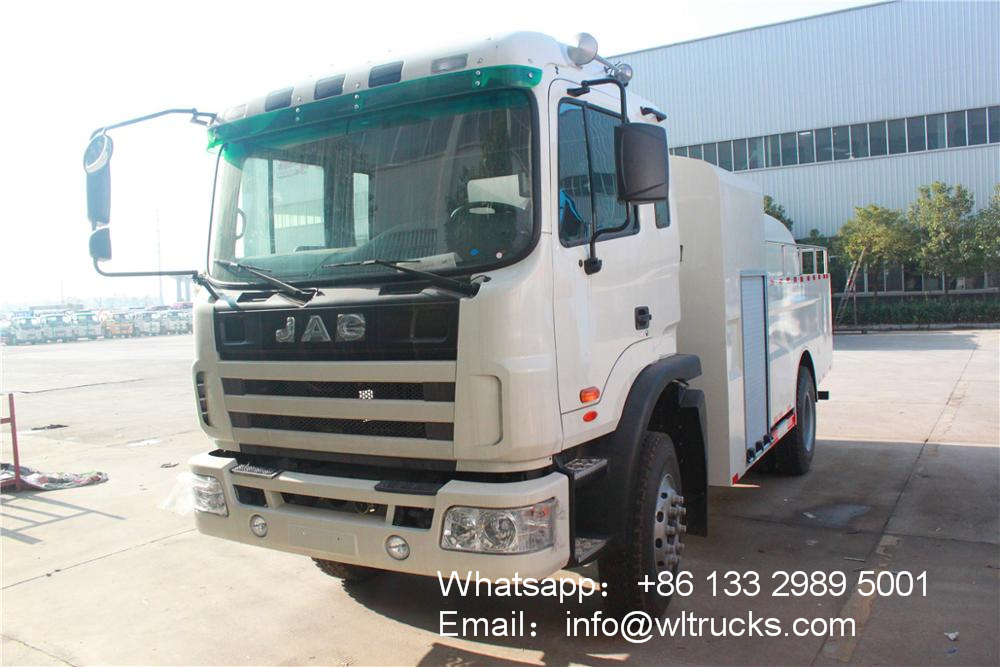

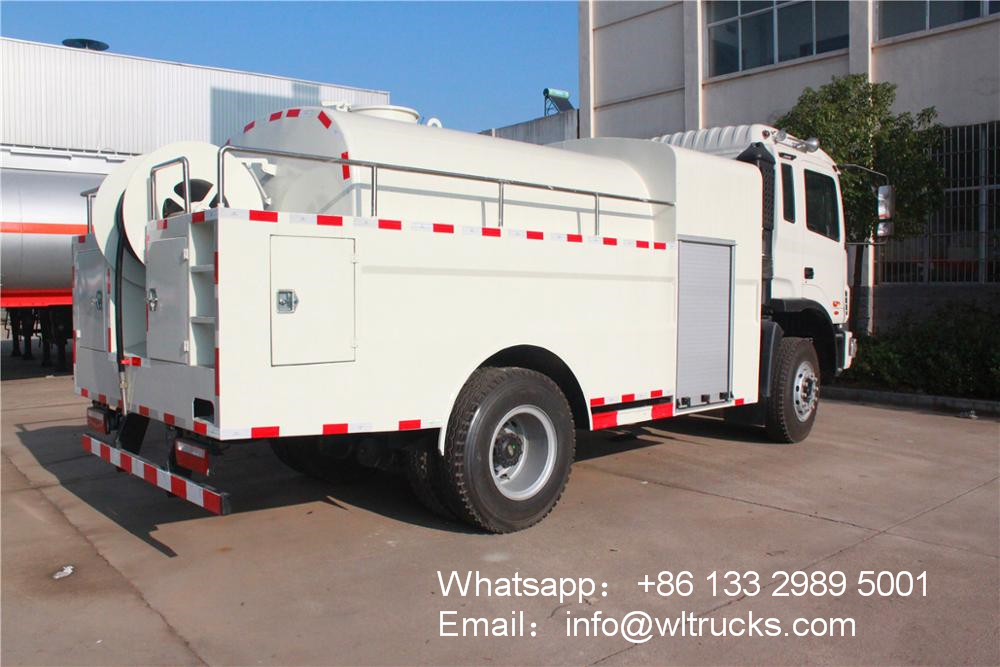

JAC 10cbm to 12cbm High pressure cleaning truck Detailed image
