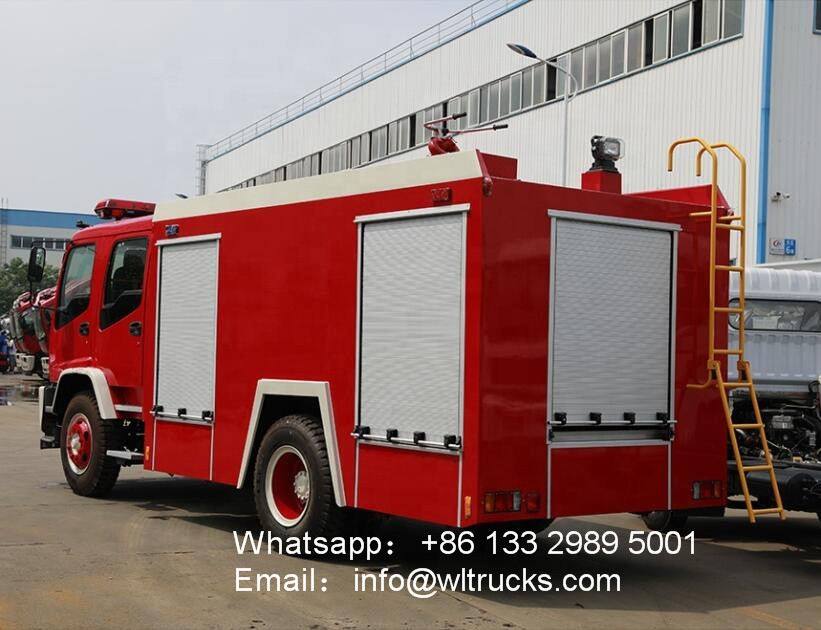

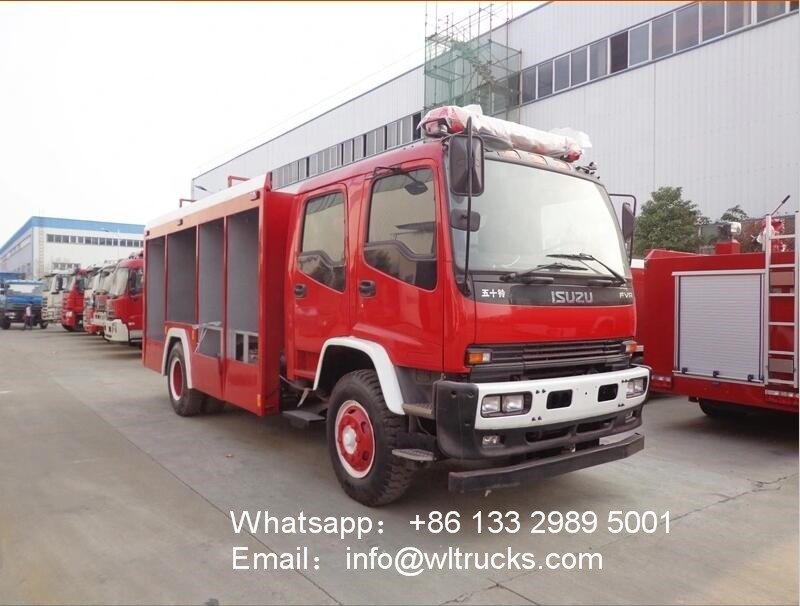

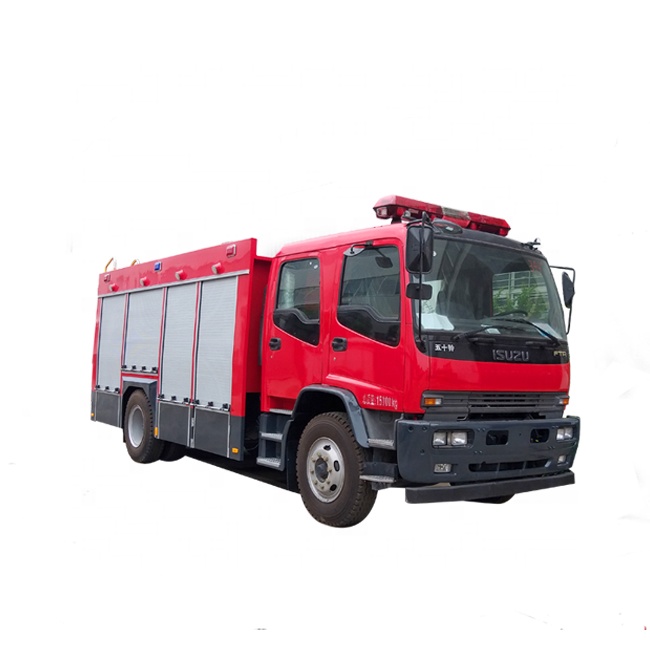

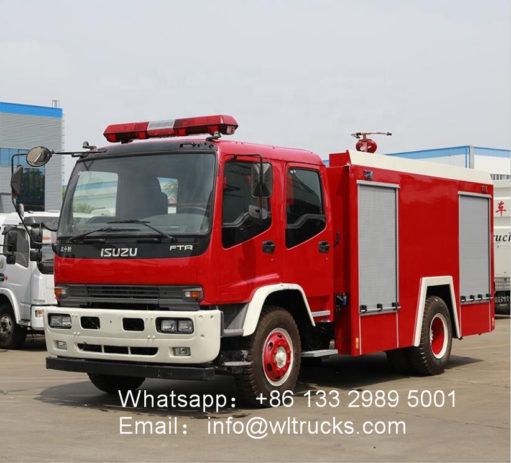

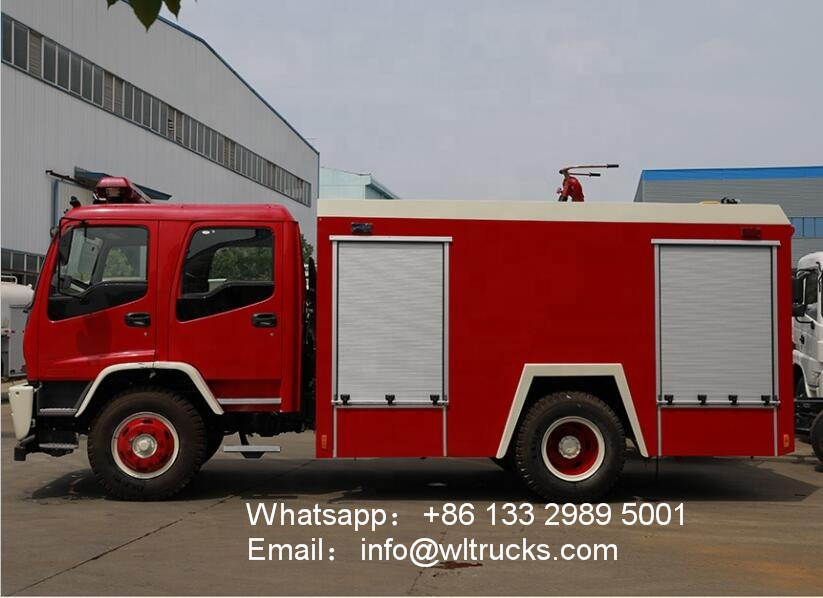

ISUZU FTR 6000L Foam fire truck Modified with QL1160VMFRY chassis. The vehicle is composed of two parts: firefighter cabin and body. The cabin is a modified double row and can take 3+3 people. The car has a built-in tank structure. The front of the body is a water tank + equipment box , The rear is the pump room.
The carrier liquid tank is made of high-quality carbon steel, with epoxy primer and epoxy asphalt paint sprayed inside. It is elastically connected to the chassis. It carries 4000 kg of water and 2000 kg of foam liquid. It is equipped with a CB10/20 low-pressure fire pump with a rated flow of 40L/ S, PH32 manual foam ratio mixer.
Product Specifications:
- Vehicle Specifications
| Vehicle model | CLW5153GXFPM60 foam fire truck |
| Outside dimensions | 7925×2505×3450mm |
| Maximum total mass | 15000kg |
| Carrier volume | Foam car water 4000kg, foam 2000kg |
| Maximum speed | 90km/h |
| Fire pump rated flow | 40L/s 1.0MPa |
| Rated flow of fire monitor | Foam car: 32L/s 1.0MPa |
| Fire gun range | Foam car: foam ≥45m water ≥50m |
| Specific power | 176/15.52=11.32 |
| Approach / departure angle | 15°/13° |
- the main parameters of the chassis
| Chassis model | QL1160VMFRY | manufacturer | Qingling Motors Co., Ltd. |
| Engine rated power | 151kw (205.36 horsepower) | engine capacity | 5193ml |
| Engine emission standards | GB17691-2005 National V | Drive form | 4×2 |
| Wheelbase | 4500mm | Cab structure | Flat head, four doors, restructured double row |
| Minimum turning radius | ≤21m | Number of passengers | 3+3 people |
| Gearbox | Manual | Driver position | Left |
| device | The dashboard of the original car is equipped with a fire control dashboard and a police light control box, equipped with 1. an alarm; 2. a power take-off control switch and indicator light; 3. an additional power switch; |
||
- Bodywork structure and performance parameters
| General layout | The vehicle consists of two parts: the firefighter’s cabin and the body. The body layout uses a built-in tank structure. The left and right sides are equipment boxes, the middle is a water tank, and the back of the equipment box is a pump room. |
 |
|
1.Equipment box and pump room
| structure | The main frame structure is welded with high-quality square tubes, and the outer decorative plate is welded with carbon steel plates. The roof is non-slip and can be walked on. (Aluminum alloy square tube welding can be used according to user needs) |
| Equipment box | The equipment boxes are located on both sides of the rear of the passenger compartment, and are equipped with aluminum alloy rolling doors with lighting lamps inside. Storage boxes are set in the equipment box room according to demand. The lower part of the side is provided with a flip pedal. |
| Pump room | The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutters on both sides and the rear, with lighting lights inside, and flip pedals on the lower sides of the pump room. Insulation position: install fuel heater (optional according to customer requirements) |
2. Water tank
| capacity | 4000kg |
| Material | High-quality carbon steel with a thickness of 4mm ( can be made of stainless steel and PP according to user needs) |
| Tank fixing | Flexible connection with chassis frame |
| Tank settings | One manhole with a diameter of 460mm, with quick locking/opening device, one DN40 water tank to discharge the remaining water port, with ball valve, water injection port: connect two DN65 ports on the left and right sides of the water tank, and the water inlet and outlet: set one Water inlet pipe to water pump, DN100 valve, pneumatic and manual control, 1 water pump to water tank filling pipe, DN65 valve, pneumatic and manual control |
3. Foam tank
| capacity | 2000kg |
| Material | High-quality carbon steel with a thickness of 4mm ( can be made of stainless steel and PP according to user needs) |
| Tank fixing | Flexible connection with chassis frame |
| Tank settings | 1 DN460 manhole, with quick lock/open, automatic pressure relief device, 1 DN40 overflow port, 1 DN40 foam tank to discharge residual liquid port, 1 DN40 foam tank to the water pump out of the foam pipe |
4. Fire pump
| model | CB20.40 low-pressure vehicle fire pump |  |
| form | Atmospheric centrifugal | |
| Limited Data | 40L/s @1.0MPa | |
| Rated outlet pressure | 1.0MPa | |
| Maximum suction depth | 7m | |
| Water diversion device | Built-in sliding vane pump | |
| Diversion time | Maximum suction depth≤35s |
5. Fire monitor: car foam monitor
| model | PL32 |  |
| manufacturer | Chengdu West Fire Machinery Co., Ltd. | |
| Rotation angle | 360° horizontal rotation | |
| Maximum elevation/depression angle | Depression angle ≤-15°, elevation angle ≥+45° | |
| flow | 32L/S | |
| Range | Foam≥45m Water≥50m |
6. The control panel of the fire control system mainly includes the cab control and the pump room control.
| Additional electrical | Set up an independent circuit |
| Auxiliary lighting | Firemen’s room, water pump room and equipment box are equipped with lights respectively, and lighting and indicator lights are set on the control panel |
| Strobe light | Install red and blue strobe lights on both sides of the body, and install a 35W fire searchlight at the rear of the bodywork |
| Warning device | Long row of red warning lights, installed on the top of the cab siren, and its control box is below the front of the driver |

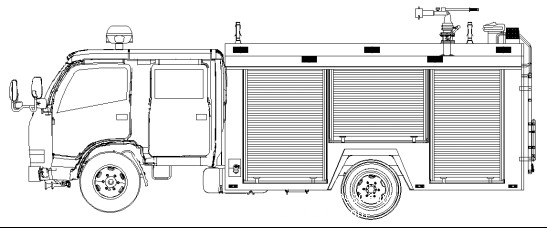

ISUZU FTR 6000L Foam fire truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire extinguisher | 3㎏ | 1 | With | |
| 18 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 19 | Rubber hammer | 1 | Piece | ||
| 20 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
