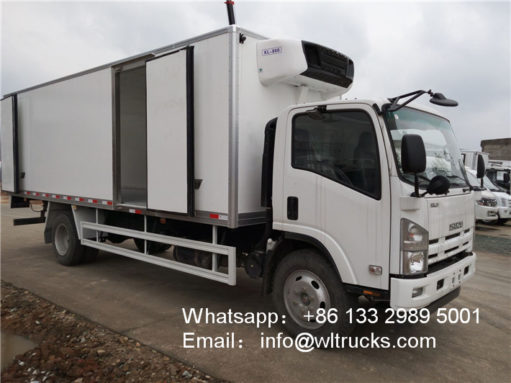

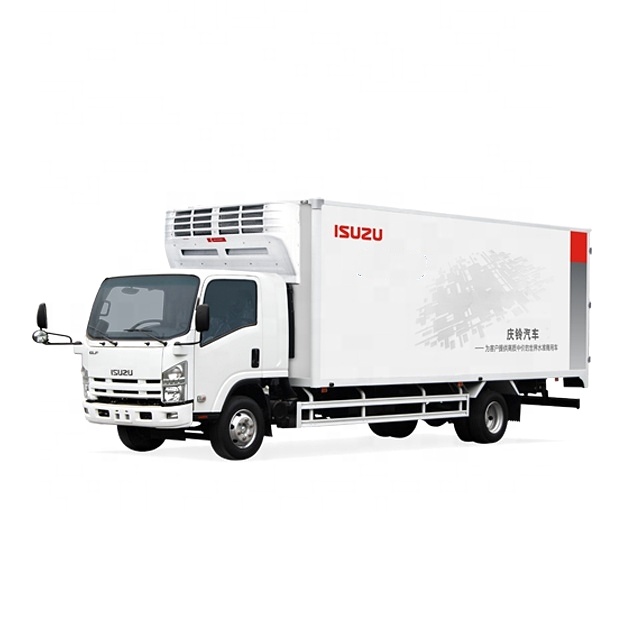

ISUZU ELF 10 ton to 12ton refrigerator truck
ISUZU 700P 6.8m refrigerated truck, outside dimensions: 8970×2305×3330mm, inside dimensions: 6820×2035×1995mm, equipped with Isuzu 4HK1-TC51 engine 190 horsepower, Isuzu MLD six-speed transmission, with air conditioning, with direction assist The front axle is 4 tons, the rear axle is 7 tons, with ABS, air brake, the cab can be turned over, a row of half cab, 235/75R17.5 tires. Optional -5 degrees to -18 degrees cold machine.
ISUZU ELF 10 ton to 12ton refrigerator truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
ISUZU ELF 10 ton to 12ton refrigerator truck specification:
| Main technical data of ISUZU QL5090XLC9MARJ refrigerated truck products | |||
| product name: | ISUZU QL5090XLC9MARJ Refrigerated Truck | Dimensions (mm): | 8170×2260, 2200×3330 |
| Chassis model: | QL10909MARY | Cargo compartment size (mm): | 6020×2035×1995, 1960 |
| Total mass: (kg) | 9335 | Approach/departure angle (°) | 20/10 |
| Rated quality: (kg) | 4200 | Front/rear suspension (mm): | 1110/2585 |
| Curb weight: (kg) | 4940 | Maximum speed (km/h): | 110 |
| Axle load: | 3140/6195 | ||
| Chassis parameters | |||
| Chassis model: | QL10909MARY | batch: | 272 |
| Number of axes: | 2 | Fuel type: | Diesel |
| Wheelbase (mm): | 4475 | Front track (mm): | 1680 |
| Rated passengers (including driver): | Rear track (mm): | 1650 | |
| Number of tires: | 6 | Number of springs: | 8/10+6 |
| Tire specifications: | 8.25-16-14PR, 8.25R16-14PR | ||
| Vehicle description: | |||
| Engine parameters | |||||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) | ||
| 4HK1-TCG40 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 5193 | 139 | ||
| Emission Standards: | Eruo 4 | Fuel type: | Diesel | ||
ISUZU ELF 10 ton to 12ton refrigerator truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
ISUZU ELF 10 ton to 12ton refrigerator truck New craft:
ISUZU ELF 10 ton to 12ton refrigerator truck Optional configuration:

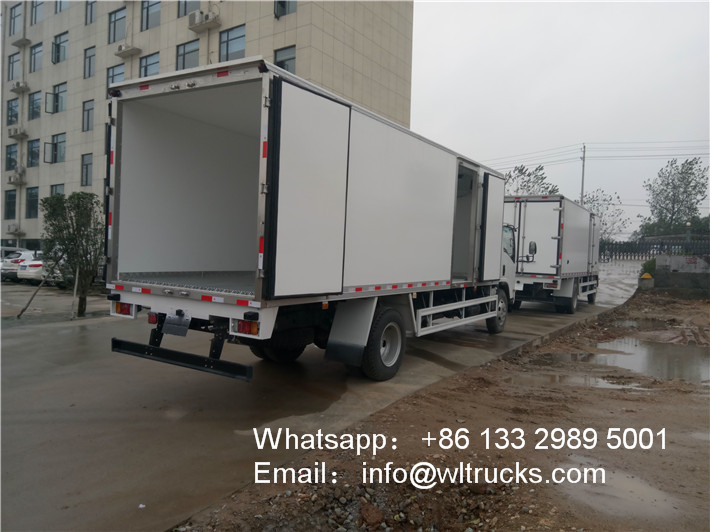

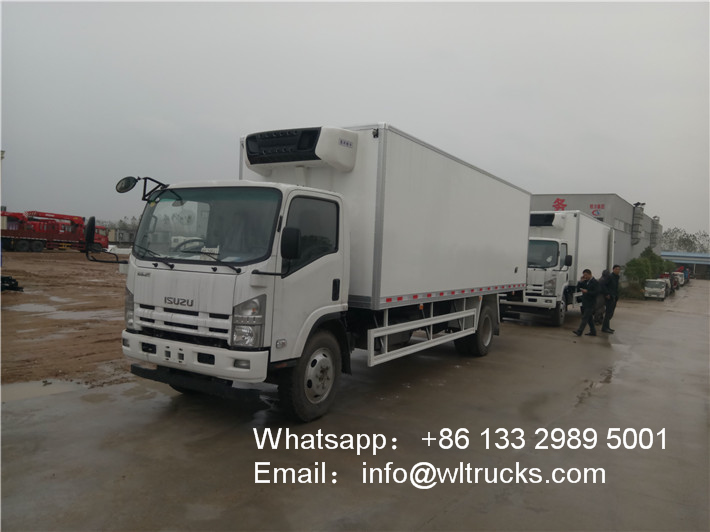

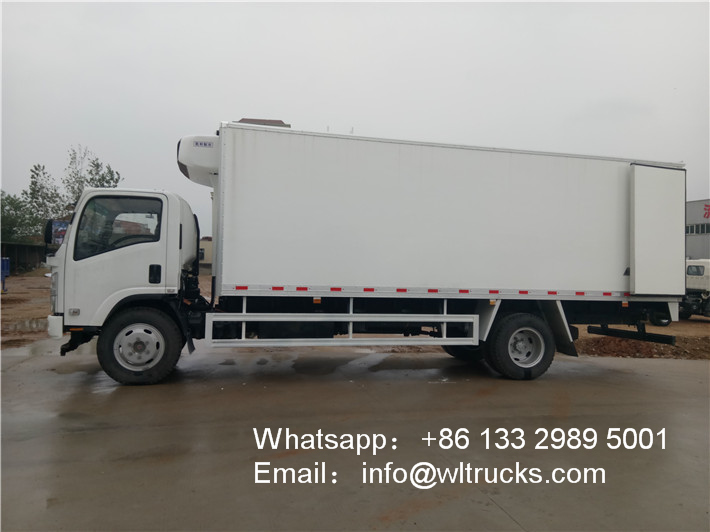

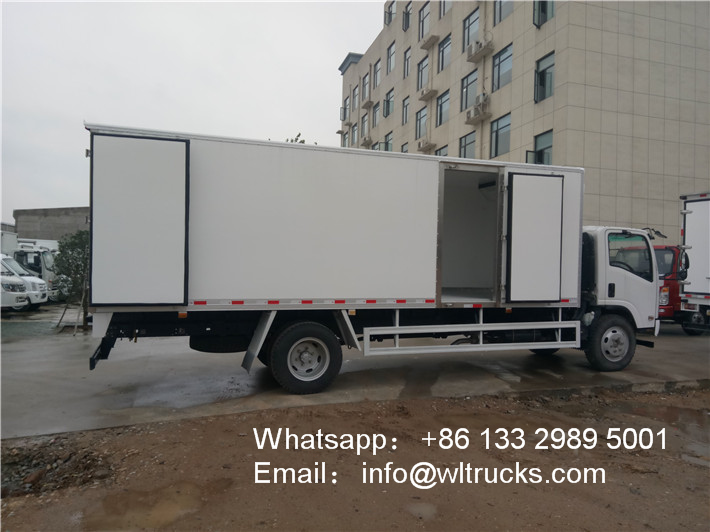

ISUZU ELF 10 ton to 12ton refrigerator truck Bodywork details:

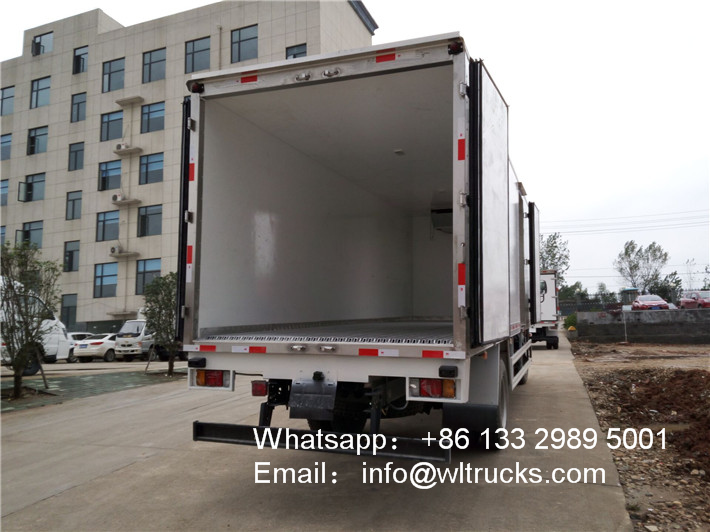

ISUZU ELF 10 ton to 12ton refrigerator truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
