ISUZU 5000liter sewer cleaning sewage suction truck Specification:
ISUZU 5000liter sewer cleaning sewage suction truck Chassis configuration: Isuzu 100P forward-turning cab, Isuzu 98 horsepower engine, 3300 wheelbase, 7.00-16 tires, ABS, direction assistance.
High pressure dredging: 1.5 square meters of water tank, equipped with 24MPa Tianjin Tongjie high pressure pump (optional 16MPa high pressure pump imported from Germany), hydraulic reel automatic retractable tube + pipe self-cleaning function, standard 80m double layer 19mm high pressure tube, standard 10 dredging nozzles with different functions.
ISUZU 5000liter sewer cleaning sewage suction truck Sewage suction function: Sewage tank 3.5 square meters, equipped with Yifeng vacuum pump (optional Weilong vacuum pump or water ring pump), tank body lifting self-unloading, tail cover hydraulically opened, with manual locking, equipped with 1 8 meter suction pipe .
Optional function: optional cleaning and suction style, the total volume is 5 squares freely divided, the tank body cannot be lifted and unloaded, the tail cover cannot be opened, and the tank tail is equipped with a self-flow valve.
ISUZU 5000liter sewer cleaning sewage suction truck Product parameters
| SPECIFICATION | |
| Product name | Isuzu 100p cleaning sewage suction truck |
| Chassis | ISUZU 100p |
| Traction system | 4*2,Left hand drive |
| Curb weight(kg) | Approx.4830 |
| Overall dimensions (mm) | Approx.5850×2050×2500 |
| Wheelbase(mm) | 3360 |
| ENGINE | |
| Engine Model and Brand | 4KH1CN5MD, Isuzu brand |
| Displacement(ml) | 2999ml |
| Engine Power (KW/HP) | 85KW/115HP |
| Engine type | 4 cylinders diesel engine |
| Gear box | ISUZU MSB,5 front gears and 1 reverse gear |
| Tire | 7.00R16,6+1 |
| CONFIGURATION | |
| Garbage tank | 4m3,carbon steel |
| Water tank | 1.5m3,carbon steel |
| cleaning configuration | Italy imported High-pressure pump |
| Pump pressure: 16Mpa | |
| Φ19m high pressure hose 60m | |
| 10 pcs nozzle | |
| sewage suction configuration | 8m sewage suction hose ,high-power vacuum suction pump or SK-6 water circulation pump |
ISUZU 5000liter sewer cleaning sewage suction truck Working parameter
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist | ||
ISUZU 5000liter sewer cleaning sewage suction truck Working parameter New craft
ISUZU 5000liter sewer cleaning sewage suction truck Optional configuration

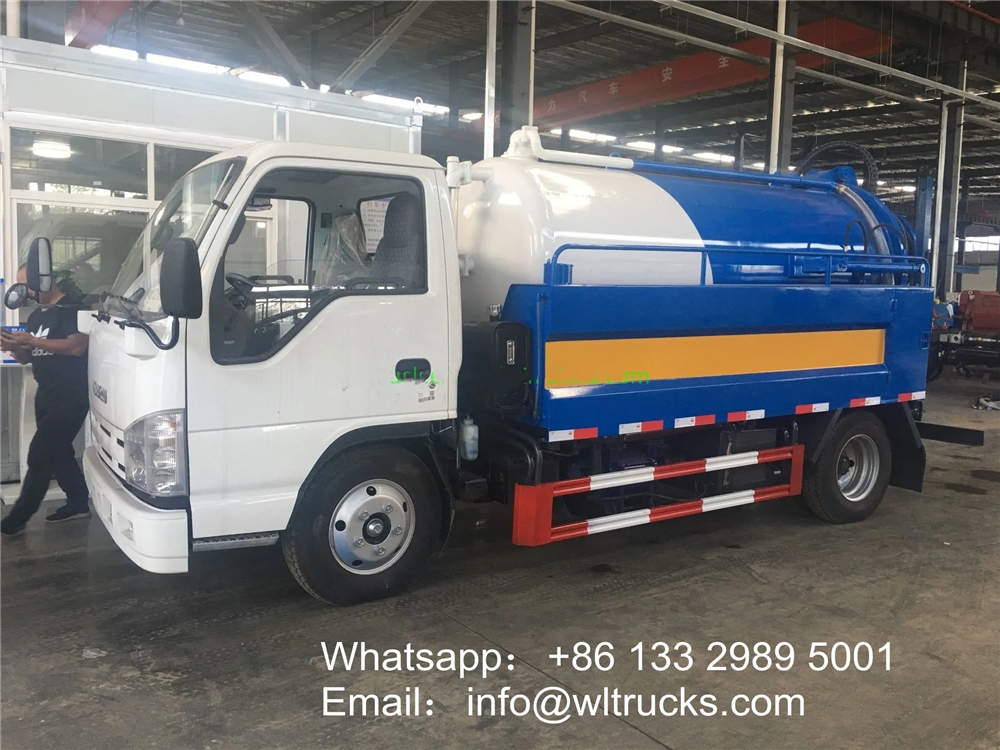

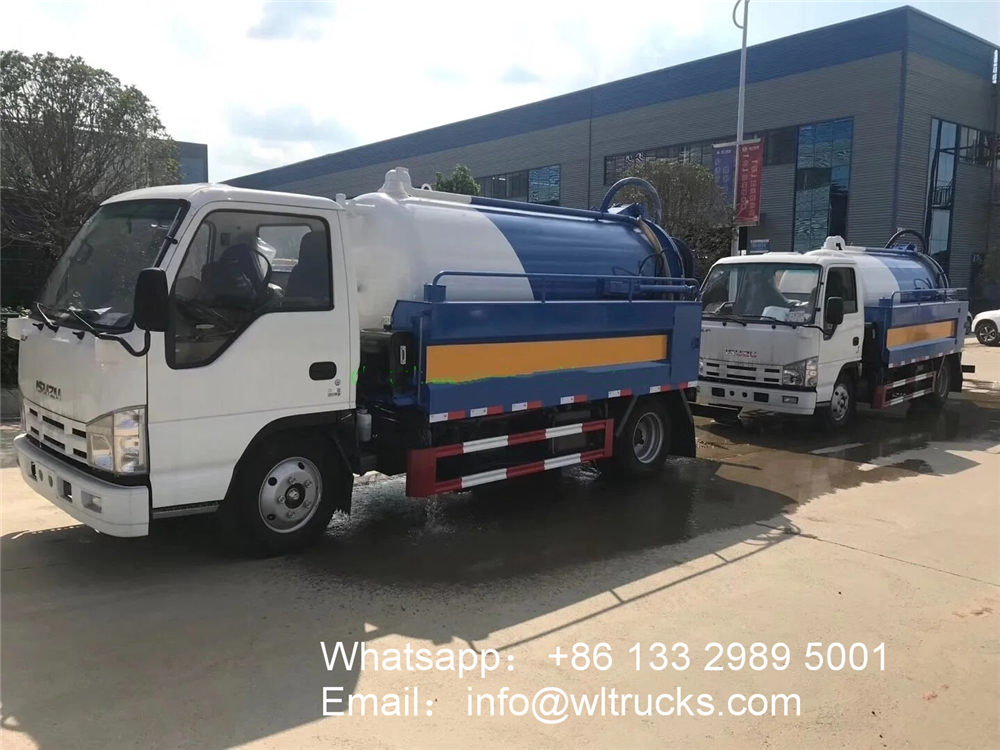

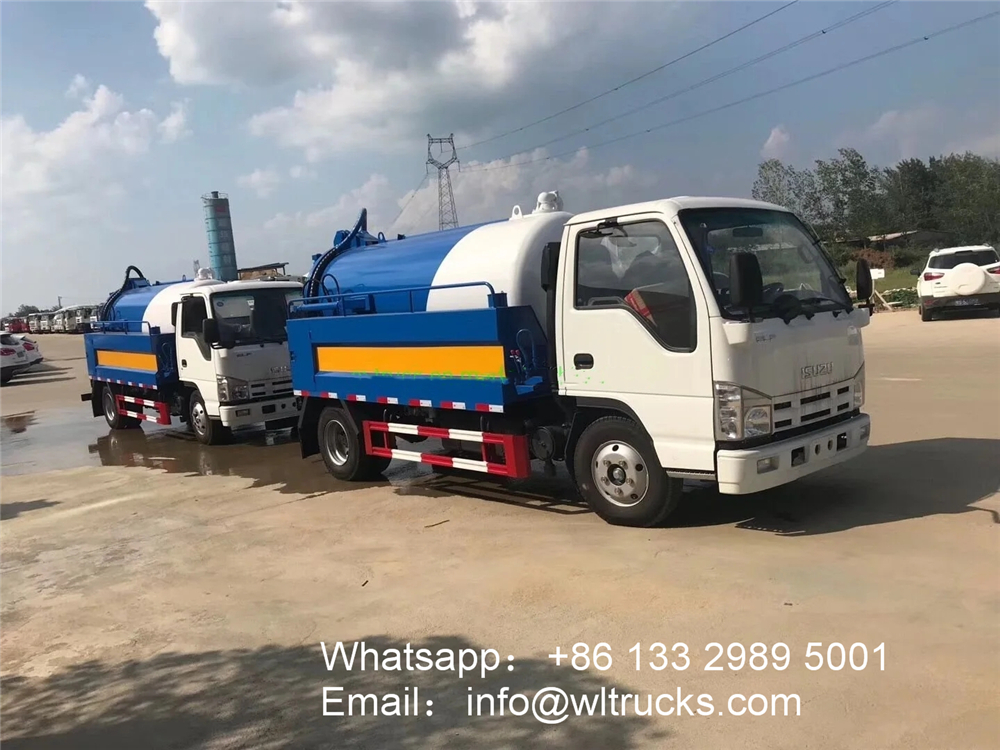

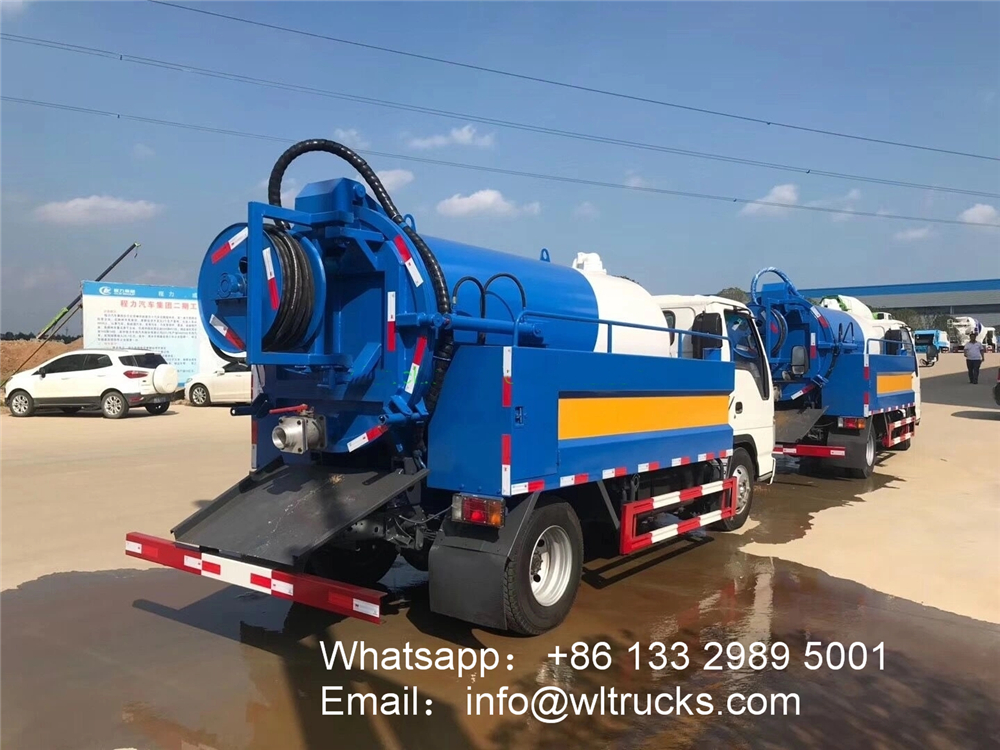

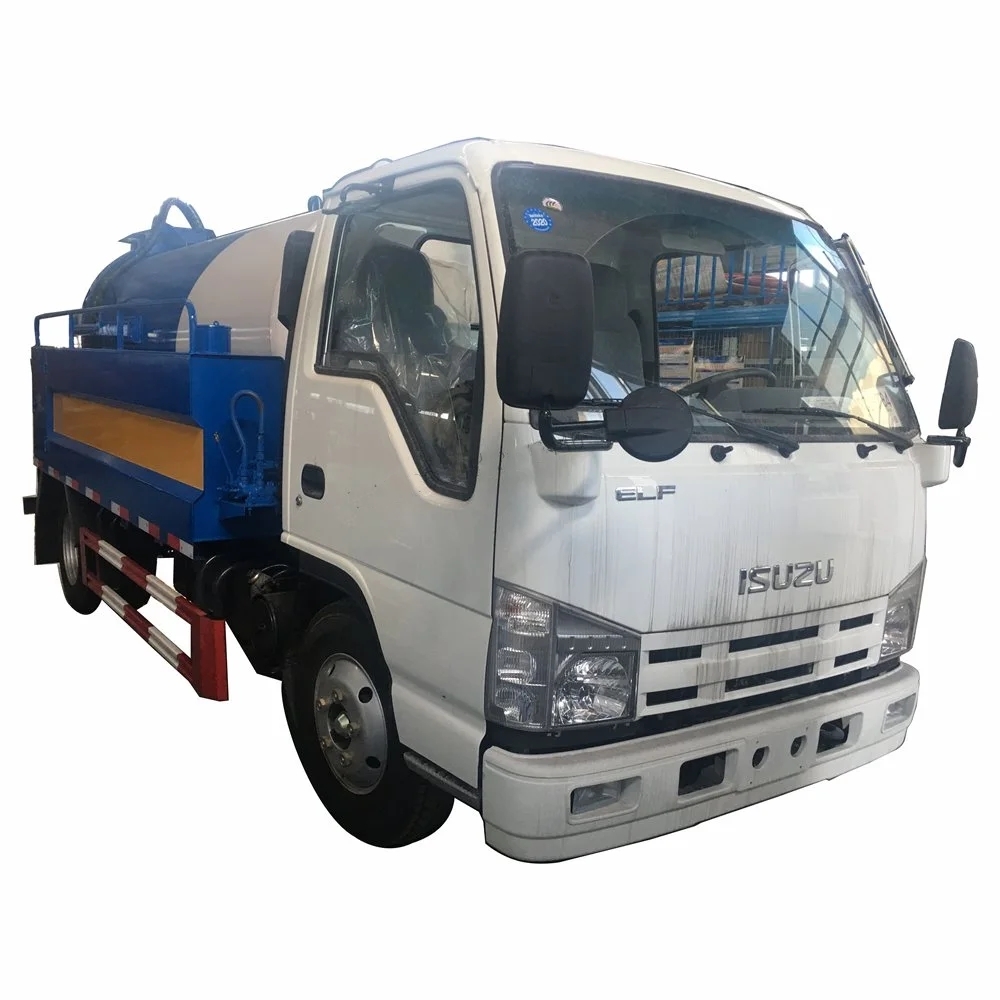

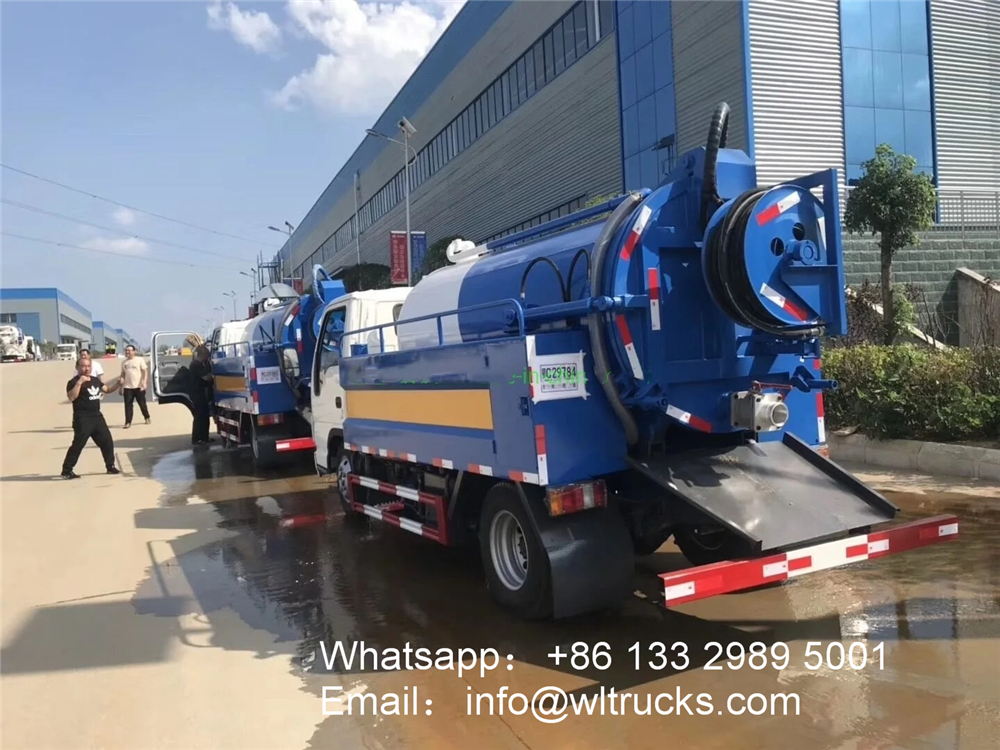

ISUZU 5000liter sewer cleaning sewage suction truck Detailed image
