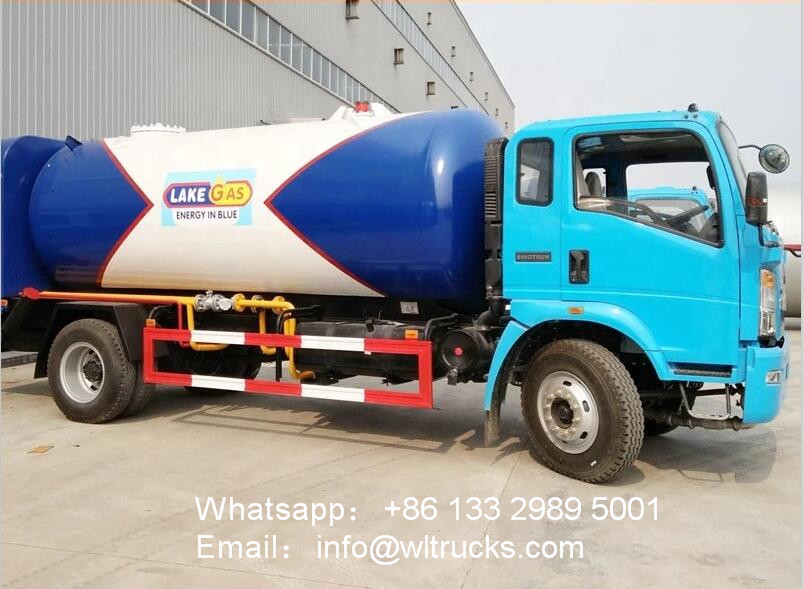

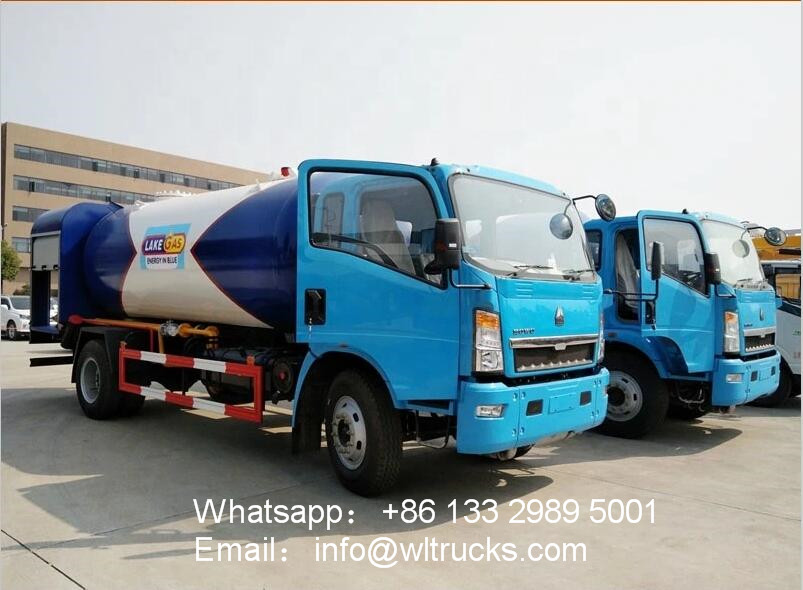

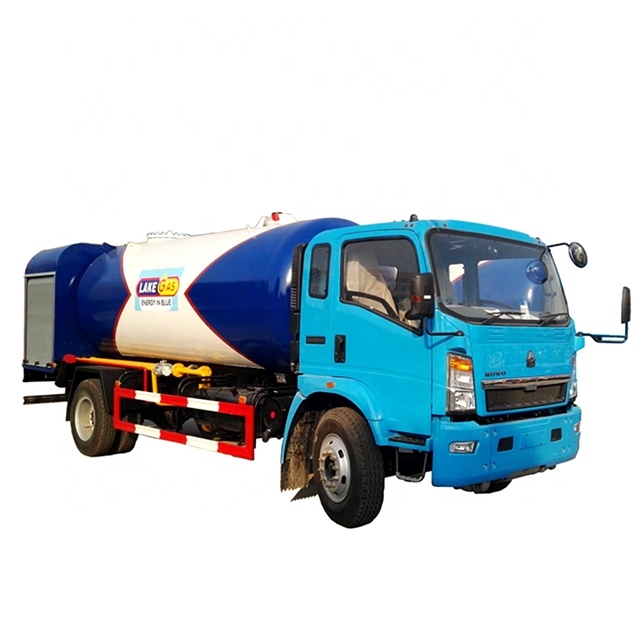

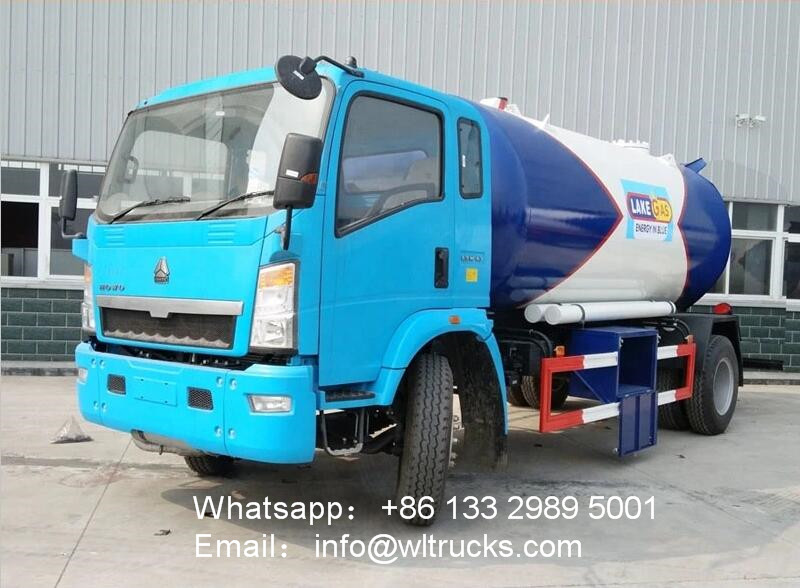

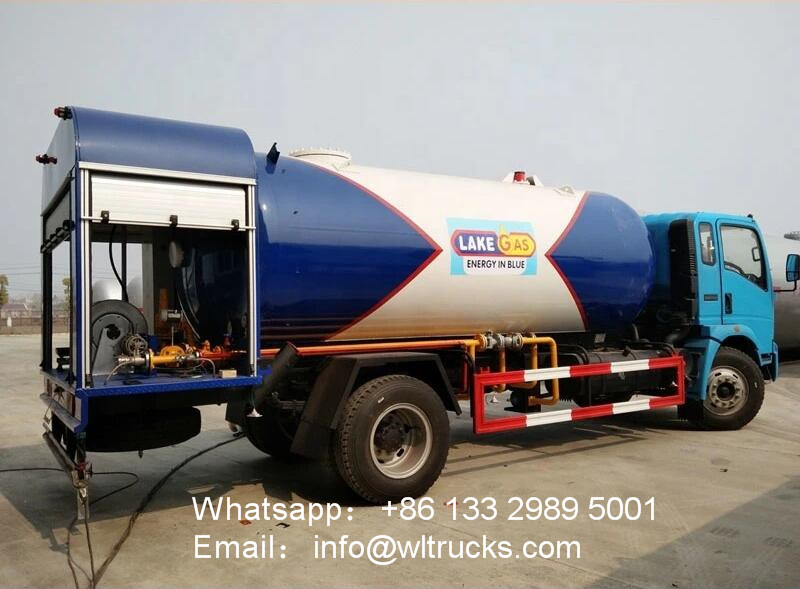

We produce the HOWO 12000liter lpg refilling truck which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
China Lpg trucks Product Description:
1) Truck Brand : Howo,Dongfeng, faw, isuzu,foton,JAC,JMC,Shacman.etc
2) Tank Size: 3000liter to 35000liters
3) Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

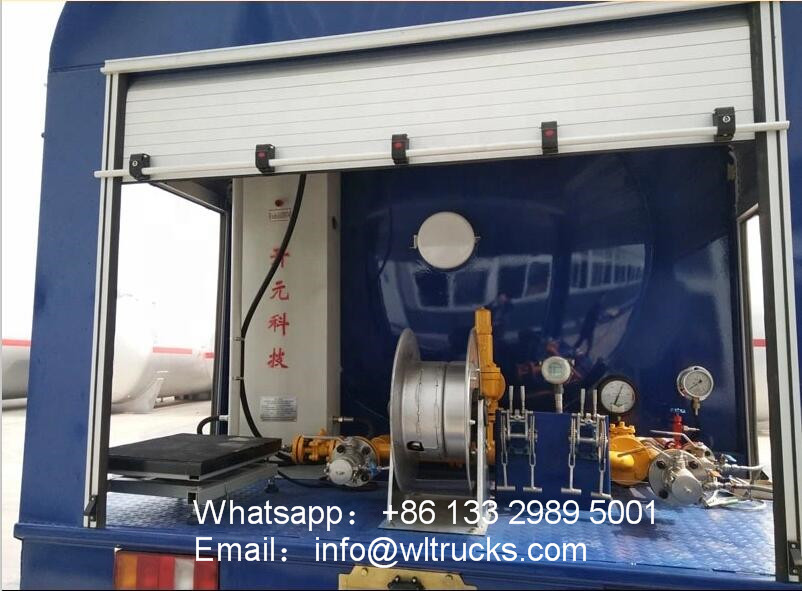

4) Refiling System : 2″ Flowmeter or intelligent filling dispenser machine, 2″ Corken or Chinese brand Pump,15meters Filling Hose Reel
5) Truck Spec: 4×2,4×4,6×4,6×6,6×2,8×4
6) tank material:Q345R Q370R SA516
HOWO 12000liter lpg refilling truck specification:
| Item No. | Parameters | ||
| Overall Dimension | 7600 x 2480 x 3320 mm | Gross Vehicle Weight | 15000 Kg |
| Curb Weight | 8700 kg | Loading Weight | 6300 Kg |
| Wheel Base | 4200 mm | Front / Rear Axle | 3.6/ 10.5Ton |
| Cabin | HOWO Cabin 2080, RHD, 2 Passengers Allowed, with A/C | ||
| Engine | Yuchai Diesel Engine YC4E160-33 , Four Stroke, 4 Cylinder in line, Inter-cooling, | ||
| Engine horsepower | 160 HP Euro II | ||
| Displacement | 4.257 L(Diesel) | ||
| Steering Gear | Hydraulic Assistant Power Steering | ||
| Gear Box | 6 Forward Gear & 1 Reverse Gear | ||
| Tire | 9.00R20 (6 Pieces with 1 Spare) | ||
| Max Driving Speed | 90 km/h | ||
| Tank Capacity | HOWO 12000liter lpg refilling truck | ||
| Filling Content | Liquefied Petroleum Gas (Propane) | ||
| Tank Material | Q345R Pressure Vessel Steel, 10mm Thick Tank Body. | ||
| Liquid Line & Vapor Line | 2″ Diameter with Flange Connection | ||
| Standard Equipment | 1 Safety Valve,1 Rotor Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes | ||
| Specification | Designed Pressure: 1.61Mpa / 16.1 Bar Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar Air Tightness Pressure: 1.61Mpa / 16.1Bar Medium Density: 500-590 kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm |
||
Lpg trucks Different designs:
Type 1-with volume flow meter,lpg pump and 15 meters filling hose.
Type 2-with lpg dispenser machine,lpg pump and 15 meters filling hose.
Type 3-with lpg filling scales,lpg pump and 15 meters filling hose.
ChengLi lpg gas truck details:
lpg delivery truck type exhibition：
lpg tanker truck Production Process：
FAQ:
Q1: What is your product name?
A:Chengli 2ton to 15 tons lpg tanker truck
Q2: What size can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm, the most popular size is 5000liters, 10,000liters, 15000liters and 20,000liters.
Q3: What’s the production standard?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province,central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
Our customers are located in 127 countries and regions around the world
