We produce the Dongfeng 10000liter to 12000 liter lpg transport truck which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
China Lpg trucks Product Description:
1) Truck Brand : Howo,Dongfeng, faw, isuzu,foton,JAC,JMC,Shacman.etc
2) Tank Size: 3000liter to 35000liters
3) Function: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4) Refiling System : 2″ Flowmeter or intelligent filling dispenser machine, 2″ Corken or Chinese brand Pump,15meters Filling Hose Reel
5) Truck Spec: 4×2,4×4,6×4,6×6,6×2,8×4
6) tank material:Q345R Q370R SA516

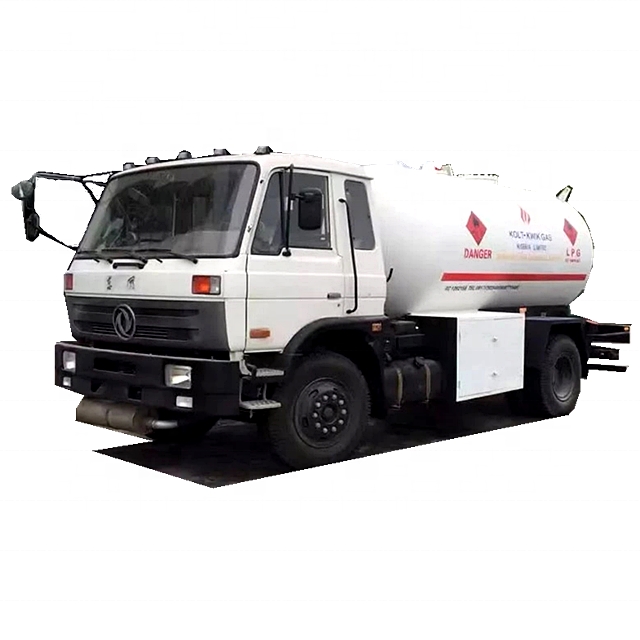

Dongfeng 10000liter to 12000 liter lpg transport truck specification:
| Chassis Information | |
| Cabin | 3 Passengers, Single row, LHD, with Air-Condition |
| Overall Dimension(L*W*H)(mm) | 8000x2500x3500 |
| Overall Weight(kg) | 11459/15000 |
| Curb Weight(kg) | 7757/8700 |
| Payload(kg) | 4200/6300 |
| Wheelbase(mm) | 3950/4500 |
| Engine | Cummins B170 33 Diesel Engine, 170HP or 190HP |
| Gearbox | 6 Forwards gear & 1 reverse gear |
| Tire | 10.00-20,7pcs |
| Tanker Information | |
| Volume of Tank (CBM) | 10-12 |
| Filling Medium | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | 50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345,10mm |
| End plate:Q345R,10mm | |
| Design Pressure | 1.66Mpa
|
| Filling Ration | 0.42-0.59kg/L |
| Working Temperature | under 50 centi-degree |
| Corrosion Allowance | 1mm |
| Standard Equipment
|
Safety Valve, Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. |
| Other equipment | Pump, Motor, Flow meter, Filling gun |
| Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
Lpg trucks Different designs:
Type 1-with volume flow meter,lpg pump and 15 meters filling hose.
Type 2-with lpg dispenser machine,lpg pump and 15 meters filling hose.
Type 3-with lpg filling scales,lpg pump and 15 meters filling hose.

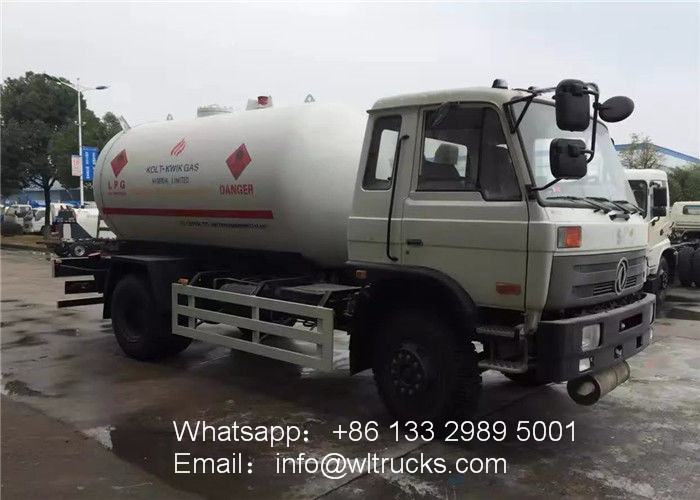

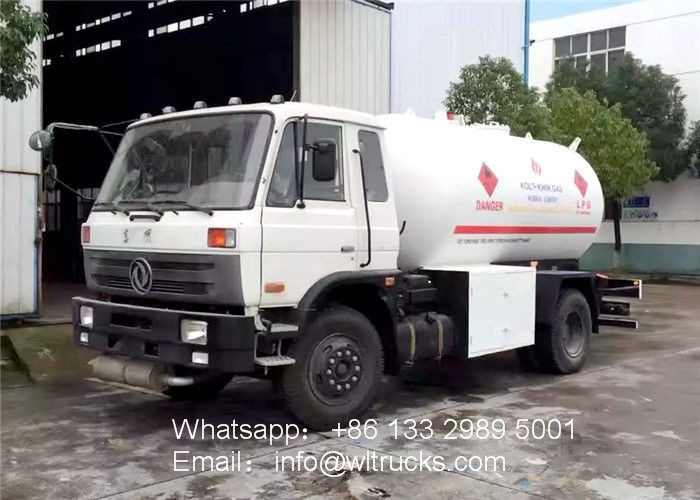

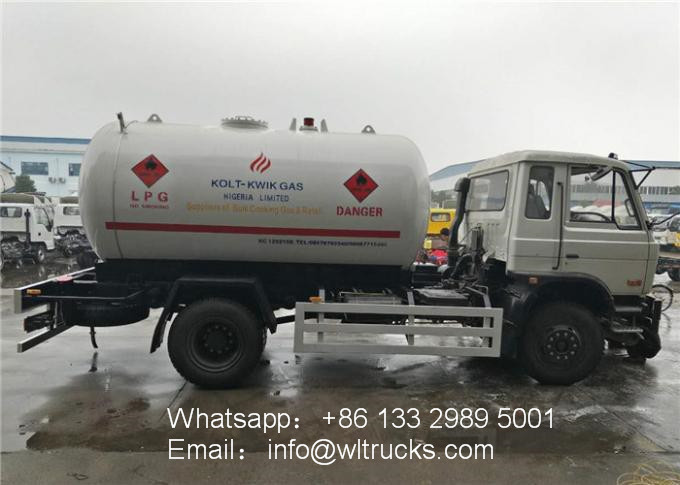

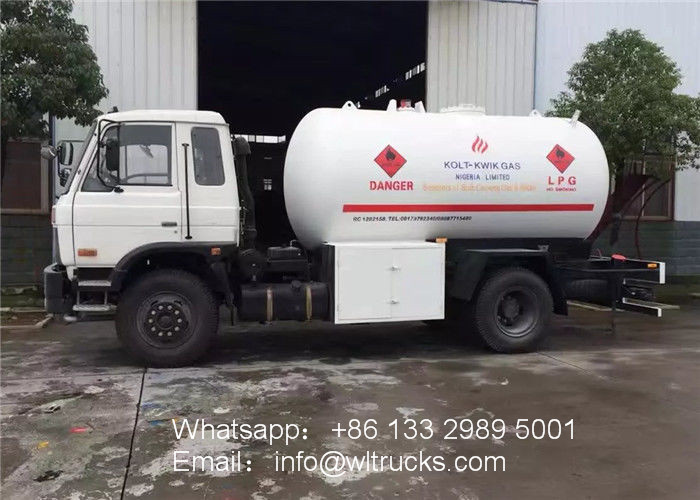

ChengLi lpg gas truck details:
lpg delivery truck type exhibition：
lpg tanker truck Production Process：
FAQ:
Q1: What is your product name?
A:Chengli 2ton to 15 tons lpg tanker truck
Q2: What size can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm, the most popular size is 5000liters, 10,000liters, 15000liters and 20,000liters.
Q3: What’s the production standard?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province,central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
Our customers are located in 127 countries and regions around the world
