Foton 5000liter sewer cleaning sewage suction truck Specification:
Foton 5000liter sewer cleaning sewage suction truck Chassis configuration: Foton can turn forward cab, Quanchai 90 horsepower engine, 3360 wheelbase, 7.00-16 tires.High pressure dredging: 1.5 square meters of water tank, equipped with 24MPa Tianjin Tongjie high pressure pump (optional 16MPa high pressure pump imported from Germany), hydraulic reel automatic retractable tube + pipe self-cleaning function, standard 80m double layer 19mm high pressure tube, standard 10 dredging nozzles with different functions.
Sewage suction function: Sewage tank 3.5 square meters, equipped with Yifeng vacuum pump (optional Weilong vacuum pump or water ring pump), tank body lifting self-unloading, tail cover hydraulically opened, with manual locking, equipped with 1 8 meter suction pipe .
Optional function: optional cleaning and suction style, the total volume is 5 squares freely divided, the tank body cannot be lifted and unloaded, the tail cover cannot be opened, and the tank tail is equipped with a self-flow valve.
Foton 5000liter sewer cleaning sewage suction truck Product parameters
| hassis | Model | FORLAND |
| Brand | FOTON | |
| Wheelbase(mm) | 3800 | |
| Tire Specifications | 7.50R16 | |
| Tire No. | 6pcs with one spare tire | |
| Dimensions(mm) | 5875×2030×2230 | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Gear box | 6 Forwards & 1 Reverse | |
| Engine | Model | 1061VDJEA-RFZA22 |
| Power(kw)/Horsepower(HP) | 105/143 | |
| Emission standard | Euro 3 | |
| Cylinder No. | 4 | |
| Fuel type | Diesel | |
| Cabin | 3 | |
| High pressure water pump(From Italy) | China local brand/Italy brand HPP | |
| Water Tank | Material | Carbon steel Stainless steel |
| Capacity(m³) | 2CBM(1CMB by each side) | |
| Thickness(mm) | 4mm 5mm 6mm | |
| Manhole | DN450 DN500 | |
| Accessories | Item | Specifications |
| Spray gun(for cleaning) | Laminated steel tube/15m¢10mm PVC | |
Foton 5000liter sewer cleaning sewage suction truck Working parameter
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist | ||
Foton 5000liter sewer cleaning sewage suction truck Working parameter New craft
Foton 5000liter sewer cleaning sewage suction truck Optional configuration

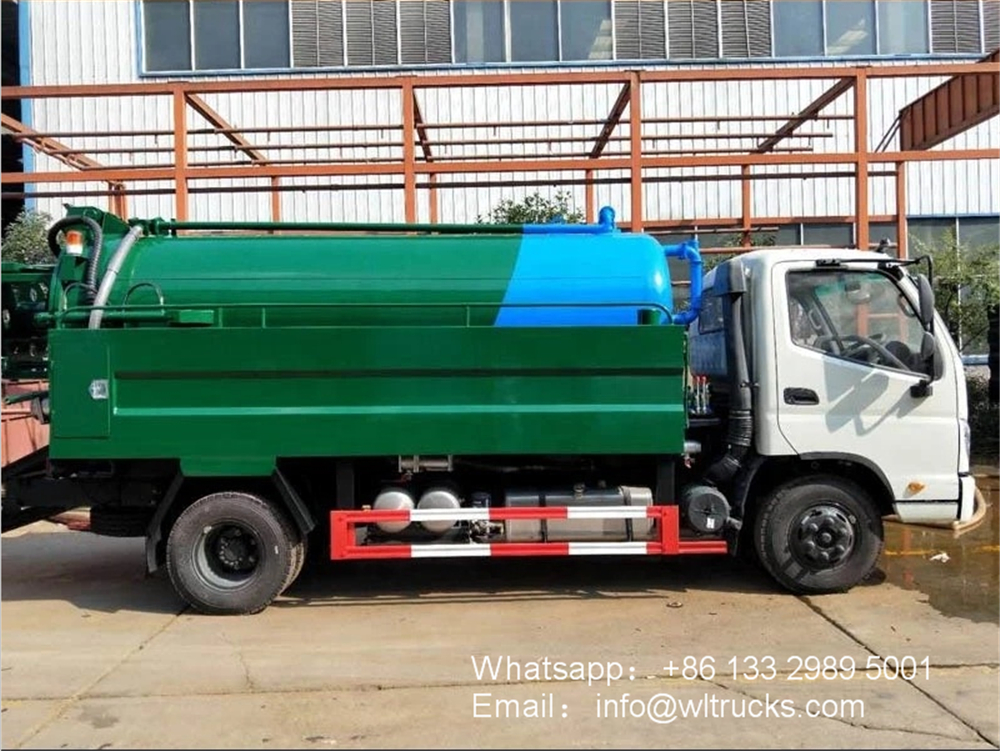

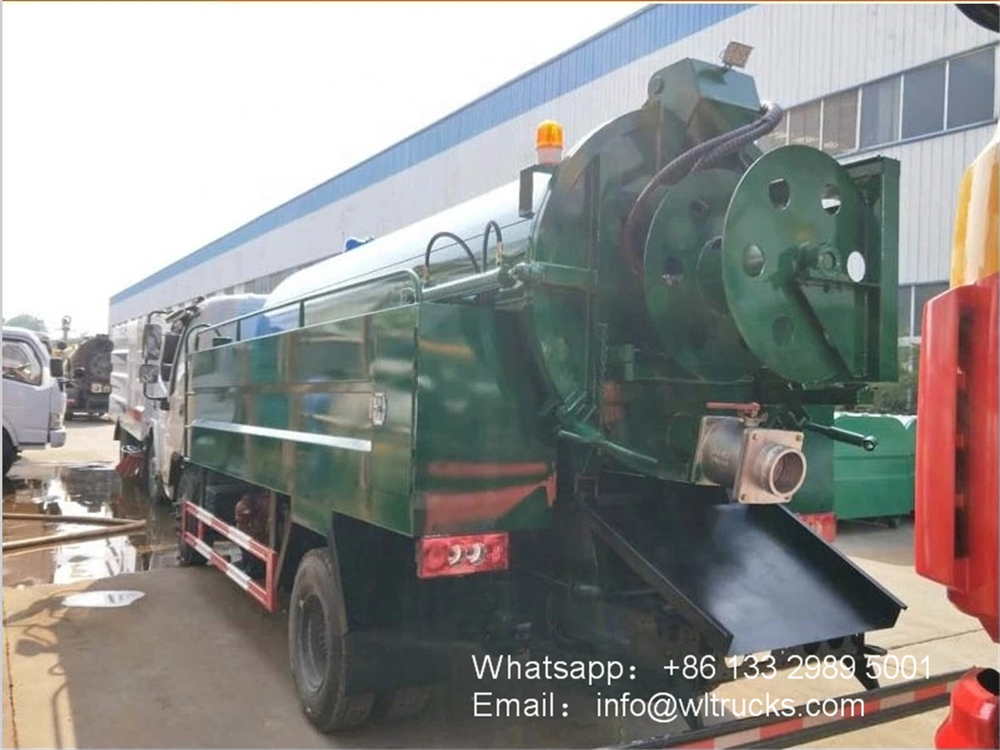

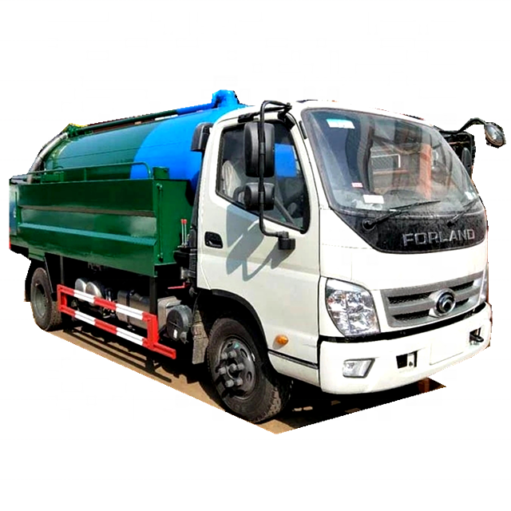

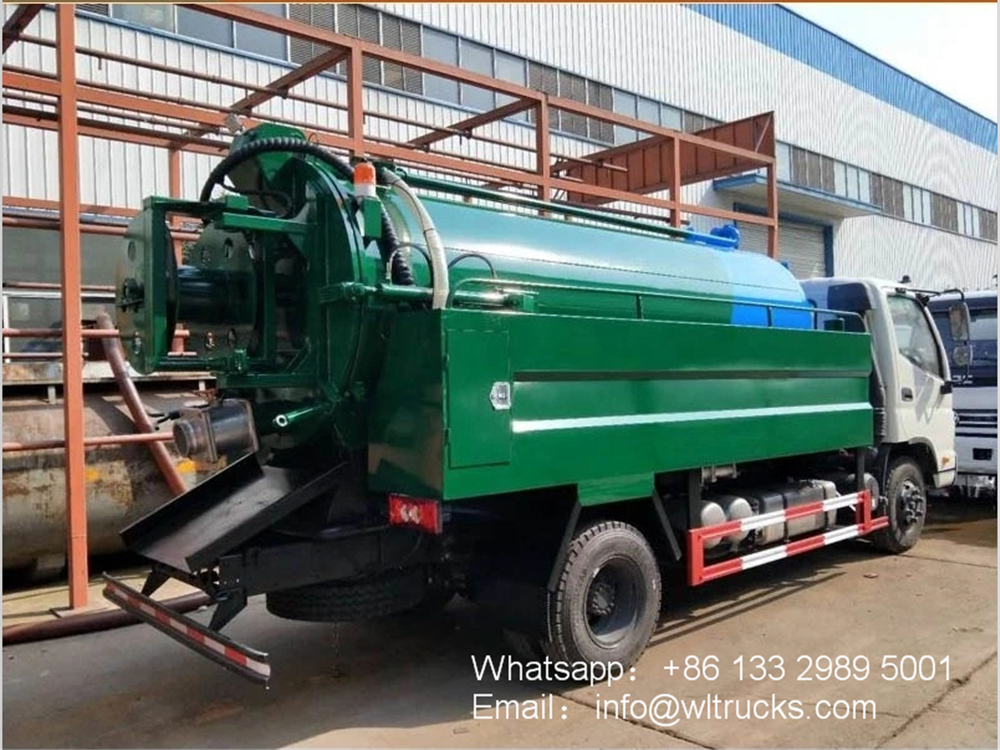

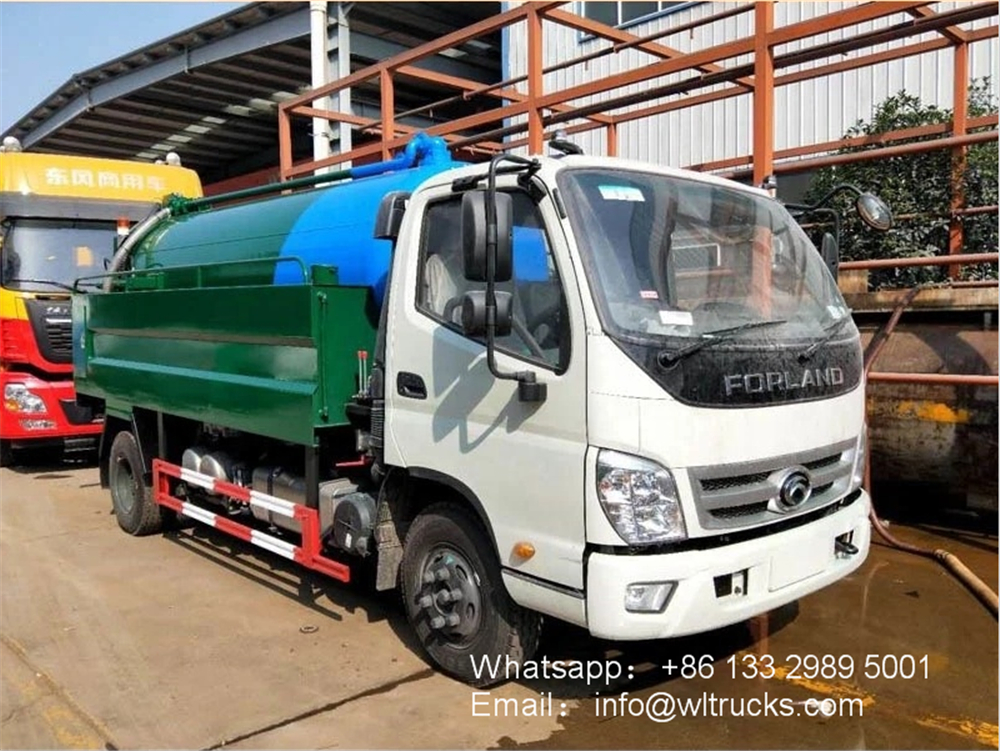

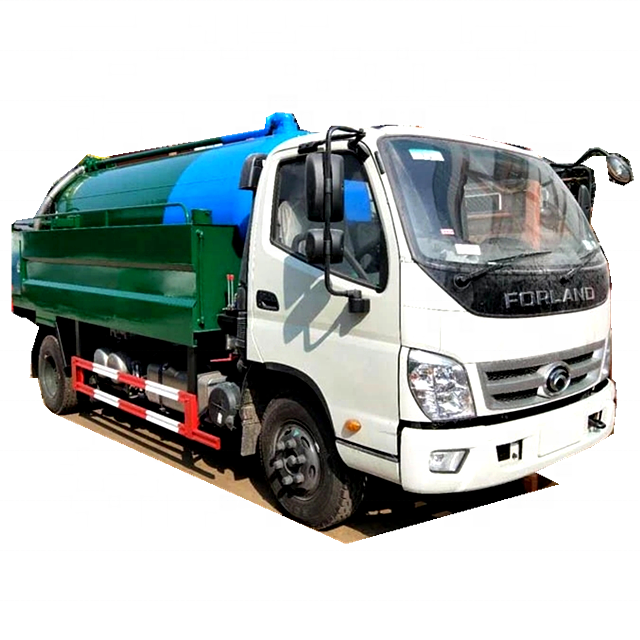

Foton 5000liter sewer cleaning sewage suction truck Detailed image
