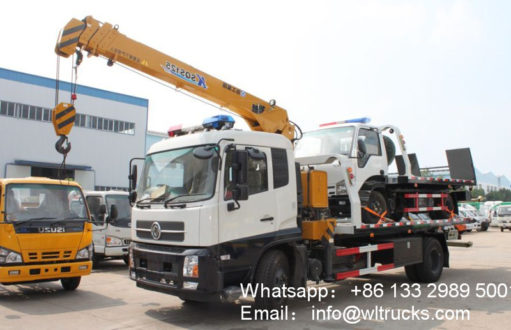

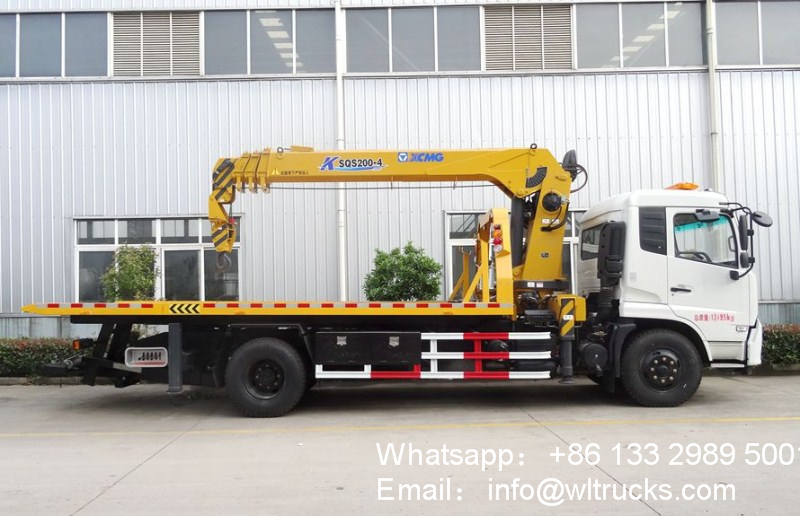

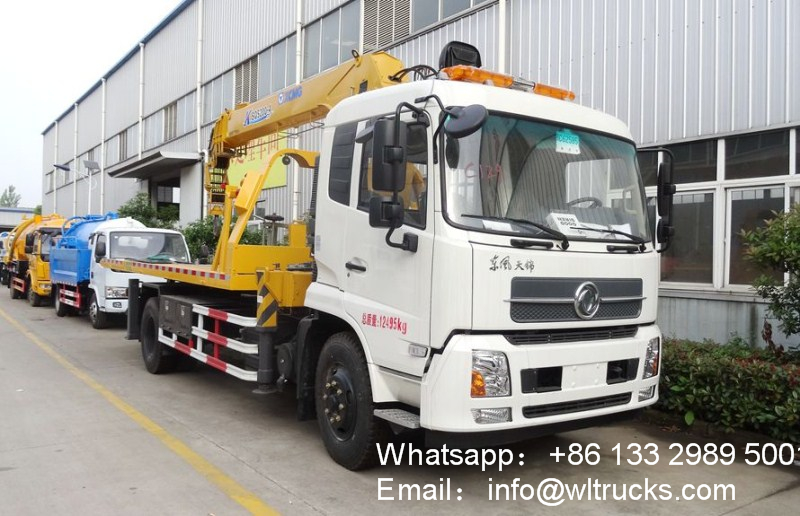

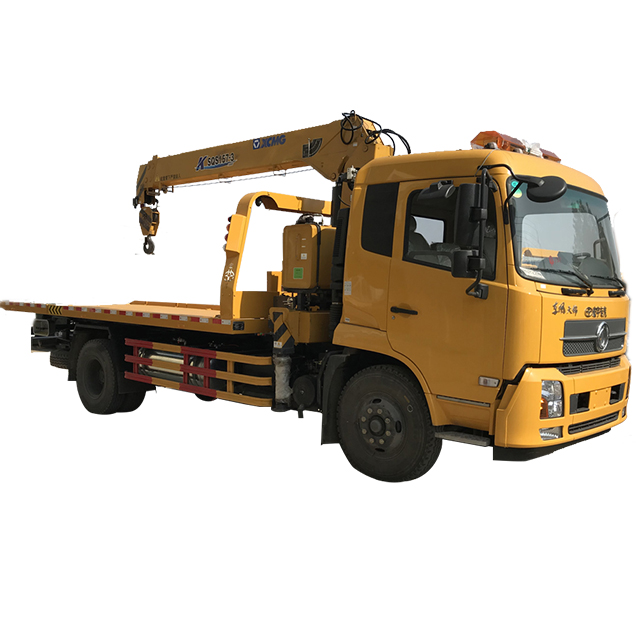

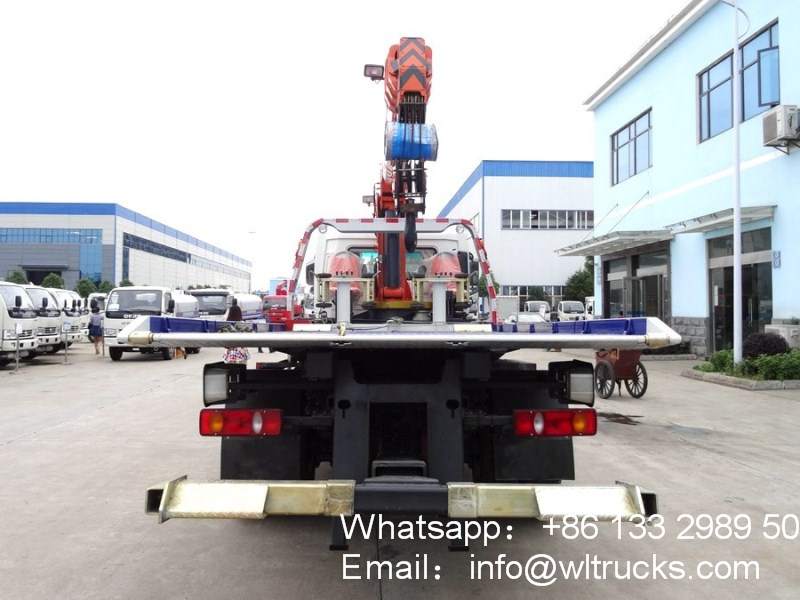

Dongfeng Road Wrecker Tow Truck with 5ton to 8ton Crane
- Chassis:
Dongfeng Road Wrecker Tow Truck with Crane Adopt Dongfeng Tianjin series chassis, a row and a half cab, Cummins 190, 210 horsepower engine, 8-speed gearbox, wheelbase 4700mm, 1000 tires, air brake. - Bodywork:
The plate is 6 meters long and 2.4 meters wide. The flat plate can be a patterned plate or disposable stamping plate. It is equipped with a 5 ton or 6.3 ton crane. The 6 ton support arm plate is equipped with a 6 ton winch. Bodywork, imported hydraulic system, double-sided linkage operation device. With floor hook, equipped with a set of vehicle tools, 2 auxiliary wheel trolleys, a pair of L-shaped tire holding frames, 4 sets of straps, and a long yellow row of LED engineering lights.
Dongfeng Road Wrecker Tow Truck with 5ton to 8ton Crane specification:
|
General Technical Parameters
|
|||
| Overall Dimension | 9440x2480x2760 (mm) | ||
| Gross Vehicle Weight | 12495kg | ||
| Curb Weight | 10000kg | ||
|
Chassis Specification
|
|||
| Chassis Parameters | Chassis Brand | Dongfeng | |
| Cabin | Row and half, Right Hand Driving | ||
| Engine | Model | ISD190，6 Cylinders | |
| Power | 132KW/180HP | ||
| Emission Standard | EURO 3 | ||
| Displacement | 4.5L | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4.5T/9T | ||
| Wheel Base | 4700(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 9.00R20, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
|
Superstructure
|
|||
| Flatbed | Dimensions | 6000×2400 (mm) | |
| Max. Loading Weight | 8000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 6000 (kg) | ||
| Length of Steel Cable | 35 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Boom Type | Telescopic Boom | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars 6. Outrigger 2pcs |
||
|
Parameters of the Crane
|
||
| Item | Unit | Value |
| Max Lifting Capacity | kg | 8000 2.5m |
| Max lifting height | M | 14 |
| Max working range | M | 11.5 |
| Max Lifting Moment | T.M | 20 |
| Recommend Power | kw | 27 |
| Max Oil Flow of Hydraulic System | L/min | 55 |
| Max Pressure of Hydraulic System | Mpa | 27 |
| Oil Tank Capacity | L | 160 |
| Crane Weight | kg | 3315 |
| Installation Space | mm | 1200 |
| Rotation Angle | ° | 360° All Rotation |
Dongfeng Road Wrecker Tow Truck with 5ton to 8ton Crane Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.

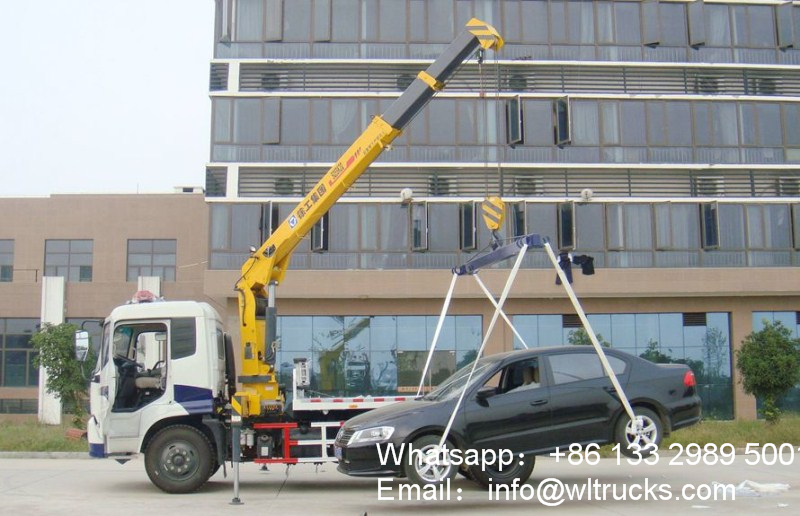

It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
