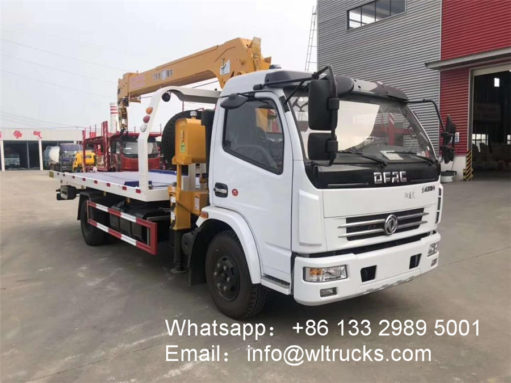

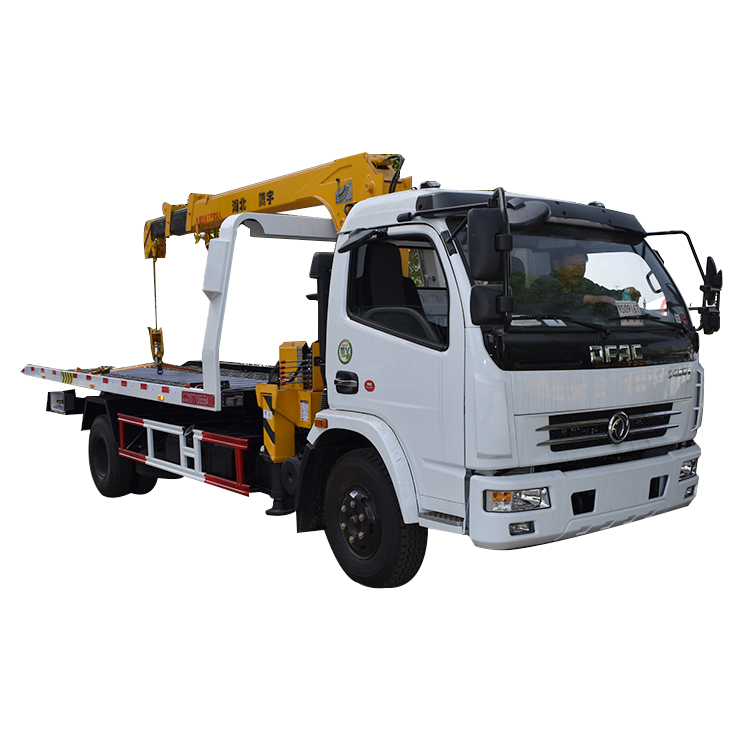

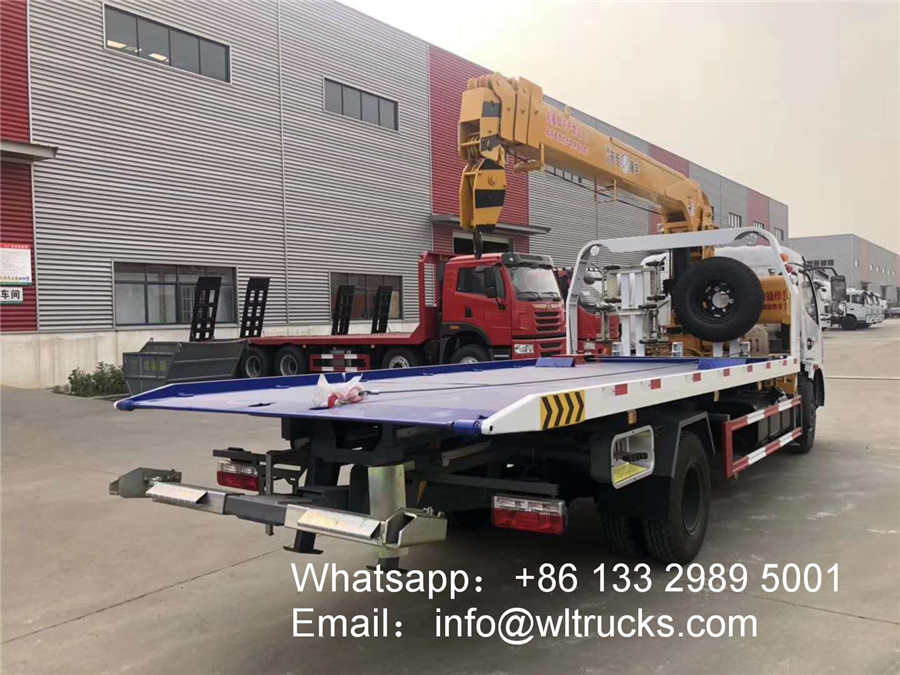

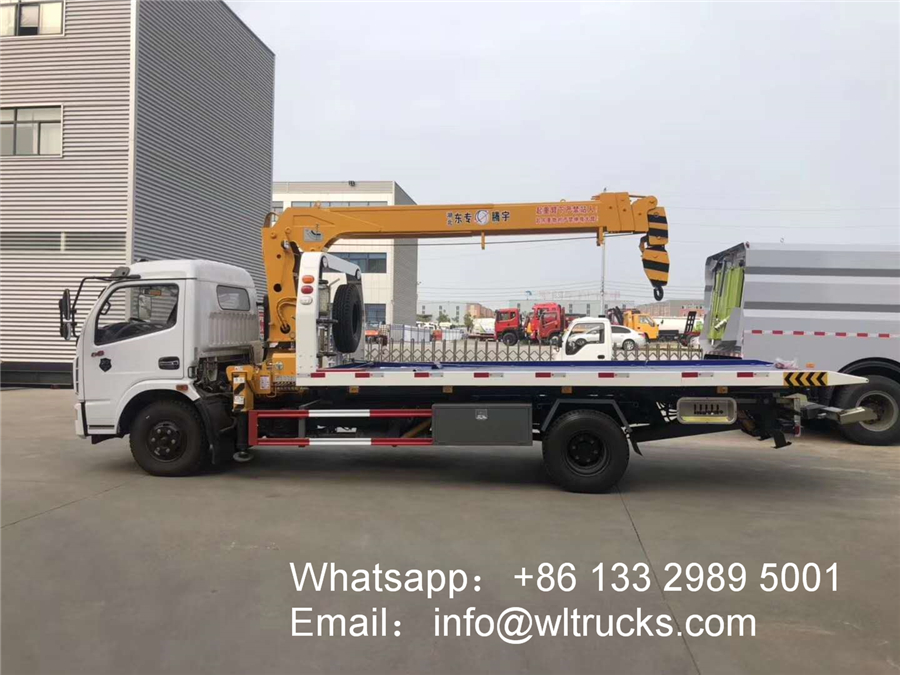

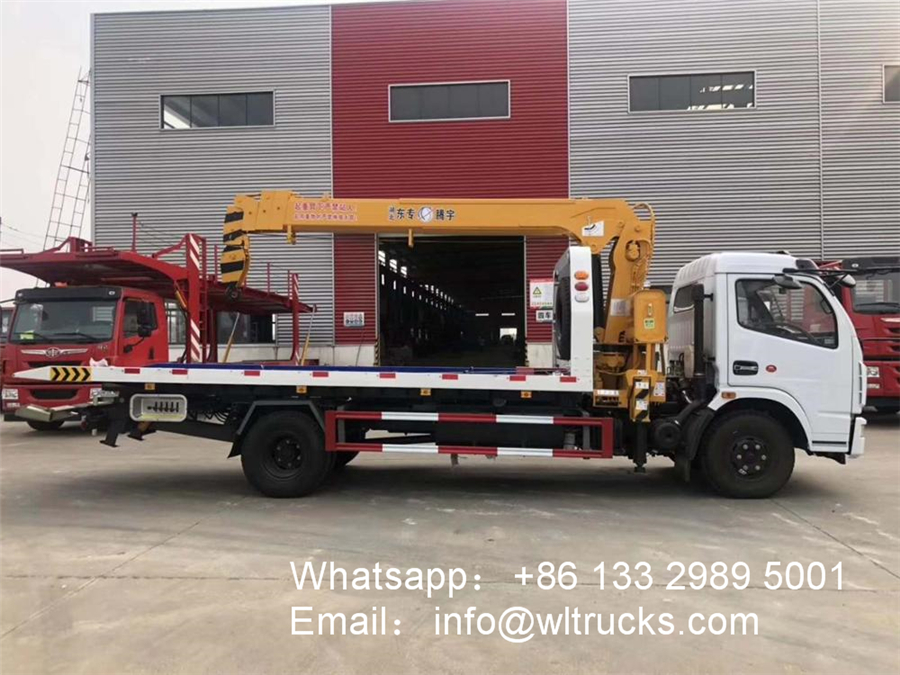

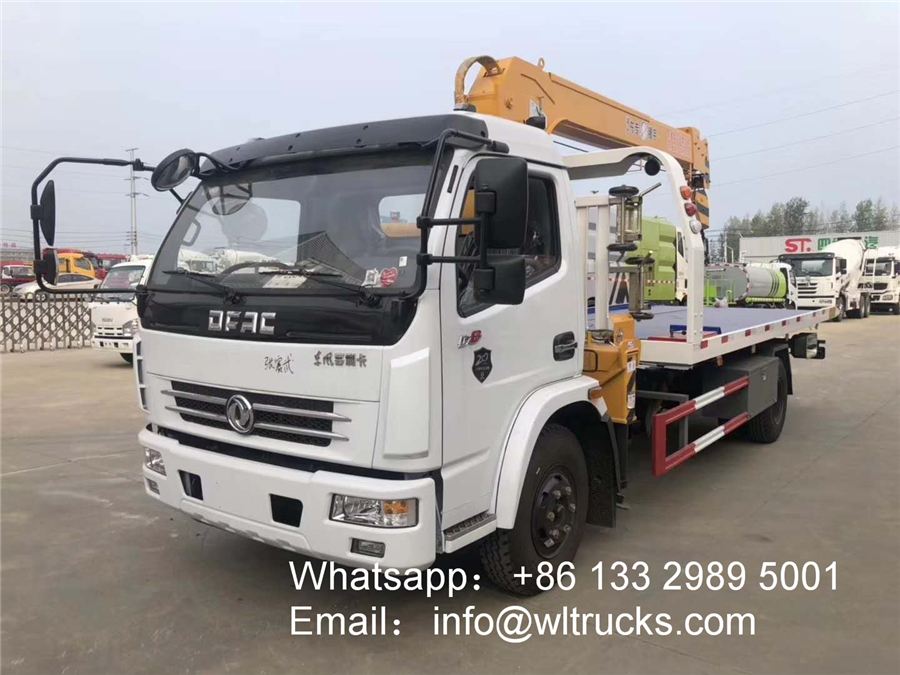

Dongfeng 5 ton flatbed tow truck mounted cranes
- Chassis:
Dongfeng 5 ton flatbed tow truck mounted crane adopts Dongfeng Dorica series chassis, Dongfeng single-row forward-turning cab, Chaochai 120 horsepower engine, 6-speed gearbox, wheelbase 4400mm, rear axle 6 tons, 750-16 tires, air brake, direction assist, clutch assist. - Bodywork:
The board is 5.6 meters long and 2.35 meters wide. The flat plate can use a new type of disposable stamping plate or 4 thick patterned plates. It can be equipped with a 2 to 4 ton crane, with a floor hook. One set, 2 auxiliary wheel trolleys, a pair of L-shaped tire holding frames, 4 sets of straps, and a set of yellow long-row LED engineering police lights.
Dongfeng 5 ton flatbed tow truck mounted crane specification:
| General Technical Specification | |||||
| Overall Dimension | 8150x2350x3300(mm) | ||||
| Gross Vehicle Weight | 9400 (Kg) | ||||
| Curb Weight | 6800 (Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | Dongfeng | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 110KW/150HP | ||||
| Emission standard | EURO2 or 3 | ||||
| Displacement | 3767(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Air break | ||||
| Wheel Base | 4400(mm) | ||||
| Front/Rear Axle Loading | 4000/6000(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 8.25R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
| Platform Organ | Dimension | 5600*2350(mm) | |||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 4000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Crane | Max lifting capacity | 4000(kg) | |||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
Dongfeng 5 ton flatbed tow truck mounted crane Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
