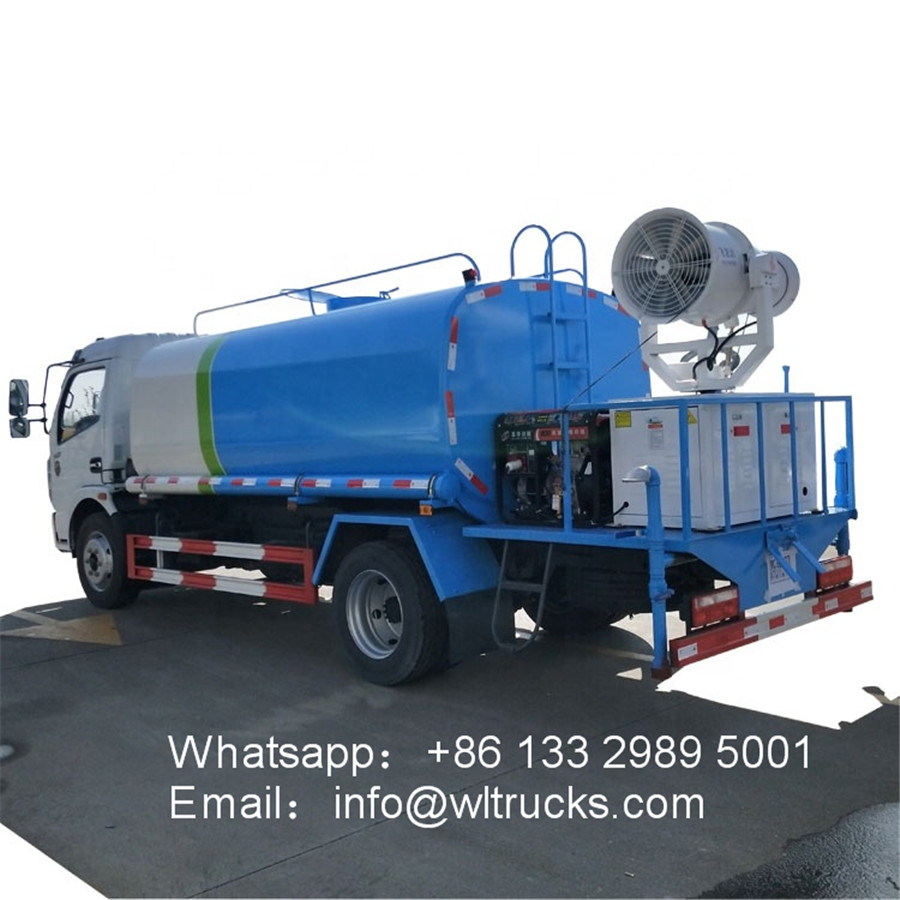

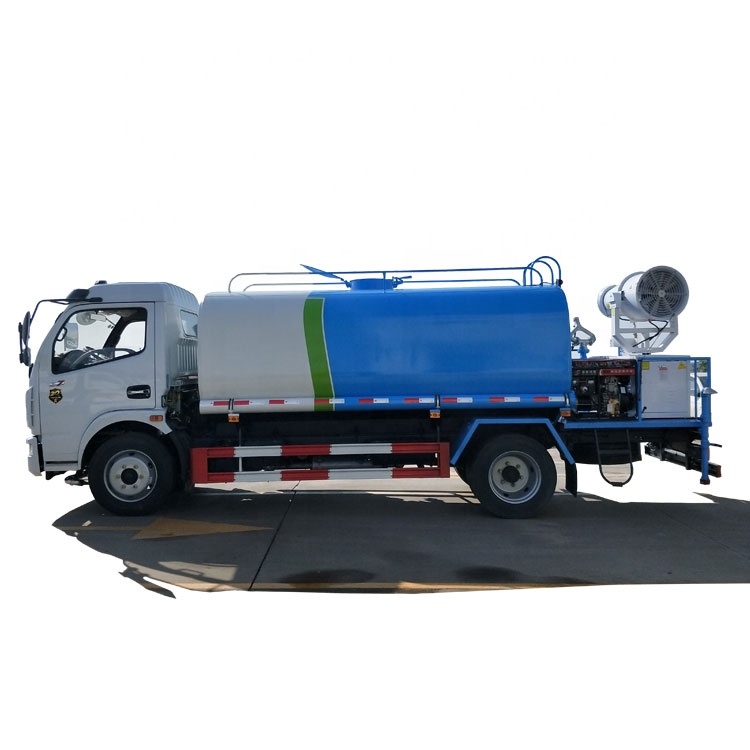

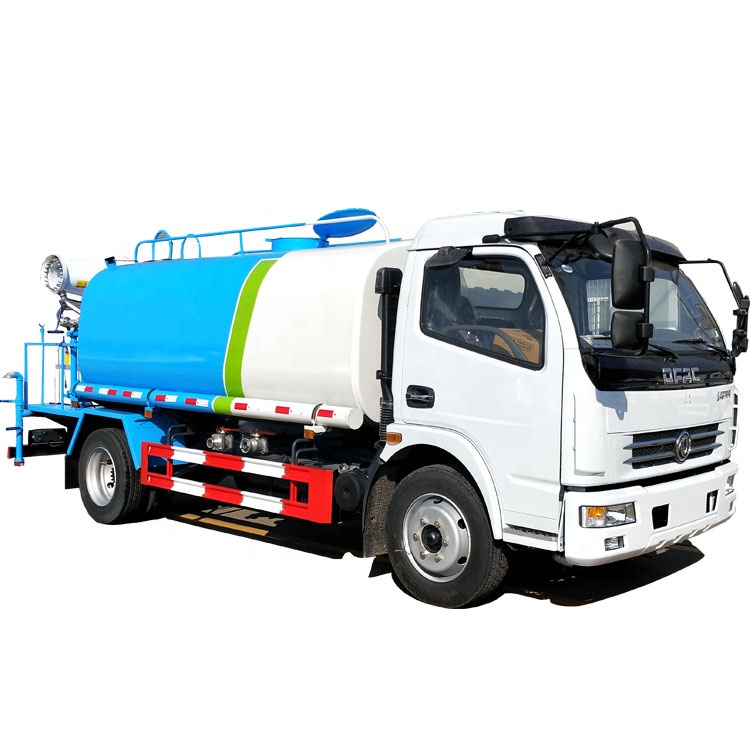

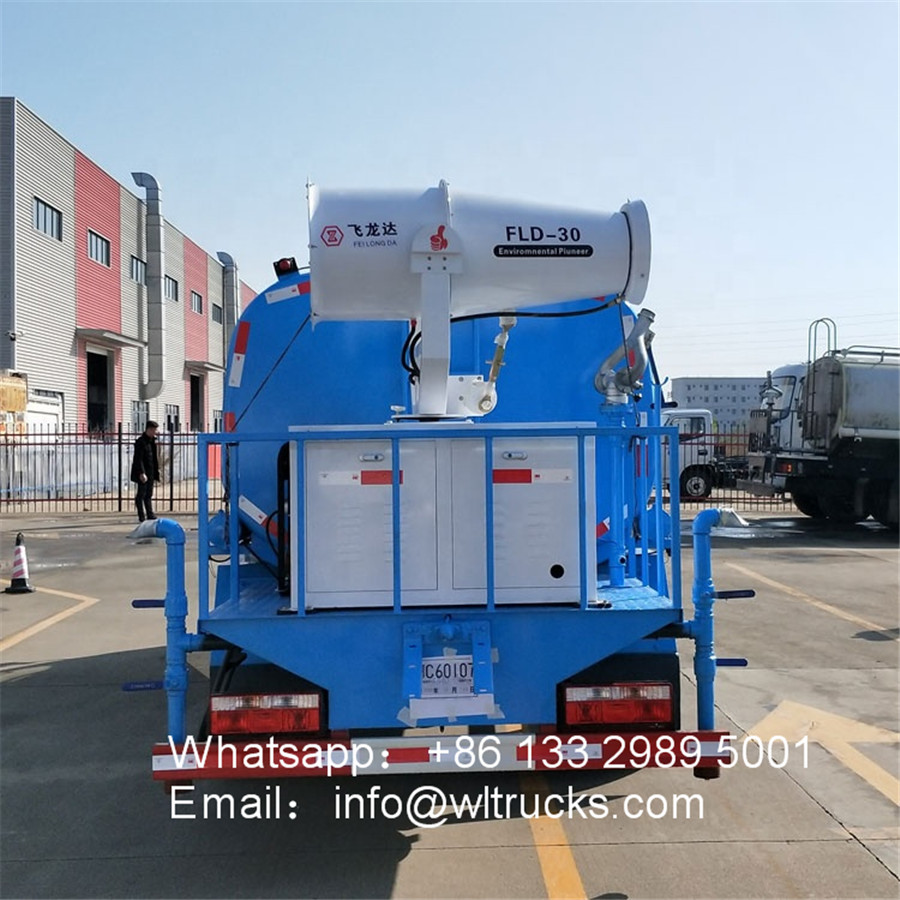

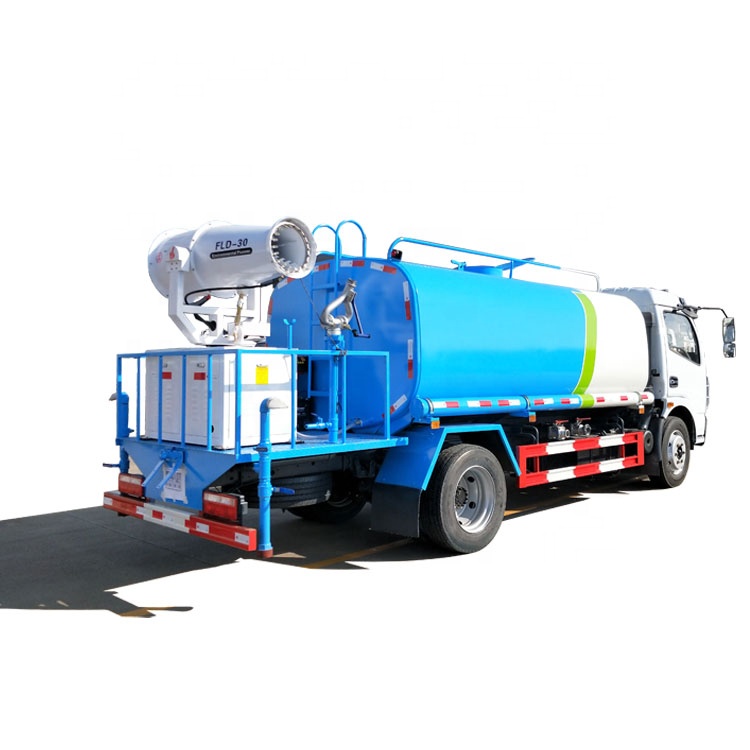

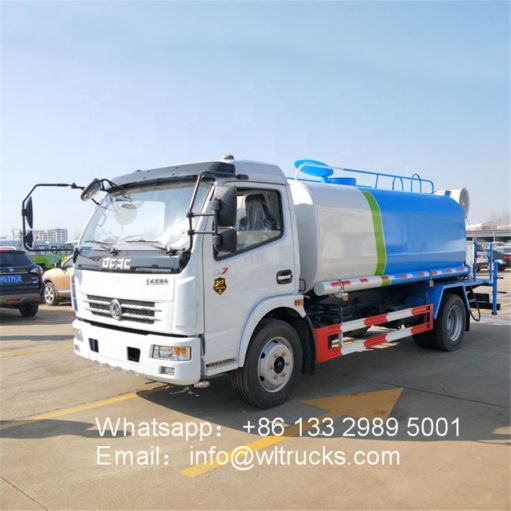

Dongfeng 8000l 40m dust suppression truck Adopt Dongfeng duolika D7 cab with a wheelbase of 3.8 meters, a spare tire with 750-16 tires towards the Chaochai diesel 120 horsepower engine, a six-speed gearbox, an air brake, and direction assistance.
Top-loading configuration: the effective volume of the tank is 8 tons, and the fog gun can be selected from 40 meters. The fog gun comes with a diesel generator set, and the standard remote control device within 100 meters is provided. The 360-degree remote control rotation can reduce the PM10 concentration in the air. Reduced by about 20%.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
Dongfeng 8000l 40m dust suppression truck Specification:
|
Product Name
|
Dongfeng 8000l 40m dust suppression truck
|
Tanker Volume
|
5m3
|
|
Total Mass(kgs)
|
7360mm
|
Rated Load(kgs)
|
3480kgs
|
|
Dimension(mm)
|
6800x2200x2800mm
|
Wheelbase(mm)
|
3308mm
|
|
Chassis model
|
EQ1075SJ3CDF
|
Brand
|
Dongfeng
|
|
Tire No
|
6pcs
|
Tire specification
|
7.50-16
|
|
Fuel Type
|
Diesel
|
Emission Standards
|
EOUR3~6
|
|
Engine model
|
CY4BK461
|
Engine Brand
|
ChaoChai
|
|
Engine power
|
95KW
|
Displacement
|
3707ml
|
|
Tanker body
|
Volume : 5000 liters
Material : carbon steel 5 mm Front sprayer scope: 7 m Back sprayer scope : 14 m Water Turret Range :> 28 M Water Turret shape: 1. water column 2. fog type 3. rain type. It can be used as fire fighting device. |
||
|
Spraying Machine
|
Range: 30 meters
Coverage area: 3000m2
generator Power: 8.5KW
Operation method: Manual/Remote control
Voltage: AC380V,51HZ
|
||
Disinfection truck structure composition:
80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
