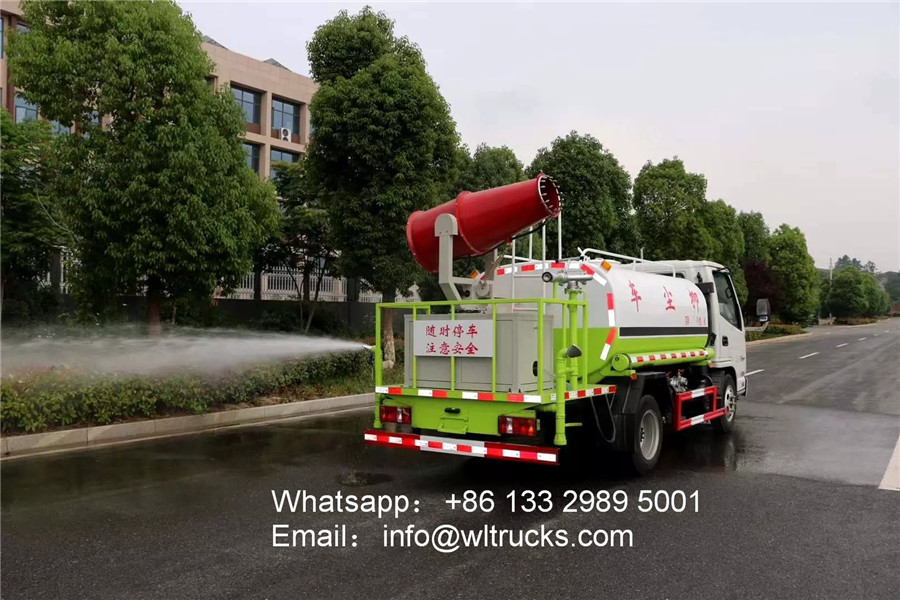

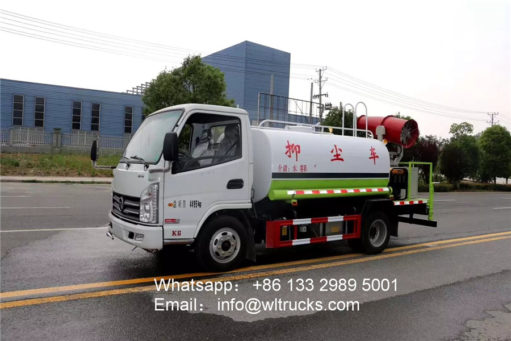

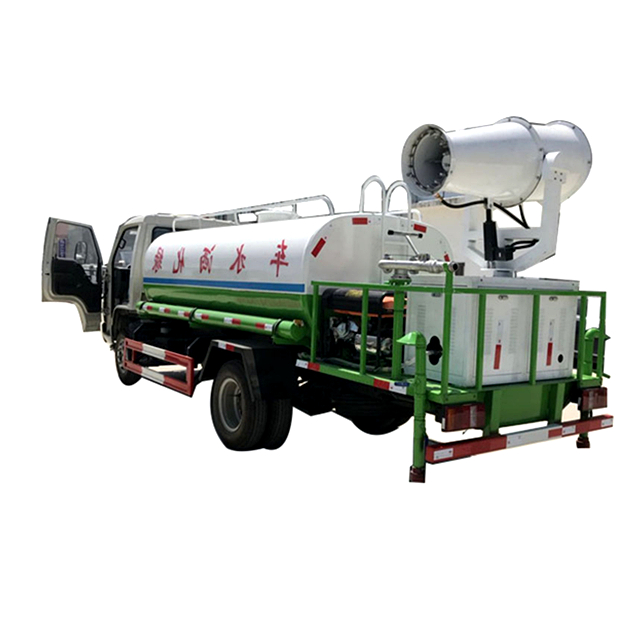

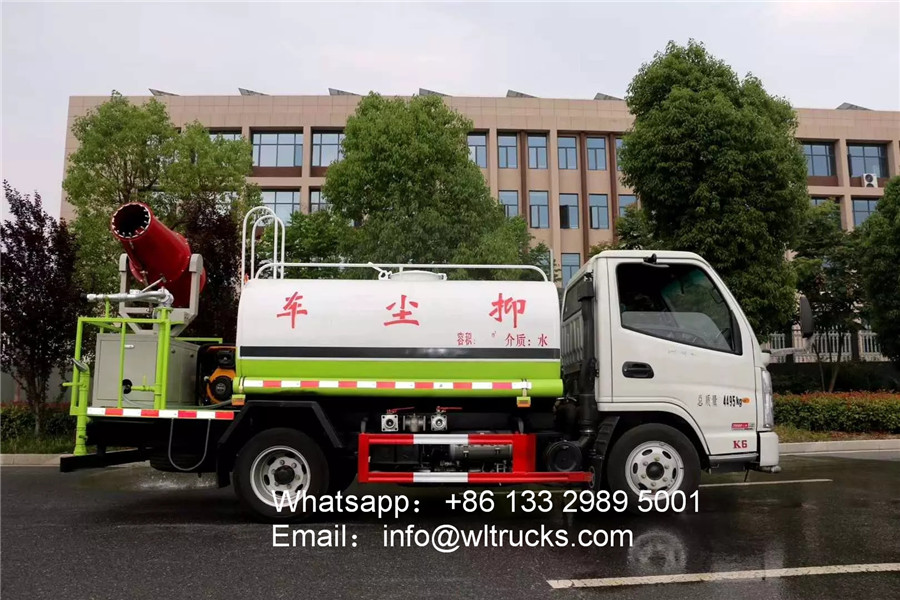

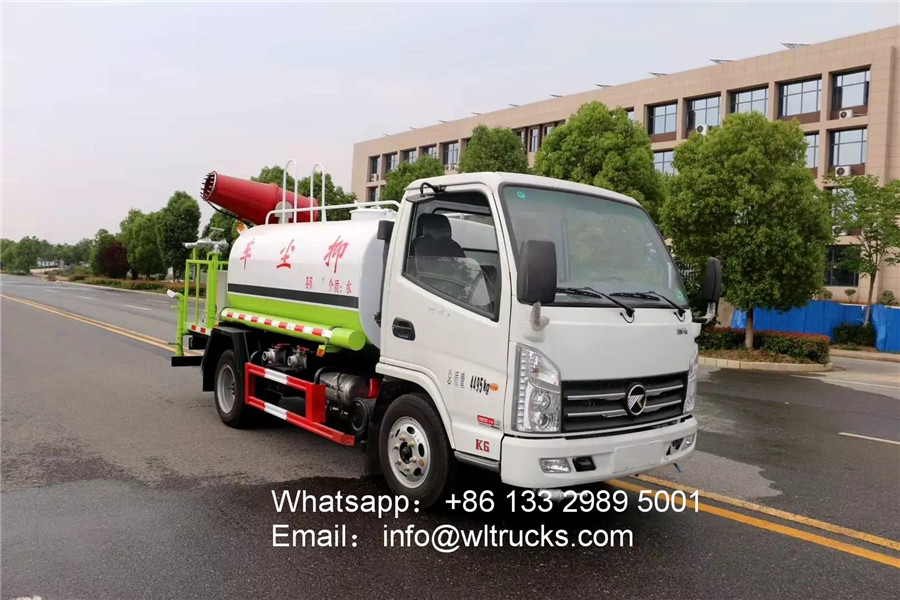

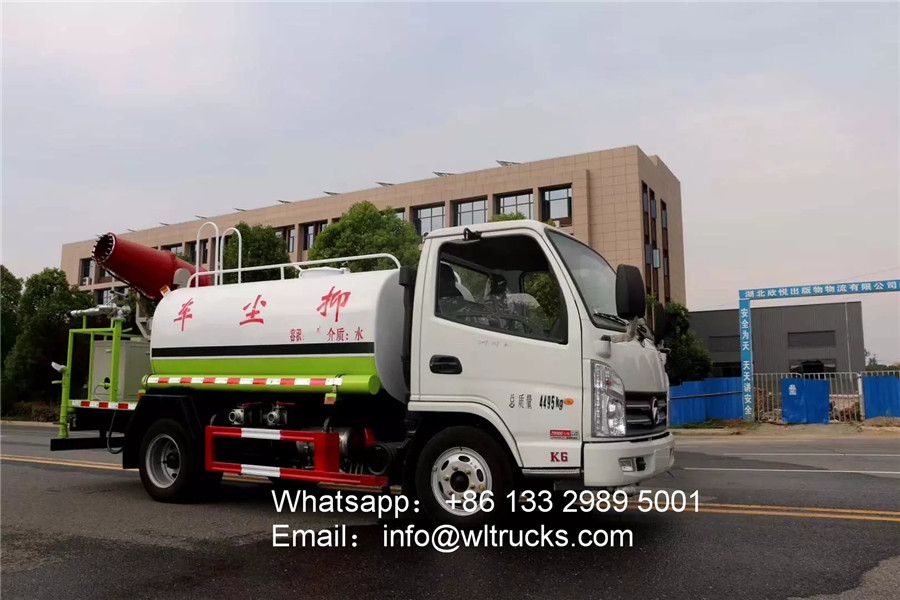

KAMA 5 ton dust suppression truck Adopt ISUZU 1860 cab with a wheelbase of 3.3 meters, a spare tire with 700-16 tires towards the diesel 90 horsepower engine, a five-speed gearbox, an air brake, and direction assistance.
Top-loading configuration: the effective volume of the tank is 5 tons, and the fog gun can be selected from 30 meters to 40 meters. The fog gun comes with a diesel generator set, and the standard remote control device within 100 meters is provided. The 360-degree remote control rotation can reduce the PM10 concentration in the air. Reduced by about 20%.
products details:
1. Optional chassis brand of city disfection truck: Dongfeng, Sinotruk HOWO, FOTON/Forland, Faw, Shacman,ISUZU,JAC,JMC
2. Material of city disfection vehicle :High Tension Steel Q235,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Water Tank: square or round tank for option,square tank,high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
6.large flow water pump as standard, 50-100 meters fog Gun machine for option;
7.TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way | Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand | China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing | ||
KAMA 5 ton dust suppression truck Specification:
| KAMA 5 ton dust suppression truck | ||
| # | Descriptions | Specifications and types |
| General | Truck Brand | Chengliwei (our brand) |
| Chassis Brand | Foton | |
| Approx. Dimension | 7995*2300*2500 mm | |
| GVW./Kerb Wt. | 8495 / 2000 kg | |
| Cab | Cab Capacity | 3 persons’ seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | Yunnei engine | |
| Power | 90HP | |
| Emission Standard | Euro II or EURO III or Euro IV or Euro V | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 3300mm / 2 | |
| Tyre Specfication | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Automative metallic paint | |
| Capacity | 5CBM | |
| Structure& Function | front(rear, side)sprinkler(sprinkling width>14m )
rear working platform with water cannon (range>28m) water pump(suction lift>6m) fire valve, water valve, and filter gauze 50m water cannon , diesel generator 8kw ,fan power 3kw |
|
Disinfection truck structure composition:
80m to 120 meters fog gun machine Specifications:
New craft:
disinfectant trucks Optional configuration:
Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
Disinfection vehicle Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
