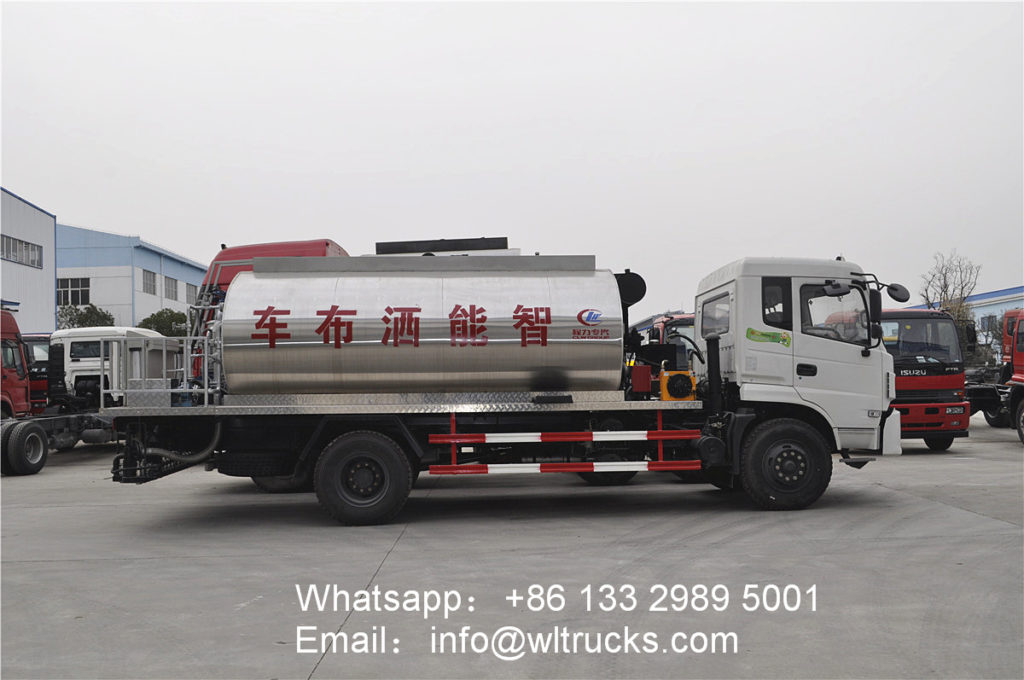

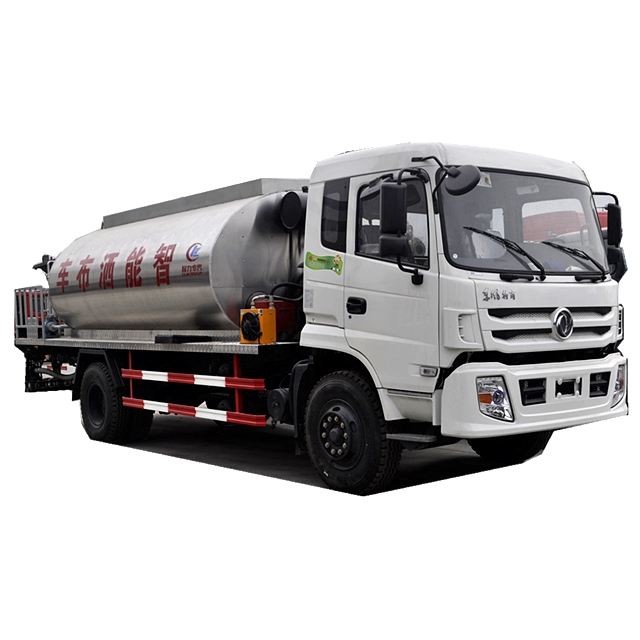

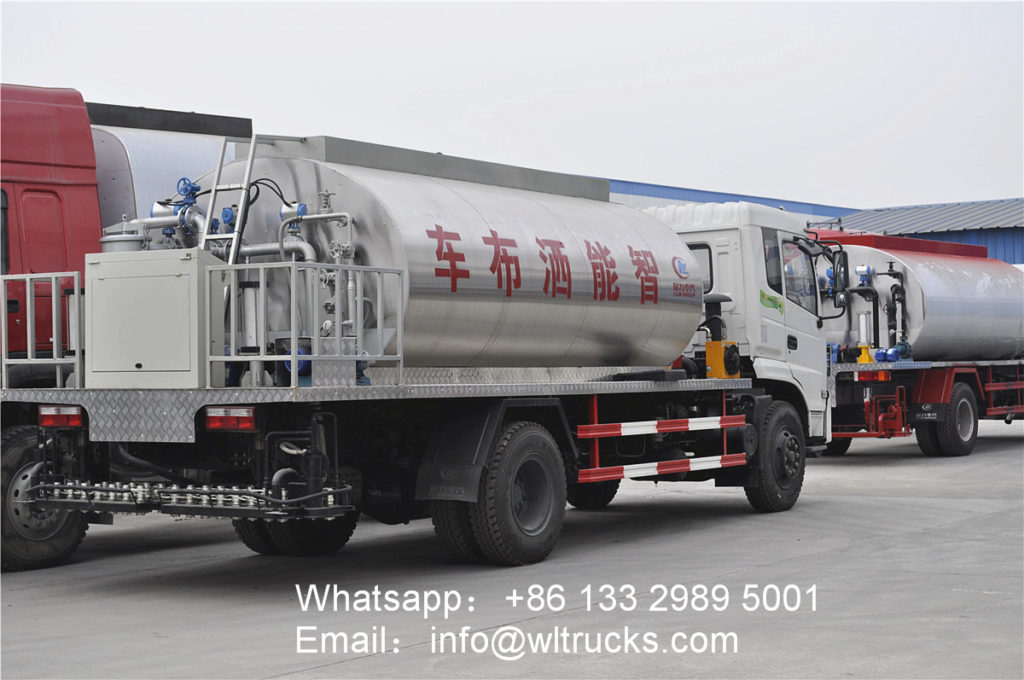

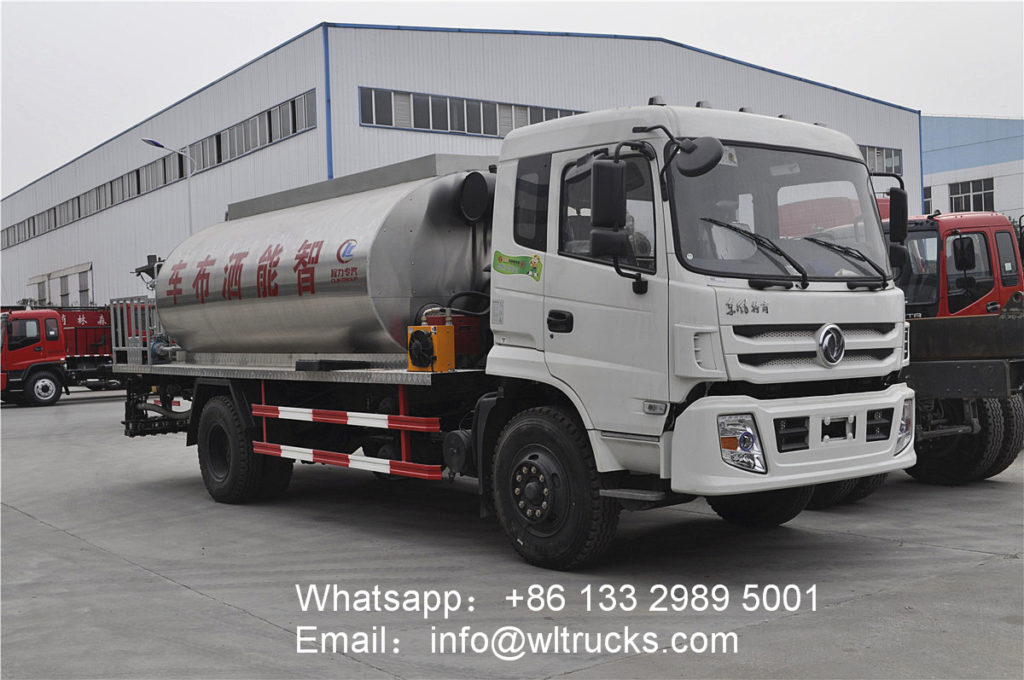

Dongfeng 8000 liter asphalt distribution truck

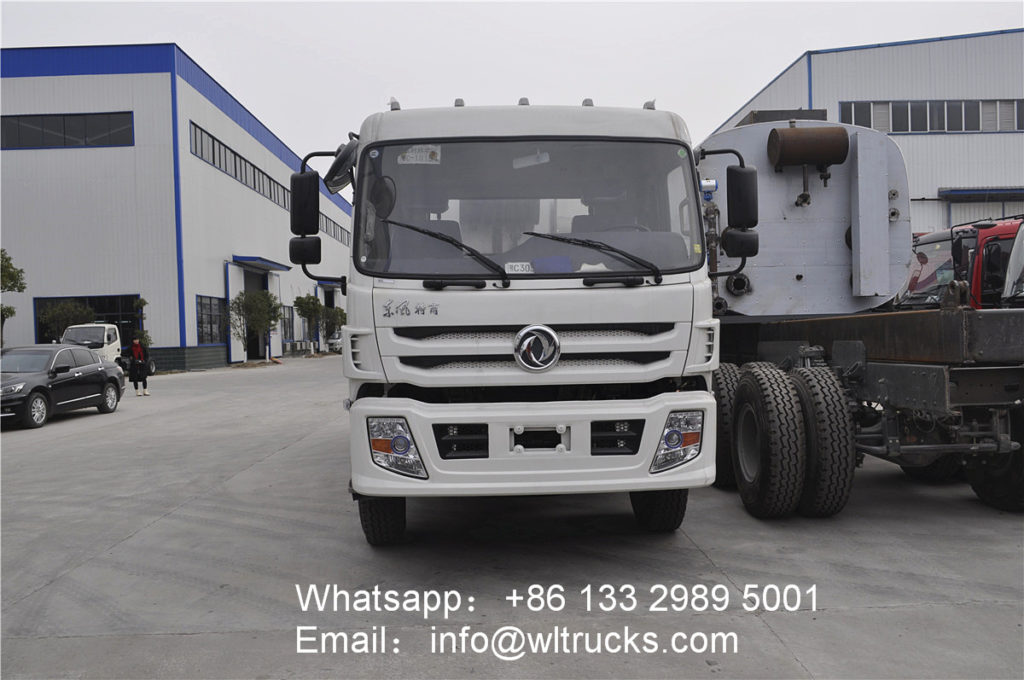

Dongfeng 8000 liter asphalt distribution truck Adopt DongFeng D913 Cab with sleeper, Cummins 170hp Euro 3 engine in the cloud, a six-speed gearbox, a wheelbase of 3950mm, tires 900-20, and a vehicle size of 7760×2500×2880mm.
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.

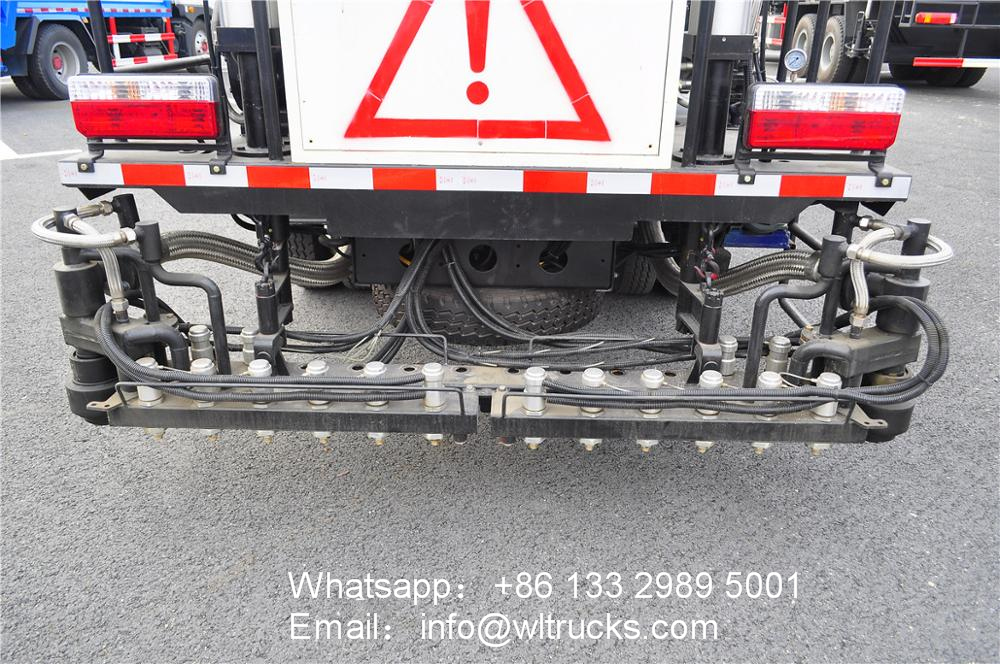

3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

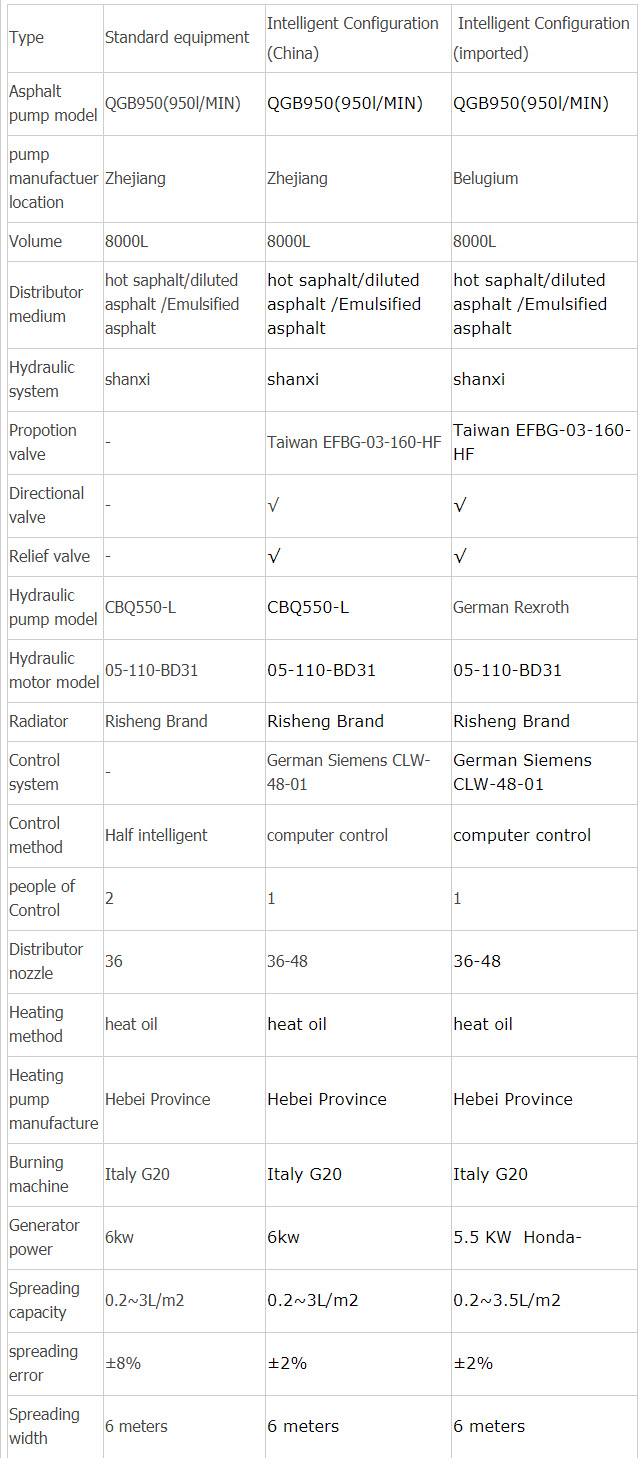

specification:
|
Main Specifications |
|||
| Product Brand | CLW | The first Batch | 287 |
| Product Name | Asphalt spraying | Product Model | CLW5161GLQT4 |
| Total Weight (Kg) | 15990 | Volume(m3) | 8.5 |
| Rated load(Kg) | 7300 | Overall Dimension(mm) | 7760×2500×2880 |
| Curb Weight(Kg) | 8495 | Cargo Compartment Size(mm) | ×× |
| Cab seats (man) | 3people | Payload utilization factor | |
| Approach angle/departure angle(°) | 32/15 | Front overhang/Rear overhang(mm) | 1250/2560 |
| Number of axles | 2 | Wheelbase(mm) | 4500,4700,4950,
4800,5100,3950 |
| Axle Load(Kg) | 5995/9995 | Maximum Speed(Km/h) | 88 |
| Chassis Technical Parameters | |||
| Chassis Model | EQ1160GKJ1 | Chassis Name | Truck Chassis |
| Brand Name | DongFeng | Manufacturingenterprise | Dongfeng motor co., LTD |
| OverallDimension(mm) | 7650,8200,8900,8750,
9000,7370×2480×2810 |
Number of wheels | 6 |
| Approach angle/ Departure angle(°) | 32/26,32/24,32/22,28/28,
28/24,28/20,28/25 |
Wheel specification | 10.00-20 16PR,10.00R20,9.00-20 |
| Plate spring count | 9/10+8 | Front gauge(mm) | 1940,1900,1810 |
| Fuel Species | Diesel | Track rear(mm) | 1860,1800 |
| Emission standard | GB3847-2005,GB17691-2005 Euro III | ||
| Engine type | Engine manufacturing enterprise | Displacement(ml) | Power(Kw) |
| ISB170 30 | Dongfeng engine co., LTD | 5900 | 125 |
