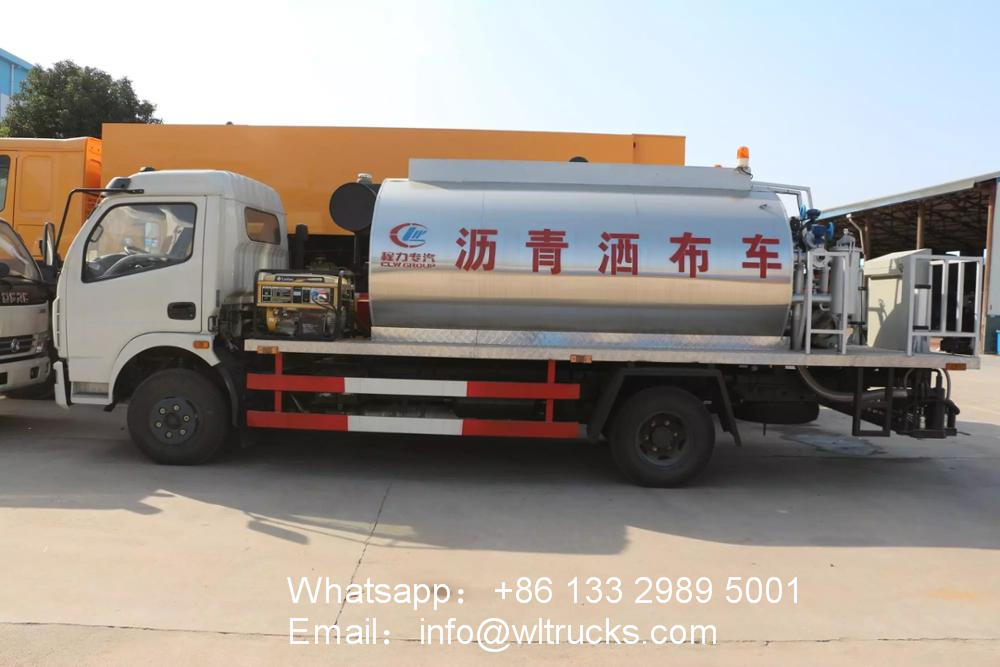

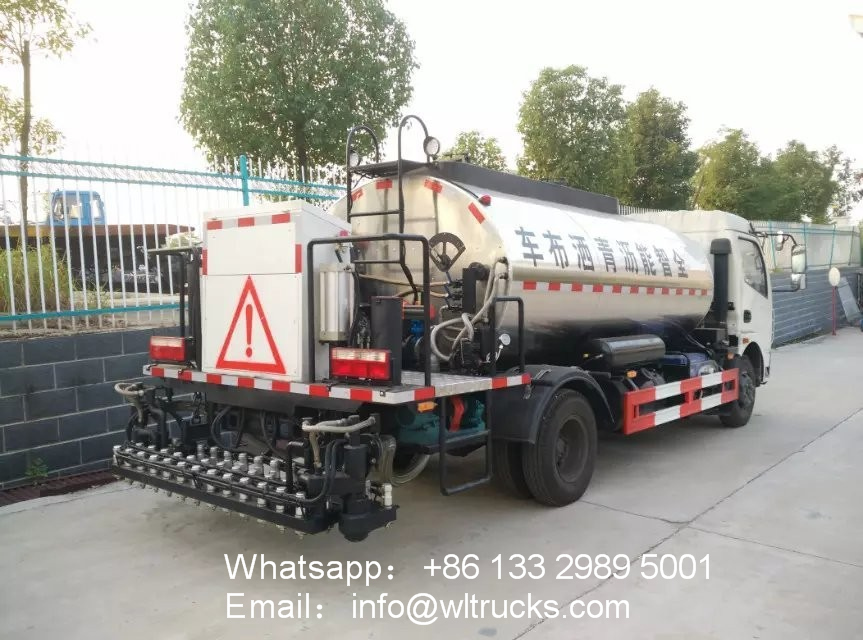

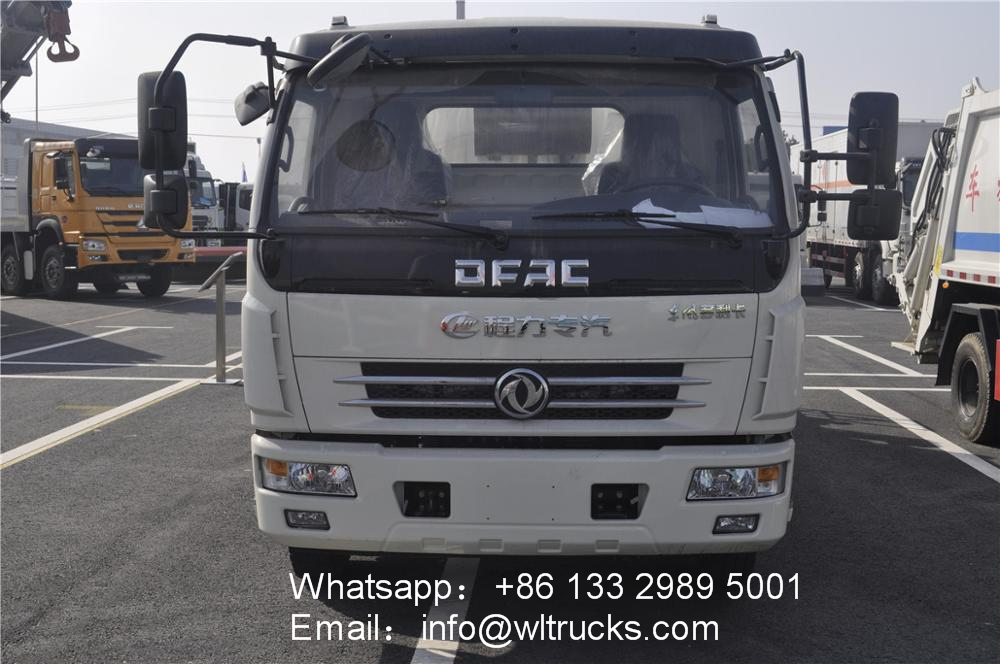

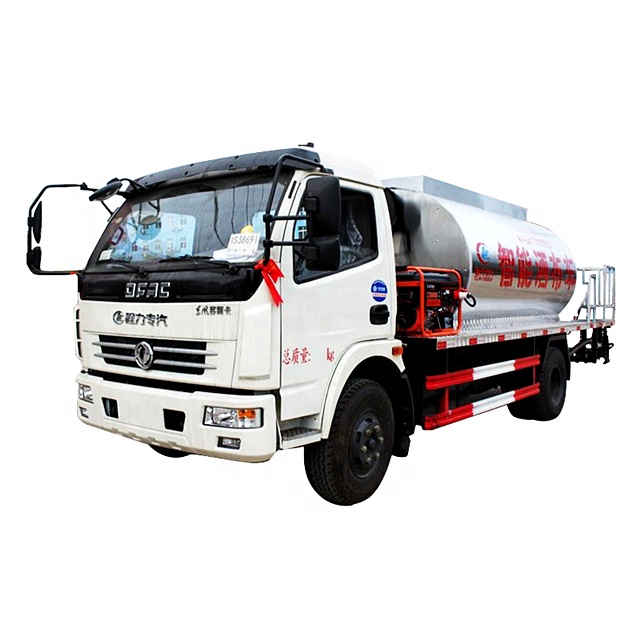

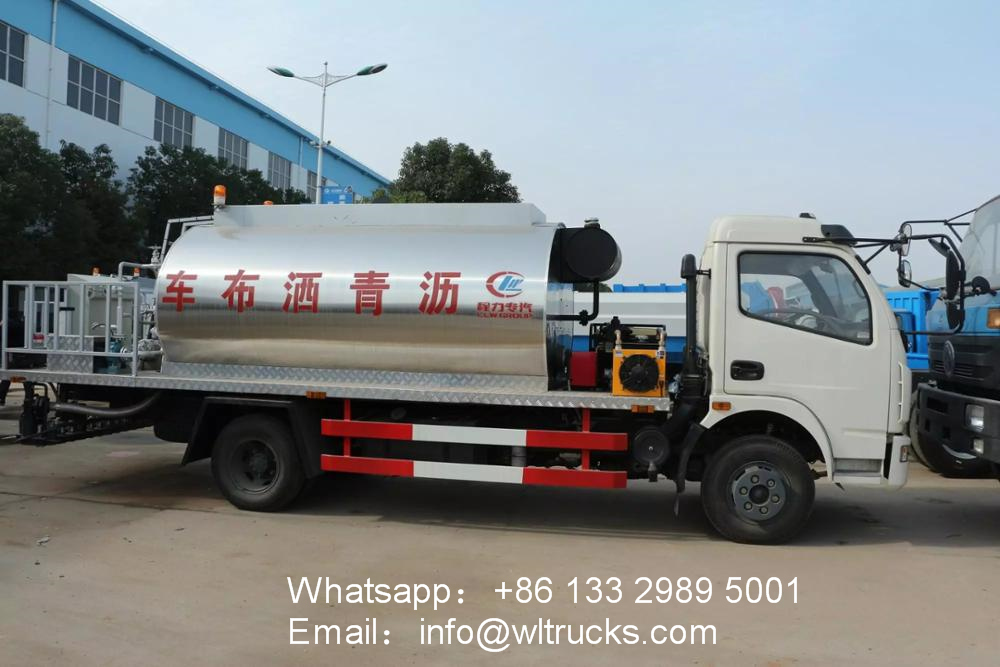

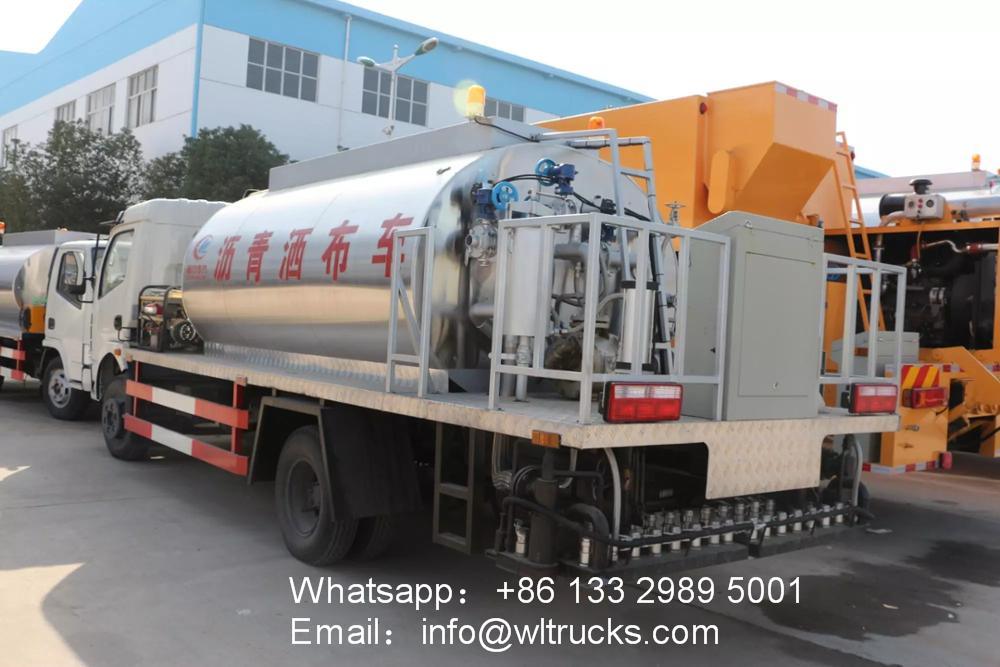

Dongfeng 6000 liter asphalt pothole repair truck
Dongfeng 6000 liter asphalt pothole repair truck Adopt DongFeng Duolika light truck single-row reversible cab, Chaochai 120hp Euro 3 engine in the cloud, a six-speed gearbox, a wheelbase of 3800mm, tires 750-16, and a vehicle size of 7200×2300×2750mm.
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
specification:
|
Model |
DONGFENG 4X2 asphalt repair truck |
|||
|
Vehicle Main Dimensions |
(L x W x H)mm |
7080×2300×2650 |
||
|
Wheel base (mm) |
3800 |
|||
|
Weight in KGS |
Tare Weight |
5600 |
||
|
Loading Weight |
7900 |
|||
|
Max. driving speed(km/h) |
90 |
|||
|
Engine |
Brand |
Dongfeng |
||
|
Model |
ISDE140 30 |
|||
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||
|
Horse Power(HP) |
140HP |
|||
|
Emission standard |
Euro Ⅲ |
|||
|
Gearbox |
5 forwards& 1 reverse |
|||
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|||
|
Tire |
8.50-16 All steel radial tire, 1pc including 1 spare tire |
|||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||
|
Steering Gear |
power steering, hydraulic steering with power assistance |
|||
|
Tanker Body |
||||
|
Volume |
4, 6, 7, 8,9,10,11,12,13,14,15,16,17,18,19,20 CBM |
|||
|
Material |
Q235/Q345/610L/Q700 Carbon steel, Stainless steel, Alloy steel |
|||
|
Dimension |
2300×1427×4800mm |
|||
|
Thickness |
4mm 5mm 6mm 7mm,8mm,9mm,10mm,11mm |
|||
|
Optional |
Pump, Bottom Vavle, Flow Meter |
|||
