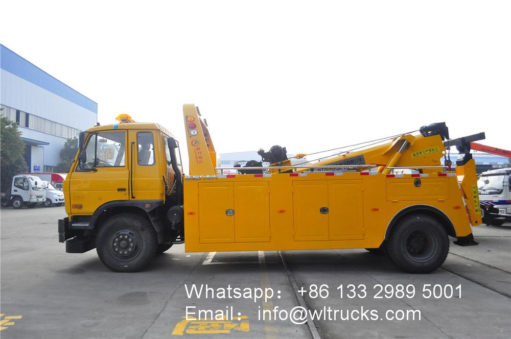

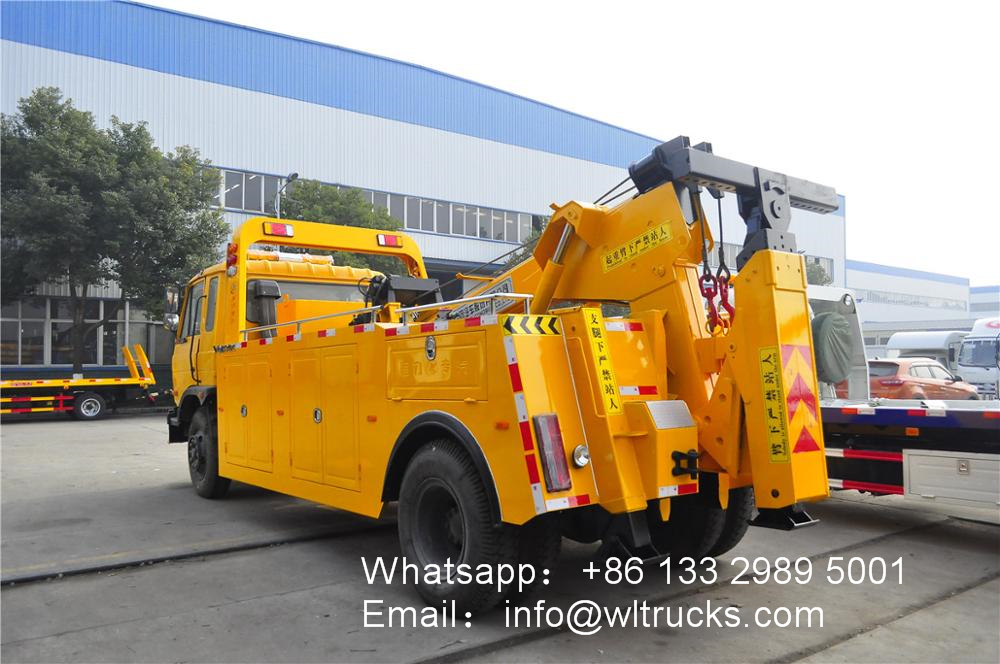

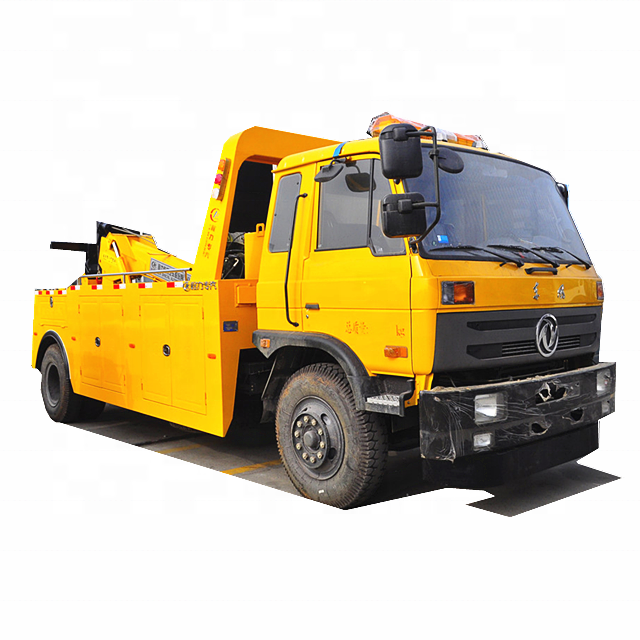

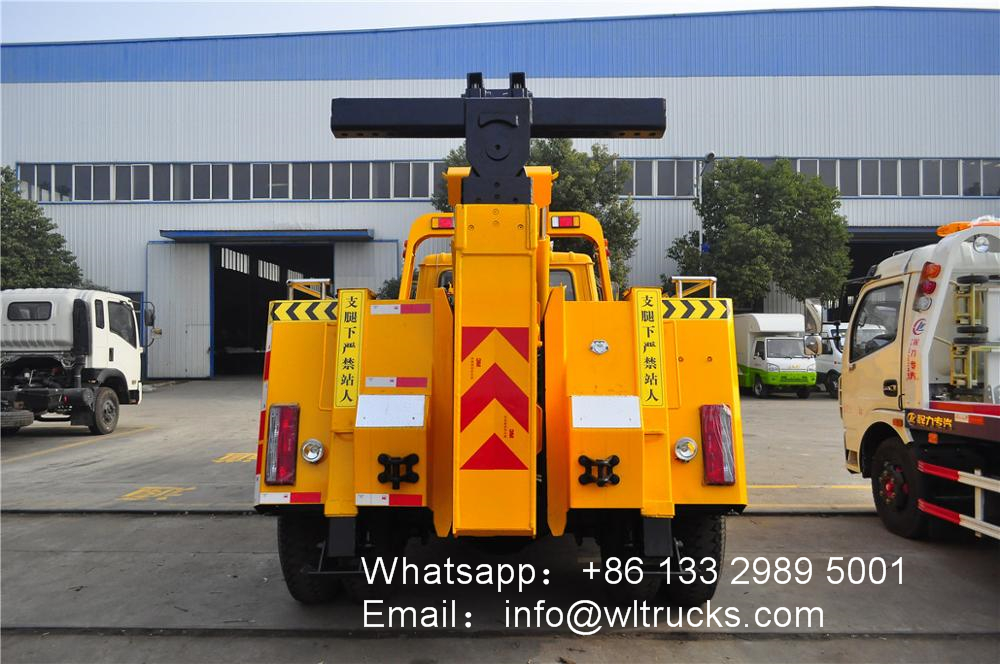

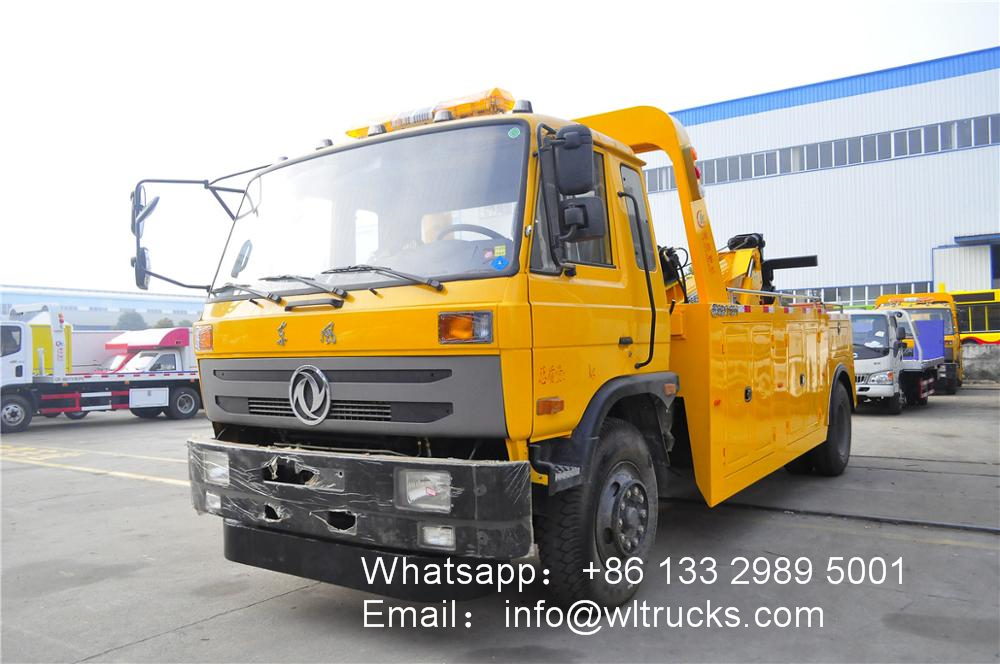

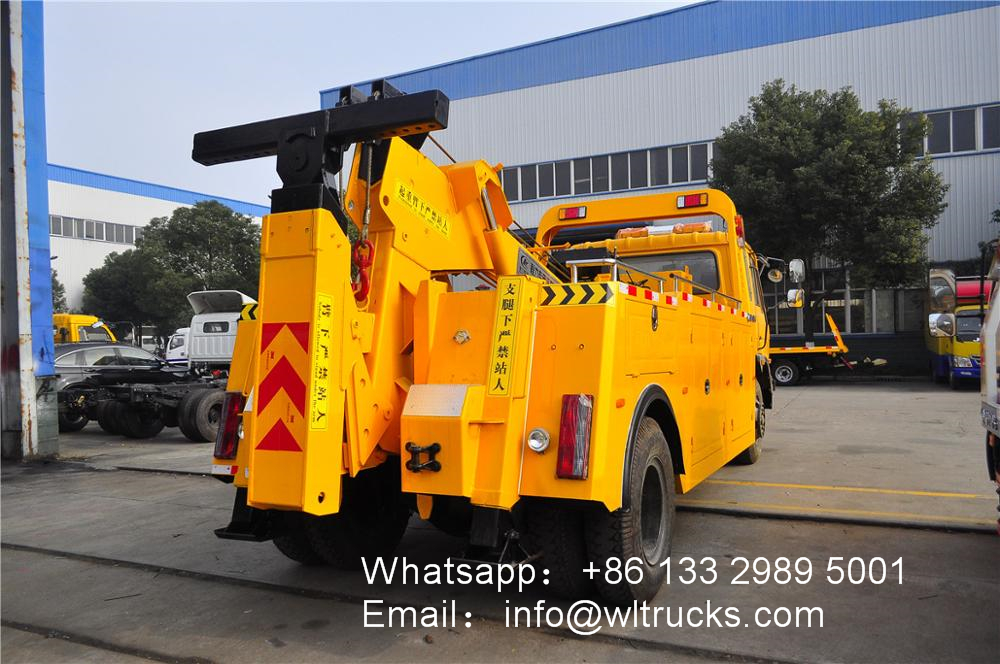

Dongfeng 12ton to 16 ton wrecker towing truck
Dongfeng 12ton to 16 ton wrecker towing truck Chassis：
Adopt Dongfeng 153 old half-row cab, affordable, Cummins 190 horsepower engine, 8-speed gearbox, 5 tons front axle, 10 tons rear axle, wheelbase 4500mm, 10.00 original tires, ABS 250 frame double layer, air brake , Lower protection.
Dongfeng 12ton to 16 ton wrecker towing truck Towing wrecker truck Bodywork：
10 tons of united bodywork, two-section six-sided boom, three-section support arm, split carriage, imported hydraulic system, double-sided linkage operation device, front bumper equipped with counterweights, both in performance and endurance are relatively strong.
Two 8-ton electro-hydraulic winches, 35m steel wire rope, 16mm in diameter, equipped with 4 sets of steel forks, one set of trailers, one set of steel plate lugs, one set of tire holding devices, one set of tools on board, auxiliary light assembly 1 set, 1 set of auxiliary trachea assembly, 1 yellow long row LED engineering warning light.
Dongfeng 12ton to 16 ton wrecker towing truck specification:
|
Vehicle technical parameters
|
|||
|
product name
|
4×2 Dongfeng 10 ton to 15 ton tow truck underlift wrecker
|
Dimensions
|
8.25×2.5×3.2 meters
|
|
Total mass
|
15.9 tons
|
Curb quality
|
12.18 tons
|
|
Hoisting specification
|
16 tons
|
Tops
|
10 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
Special Deal 153
|
Chassis model
|
EQ1168VFJ1
|
|
Number of axes
|
2
|
Number of tires
|
7
|
|
Wheelbase
|
4.7 m / 5.1 m
|
Tire specifications
|
10.00R20
|
|
Gearbox
|
6-speed shift
|
Rear axle
|
10 tons
|
|
Fuel type
|
Diesel
|
brake
|
Air brake
|
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
ISB190 40
|
Dongfeng Cummins
|
5900
|
190 horsepower
|
|
Top basic configuration
|
|||
|
The standard configuration
|
10 tons joint body top, with winch 8 tons x 2 hydraulic winch, 35 meters steel wire rope, 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tire protection devices, a set of vehicle tools, auxiliary lights A set of assemblies, a set of auxiliary air pipe assemblies, with a set of yellow long row engineering lights.
|
||
Dongfeng 12ton to 16 ton wrecker towing truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
