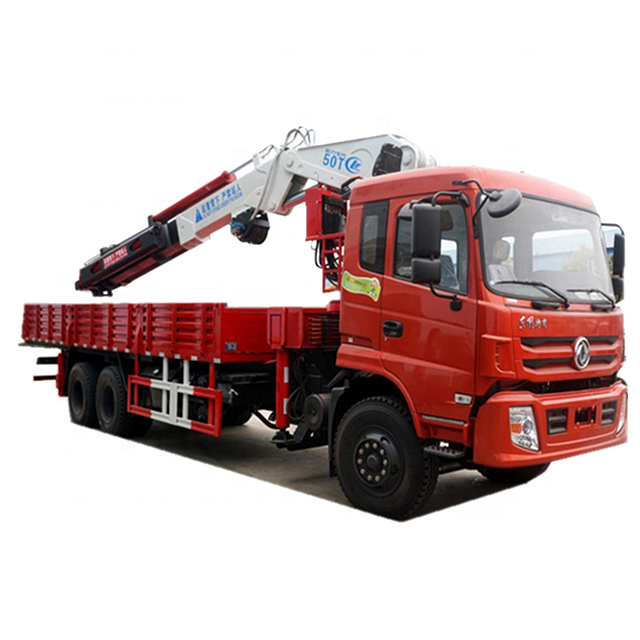

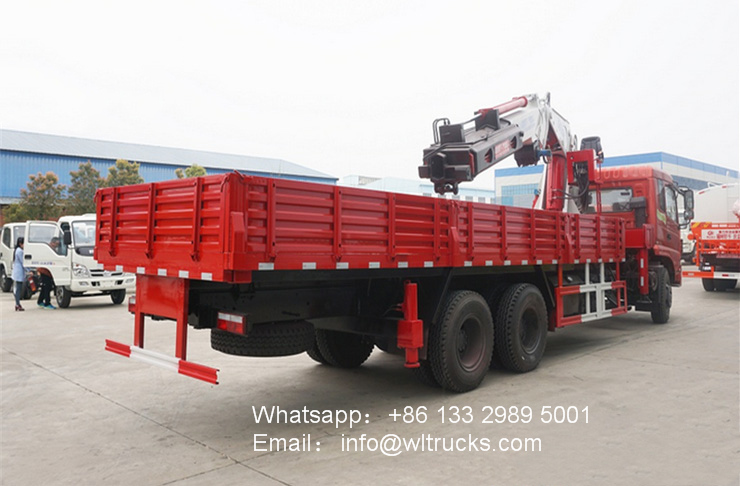

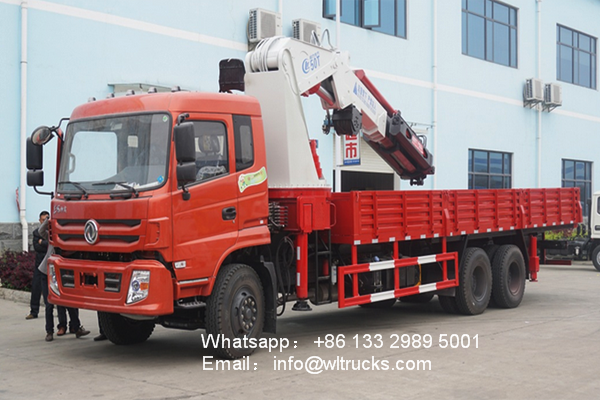

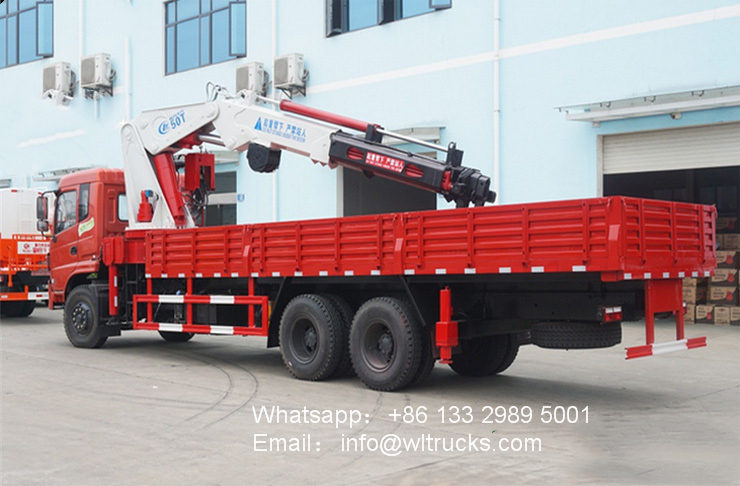

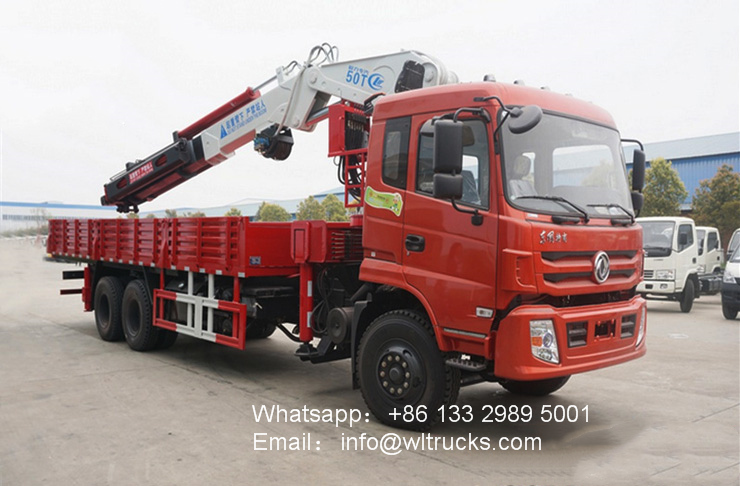

6×4 Dongfeng 50ton Folding Arm truck crane
6×4 Dongfeng 50ton Folding Arm truck crane Adopt Dongfeng Tianjin luxury cab, Cummins 210 horsepower, 8-speed gearbox, wheelbase 4500 + 1300mm, 900-20 tires, compartment size: 8500 * 2400 * 600mm, can be customized manually retractable or hydraulic retractable cargo box can be equipped Ladder, automatic unloading elevator, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
6×4 Dongfeng 50ton Folding Arm truck crane specification:
| Vehicle technical parameters | |||
| Vehicle Brands | Dongfeng | Card type | Crane truck |
| Adaptation crane | 50 tons | Crane brand | Cheng Li |
| Boom form | Folding arm | Cab | Dongfeng |
| engine | 240 horsepower | Gearbox | 10 files |
| Dimensions | 12×2.5×3.98 meters | Total mass | 43 tons |
| Container size | / | Curb quality | 42.87 tons |
| Frame | Special frame for truck crane | Tire model | 12.00 wire tire |
| Axle | 16 tons of rear axle | Braking System | Air brake |
| Wheelbase | 1.8+4.6+1.5 meters | Number of passengers | 2 |
| Displacement | 9726 (ml) | Maximum speed | 80 (km/h) |
| Chengli 50 tons / 60 tons of large truck crane parameters | ||||
| 50 tons of four sections | 60 tons and six sections | |||
| Lifting capacity (kg) | 50000 | 60000 | ||
| Farest lifting weight(kg) | 10000 | 12000 | ||
| Working radius (m) | 10.5 | 15.5 | ||
| Lifting height (m) | 14 | 19 | ||
| Crane weight (kg) | / | / | ||
| Leg span (mm) | / | / | ||
| Swing angle | 360 degree full swing | 360 degree full swing | 360 degree full swing | 360 degree full swing |
| product name | Cheng Li 50 tons truck crane | Cheng Li 80 tons truck crane | Chengli 120 tons truck crane | Cheng Li 25 tons truck crane |
| engine | Heavy truck 340 horsepower | Heavy truck 340 horsepower | Heavy truck 380 horsepower | Heavy truck 340 horsepower |
| Gearbox | 10 files | 10 files | 10 files | 10 files |
| Dimensions (mm) | 12000x2500x3980 | 12000x2500x3980 | 11500x2500x3980 | 12000x2500x3980 |
| Container size (mm) | / | / | / | / |
| Total mass (kg) | 43000 | 43000 | 50000 | 43000 |
| Curing quality (kg) | 42870 | 42870 | 49870 | 42870 |
| Front and rear axle | Front axle 9 tons / rear axle 16 tons | Front axle 9 tons / rear axle 16 tons | Front axle 9 tons / rear axle 16 tons | Front axle 9 tons / rear axle 16 tons |
| Tire specifications | 12.00 wire tire | 12.00 wire tire | 12.00 wire tire | 12.00 wire tire |
| Braking System | Air brake | Air brake | Air brake | Air brake |
| Wheelbase (mm) | 1800+4600+1350 | 1800+4600+1350 | 1950+3075+1375+1350 | 1800+4600+1350 |
| Adaptation crane | 50 tons / 60 tons | 80 tons / 90 tons | 100 tons / 120 tons | 20 tons / 25 tons |
6×4 Dongfeng 50ton Folding Arm truck crane Working parameter:
